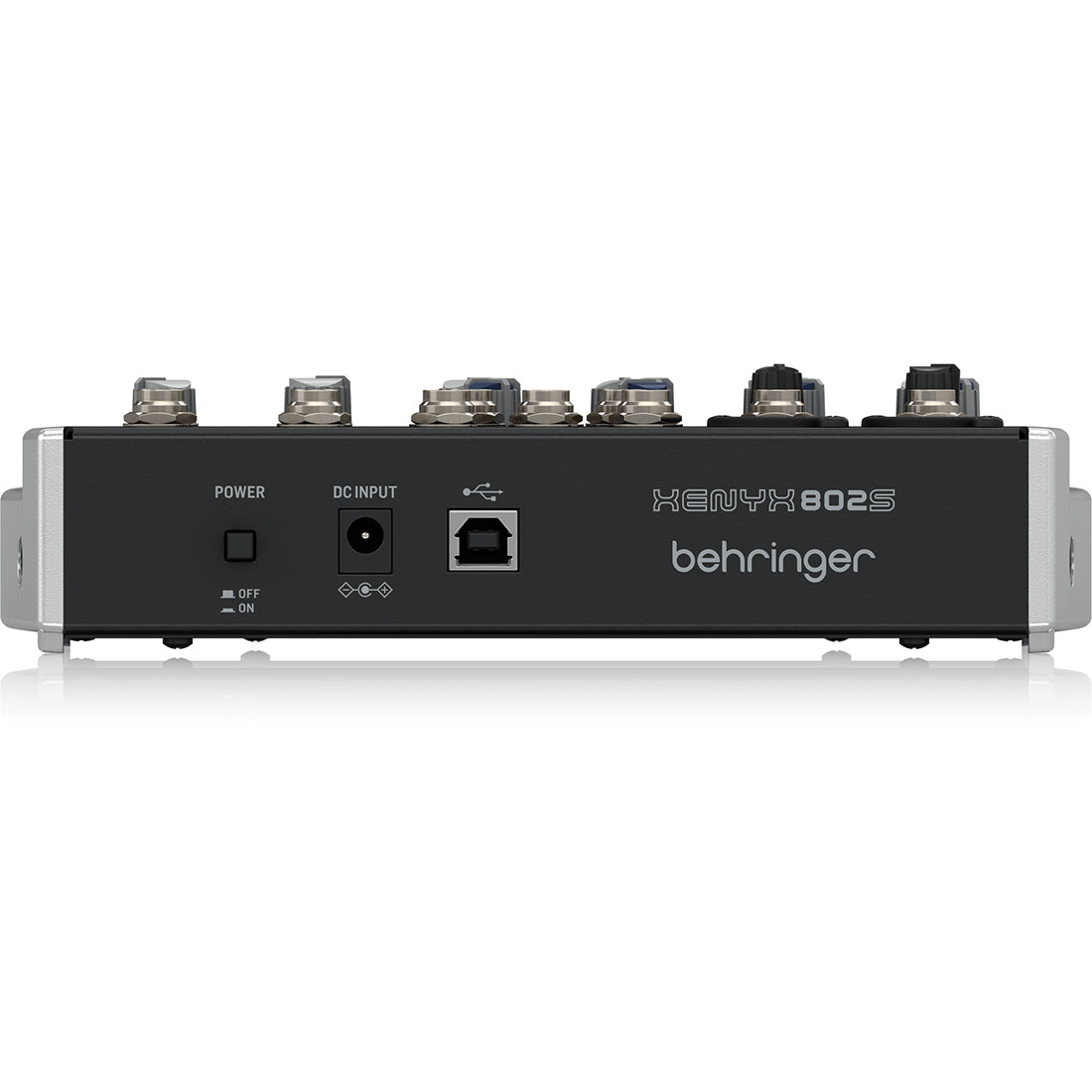

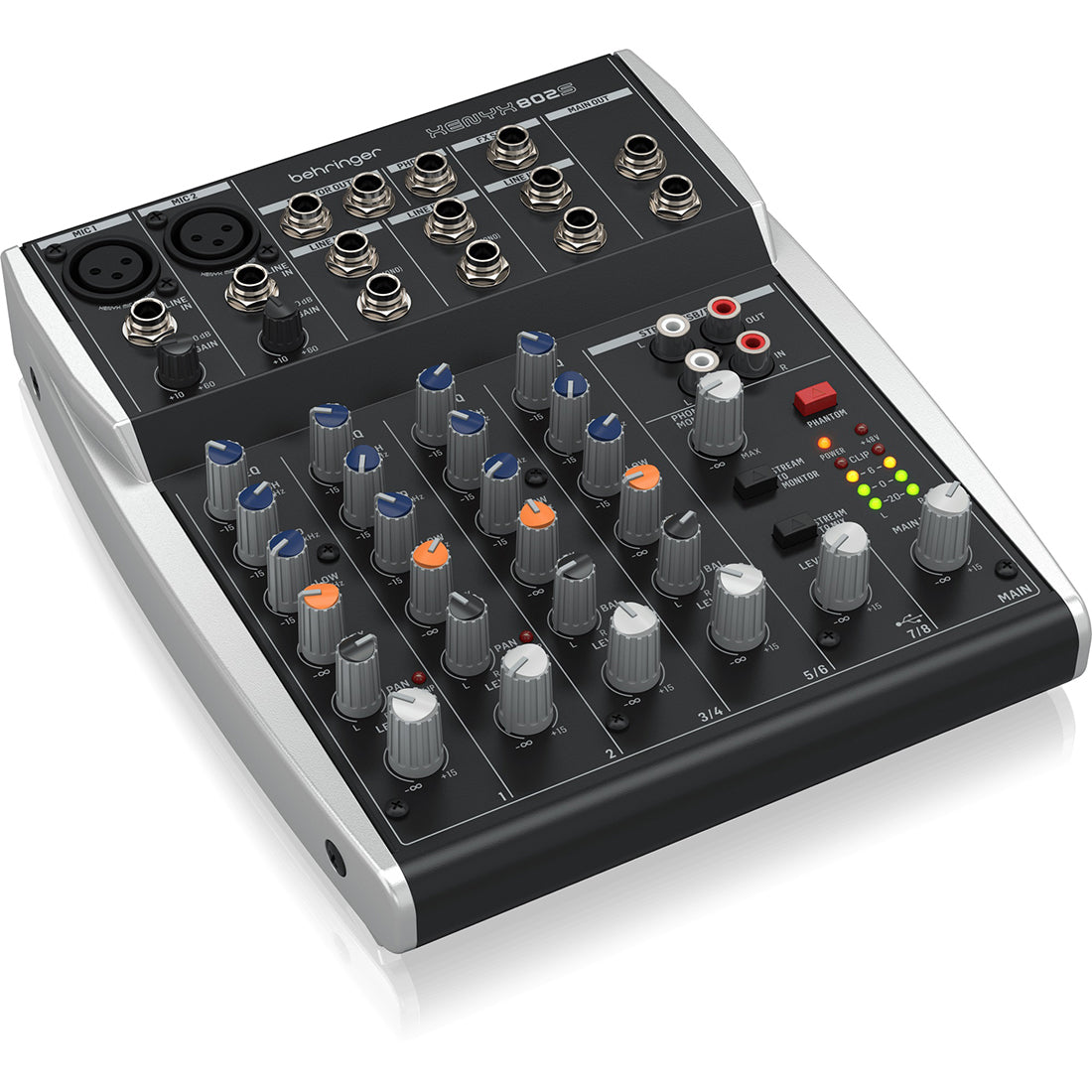

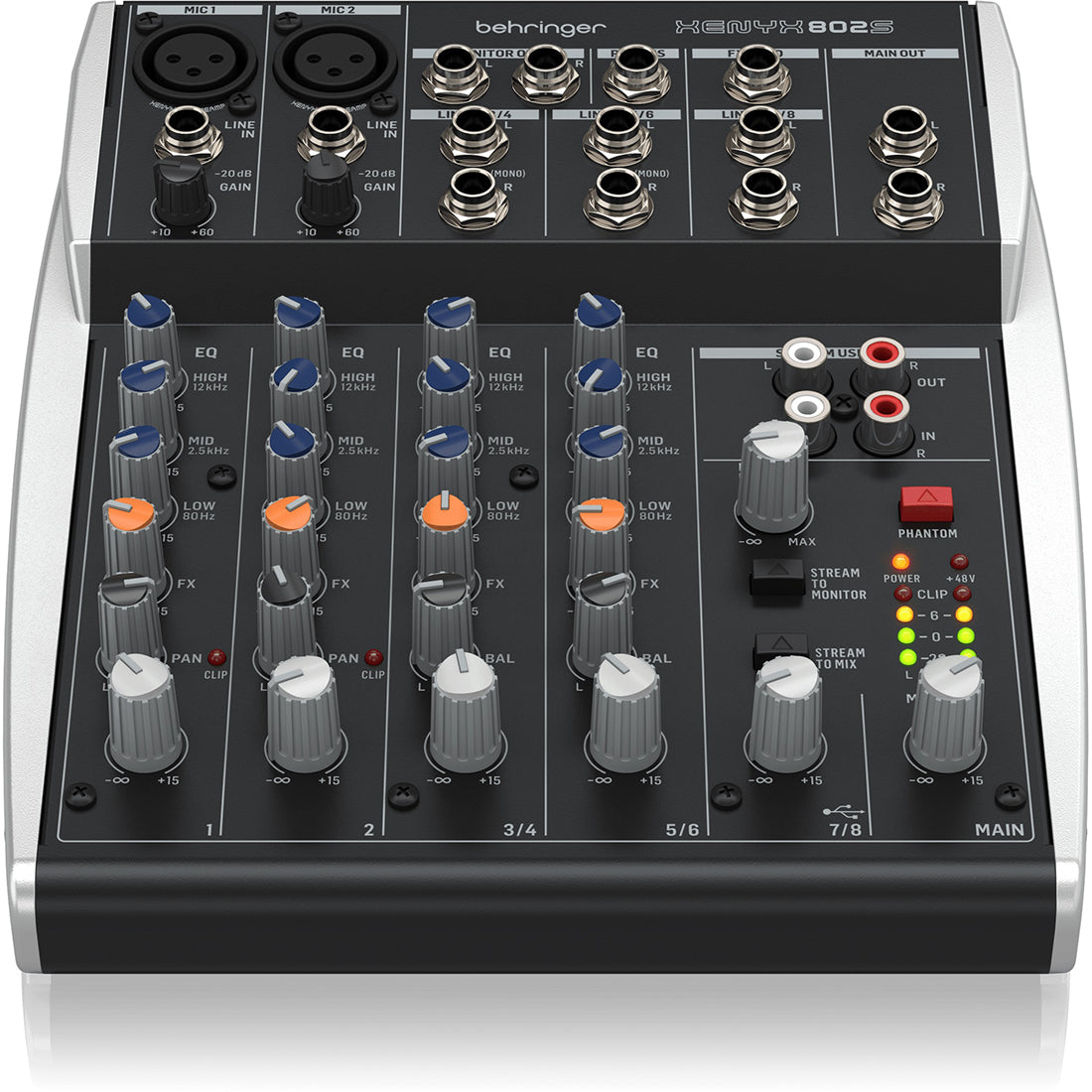

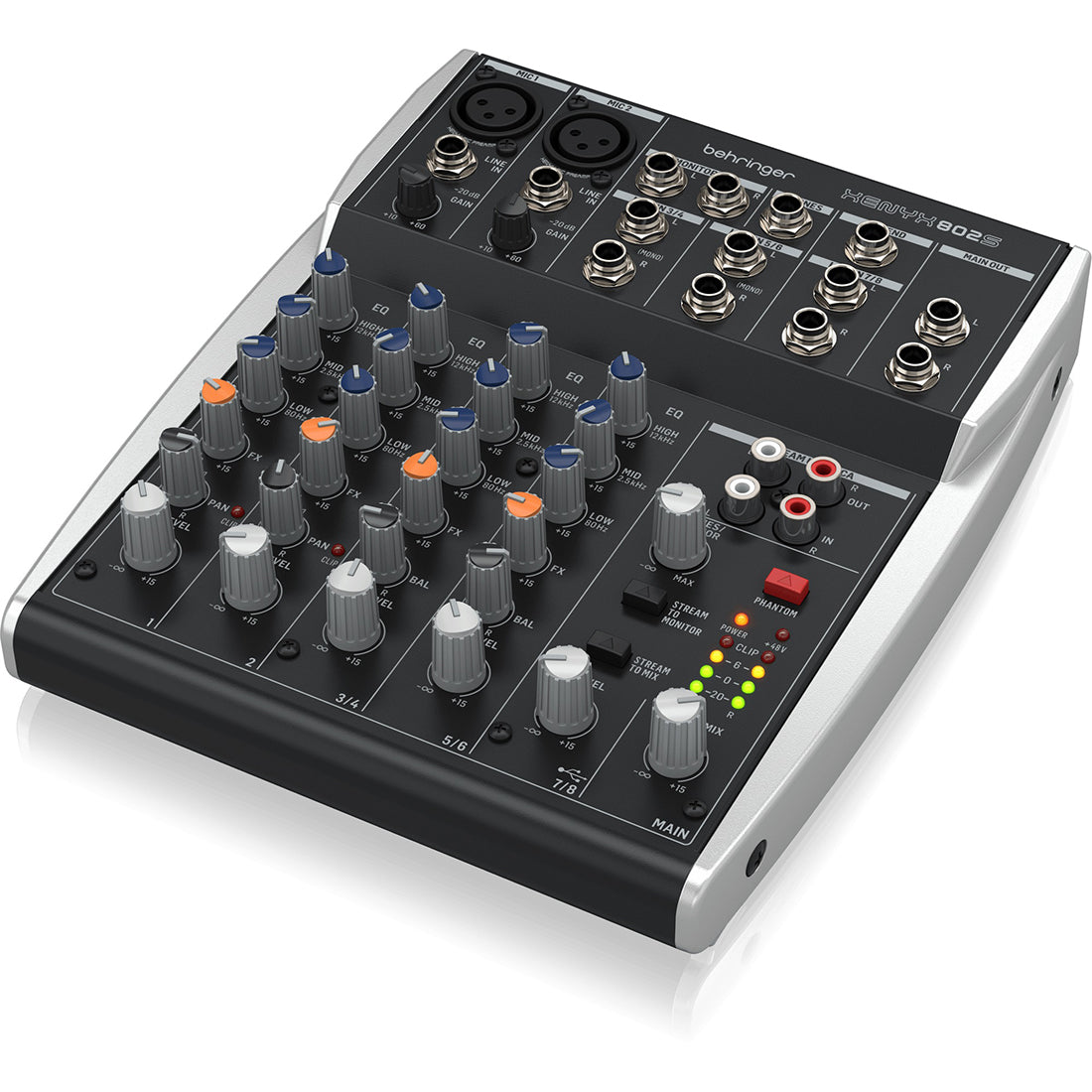

Behringer XENYX 802S Streaming Mixer

Premium Analog 8-Input Mixer with USB Streaming Interface

Features

• Ultra-low noise analog mixer for streaming, podcasting and recording

• 2 Award winning XENYX microphone preamps for warm and musical sound

• Stereo USB audio interface to connect to your computer or mobile device

• Direct mixing of PC/gaming sounds into the streaming output

• Analog mixing and equalization for pure sound

• Versatile sub mixer for network enabled audio devices

• Stereo channel 7/8 automatically switches between TRS input and USB playback

• 3-band EQs for warm and musical sound

• FX send control per channel for external FX processor or monitoring mix

• High-quality monitoring, phones and streaming outputs

• Stereo RCA inputs assignable to main mix or monitor/phones outputs


Specifications

Microphone Input	Balanced XLR, discrete input circuit Mic EIN (22 Hz-22 kHz) @ 50 Ω: 132 dB
	A-weighted Frequency response Gain +10 dB: 10 Hz to 150 kHz Frequency
	response Gain +60 dB: 20 Hz to 70 kHz Gain range: +10 dB to +60 dB Max
	input level @ +10 dB Gain: +12 dBu Input Impedance: 2 kΩ balanced
	Distortion (THD + N) 1 kHz @ +10 dB Gain: 0.005%
Mono Line Inputs	1/4" TRS connector balanced Impedance: 22 kΩ balanced, 10 kΩ unbalanced
	Gain range: -10 dB to +40 dB Max input level @ 0 dB Gain: +21 dBu
Stereo Line	1/4" TRS connector balanced Frequency response: 20 Hz to 200 kHz
	Impedance: 22 kΩ balanced, 10 kΩ unbalanced Max input level @ 0 dB
	Gain: +21 dBu
STREAM Inputs (Analog)	RCA connector unbalanced Impedance: 10 kΩ unbalanced Max input level: 10 dBu
Low	80 Hz/±15 dB
Mid	2.5 kHz/±15 dB
High	12 kHz/±15 dB
Type	1/4" TRS connector impedance-balanced
Impedance	120 Ω
Max output level	21 dBu
Type	1/4" TRS connector unbalanced
Impedance	23 Ω
Max output level	19 dBu/150 Ω
Type	RCA connector unbalanced
Impedance	1 kΩ unbalanced
Max output level	10 dBu
Main Mix @ -∞	-109 dBu A-weighted'
Channel @ -∞	-109 dBu A-weighted'
Type	Type-B connector
USB Audio Data	48 kHz 16 bit
UAC2 Class Compliant	stereo in/out
Power Consumption	12 W
Adaptor input	100 - 240 V~, 50/60 Hz, 0.5 A
Adaptor output	18 V DC 1.0 A
