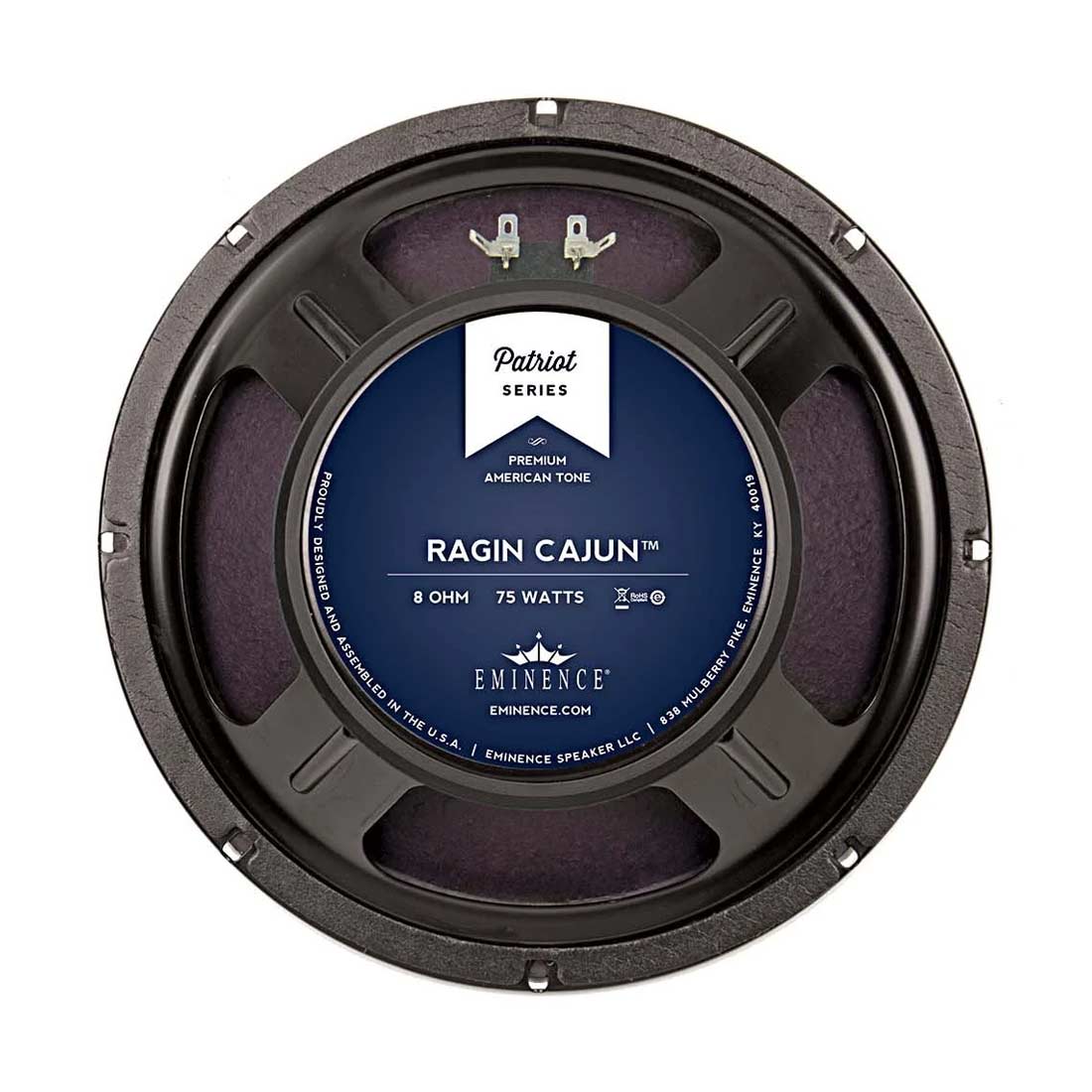

Eminence RAGINCAJUN 10in Guitar Speaker 75w 8 Ohm

The Eminence Ragin Cajun guitar speaker puts you in control to be heard loud and clear. Very loud, touch sensitive and responsive with nice bell sounding top end and a little bite.

Characteristics

Series	Patriots
Model	Ragin Cajun
Application	10" Open or Closed Back
Configuration	1, 2, or 4 X 10"
Low End Response	Aggressive
Low End Shape	Chunky
Mid-Range Response	Moderate
Mid-Range Shape	Crisp
High-End Response	Aggressive
Volume/Power	Loudest
Overall Coloration*	Very loud, touch sensitive and responsive with nice bell sounding top end and a little bite.
Break-up Modes	Medium
Power Range	Up to 75 watts
Instrument*	Lead/Rhythm Guitar
Genre of Music*	American Rock, Blues, and Country

Specifications

SPECIFICATION
Nominal Basket Diameter	10", 254 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	75 W
Resonance	84 Hz
Usable Frequency Range	80 Hz - 5 kHz
Sensitivity*	100.5 dB
Magnet Weight	30 oz.
Gap Height	0.312", 7.9 mm
Voice Coil Diameter	1.5", 38 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	84 Hz
DC Resistance (Re)	7.01 Ω
Coil Inductance (Le)	0.38m H
Mechanical Q (Qms)	11.42
Electromagnetic Q (Qes)	0.54
Total Q (Qts)	0.51
Compliance Equivalent Volume (Vas)	34.1 liters / 1.2 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	17.6 cc
Mechanical Compliance of Suspension (Cms)	0.18 mm/N
BL Product (BL)	11.8 T-M
Diaphragm Mass Inc. Airload (MMs)	20 grams
Efficiency Bandwidth Product (EBP)	156
Maximum Linear Excursion (Xmax)	0.48 mm
Surface Area of Cone (Sd)	366.1 cm2
Maximum Mechanical Limit (Xlim)	N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	Acceptable
Vented	Acceptable
Driver Volume Displaced	0.039 cu.ft. / 1.1 liters
Overall Diameter	10.11", 256.8 mm
Baffle Hole Diameter	9.13", 231.9 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.23", 5.8mm
Mounting Holes B.C.D.	9.6", 243.8mm
Depth	3.8", 96.5 mm
Net Weight	6.4 lbs, 2.9 kg
Shipping Weight	8.2 lbs, 3.72 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Polyimide former
Magnet Composition	Ferrite magnet
Core Details	Non-vented core
Basket Materials	Pressed steel basket
Cone Composition	Paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Zurette dust cap
