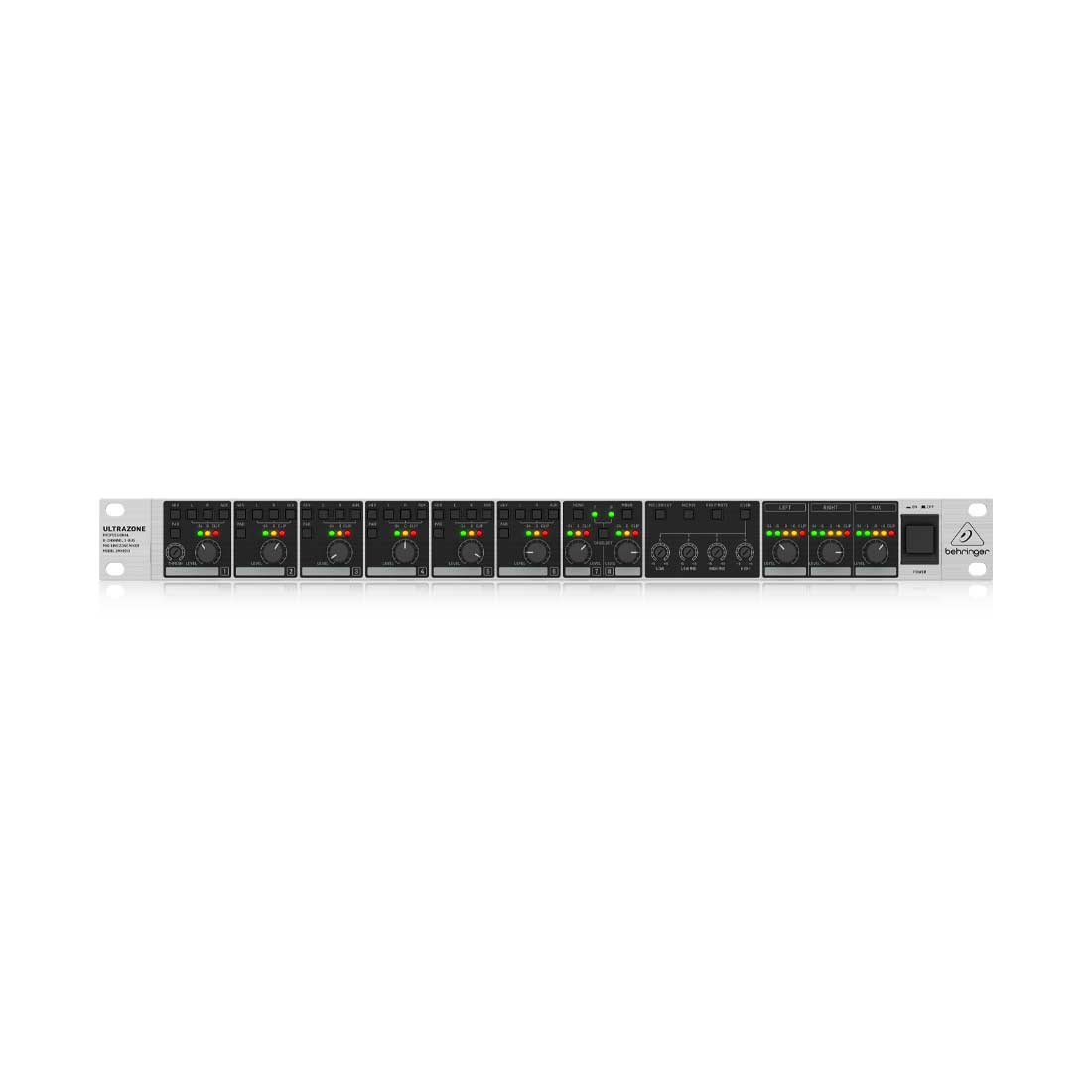

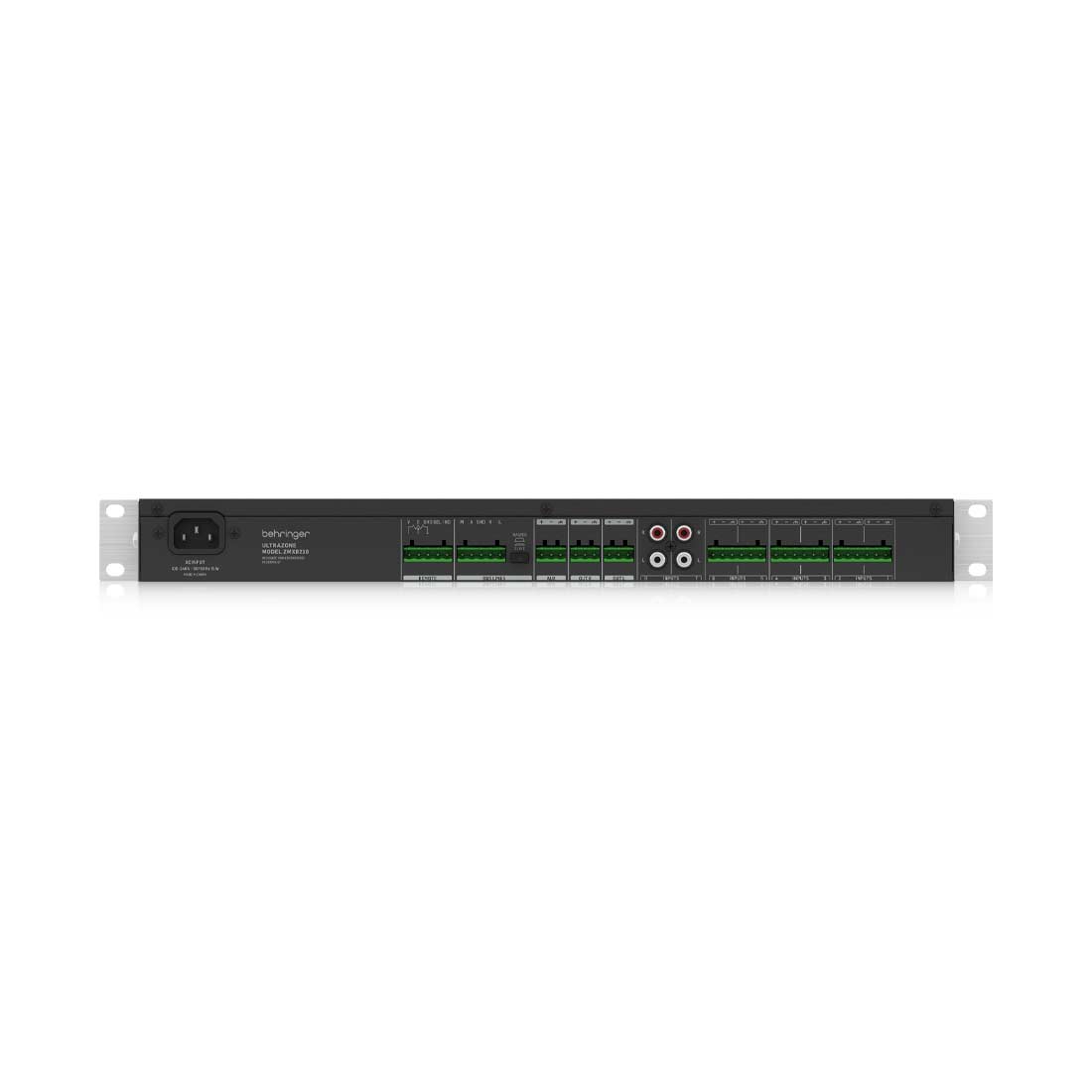

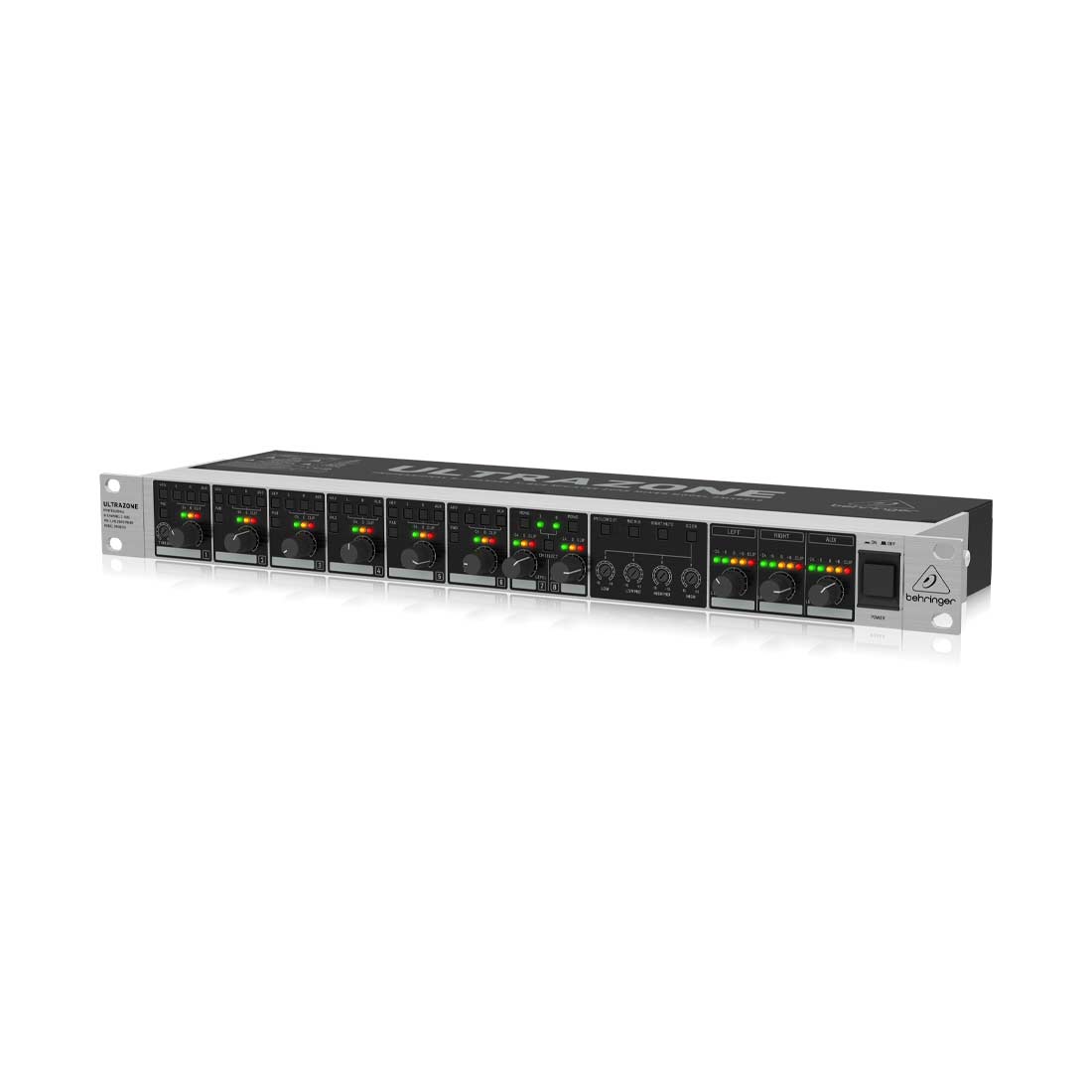

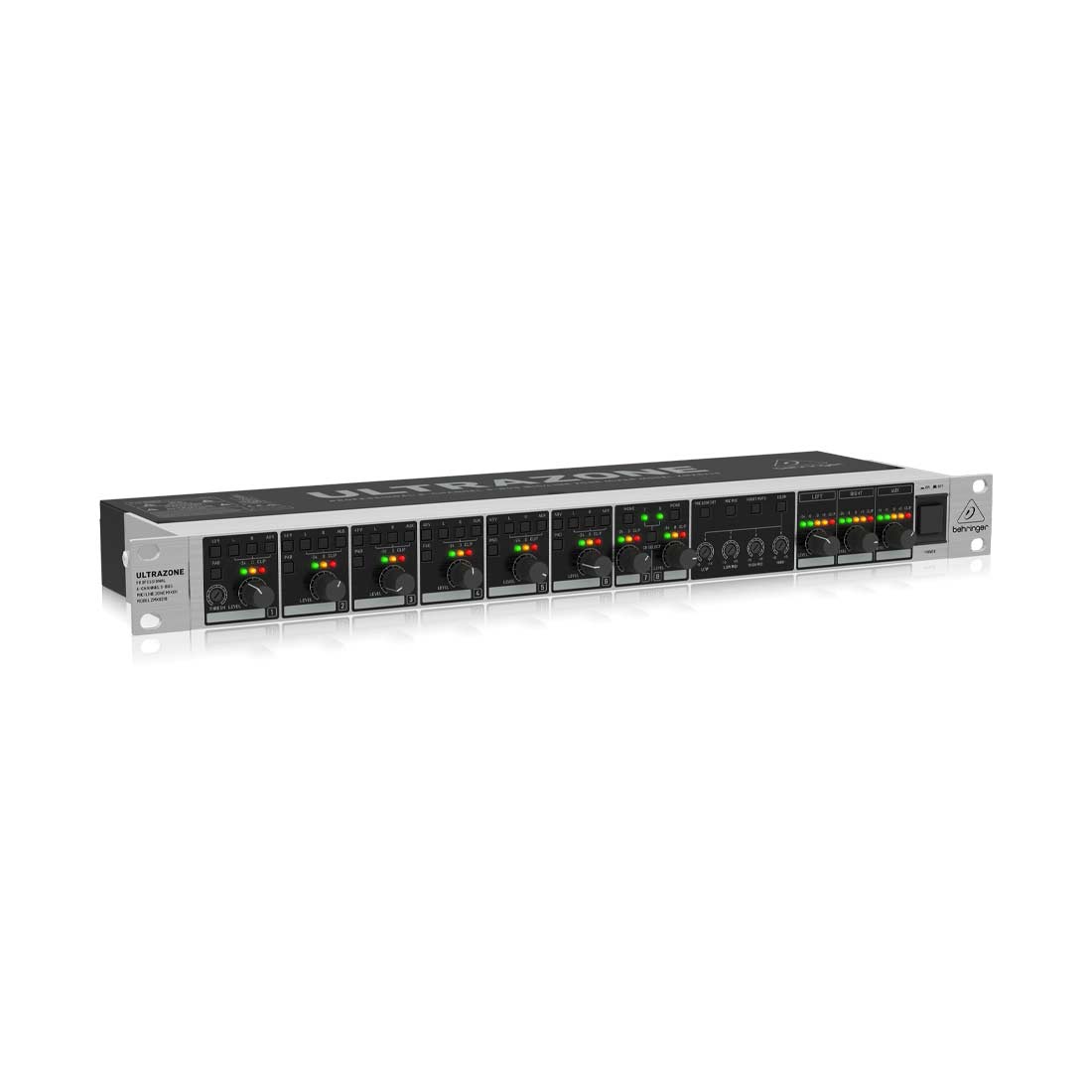

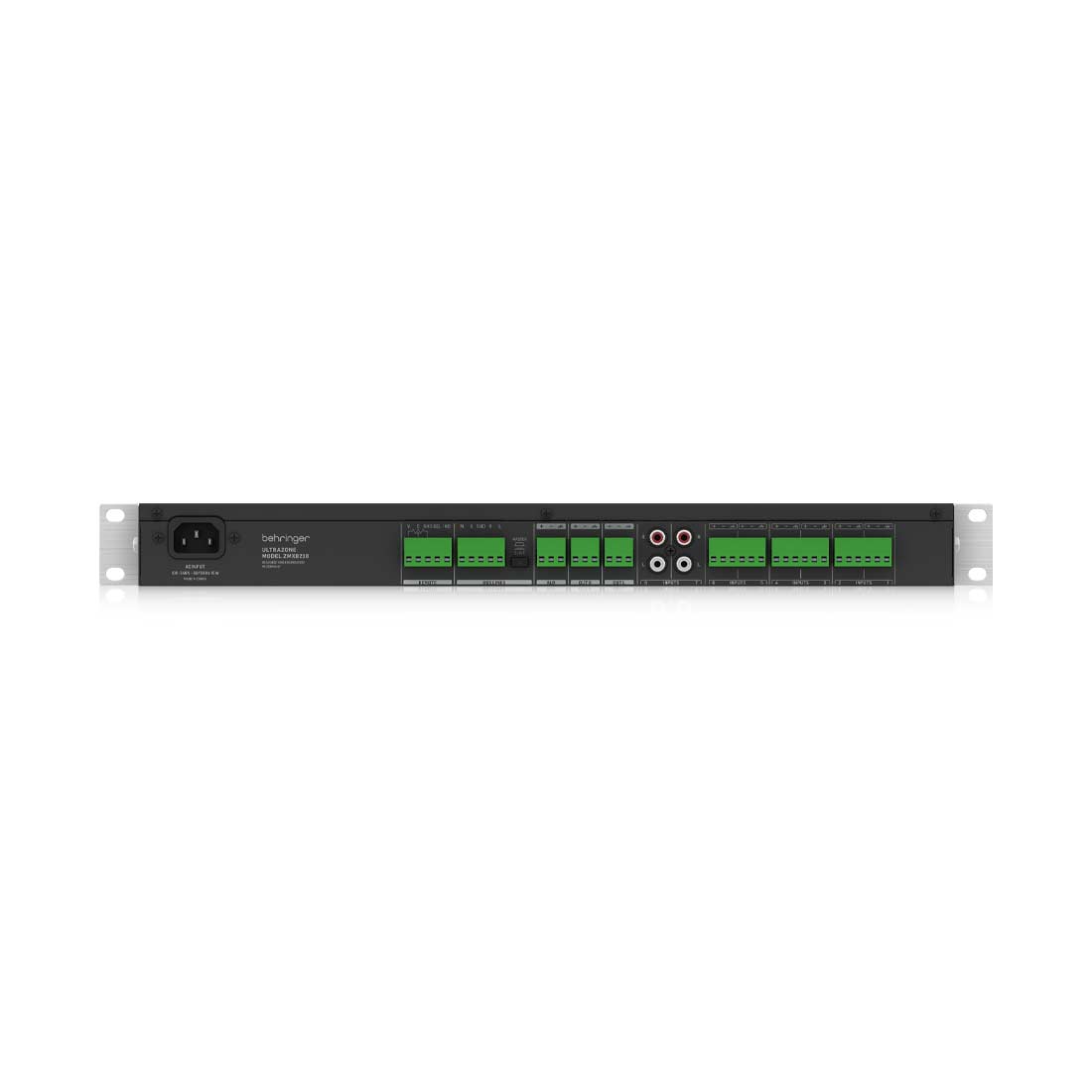

    Behringer ZMX8210 Professional 8-Channel 3-Bus Mic A/Line Zone Mixer with Remote Control and Link Ports

    Regular price $269.00
    Ships From Warehouse (May be subject to backorder)

    SKU: 450535

    Professional 8-Channel 3-Bus Mic/Line Zone Mixer with Remote Control and Link Ports

    • Ultra-flexible and easy-to-use zone mixer with remote control ports for commercial sound systems and fixed installation applications

    • 6 ultra-low noise Mic/Line inputs with Gain control, -20 dB Pad, Level/Clip indicator, +48 V phantom power and bus-assign switches

    • 2 selectable high-headroom stereo inputs with mono/stereo switch

    • Channel 1 provides variable threshold to enable automatic bus mute for announcements, etc.

    • 3 assignable outputs (Left, Right and Aux) with individual Master controls and 5-segment LED meters

    • Ultra-musical 4-band master EQ and global microphone low-cut filter for perfect sound adjustment

    • Left, Right, Aux and Mute bus links available including Master/Slave switch for connecting multiple units

    • Remote master Left/Right level control port for ultimate flexibility

    • Select switch for routing microphone bus post remote control

    • Integrated channel muting system with Priority select

    • Inputs/outputs on Euroblock and RCA connectors

    • Internal switch-mode power supply (100 - 240 V~) for noise-free audio and low power consumption

    ULTRAZONE ZMX8210 V2

    A professional 8-channel audio mixer designed specifically for fixed installations, the rack-mountable ULTRAZONE ZMX8210 zone mixer can distribute your music programming and announcements to up to three zones (rooms). Typical applications include restaurants, office spaces, health clubs and houses of worship, just to name a few.

    Applications

    The ZMX8210 lets you take up to 8 input signals and route them to any, or all of 3 destinations. Maybe you want to play stereo music for clients waiting in the lobby of your office complex and page people in the work area. Another example might be the small church that wants to play soft music in the foyer, mic the preacher in the sanctuary, then send the sermon and music to the nursery. These are all perfect applications for the ZMX8210 – multiple sound sources, multiple zones, total flexibility!

    Here are some examples of the ZMX8210 mixer in action – let’s say you own a restaurant and want to:

    • Play the audio from the televised game in the bar
    • Present soft background music in the dining area
    • Play up-tempo music in the lobby/waiting area and page patrons

    The ULTRAZONE ZMX8210 is the ideal way to create the perfect environment for your customers, or even for distributing music throughout your own home.

    Announcements That Get Heard

    You can also set the ZMX8210 to automatically lower the volume level of the program music in specific zones during announcements. Referred to as “ducking”, this feature allows the voice message to take precedence over the musical program, without turning the music off completely. This ensures that even the softest voice will be heard in the selected zone(s). As an added benefit, remote volume controls can be installed in areas where even more control is needed.

    Superior Sound Quality and Value

    You can use any microphone with the ZMX8210 including professional-grade condenser mics, thanks to the onboard phantom power. The 8 Inputs feature high-quality mic preamplifiers for absolutely pristine sound quality. A master 4-band equalizer is provided to ensure voice intelligibility and address any potential feedback. And if you need more than 8 channels, two ZMX8210s can be linked together to provide a total of 16 inputs.

    Thanks to its intuitive control panel, even inexperienced users will find the ZMX8210 easy to operate and its professional features will give you total control over your sonic environment – and the ZMX8210 is ultra-affordable. Pick one up at your local Behringer dealer, or order the incredible ULTRAZONE ZMX8210 online today!

    Inputs 1 – 6

    Type

    Euroblock connector, balanced

    Impedance

    5 kΩ balanced, 2.5 kΩ unbalanced

    Maximum input level

    +12 dBu (with Pad)

    Maximum gain

     40 dB

    Pad

    -20 dB

    Crosstalk

    -63 dB @ 1 kHz

    Common-mode rejection ratio (CMRR)

    > 70 dB @ 1 kHz, 22 Hz – 22 kHz


    Equivalent input noise (EIN)

    -116 dBu, A-weighted;  terminated with 150 Ω

    Inputs 7 – 8

    Type

    RCA connector, unbalanced

    Impedance

     20 kΩ, unbalanced

    Maximum input level

    +10 dBu

    Maximum gain

    13 dB

    Out L / Out R / Aux

    Type

    Euroblock connector, balanced

    Impedance

    120 Ω balanced, 60 Ω unbalanced

    Max. gain

     18 dB

    Max. gain (input / output)

    58 dB (without Pad)

    Maximum output level

    +21 dBu

    Crosstalk (output / output)

    -63 dB @ 1 kHz

    Noise (All level controls down)

    -105 dBu, A-weighted

    Signal-to-noise ratio

    87 dB @ 0 dB, A-weighted

    Bus Links

    Type

    Euroblock connector, unbalanced

    Impedance

    2.7 kΩ

    Maximum output level

    +14 dBu

    Remote

    Type

    Euroblock connector

    Volume control

    "30 dB attenuation with  10 kΩ potentionmeter (not included) 60 dB attenuation with  100 kΩ potentionmeter (not included)"

    Channel select 7 / 8

    Push-button switch required (not included)

    Equalizer Section

    Mic low cut

    100 Hz, 18 dB/oct. high-pass filter, Butterworth

    Low

    ±15 dB @ 70 Hz, shelving

    Low mid

    ±15 dB @ 300 Hz

    High mid

    ±15 dB @ 3 kHz

    High

    ±15 dB @ 10 kHz, shelving

    System Specifications

    Frequency response

    20 Hz to 22 kHz, ±0.5 dB

    Distortion (THD+N)

    < 0.05 %

    Power supply, Voltage, Current Consumption

    Switch mode power supply

    Autorange, 100-240 V~ 50/60 Hz

    Power consumption

    15 W

    Main connection

    Standard IEC receptacle

    Dimensions / Weight

    Dimensions (H x W x D)

    44 x 483 x 153 mm (1.7 x 19.0 x 6.0")

    Weight

     1.7 kg (3.7 lbs)
