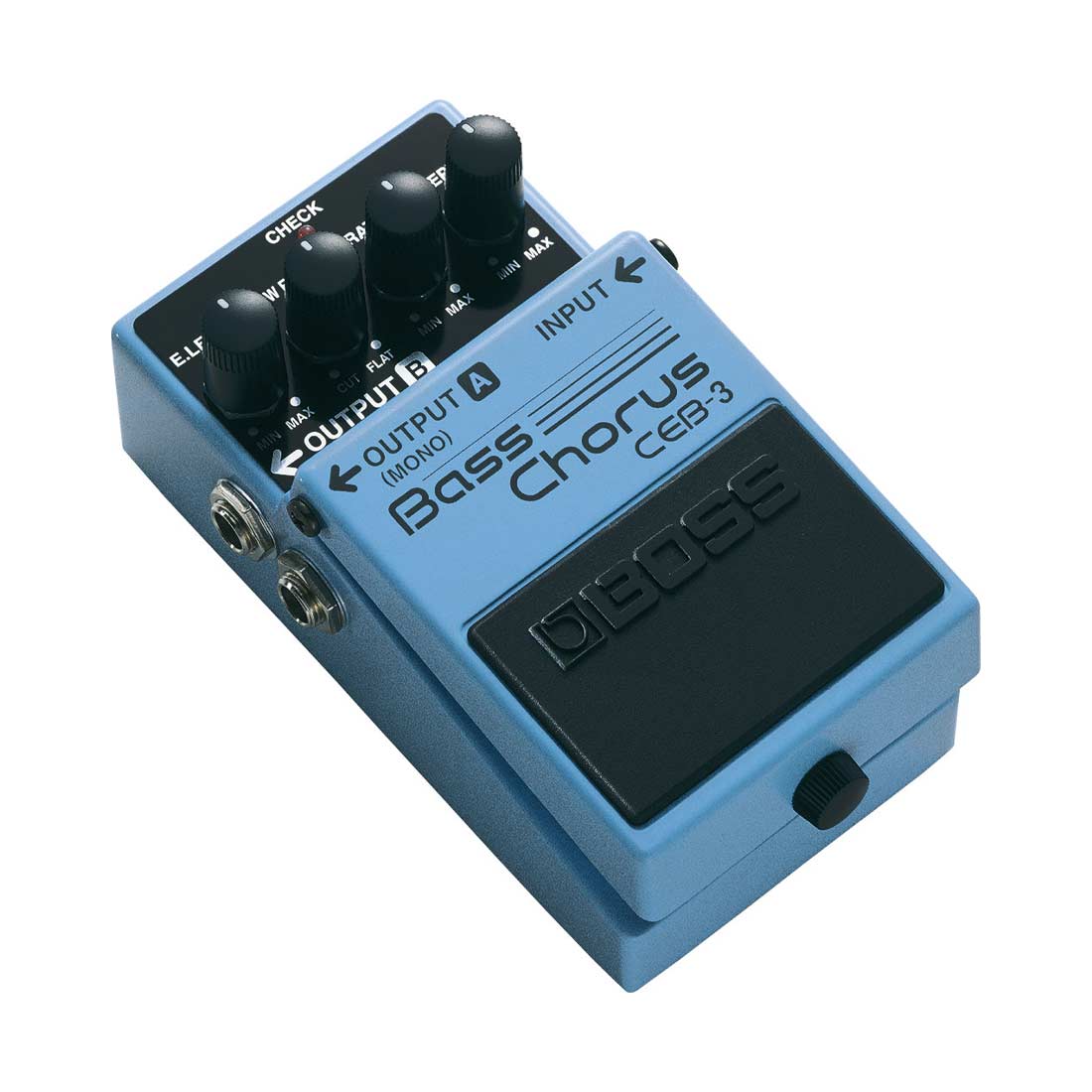

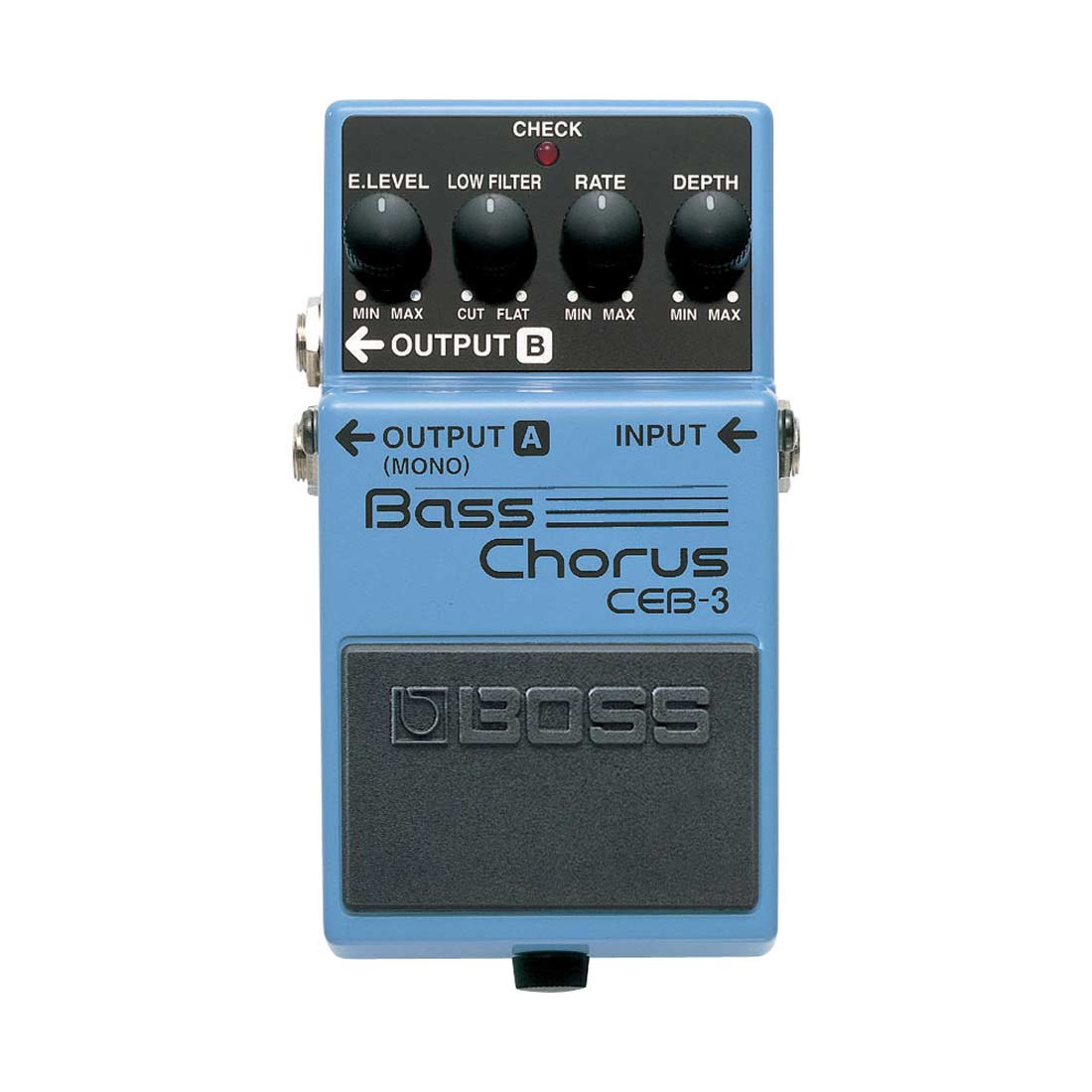

Boss CEB3 Bass Chorus Pedal

Overview

A Chorus Pedal with Built-in Crossover

The CEB-3 Bass Chorus pedal offers a split-frequency chorus effect capable of applying warm, rich chorusing to the higher frequencies without muddying up the lows. It's the perfect chorus pedal for bassists.

Specifications

Nominal Input Level	-20 dBu
Input Impedance	1 M ohm
Nominal Output Level	-20 dBu
Output Impedance	1 k ohm
Recommended Load Impedance	10 k ohms or greater
Bypass	Buffered bypass
Controls	DEPTH (Modulation depth) knob RATE (Modulation rate) knob LOW FILTER knob E.LEVEL knob Pedal switch
Indicator	CHECK indicator (Used for indication of check battery))
Connectors	INPUT jack: 1/4-inch phone type OUTPUT A (MONO) jack: 1/4-inch phone type OUTPUT B jack: 1/4-inch phone type DC IN jack
Power Supply	Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately)
Current Draw	55 mA
Expected battery life under continuous use	Alkaline: Approx. 6 hours *These figures will vary depending on the actual conditions of use.
Accessories	Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9 V, 6LR61)
Option (sold separately)	AC adaptor: PSA series Parallel DC Cord: PCS-20A

Width	73 mm 2-7/8 inches
Depth	129 mm 5-1/8 inches
Height	59 mm 2-3/8 inches
Weight	420 g 15 oz

Features

• Compact chorus pedal especially designed for bass guitar

• Applies chorus sound to the high frequencies without altering low frequencies

• Effect Level, Low Filter, Rate and Depth knobs permit precise tonal shaping

• BOSS five-year warranty
