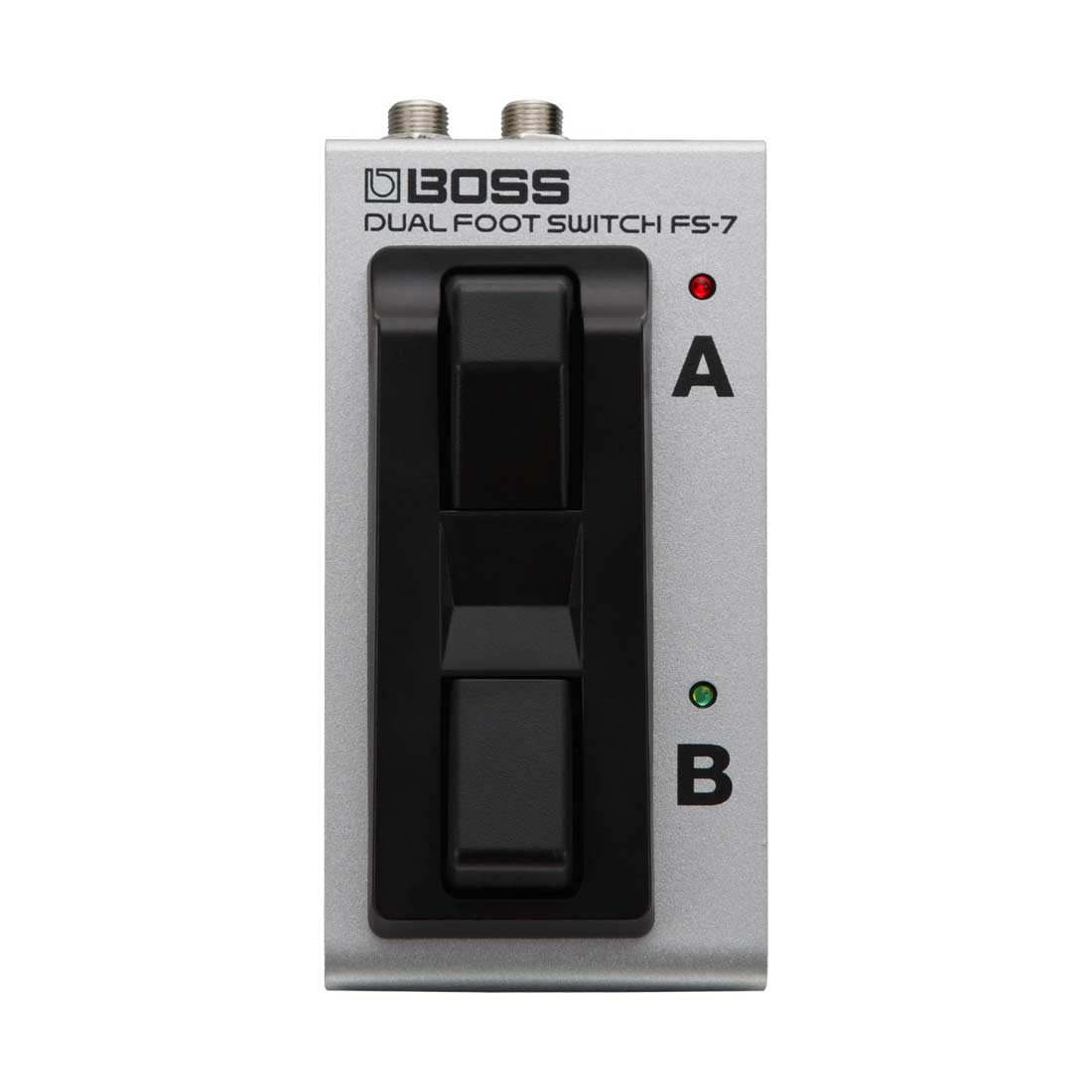

FS-7 is a compact dual footswitch for remote control of effect pedals or amp channel switching. Two footswitches are arranged in tandem, which saves space on effects pedal boards. Two selectable modes for latch or momentary allow for control of a wide range of equipment.
Connectors

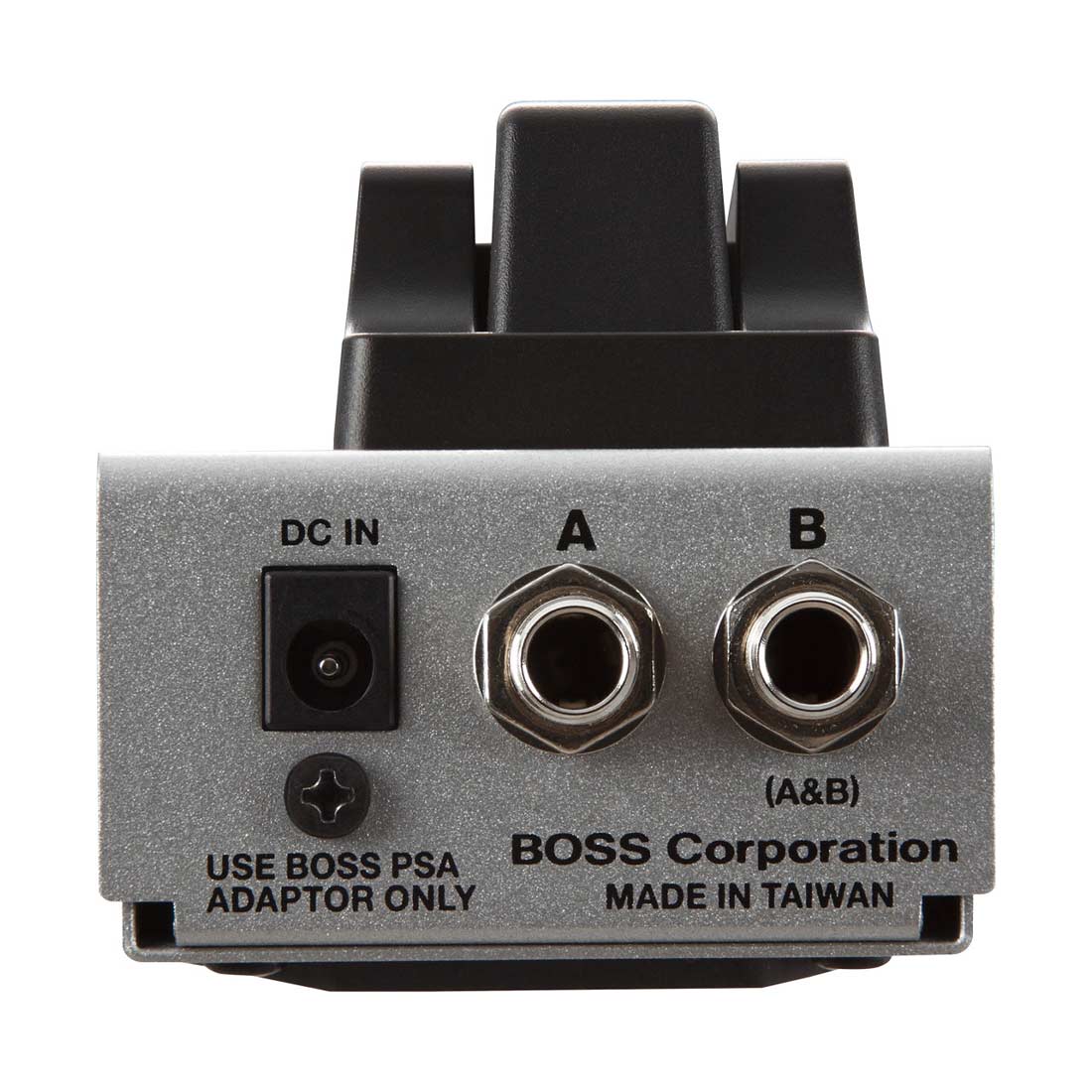

A jack: 1/4-inch phone type B jack: 1/4-inch TRS phone type (*) DC IN jack
* You can also connect a 1/4-inch phone plug
Indicators
A, B
Controls

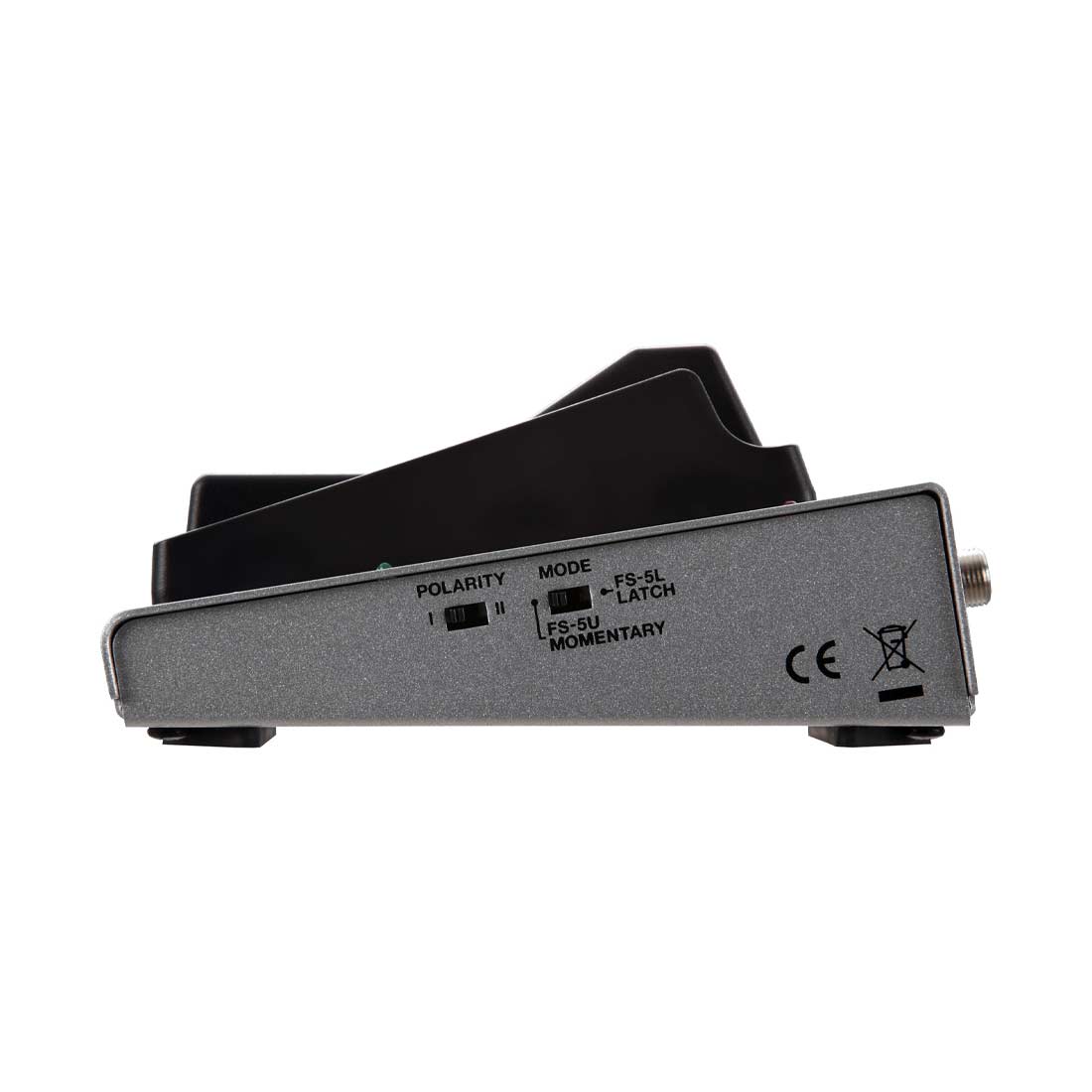

[MODE] switch [POLARITY] switch
Power Supply
AC adaptor (PSA series: sold separately)
Current Draw
25 mA
Accessories

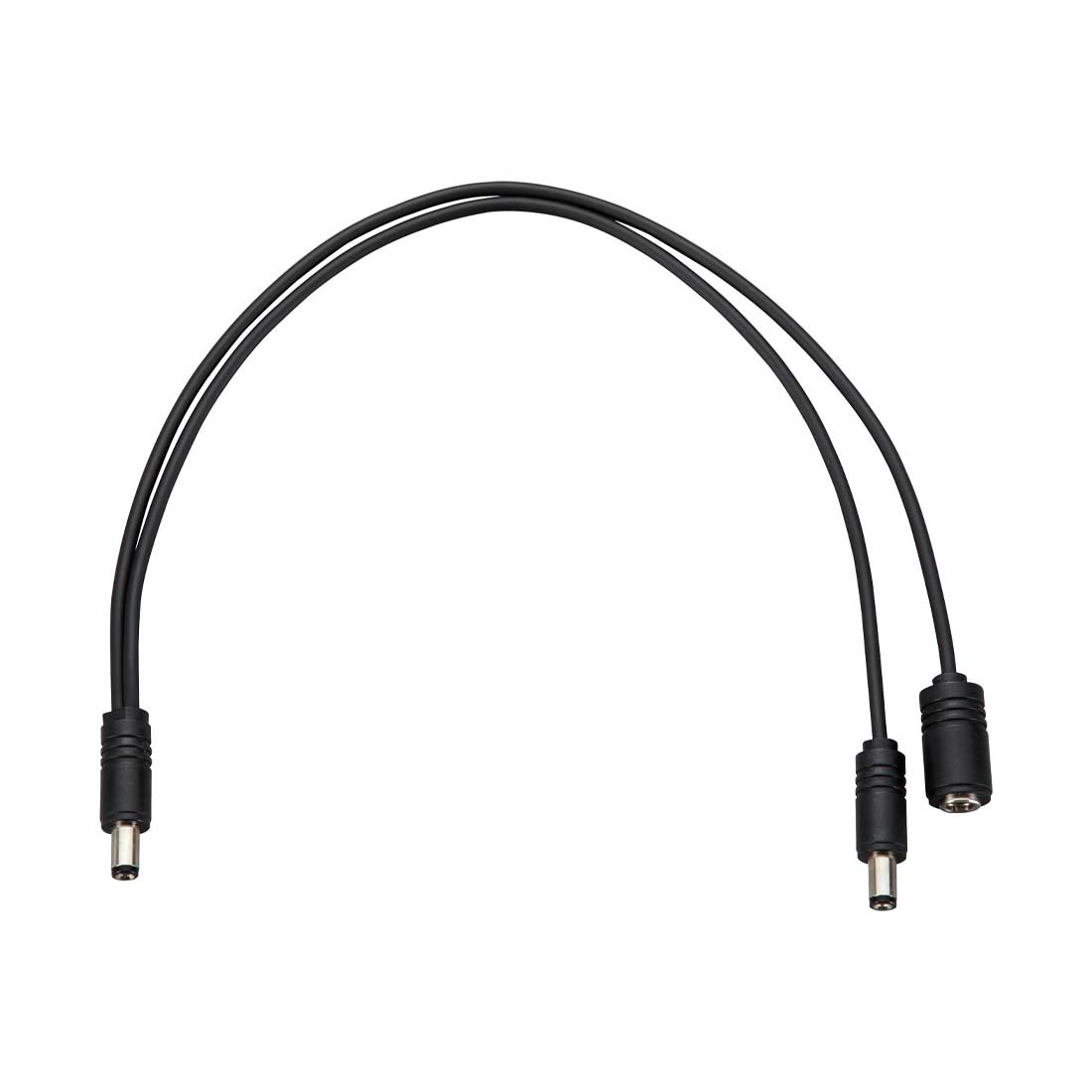

Parallel DC cable Owner's Manual
Width
62 mm 2-1/2 inches
Depth
131 mm 5-3/16 inches
Height
60 mm 2-6/16 inches
Weight
290 g 0 lbs. 11 oz.
Dual footswitch in a small footprint
Latch/momentary switching function (common to A and B)
Durable steel chassis
Battery-free operation ideal for pedal boards
Power via 9v adapter (power splitter included)
Operates as momentary switch with no power*
