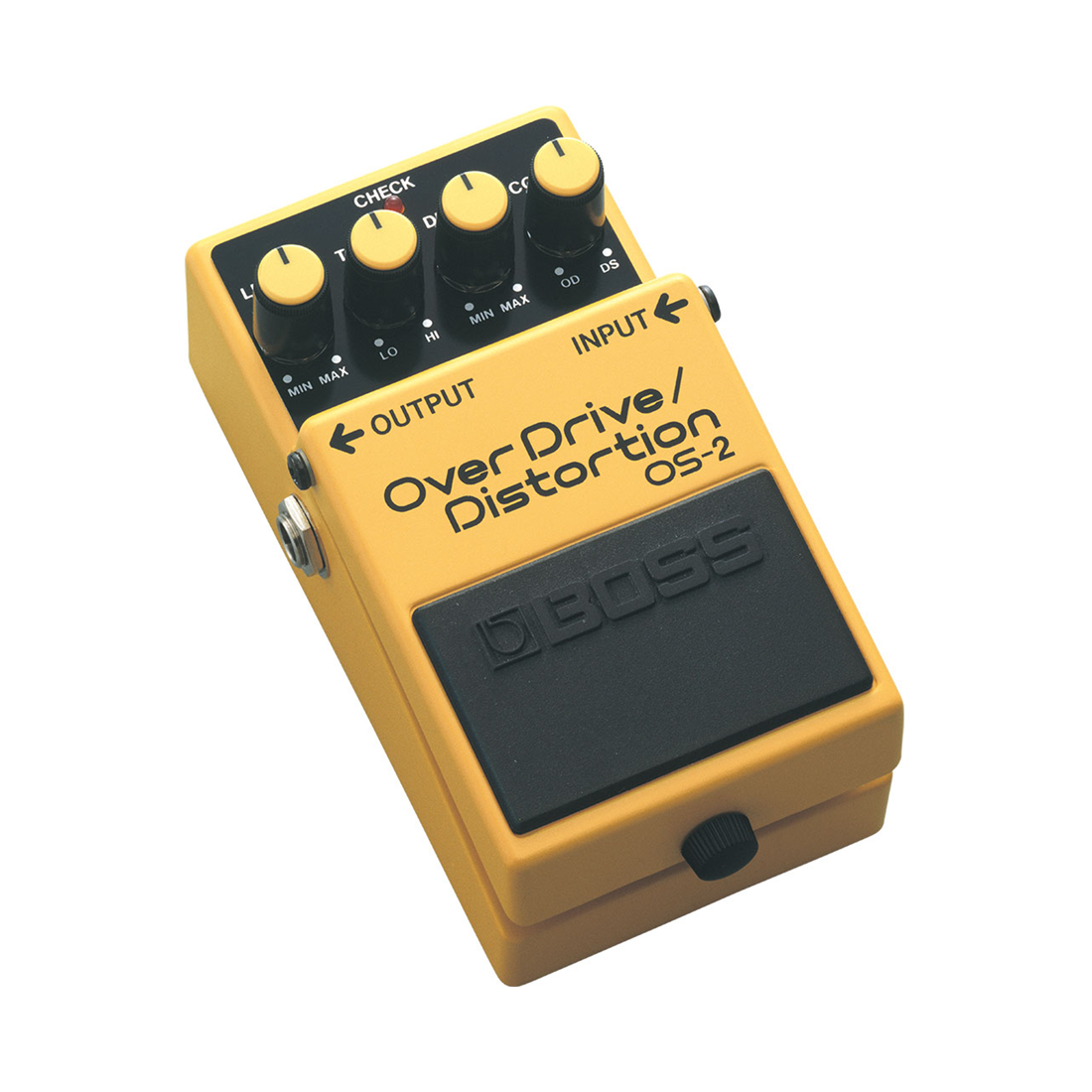

Boss OS2 OverDrive Distortion Pedal

Overview

Distortion and Overdrive Together At Last!

The OS-2 gives players a choice of overdrive or distortion or lets them combine both--all in a single compact pedal. Its distortion maintains the subtle nuances of single-coil guitar pickups.

Specifications

Nominal Input Level	-20 dBu
Input Impedance	1 M ohm
Nominal Output Level	-20 dBu
Output Impedance	1 k ohm
Recommended Load Impedance	10 k ohms or greater
Bypass	Buffered bypass
Controls	COLOR knob DRIVE knob TONE knob LEVEL knob Pedal switch
Indicator	CHECK indicator (Used for indication of check battery)
Connectors	INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DC IN jack
Power Supply	Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately)
Current Draw	12 mA
Expected battery life under continuous use	Carbon: Approx. 33.5 hours Alkaline: Approx. 55 hours *These figures will vary depending on the actual conditions of use.
Accessories	Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Carbon-zinc battery (9 V, 6F22)
Option (sold separately)	AC adaptor: PSA series

Width	73 mm 2-7/8 inches
Depth	129 mm 5-1/8 inches
Height	59 mm 2-3/8 inches
Weight	385 g 14 oz

Features

• Flexible distortion pedal capable of producing blended overdrive/distortion sounds

• Provides both "over-the-top" distortion sounds and less extreme overdrive tones for rhythm playing

• Includes Level, Tone, Drive and Color controls for precise tonal shaping

• BOSS five-year warranty
