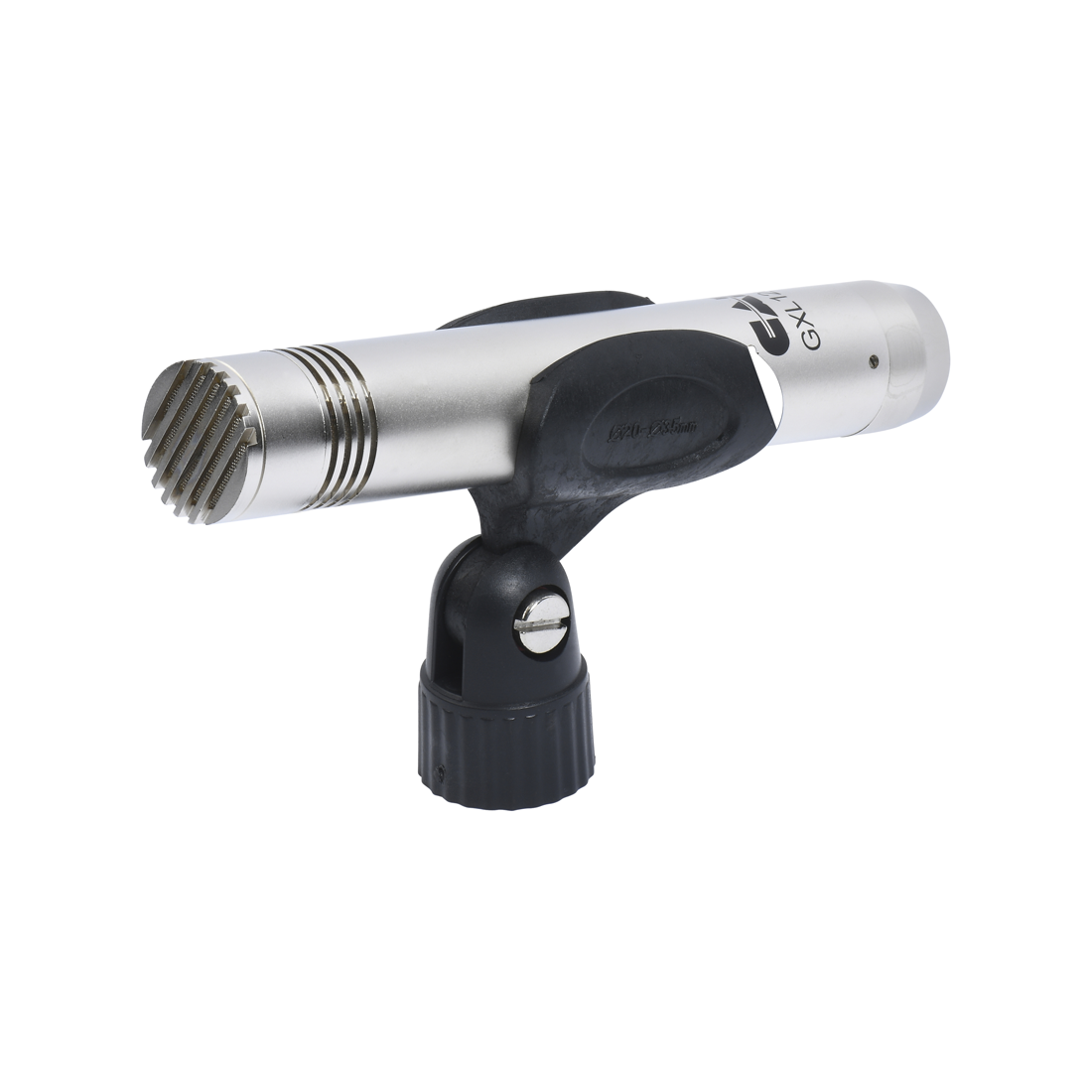

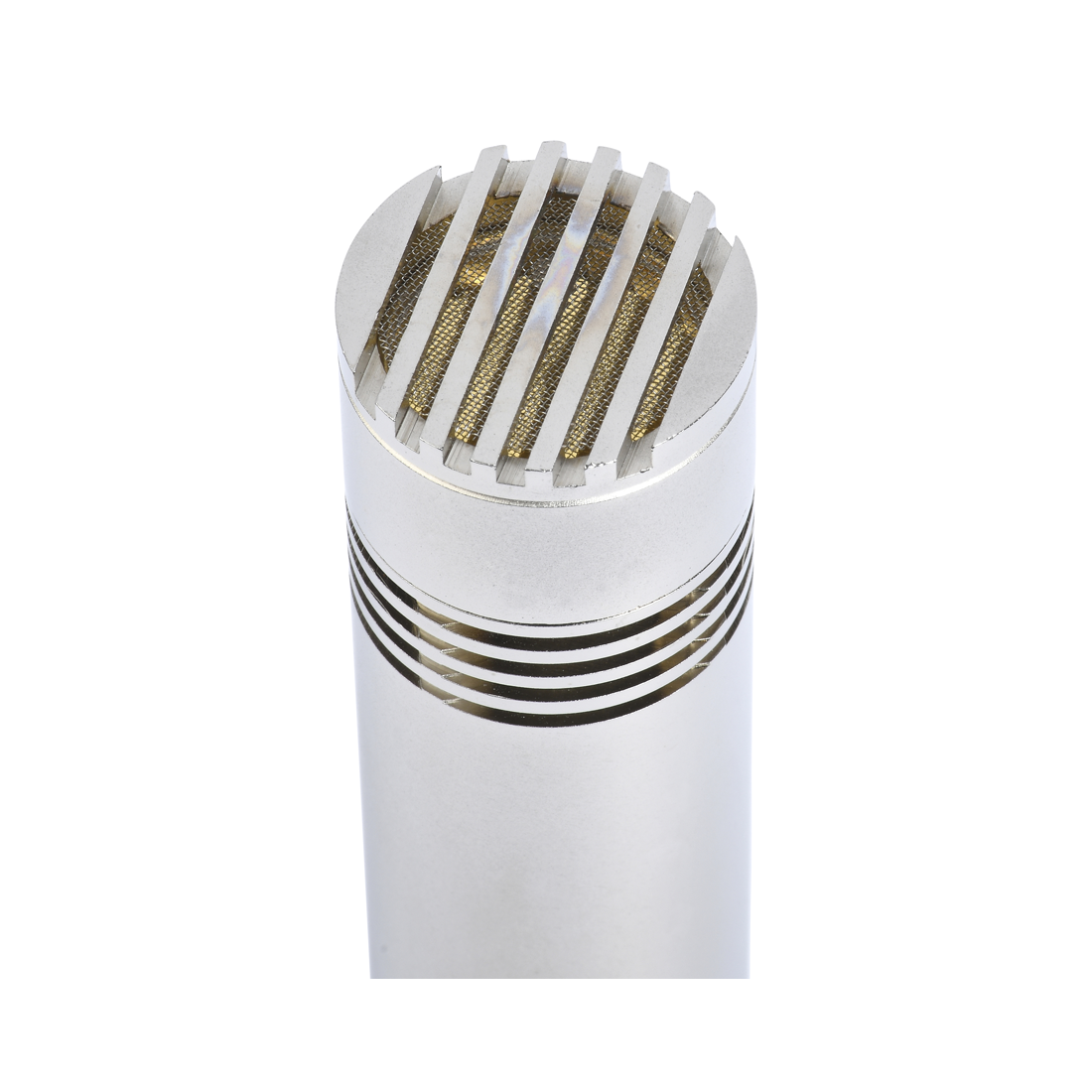

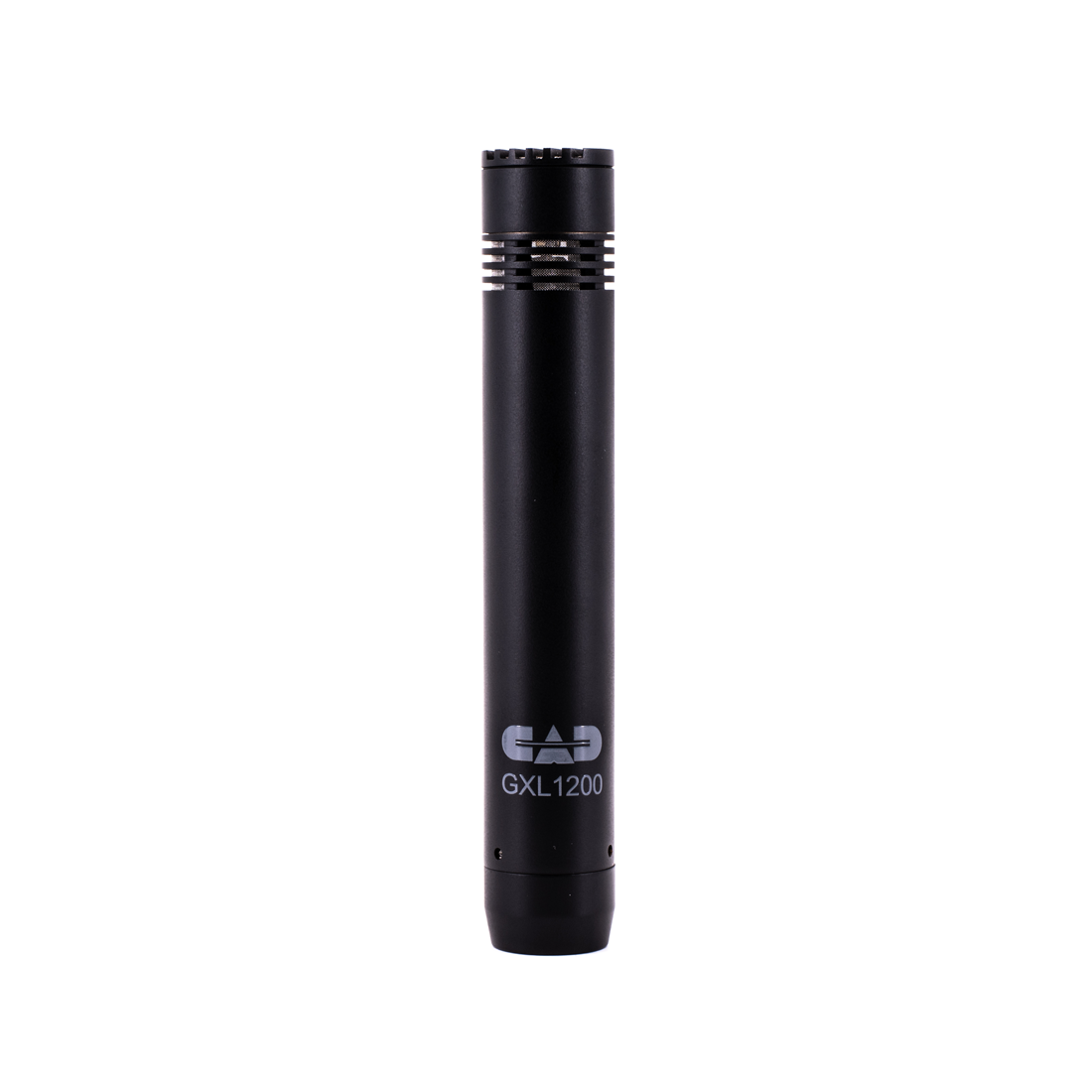

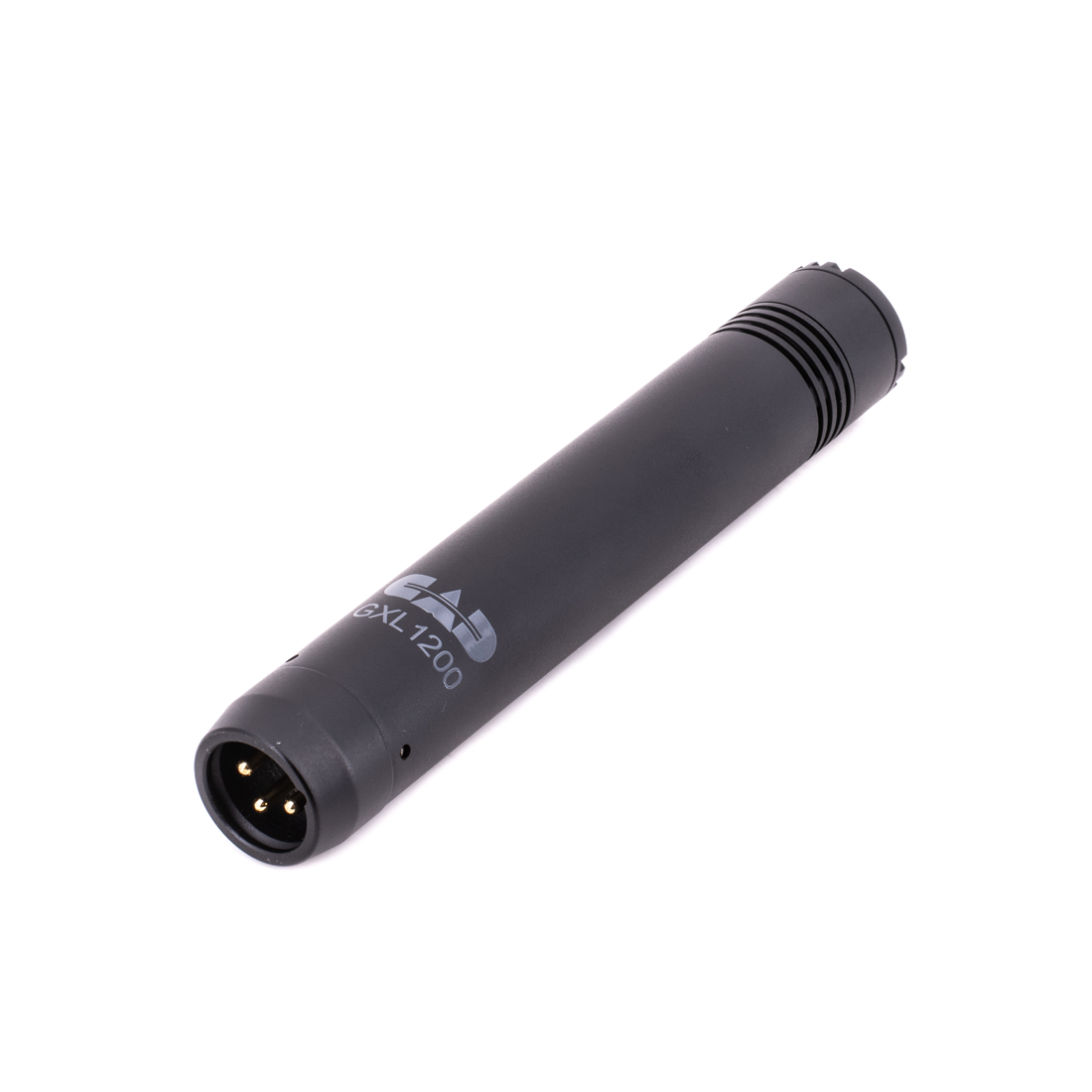

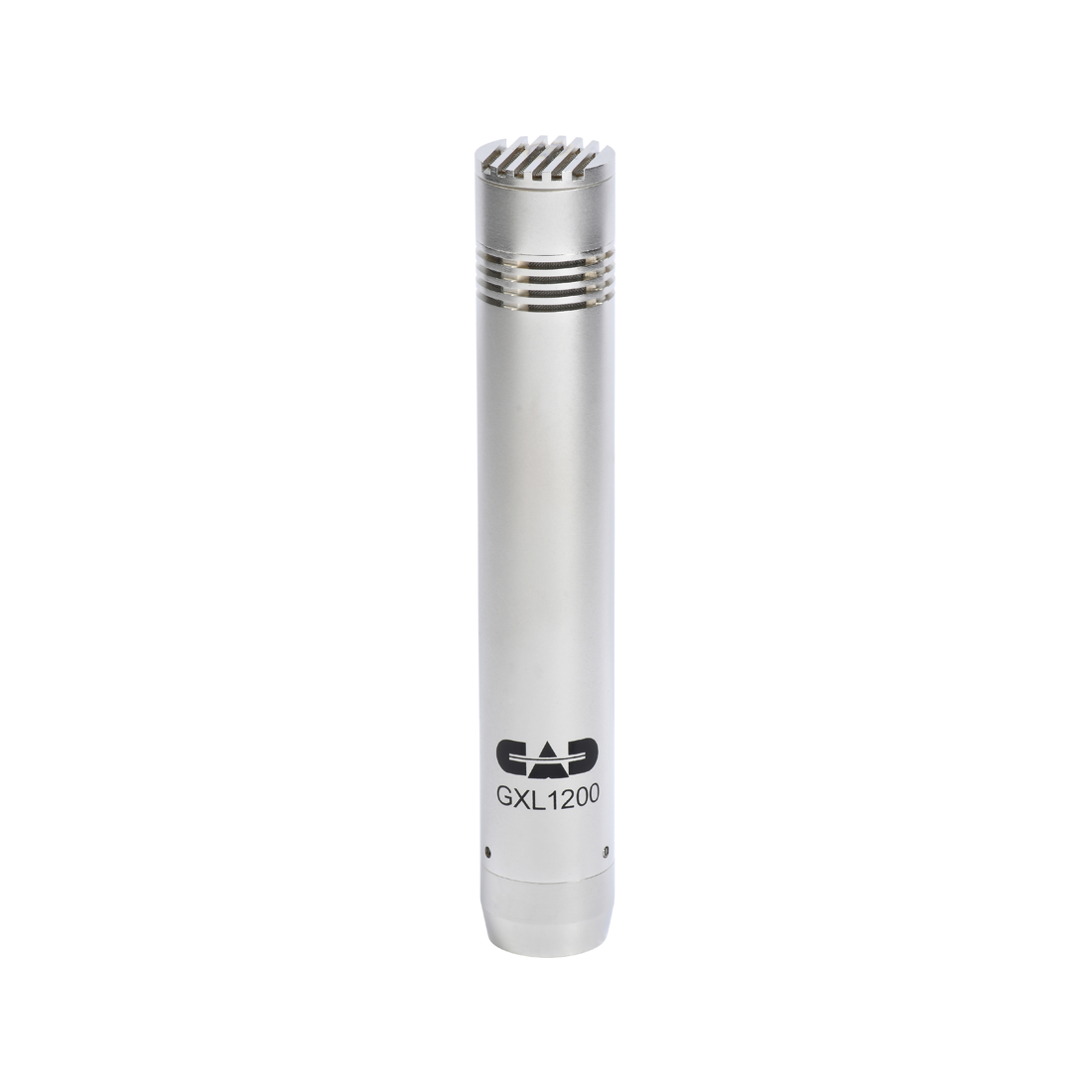

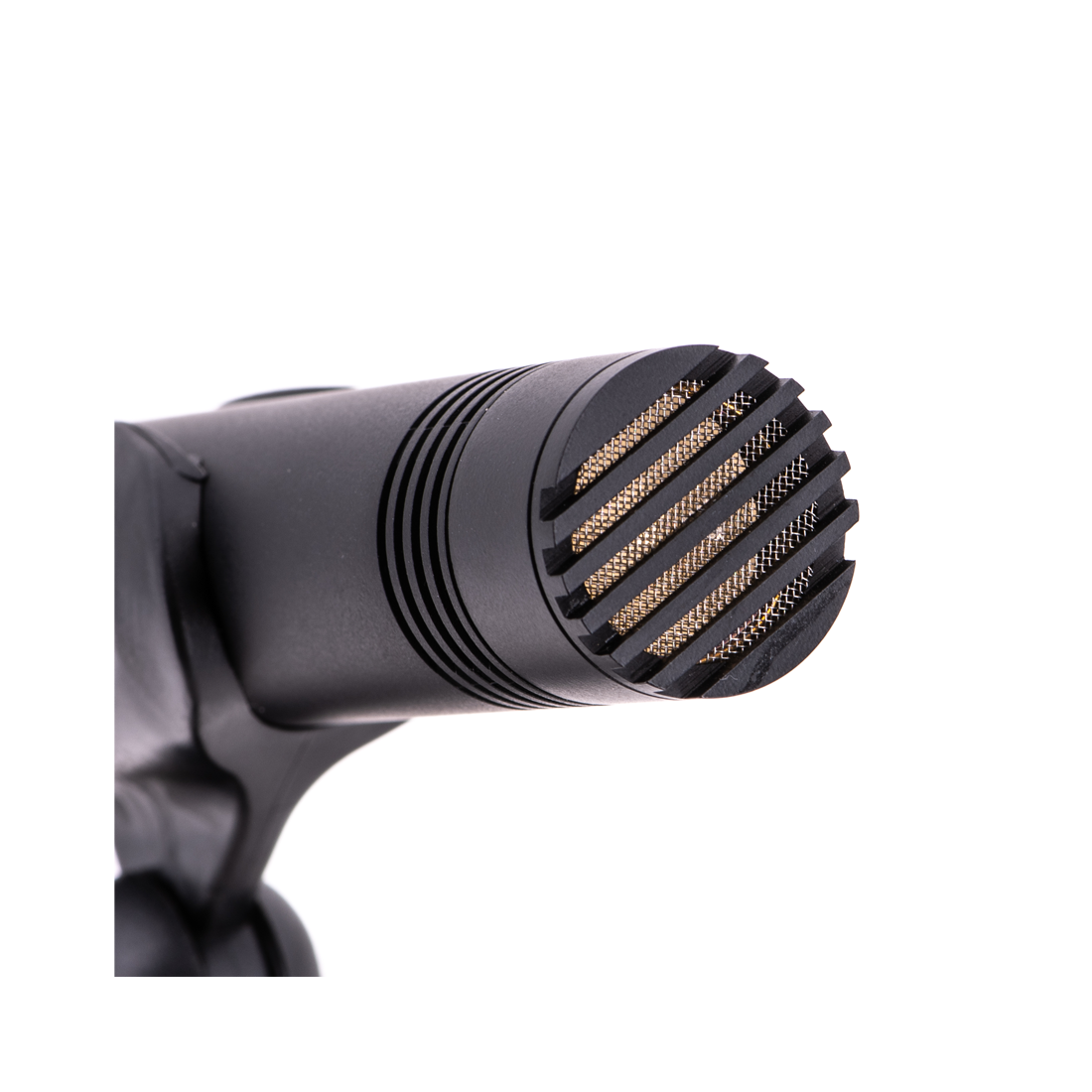

CAD Audio GXL1200 Small Diaphragm Cardioid Condenser Microphone
SKU: GXL1200
Operating Principle: Externally-biased condenser
Polar Pattern: Cardioid
Frequency Response: 30Hz to 20KHz
Sensitivity: -36dBV (16mV) @ 1 Pa
Impedance: 100 ohms
Packaged in a small, rugged, all metal housing, the GXL1200 Condenser microphone provides a transparent sound reproduction. The transformerless design of this instrument microphone allows it to have low distortion and optimum low end frequency response. The GXL1200's size, accurate sound reproduction, and high SPL capability, make this a great choice for miking overheads, high hats, cymbals, woodwinds and stringed instruments.
Generating Element: Externally Biased Condenser
Polar Pattern: Unidirectional (Cardioid)
Frequency Response: 30 Hz - 20 kHz
Sensitivity: -56dB 0dB=1V/uBar @ 1kHz
Impedance: Low (Less than 200 Ohms)
Equivalent Noise Level: +17dB (A-weighted)
Power: P24V or P48V Phantom Power

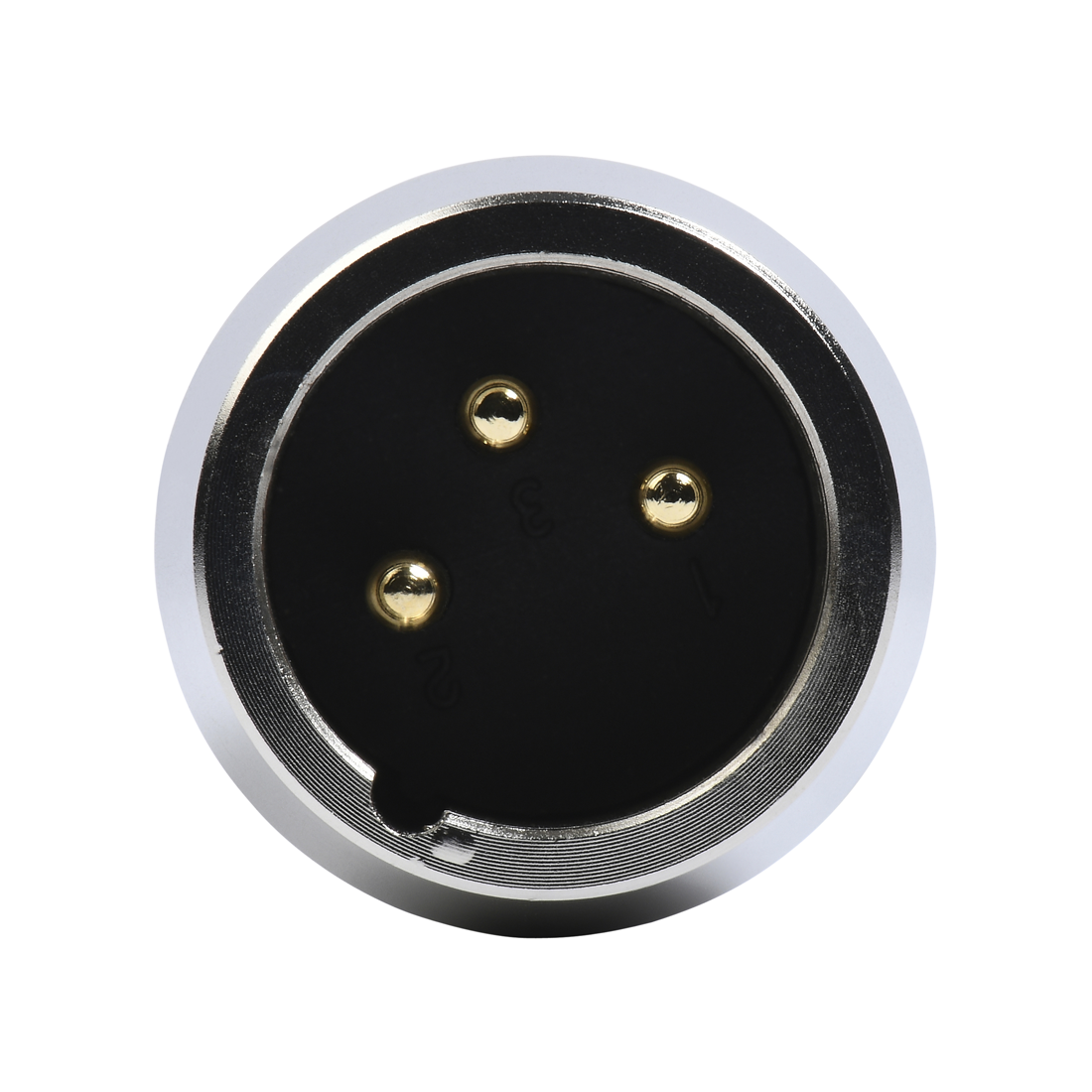

Connector: 3 pin XLR
Phasing: Positive pressure on diaphragm generates a positive voltage on pin
#2 relative to pin #3
Dimensions: See Drawing
Weight: 126 Grams
