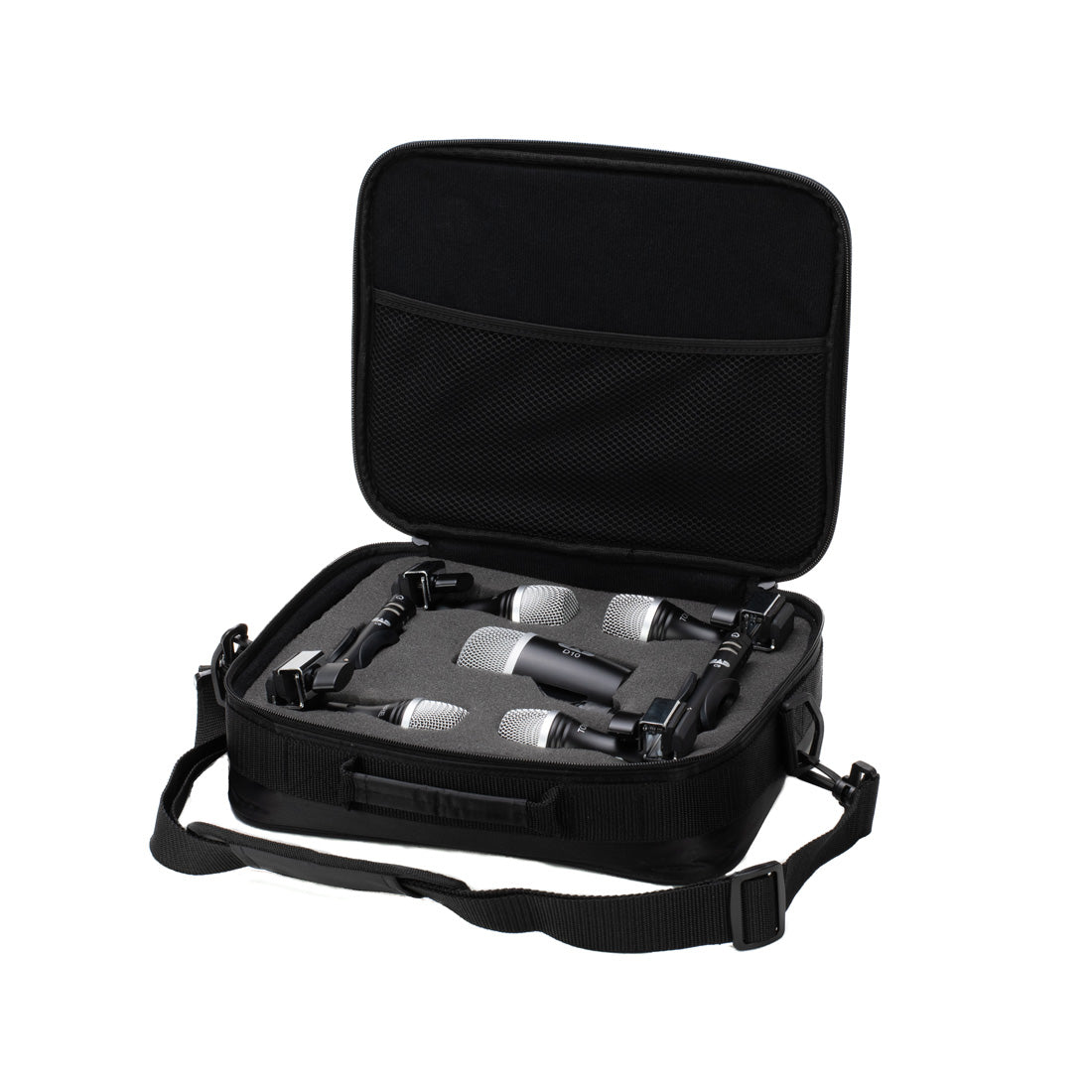

CAD Audio Stage7 7-piece Drum Microphone Pack - (3) D29 (2) C9 D19 & D10

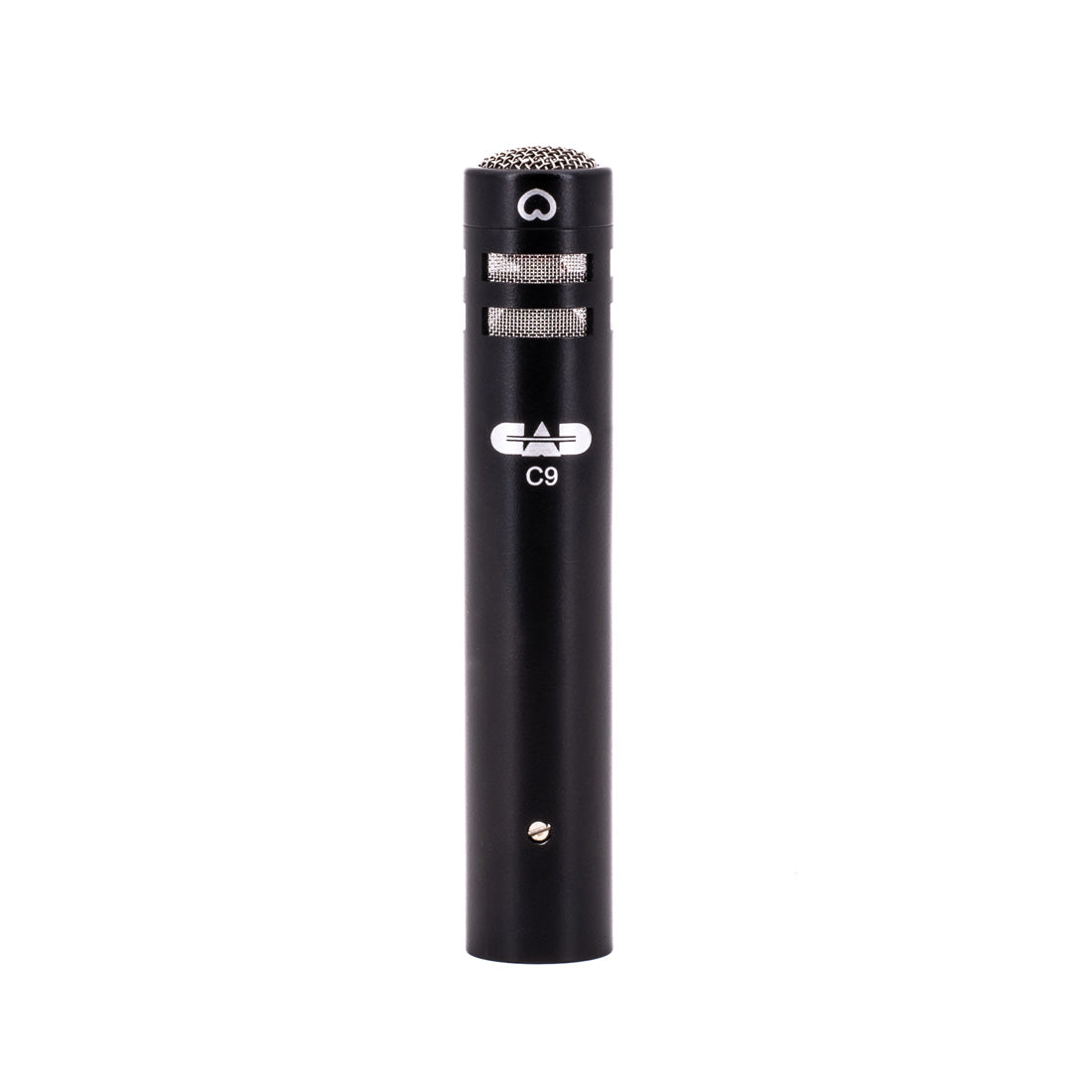

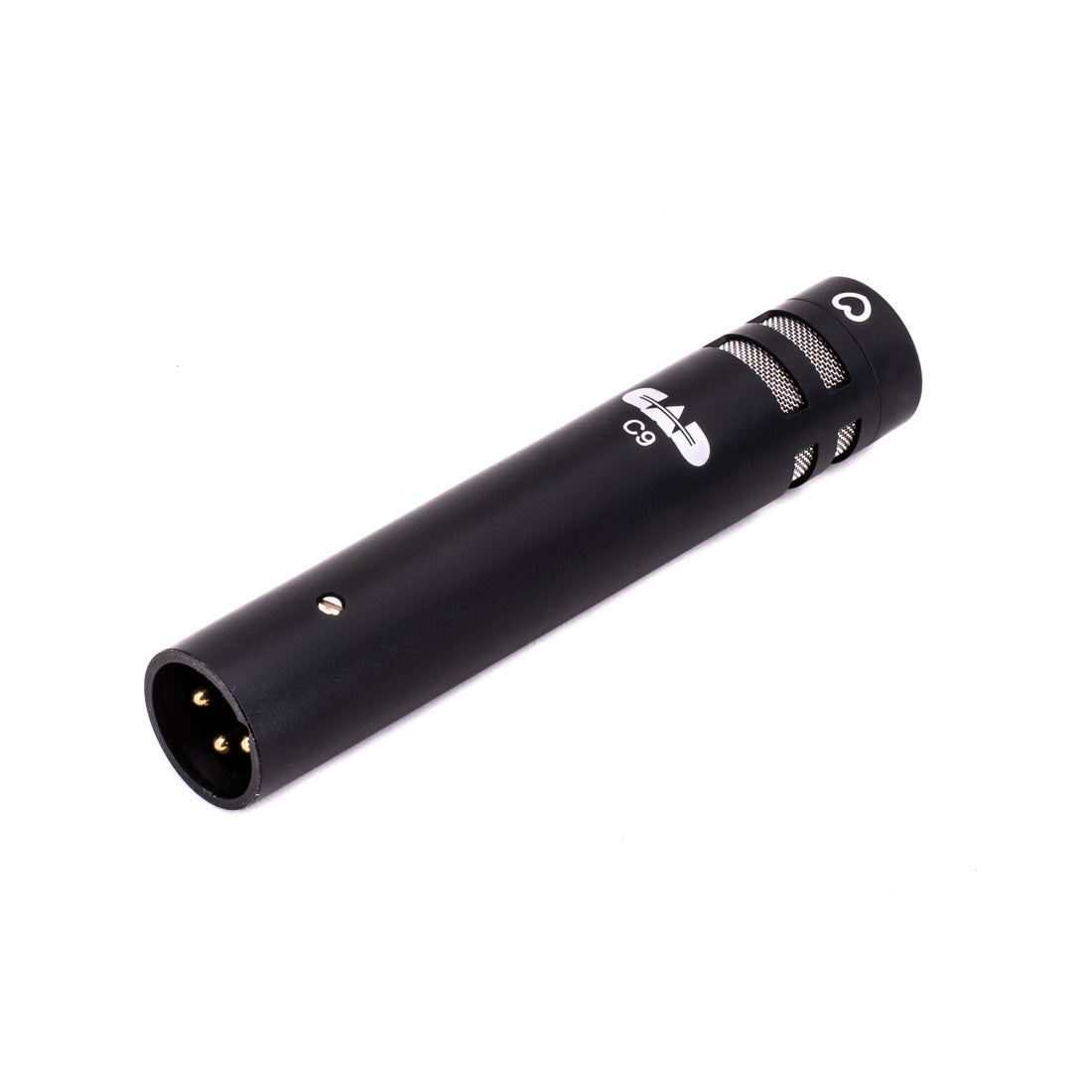

C9 Cardioid Condenser Instrument Microphone:
.
​Operating Principle: Condenser
Polar Pattern: Cardioid
Frequency Response: 40Hz -13KHz
Sensitivity: (2.2mV) @ 1 Pa
Impedance: 150 ohms
Max SPL: 140dB
Self Noise: 27dBA
Power Requirements: P12, P24, P48, 2.2mA
Weight: 1.12oz [32g]
RF Immunity: Meets or exceeds EN55103-2, E1-E4
RoHS: Compliant
.

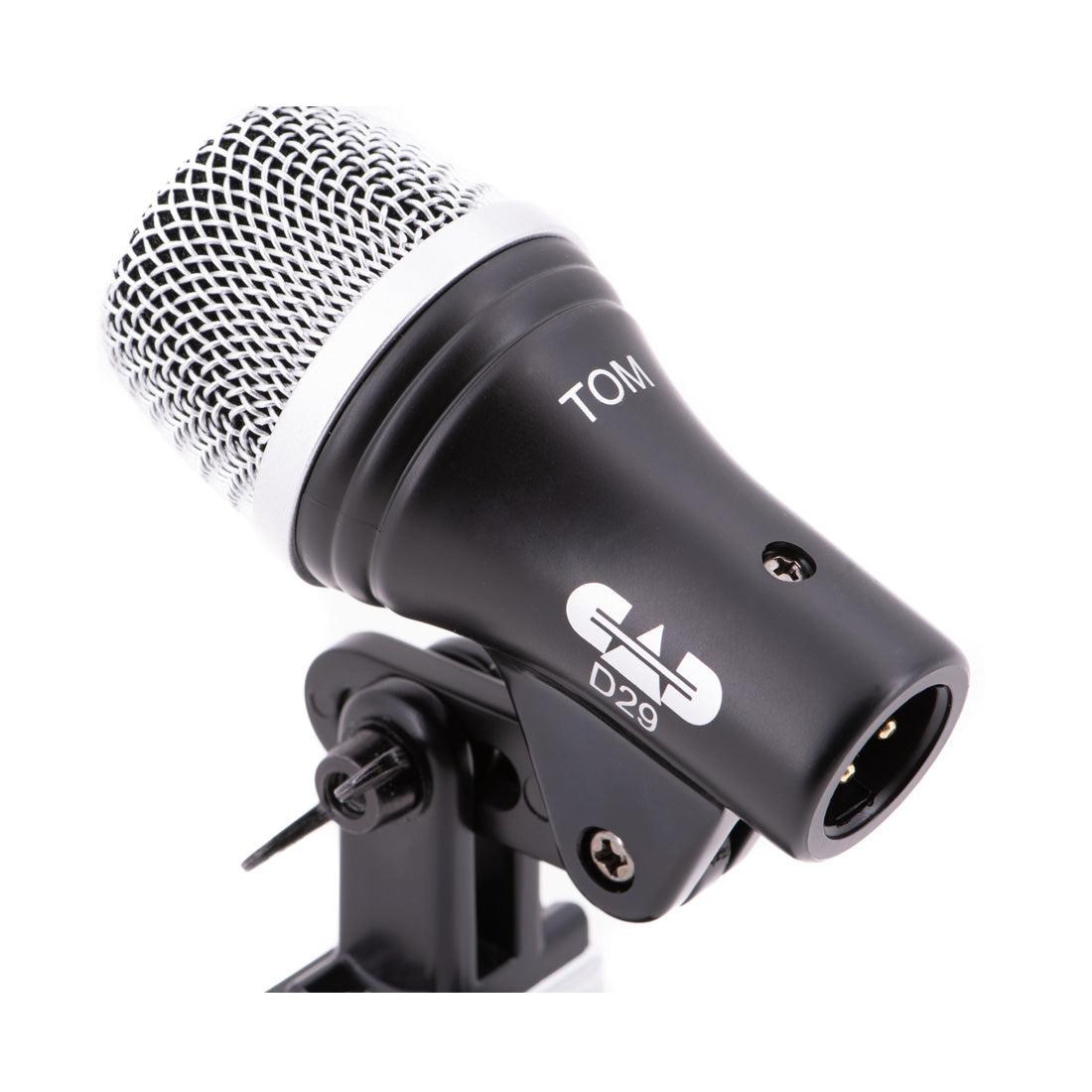

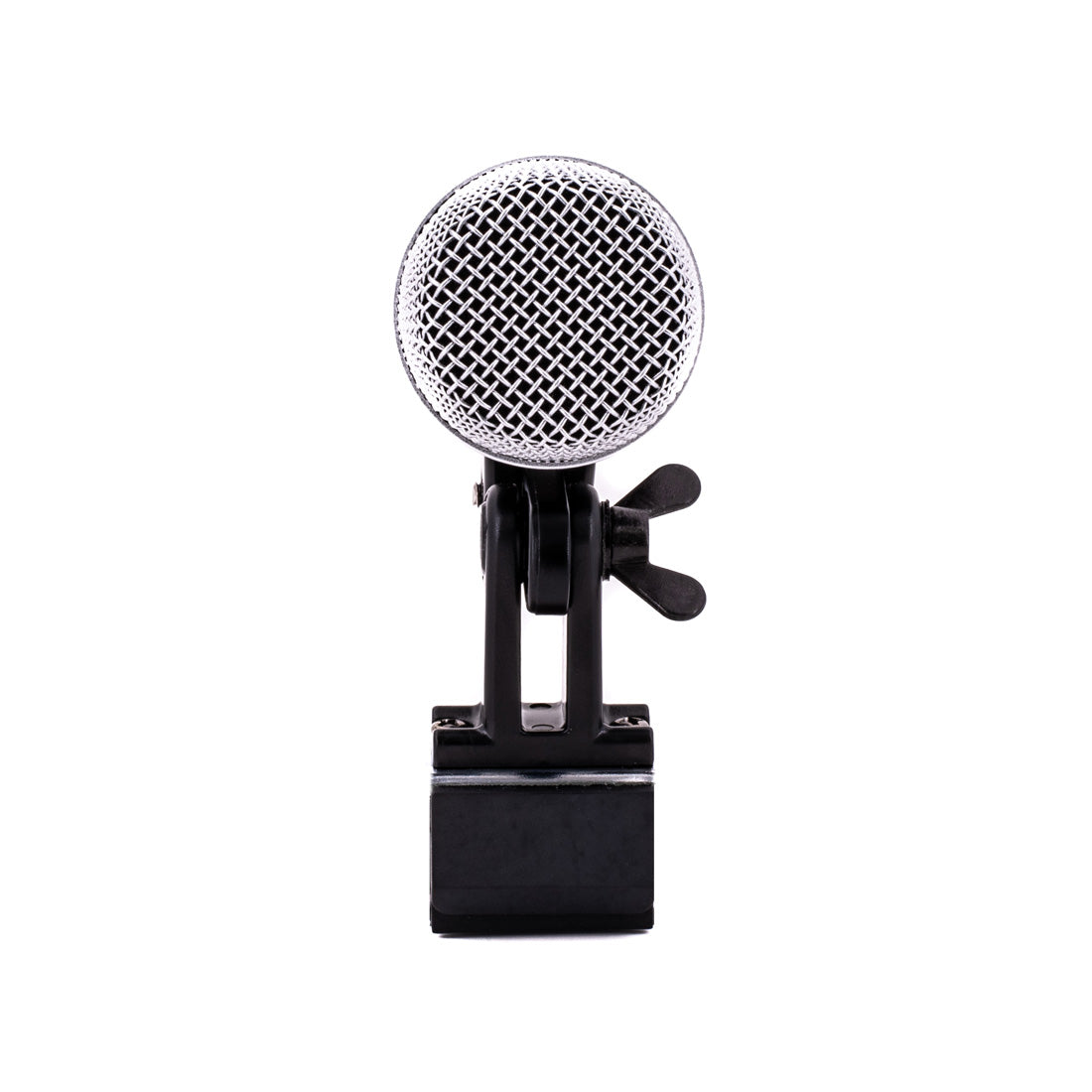

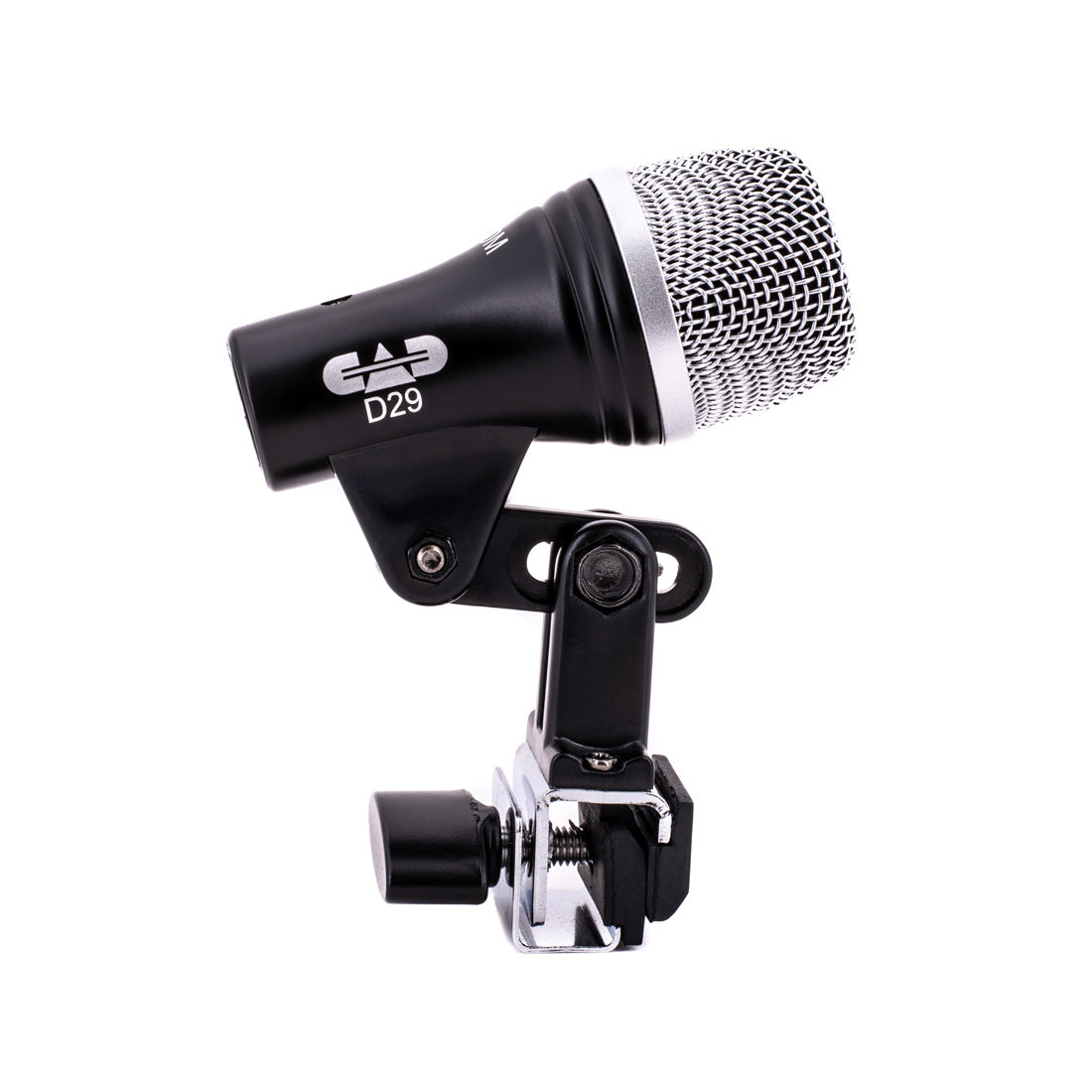

D29 Cardioid Dynamic Percussion Microphone:
.

Operating Principle: Moving-coil dynamic
Polar Pattern: Cardioid
Frequency Response: 90Hz -13KHz
Sensitivity: -53dBV (2.2mV) @ 1 Pa 90
Impedance: 560 ohms
Weight: 6.5oz [0.19Kg]
RF Immunity: Meets or exceeds
EN55103-2, E1-E4
RoHS: Compliant
.

D19 Supercardioid Dynamic Percussion Microphone:
.

Operating Principle: Moving-coil dynamic
Polar Pattern: Supercardioid
Frequency Response: 90Hz -14KHz, -6dB
Sensitivity: -56dBV (1.6mV) @ 1 Pa 9
Impedance: 300 ohms
Weight: 6.5oz [0.19Kg]
RF Immunity: Meets or exceeds
EN55103-2, E1-E4
RoHS: Compliant
.

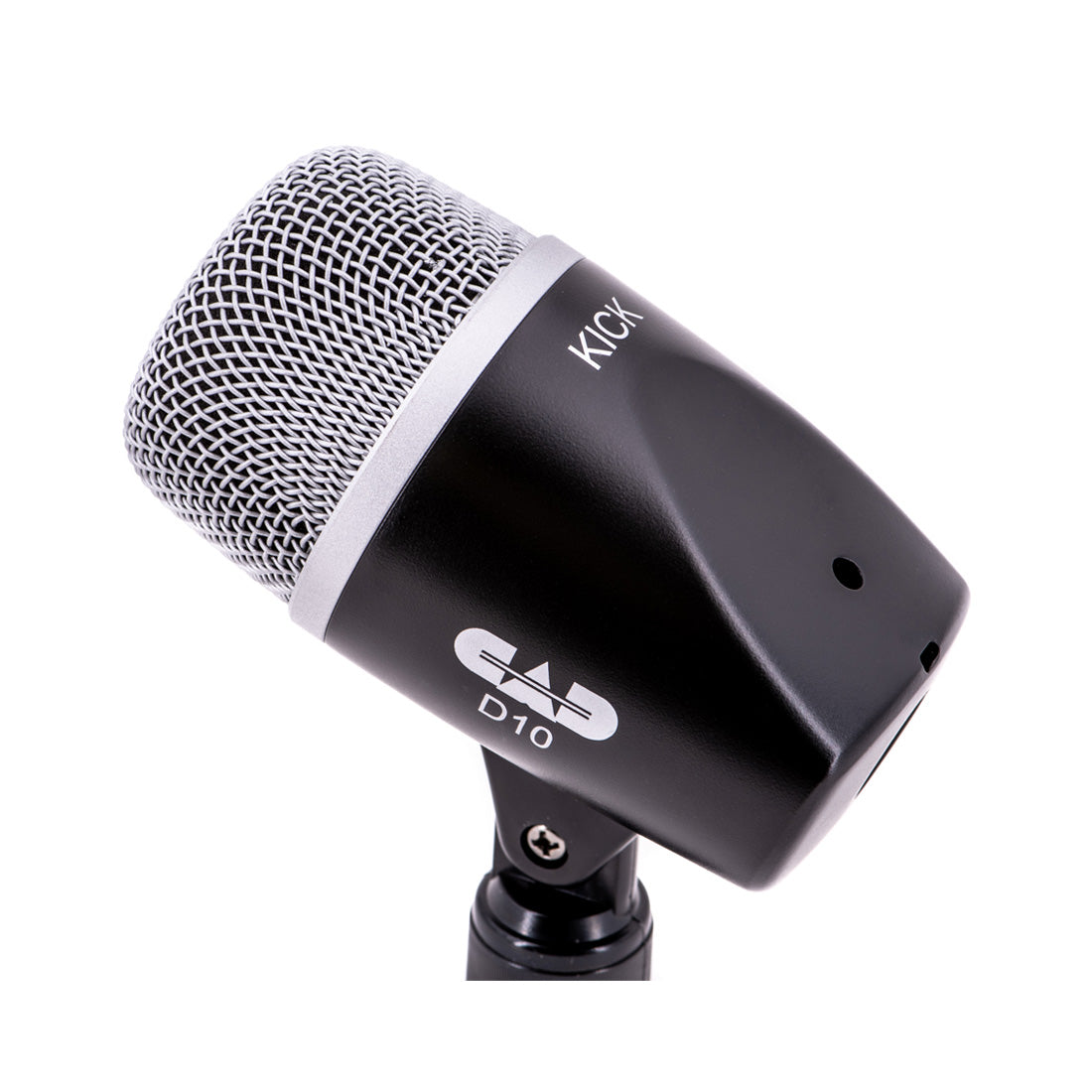

D10 Cardioid Dynamic Kick Drum Microphone:
.

Operating Principle: Moving-coil dynamic
Polar Pattern: Cardioid
Frequency Response: 50Hz -16KHz
Sensitivity: 67dBV (0.45mV) @ 1 Pa 90
Impedance: 60 ohms
Weight: 12.75oz [0.36Kg]
RF Immunity: Meets or exceeds
EN55103-2, E1-E4
RoHS: Compliant

​
