Eminence APT200 Supertweeter 1in 8 Ohm

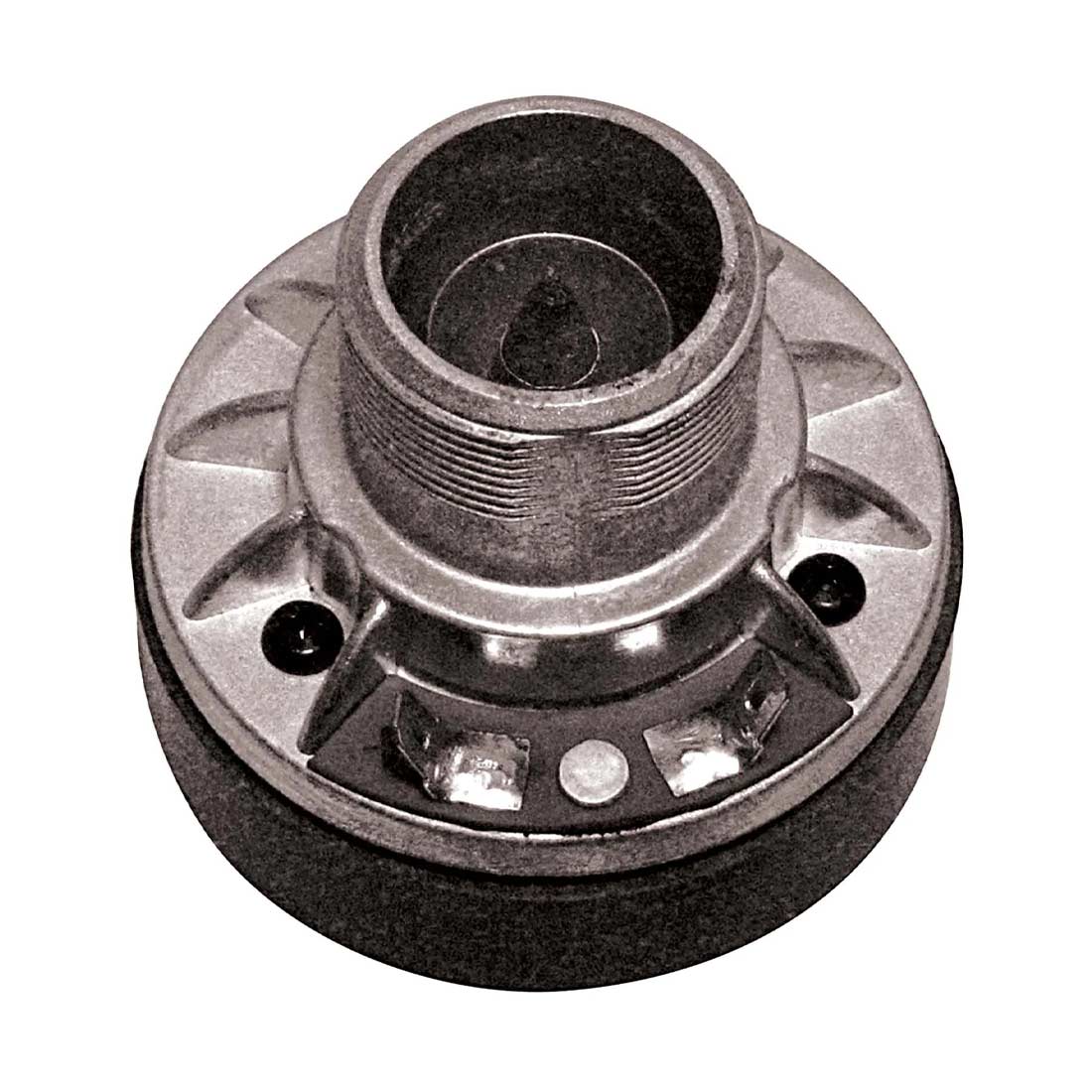

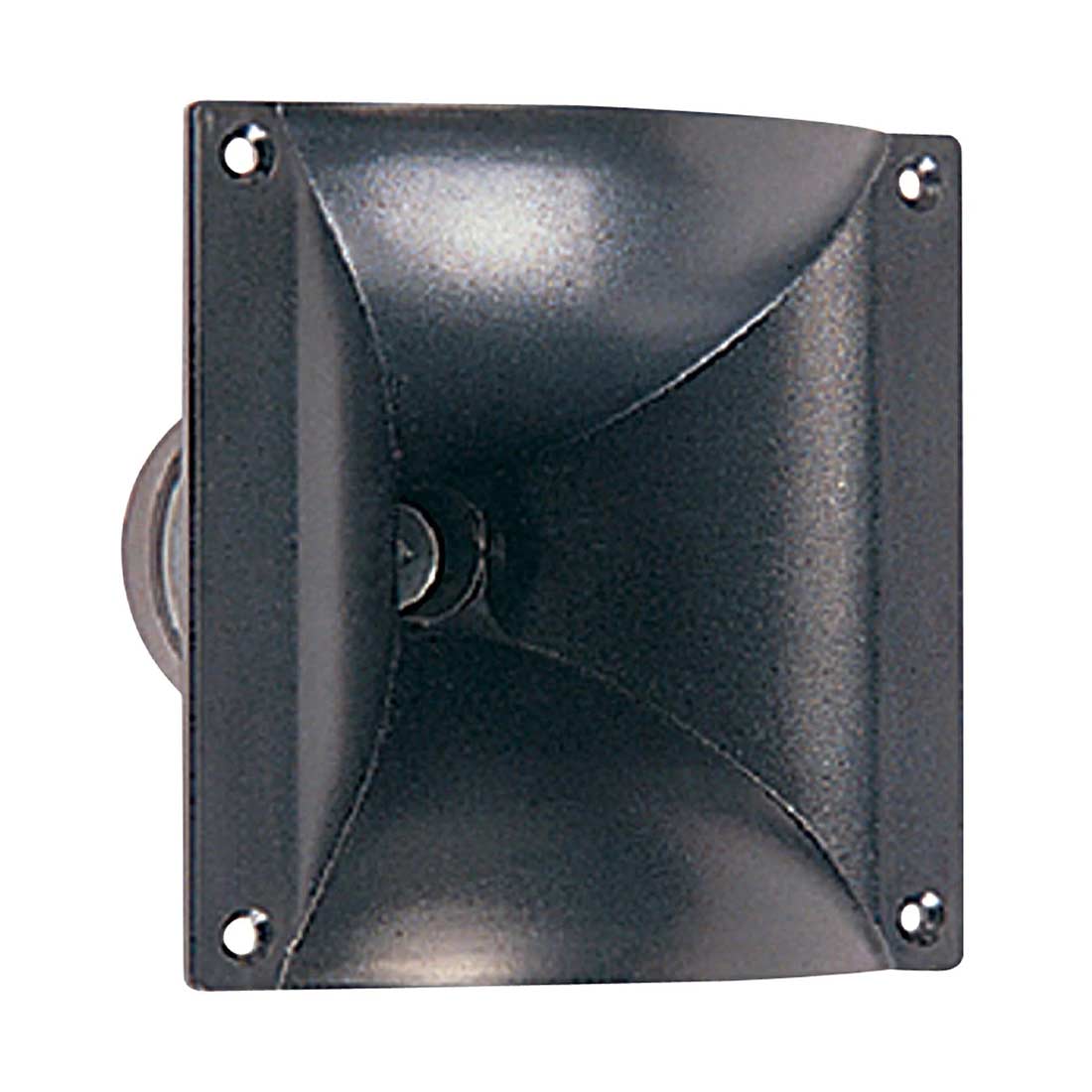

APT:50 Driver with APT:200S Horn

Specification

SPECIFICATION
Type	Bi-Radial
Throat Size	1", 25.4mm
Dispersion	90 x 90
Power Rating	35W (AES)
Nominal impedance	8 ?
Minimum impedance	7.3 ? @ 6.1 kHz
Sensitivity	103.0 dB
Resonance	2.6 kHz
Usable Frequency Range	3500 Hz – 20 kHz
Low Rec. Crossover	3.5 kHz
W x H x D (in)	6" x 5.9" x 6.3"
W x H x D (mm)	152.4 x 149.9 x 160mm
Cut Out	4.3 x 4.3 , 109 x 112 mm
Weight	2.5lbs, 1.13kg
Material	ABS
