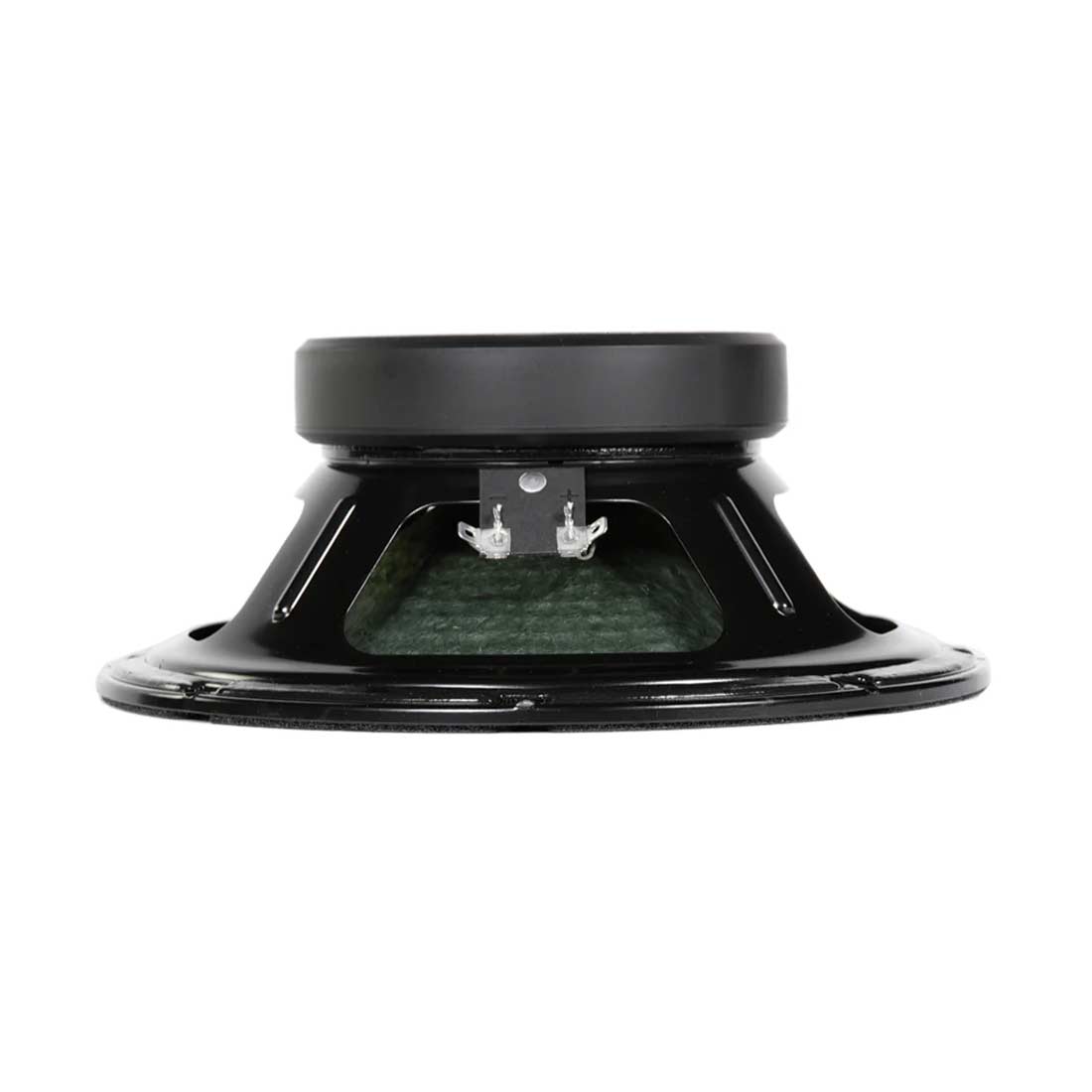

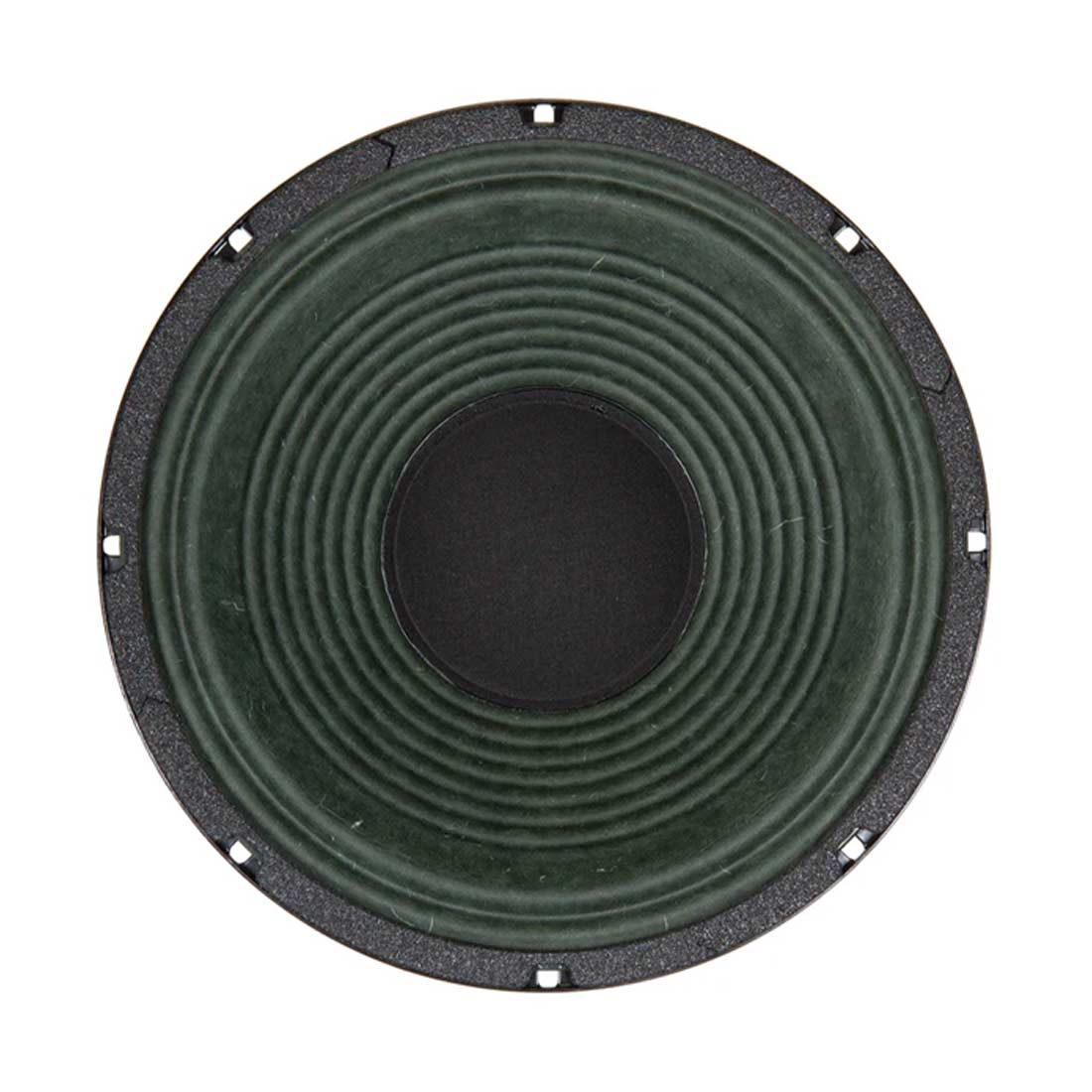

Eminence CANNABISREX10 10in Guitar Speaker 8 Ohm

The Eminence Cannabis Rex™ guitar speaker lets your laid-back style come through. Clean and full, with lots of body and sparkle. Smokey smooth with high-end definition. Country, Jazz or Classical guitarists take notice.

Characteristics

Series	Patriots
Model	Cannabis Rex™ 10
Application	10" Open or Closed Back
Configuration	1, 2, or 4x10"
Low End Response	Aggressive
Low End Shape	Fat/Round
Mid-Range Response	Moderate
Mid-Range Shape	Warm
High-End Response	Moderate
Volume/Power	Louder
Overall Coloration*	A highly requested 10" version of Cannabis Rex.  It's warm, smooth, clean, and full just like its big brother.  Great to tame a bright amp and/or guitar.
Break-up Modes	Slow
Power Range	Up to 50 watts
Instrument*	Lead/Rhythm Guitar
Genre of Music*	Country, Jazz, Classical

Specifications

SPECIFICATION
Nominal Basket Diameter	10", 254 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	50 W
Resonance	130 Hz

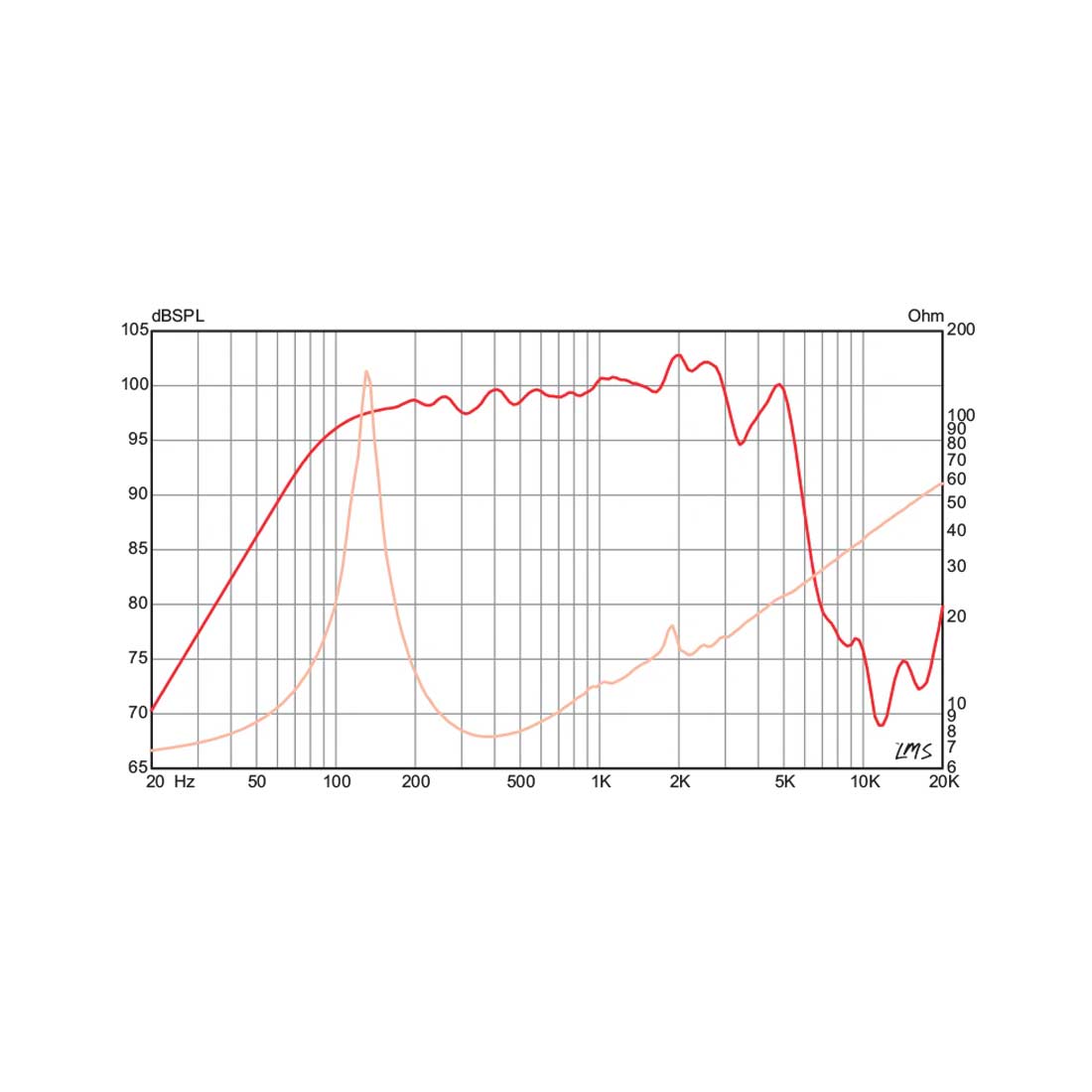

Usable Frequency Range	80 Hz - 5.3 kHz
Sensitivity*	99.3 dB
Magnet Weight	38 oz.
Gap Height	0.313", 8 mm
Voice Coil Diameter	1.75", 44 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	130 Hz
DC Resistance (Re)	6.35 Ω
Coil Inductance (Le)	0.49m H
Mechanical Q (Qms)	15.4
Electromagnetic Q (Qes)	0.6
Total Q (Qts)	0.58
Compliance Equivalent Volume (Vas)	13.02 liters / 0.46 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	0 cc
Mechanical Compliance of Suspension (Cms)	0.07 mm/N
BL Product (BL)	13.16 T-M
Diaphragm Mass Inc. Airload (MMs)	20 grams
Efficiency Bandwidth Product (EBP)	216
Maximum Linear Excursion (Xmax)	0.79 mm
Surface Area of Cone (Sd)	366.1 cm2
Maximum Mechanical Limit (Xlim)	0 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	N/a
Vented	N/a
Driver Volume Displaced	0.039 cu.ft. / 1.1 liters
Overall Diameter	10.11", 256.8 mm
Baffle Hole Diameter	9.13", 231.9 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.23", 5.8mm
Mounting Holes B.C.D.	9.6", 243.8mm
Depth	4", 101.6 mm
Net Weight	7.3 lbs, 3.31 kg
Shipping Weight	8.4 lbs, 3.81 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Paper former
Magnet Composition	Ferrite magnet
Core Details	Non-vented core
Basket Materials	Pressed steel basket
Cone Composition	Hemp paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Zurette dust cap
