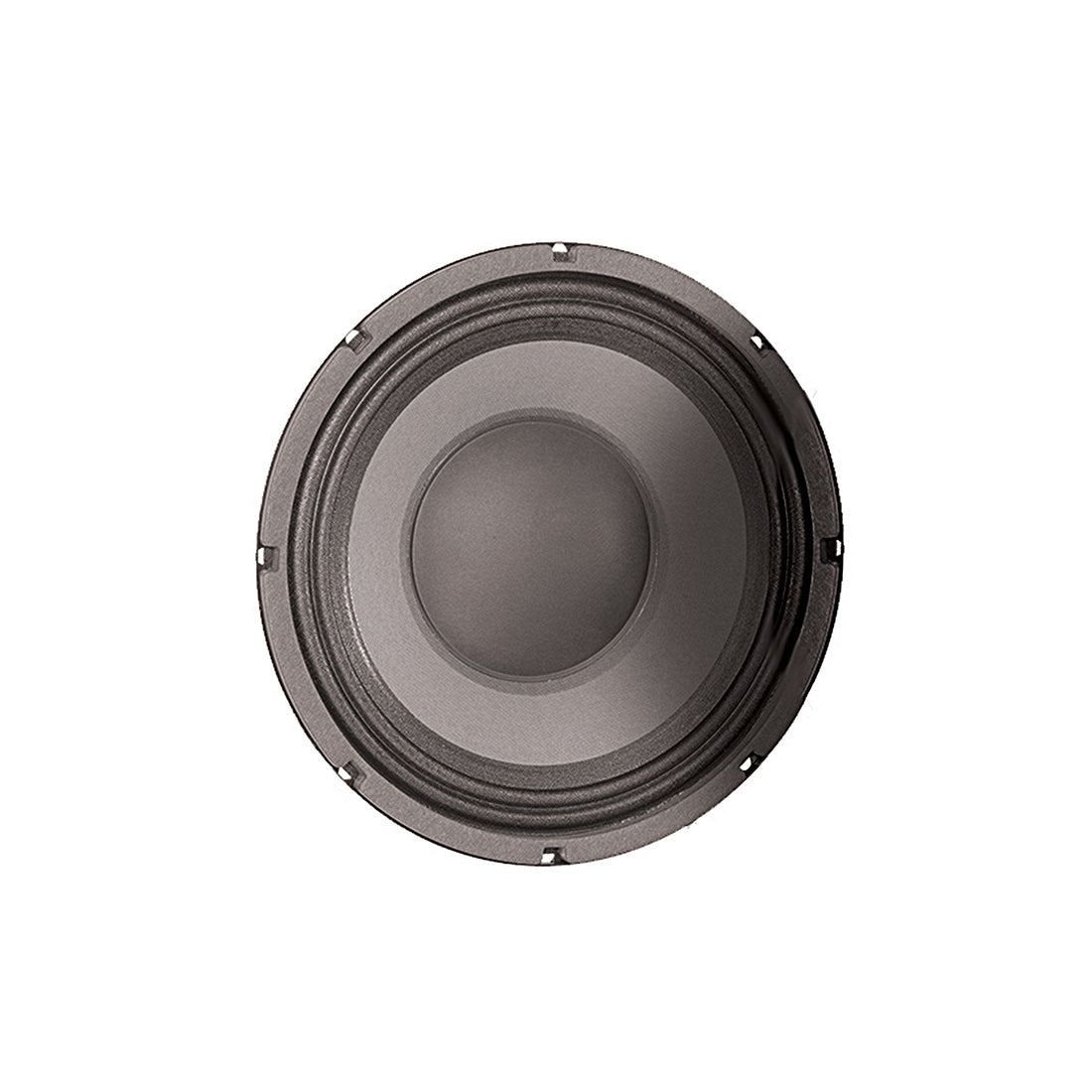

Name: Eminence AMERICAN STANDARD DELTA-10B 10in Speaker 350w 16 Ohm
Brand: Music Connection
SKU: DELTA-10B
Price: 369.99 AUD
Availability: InStock

Free Shipping to metro areas for orders over $100 *

SPECIFICATION
Nominal Basket Diameter	10", 254 mm
Nominal Impedance*	16 Ω
Power Rating*
Program Power	700 W
Watts	350 W
Resonance	65 Hz
Usable Frequency Range	71 Hz - 3.7 kHz
Sensitivity*	98 dB
Magnet Weight	56 oz.
Gap Height	0.375", 9.5 mm
Voice Coil Diameter	2.5", 64 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	65 Hz
DC Resistance (Re)	11.6 Ω
Coil Inductance (Le)	0.79m H
Mechanical Q (Qms)	8.34
Electromagnetic Q (Qes)	0.35
Total Q (Qts)	0.33
Compliance Equivalent Volume (Vas)	36 liters / 1.27 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	62 cc
Mechanical Compliance of Suspension (Cms)	0.21 mm/N
BL Product (BL)	19.5 T-M
Diaphragm Mass Inc. Airload (MMs)	28 grams
Efficiency Bandwidth Product (EBP)	186
Maximum Linear Excursion (Xmax)	3.5 mm
Surface Area of Cone (Sd)	344.9 cm2
Maximum Mechanical Limit (Xlim)	9 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	9.9-12.7 liters / 0.35-0.45 cu.ft.
Vented	10.8-34 liters / 0.38-1.2 cu.ft.
Driver Volume Displaced	0.05 cu.ft. / 1.42 liters
Overall Diameter	10.09", 256.3 mm
Baffle Hole Diameter	9.18", 233.2 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.25", 6.4mm
Mounting Holes B.C.D.	9.66", 245.4mm
Depth	4.25", 108 mm
Net Weight	10.8 lbs, 4.9 kg
Shipping Weight	12 lbs, 5.44 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Polyimide former
Magnet Composition	Ferrite magnet
Core Details	Vented core

Basket Materials	Pressed steel basket
Cone Composition	Paper cone
Cone Edge Composition	Cloth cone edge
Dust Cap Composition	Solid composition paper dust cap

—
