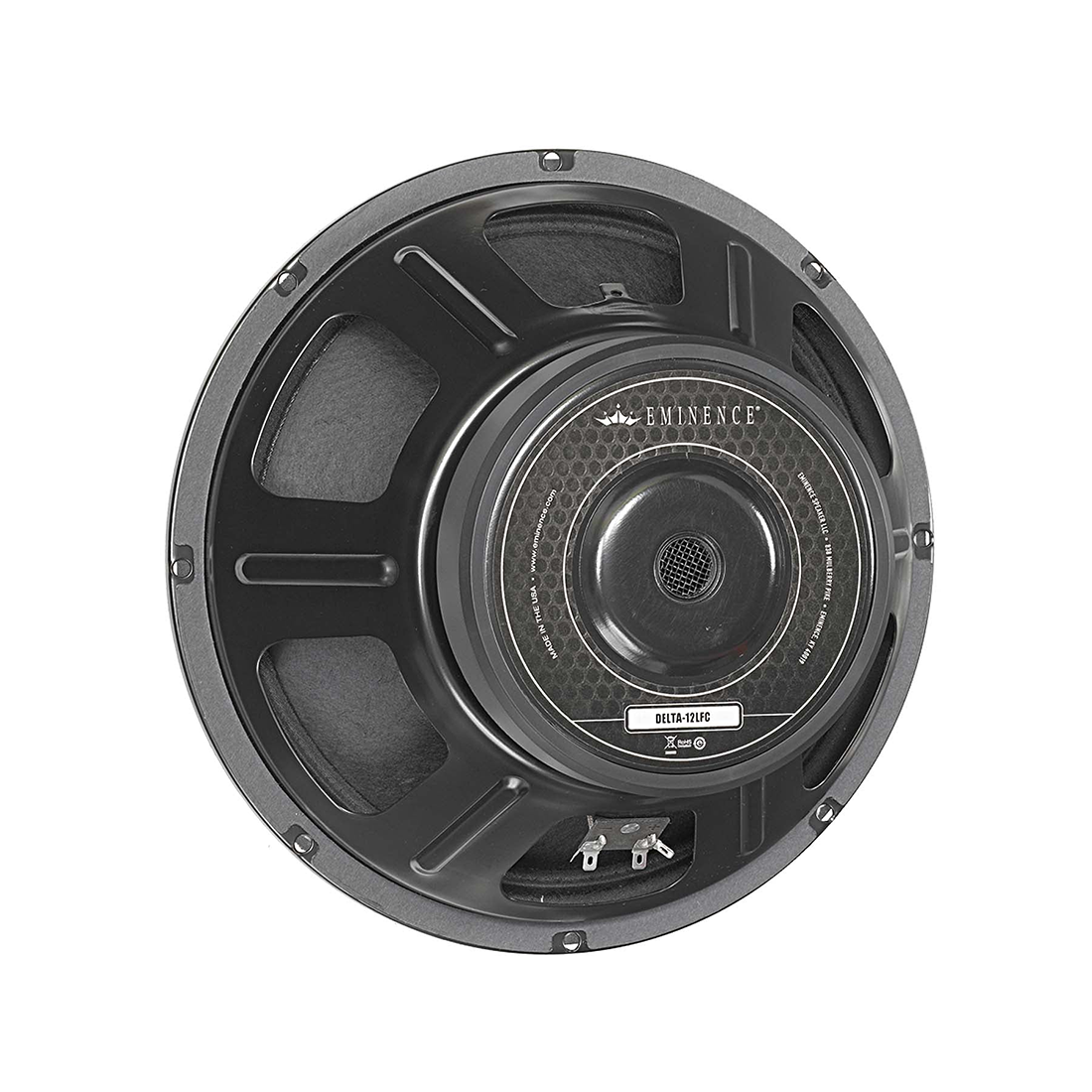

Name: Eminence AMERICAN STANDARD DELTA-12LFC 12in Speaker 500w 4 Ohm
Brand: Eminence
SKU: DELTA-12LFC
Price: 399.99 AUD
Availability: InStock

Free Shipping to metro areas for orders over $100

Free Shipping to metro areas for orders over $100Free Shipping to metro areas for orders over $100Free Shipping to metro areas for orders over $100Free Shipping to metro areas for orders over $100Free Shipping to metro areas for orders over $100Free Shipping to metro areas for orders over $100Free Shipping to metro areas for orders over $100Free Shipping to metro areas for orders over $100Free Shipping to metro areas for orders over $100Free Shipping to metro areas for orders over $100Free Shipping to metro areas for orders over $100

SPECIFICATION
Nominal Basket Diameter	12", 305 mm
Nominal Impedance*	4 Ω
Power Rating*
Program Power	1000 W
Watts	500 W
Resonance	52 Hz
Usable Frequency Range	45 Hz - 2.3 kHz
Sensitivity*	93.1 dB
Magnet Weight	56 oz.
Gap Height	0.375", 9.5 mm
Voice Coil Diameter	2.5", 64 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	52 Hz
DC Resistance (Re)	3.2 Ω
Coil Inductance (Le)	0.94m H
Mechanical Q (Qms)	8.21
Electromagnetic Q (Qes)	0.47
Total Q (Qts)	0.44
Compliance Equivalent Volume (Vas)	63.7 liters / 2.25 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	243 cc
Mechanical Compliance of Suspension (Cms)	0.17 mm/N
BL Product (BL)	10.9 T-M
Diaphragm Mass Inc. Airload (MMs)	53 grams
Efficiency Bandwidth Product (EBP)	111
Maximum Linear Excursion (Xmax)	4.8 mm
Surface Area of Cone (Sd)	506.7 cm2
Maximum Mechanical Limit (Xlim)	13.5 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	21-74 liters / 0.7-2.6 cu.ft.
Vented	28-110 liters / 1-3.9 cu.ft.
Driver Volume Displaced	0.079 cu.ft. / 2.25 liters
Overall Diameter	12.03", 305.6 mm
Baffle Hole Diameter	11.07", 281.2 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.25", 6.4mm
Mounting Holes B.C.D.	11.59", 294.4mm
Depth	5.35", 135.9 mm
Net Weight	11.8 lbs, 5.35 kg
Shipping Weight	14 lbs, 6.35 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Kapton former
Magnet Composition	Ferrite magnet
Core Details	Vented and extended core

Basket Materials	Pressed steel basket
Cone Composition	Treated paper cone
Cone Edge Composition	Cloth cone edge
Dust Cap Composition	Solid composition paper dust cap

—
