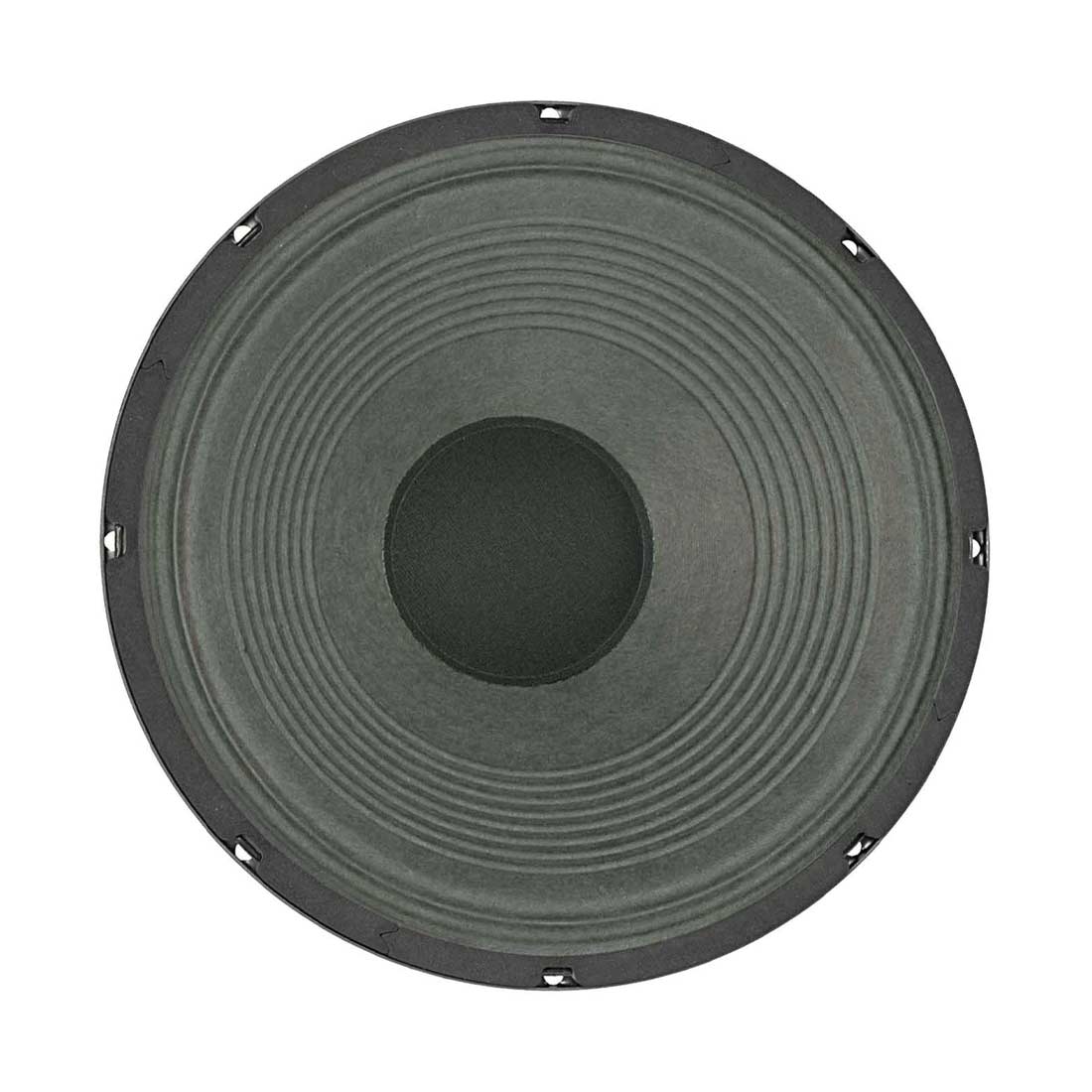

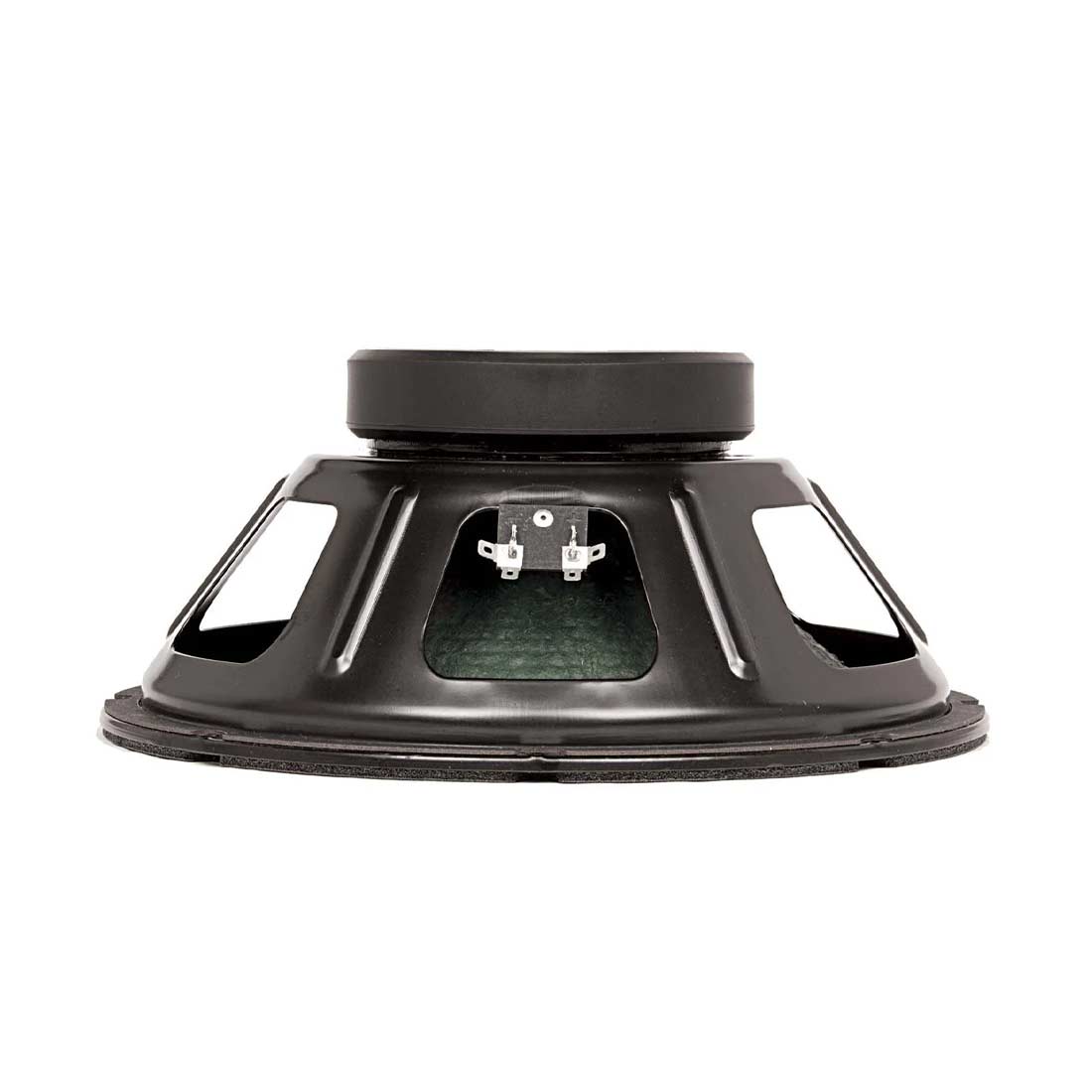

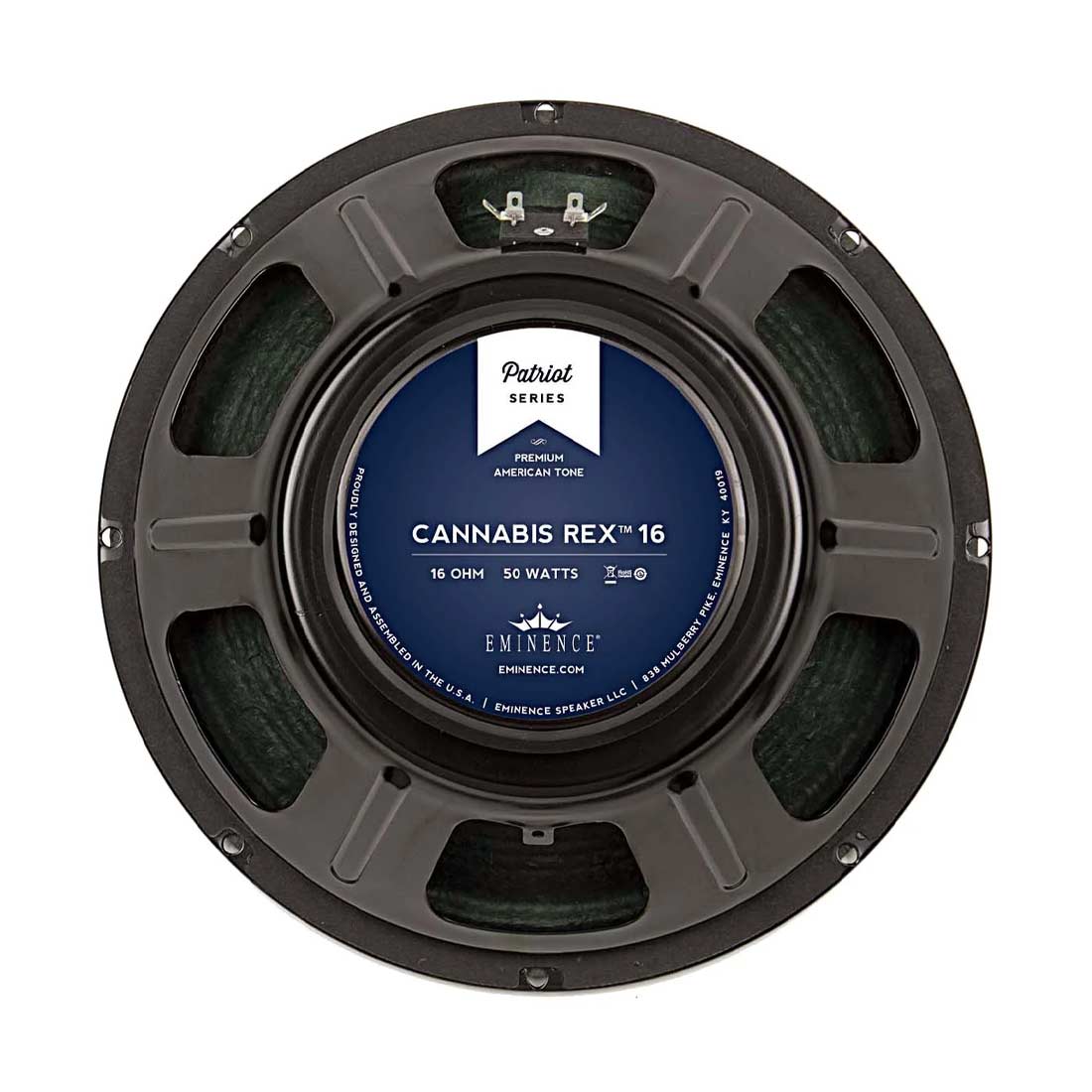

Eminence Guitar Cabinet with 2x12" Cannabis Rex - 16Ω

The Eminence Cannabis Rex™ guitar speaker lets your laid-back style come through. Clean and full, with lots of body and sparkle. Smokey smooth with high-end definition. Country, Jazz or Classical guitarists take notice.

Characteristics

Series	Patriots
Model	Cannabis Rex™
Application	12" Open or Closed Back
Configuration	1, 2, or 4 X 12"
Low End Response	Aggressive
Low End Shape	Fat/Round
Mid-Range Response	Moderate
Mid-Range Shape	Warm
High-End Response	Moderate
Volume/Power	Loudest
Overall Coloration*	Clean and full, with lots of body and sparkle.  Smokey smooth with high-end definition.
Break-up Modes	Slow
Power Range	Up to 50 watts
Instrument*	Lead/Rhythm  Guitar, Acoustic Guitar, Keyboard
Genre of Music*	Country, Jazz, Classical

Specifications

SPECIFICATION
Nominal Basket Diameter	12", 305 mm
Nominal Impedance*	16 Ω
Power Rating*
Program Power	N/A
Watts	50 W
Resonance	101 Hz
Usable Frequency Range	80 Hz - 4.2 kHz
Sensitivity*	101.8 dB
Magnet Weight	38 oz.
Gap Height	0.312", 7.9 mm
Voice Coil Diameter	1.75", 44 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	101 Hz
DC Resistance (Re)	13.1 Ω
Coil Inductance (Le)	0.75m H
Mechanical Q (Qms)	9.95
Electromagnetic Q (Qes)	0.82
Total Q (Qts)	0.75
Compliance Equivalent Volume (Vas)	36.4 liters / 1.29 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	42.6 cc
Mechanical Compliance of Suspension (Cms)	0.09 mm/N
BL Product (BL)	16.7 T-M
Diaphragm Mass Inc. Airload (MMs)	27 grams
Efficiency Bandwidth Product (EBP)	124
Maximum Linear Excursion (Xmax)	0.8 mm
Surface Area of Cone (Sd)	532.4 cm2
Maximum Mechanical Limit (Xlim)	N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	Acceptable
Vented	Acceptable
Driver Volume Displaced	0.071 cu.ft. / 2 liters
Overall Diameter	12.03", 305.6 mm
Baffle Hole Diameter	11.07", 281.2 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.25", 6.4mm
Mounting Holes B.C.D.	11.59", 294.4mm
Depth	5.1", 129.5 mm
Net Weight	8.2 lbs, 3.72 kg
Shipping Weight	9.8 lbs, 4.45 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Paper former
Magnet Composition	Ferrite magnet
Core Details	Non-vented core
Basket Materials	Pressed steel basket
Cone Composition	Hemp paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Zurette dust cap
