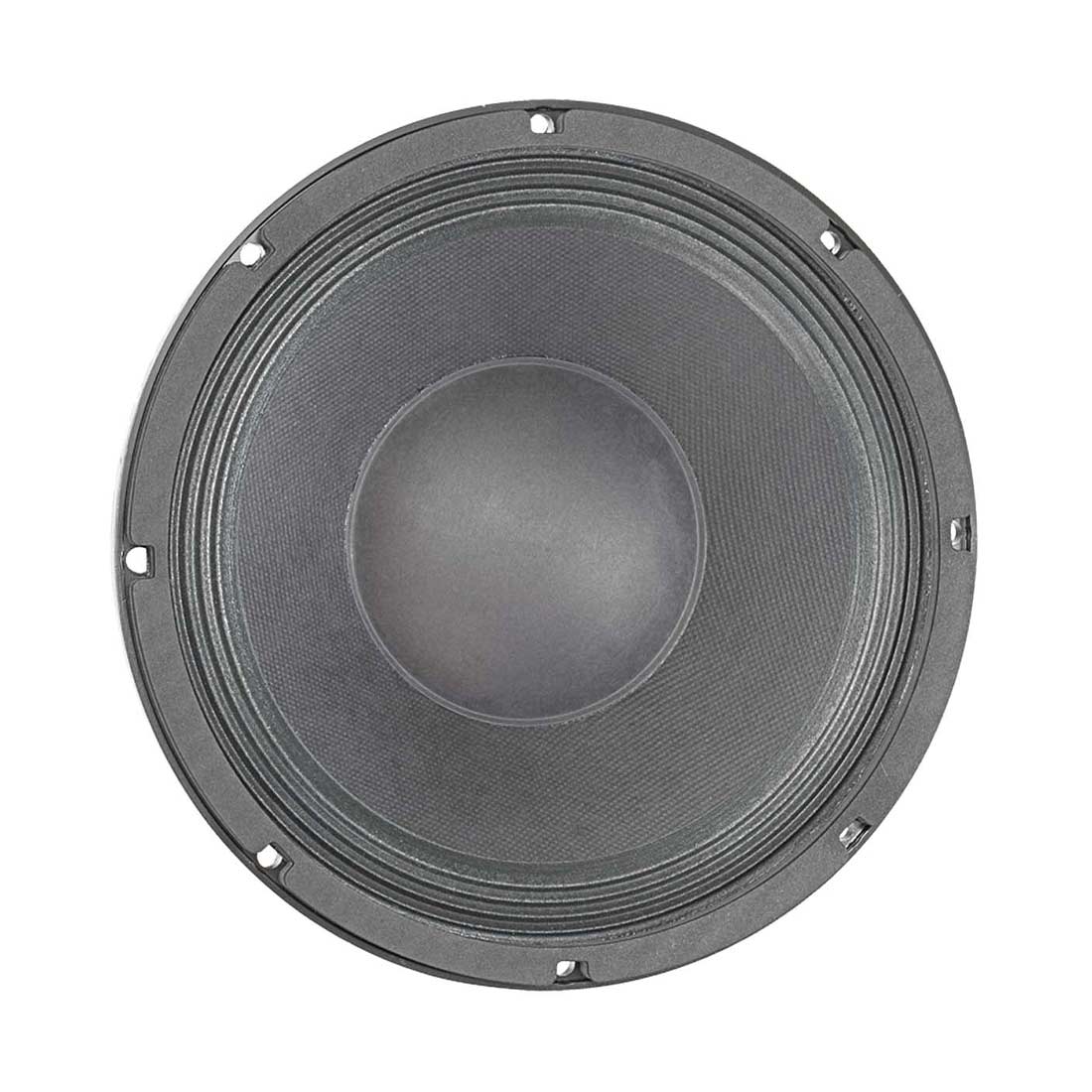

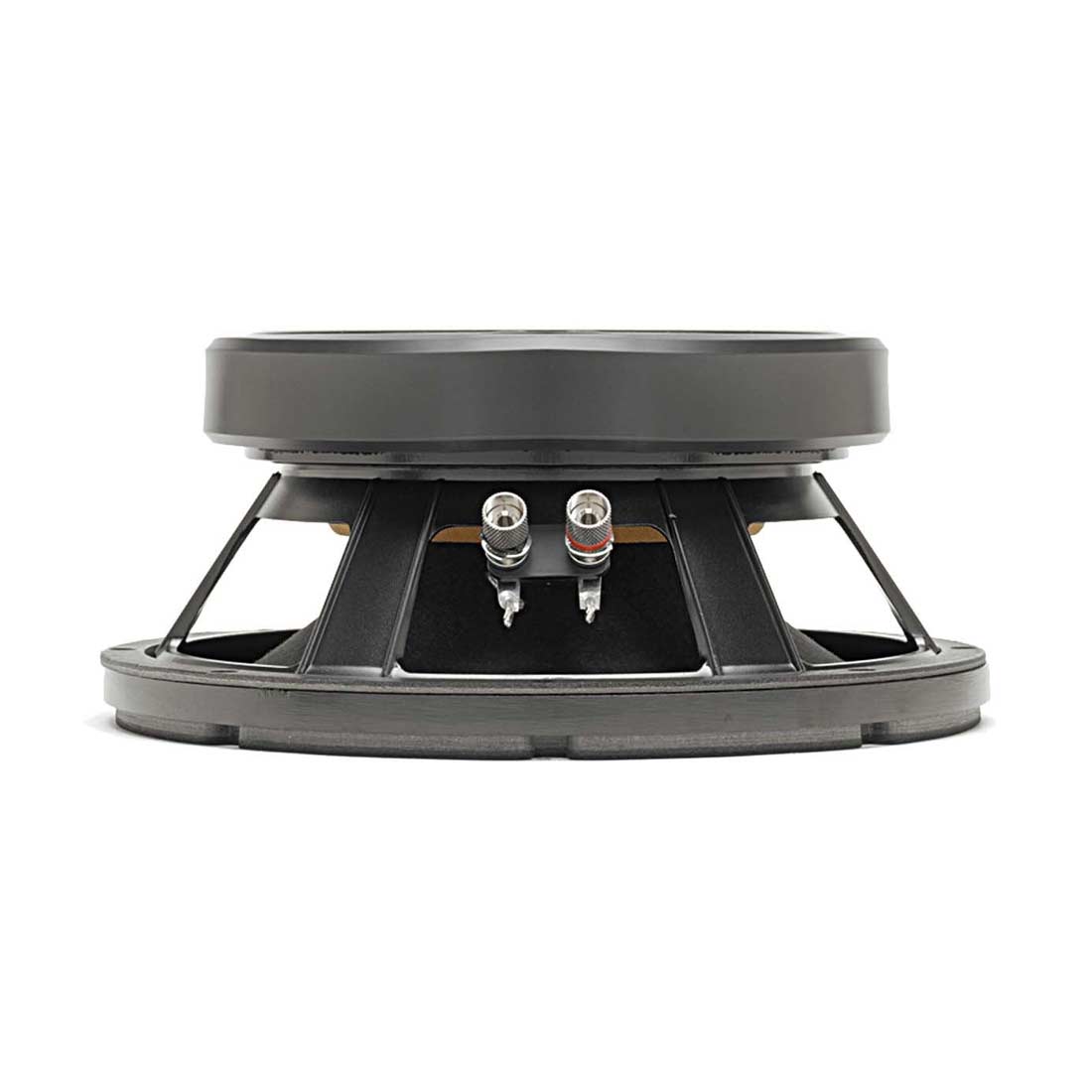

Eminence KAPPAPRO-10A 10in Speaker 500w 8 Ohm
Regular price
$439.99
Unit price
per
In Stock
SKU: KAPPAPRO-10A
Recommended for pro audio in a sealed midrange, vented mid-bass, and bass enclosure.
| SPECIFICATION | |
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | 1000 W |
| Watts | 500 W |
| Resonance | 46 Hz |
| Usable Frequency Range | 102 Hz - 2 kHz |
| Sensitivity* | 97 dB |
| Magnet Weight | 80 oz. |
| Gap Height | 0.375", 9.5 mm |
| Voice Coil Diameter | 3", 76 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 46 Hz |
| DC Resistance (Re) | 6.5 Ω |
| Coil Inductance (Le) | 1.15m H |
| Mechanical Q (Qms) | 10.1 |
| Electromagnetic Q (Qes) | 0.2 |
| Total Q (Qts) | 0.2 |
| Compliance Equivalent Volume (Vas) | 52.2 liters / 1.84 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 110 cc |
| Mechanical Compliance of Suspension (Cms) | 0.31 mm/N |
| BL Product (BL) | 18.8 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 38 grams |
| Efficiency Bandwidth Product (EBP) | 230 |
| Maximum Linear Excursion (Xmax) | 3.2 mm |
| Surface Area of Cone (Sd) | 344.9 cm2 |
| Maximum Mechanical Limit (Xlim) | 10.9 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | 7-9.9 liters / 0.25-0.35 cu.ft. |
| Vented | 12-28 liters / 0.43-1 cu.ft. |
| Driver Volume Displaced | 0.061 cu.ft. / 1.72 liters |
| Overall Diameter | 10.25", 260.4 mm |
| Baffle Hole Diameter | 9.13", 231.9 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.27", 6.9mm |
| Mounting Holes B.C.D. | 9.75", 247.7mm |
| Depth | 4.33", 110 mm |
| Net Weight | 15.3 lbs, 6.94 kg |
| Shipping Weight | 16.4 lbs, 7.44 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented core |
| Â | Â |
| Basket Materials | Die-cast aluminum basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Solid composition paper dust cap |
