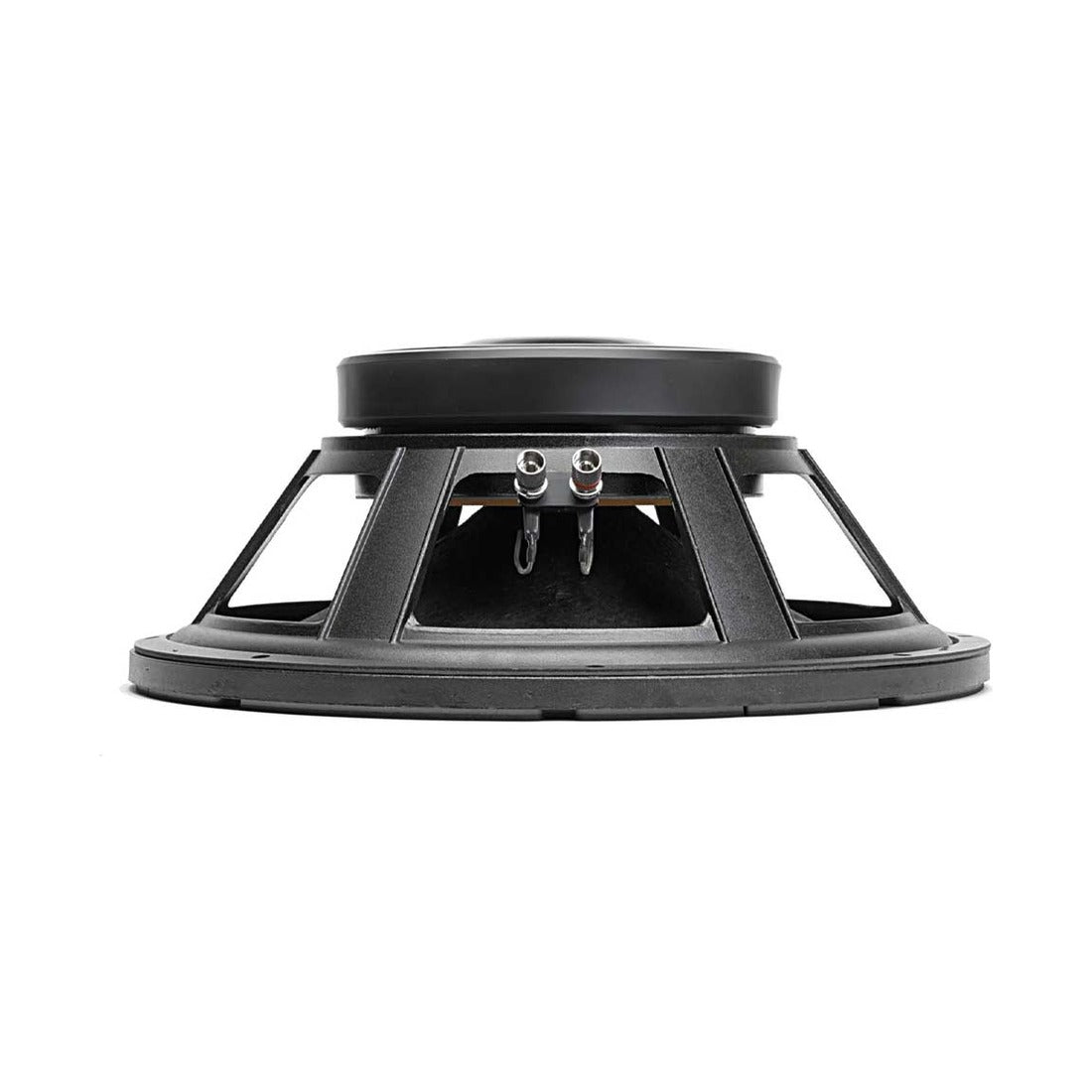

Eminence Legend CB158 15in Speaker 300W 8 Ohm

• 15in speaker, 300W, 8 ohm (program power 600 W)
• 98.2dB sensitivity, 47Hz-3kHz usable range
• 2.5in voice coil, 80oz magnet
• Paper cone, die-cast aluminum basket

• Series: Legend
• Diameter: 15", 381 mm
• Power: 300 W
• Program power: 600 W
• Impedance: 8 ohm
• Sensitivity: 98.2 dB
• Frequency range: 47 Hz - 3 kHz
• Resonance: 34 Hz
• Magnet weight: 80 oz.
• Gap height: 0.375", 9.5 mm
• Voice coil: 2.5", 64 mm
• Coil: Copper voice coil
• Coil former: Polyimide former
• Magnet: Ferrite magnet
• Basket: Die-cast aluminum basket
• Cone: Paper cone
• Cone edge: Cloth cone edge
• Dust cap: Solid composition paper dust cap
• Thiele-Small: Re 6.15 Ω, Le 0.33mH, Qms 5.9, Qes 0.36, Qts 0.34, Vas 336.1 L / 11.87 cu.ft., Vd 411 cc, Cms 0.31 mm/N, BL 16 T-M, Mms 70 grams, EBP 95, Xmax 4.8 mm, Sd 856.3 cm2, Xlim 9.5 mm
• Mounting: baffle cutout 13.99", 355.4 mm, bolt circle 14.56", 369.8mm, overall diameter 15.22", 386.6 mm, depth 6.5", 165.1 mm, volume displaced 0.138 cu.ft. / 3.92 liters
• Net weight: 17.3 lbs, 7.85 kg
• Warranty: 1 year

Specifications are from our existing product data; Eminence's own page has not been checked for this model.
