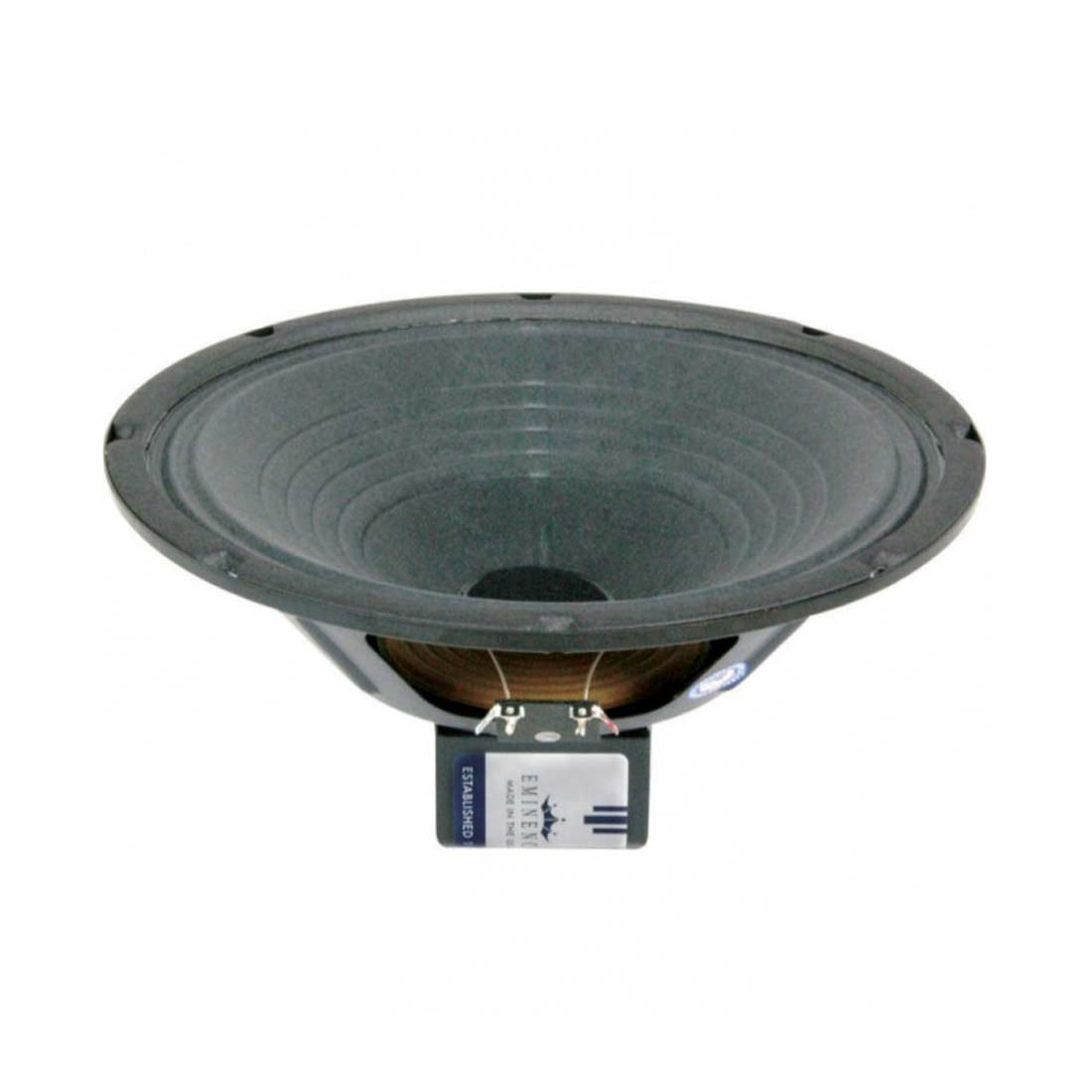

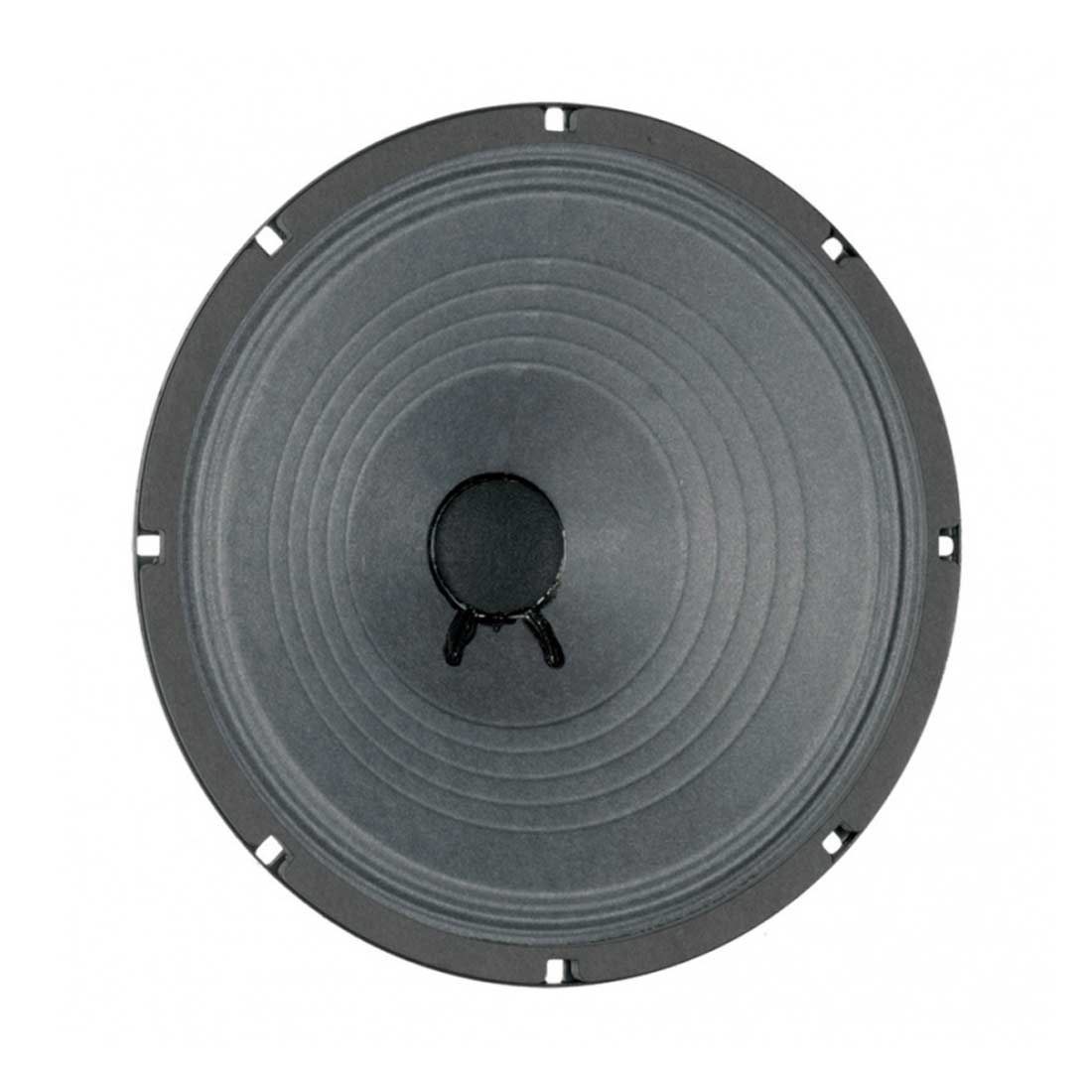

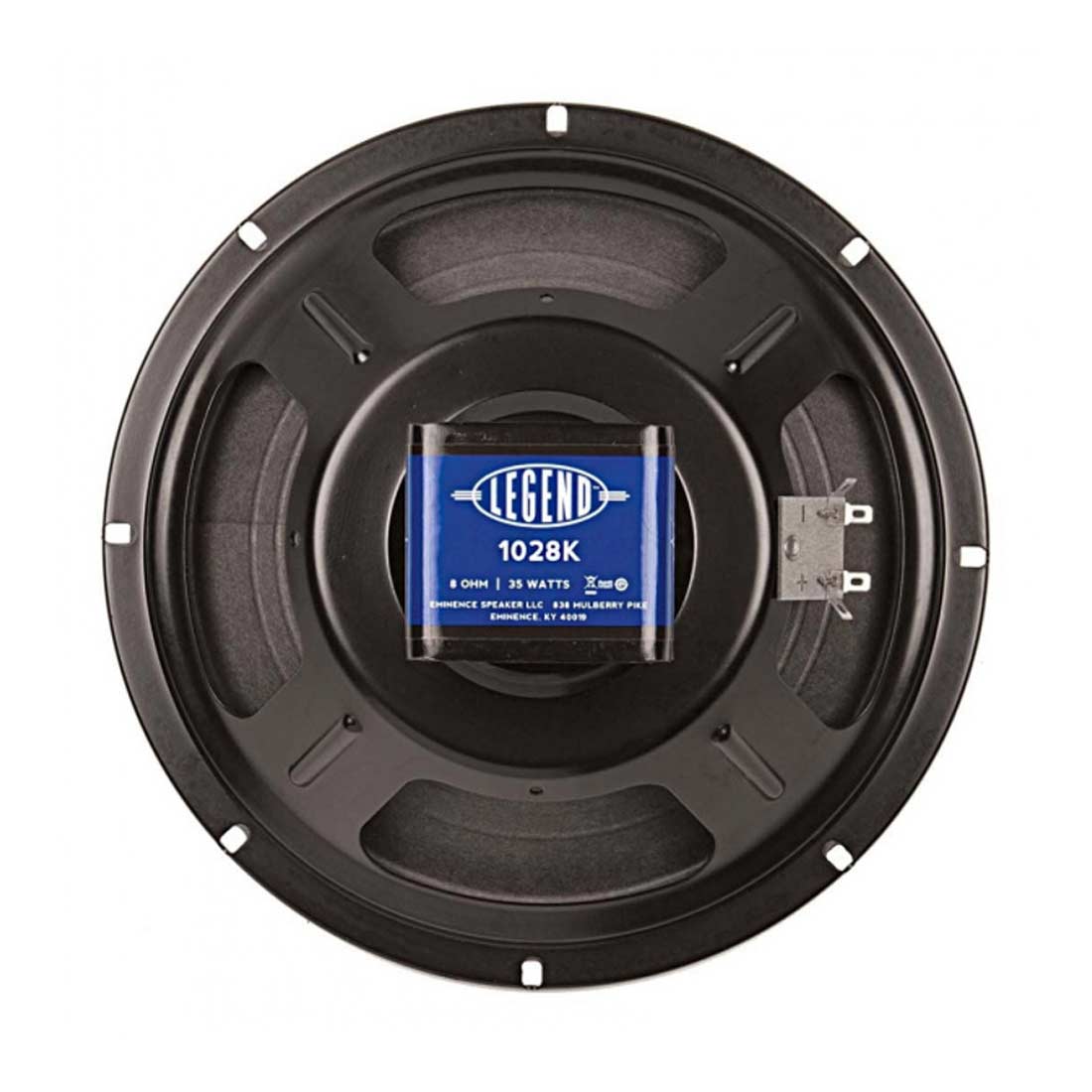

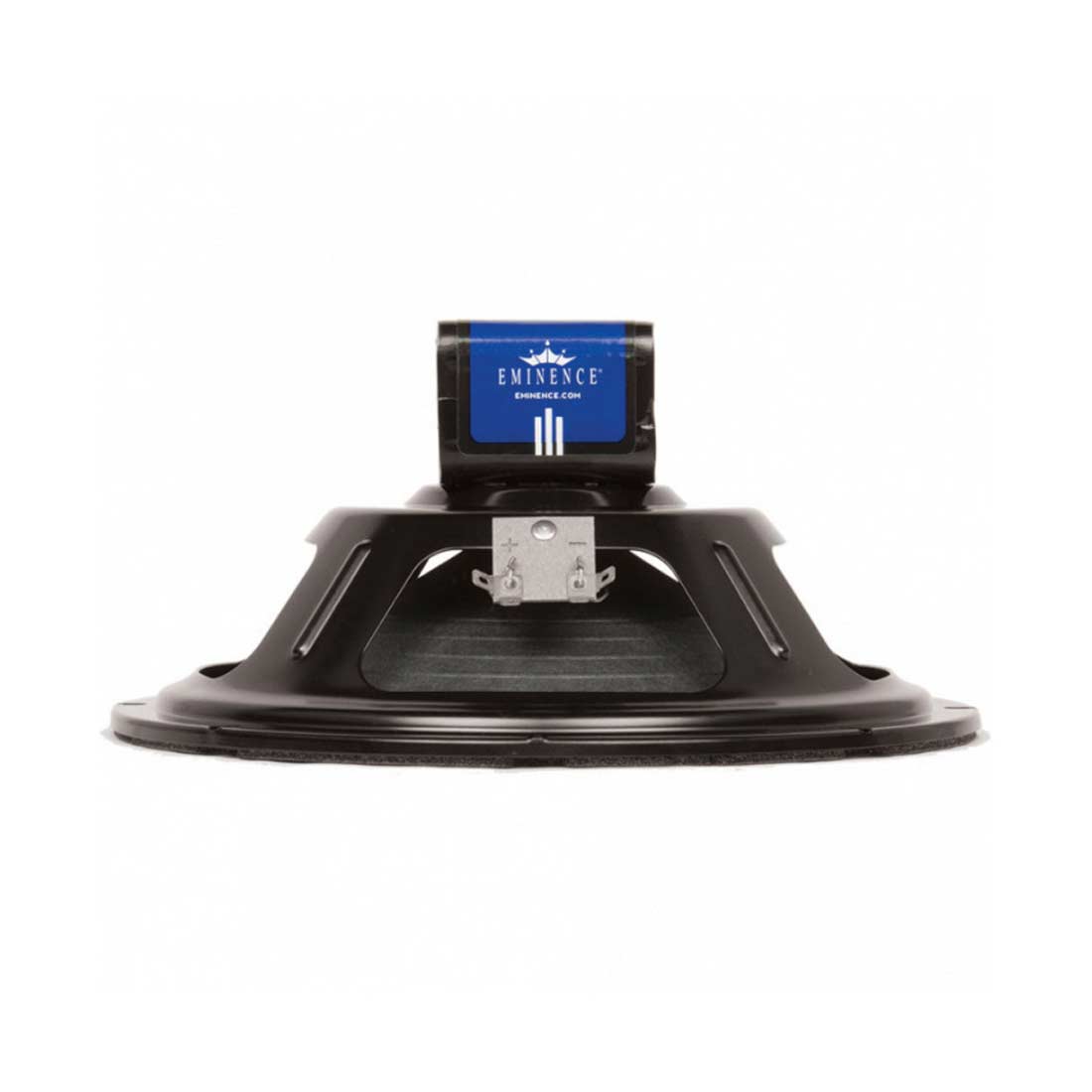

Eminence LEGEND1028K 10in Legend 35w Speaker 8 Ohm
SKU: LEGEND1028K
The tone that started it all. This long-standing line of guitar speakers didn\'t get its name by accident. Known for their power, reliability and value, these rock-solid speakers have backed legendary players in legendary venues. Look inside some of the best sounding amps and you may see a Legend that was factory-installed or put in as a replacement. Either way you\'ll know someone knew what tone they wanted and how to get it. If you want to sound like a legend, play one.
Eminence has been producing this AlNiCo model for some of the world\'s finest amplifier manufacturers for years. Even more popular than its AlNiCo sister, the 122, this classic lends that warm blues tone that has helped in making many of its users legendary. Like the 12 in. AlNiCo, this speaker was created for lower power, vintage amplifier applications where a thinner tone is desired.
The Eminence Legend 102 guitar speaker is a classic stage fixture. A very bluesy speaker with lots of sparkle, definition and percussive characteristics. Vintage American tone with moderate, but tight, percussive lows and extended highs. Hard-working under the bright lights.
Specification:
- Nominal Basket Diameter 10", 254mm
- Nominal Impedance* 8 ohms
- Power Rating**
- Watts 35W
- Music Program N/A
- Resonance 95Hz
- Usable Frequency Range 100Hz - 5.5kHz
- Sensitivity*** 97.4dB
- Magnet Weight 6 oz.
- Gap Height 0.25", 6.2mm
- Voice Coil Diameter 1", 25.4mm
Thiele & Small Parameters:
- Resonant Frequency (fs) 95Hz
- DC Resistance (Re) 5.8
- Coil Inductance (Le) 0.51mH
- Mechanical Q (Qms) 17.96
- Electromagnetic Q (Qes) 1.61
- Total Q (Qts) 1.47
- Compliance Equivalent Volume (Vas) 31.5 liters / 1.1 cu.ft.
- Peak Diaphragm Displacement Volume (Vd) 72cc
- Mechanical Compliance of Suspension (Cms) 0.19mm/N
- BL Product (BL) 5.7 T-M
- Diaphragm Mass Inc. Airload (MMs) 15 grams
- Efficiency Bandwidth Product (EBP) 59
- Maximum Linear Excursion (Xmax) 2.1mm
- Surface Area of Cone (Sd) 344.9 cm2
- Maximum Mechanical Limit (Xlim) N/A
Mounting Information:
- Recommended Enclosure Volume
- Sealed Acceptable
- Vented Acceptable
- Driver Volume Displaced 46.7 cu.in. / 0.77 liters
- Overall Diameter 10.11", 256.8mm
- Baffle Hole Diameter 9.05", 229.9mm
- Front Sealing Gasket Fitted as standard
- Rear Sealing Gasket N/A
- Mounting Holes Diameter 0.22", 5.6mm
- Mounting Holes B.C.D. 9.6", 243.8mm
- Depth 4.8", 122mm
- Net Weight 2.9 lbs, 1.3 kg
- Shipping Weight 4 lbs, 1.8 kgs
Materials of Construction:
- Coil Construction Copper voice coil
- Coil Former Polyimide former
- Magnet Composition Alnico magnet
- Core Details Non-vented core
- Basket Materials Pressed steel basket
- Cone Composition Paper Cone
- Cone Edge Composition Paper cone edge
- Dust Cap Composition Solid composition felt dust cap
