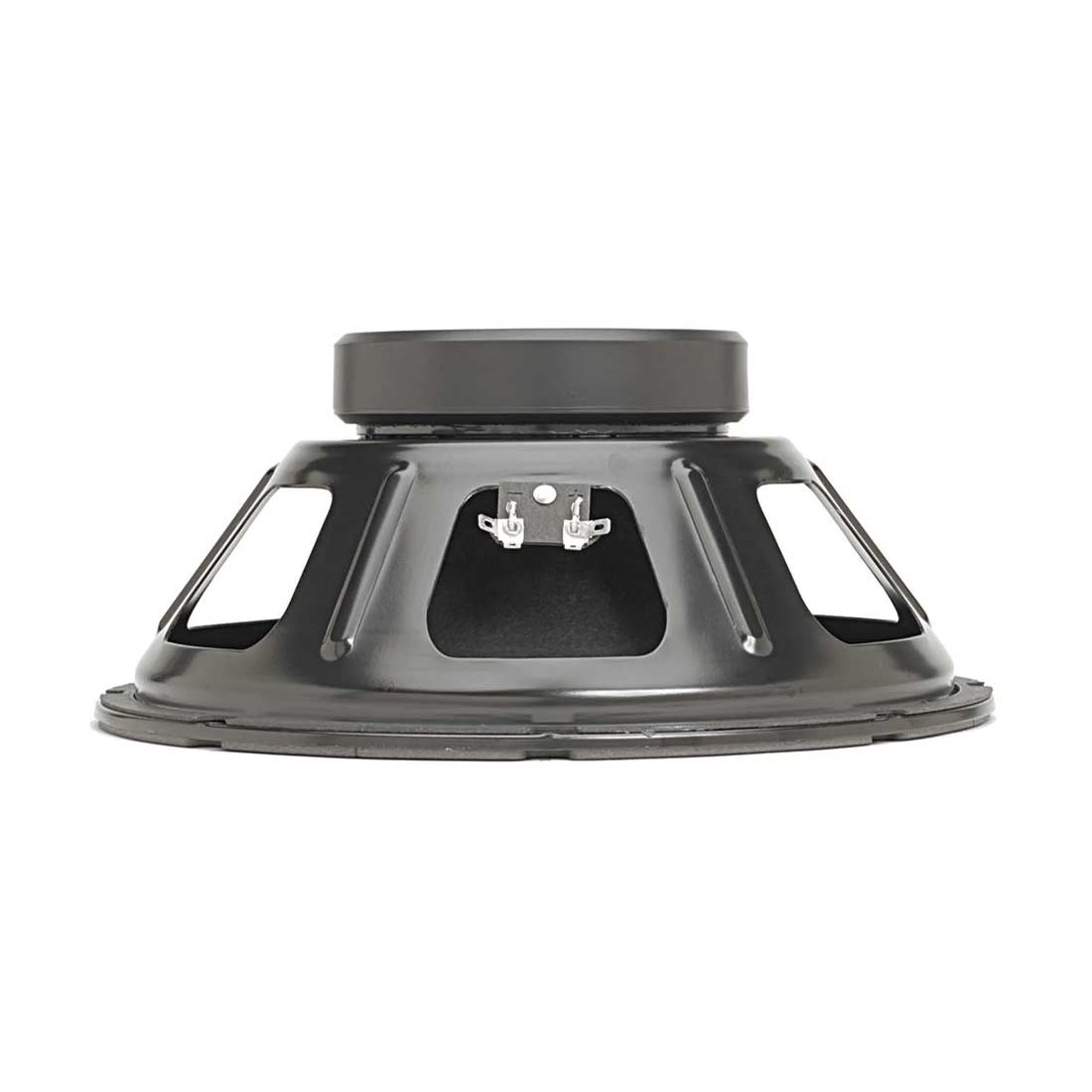

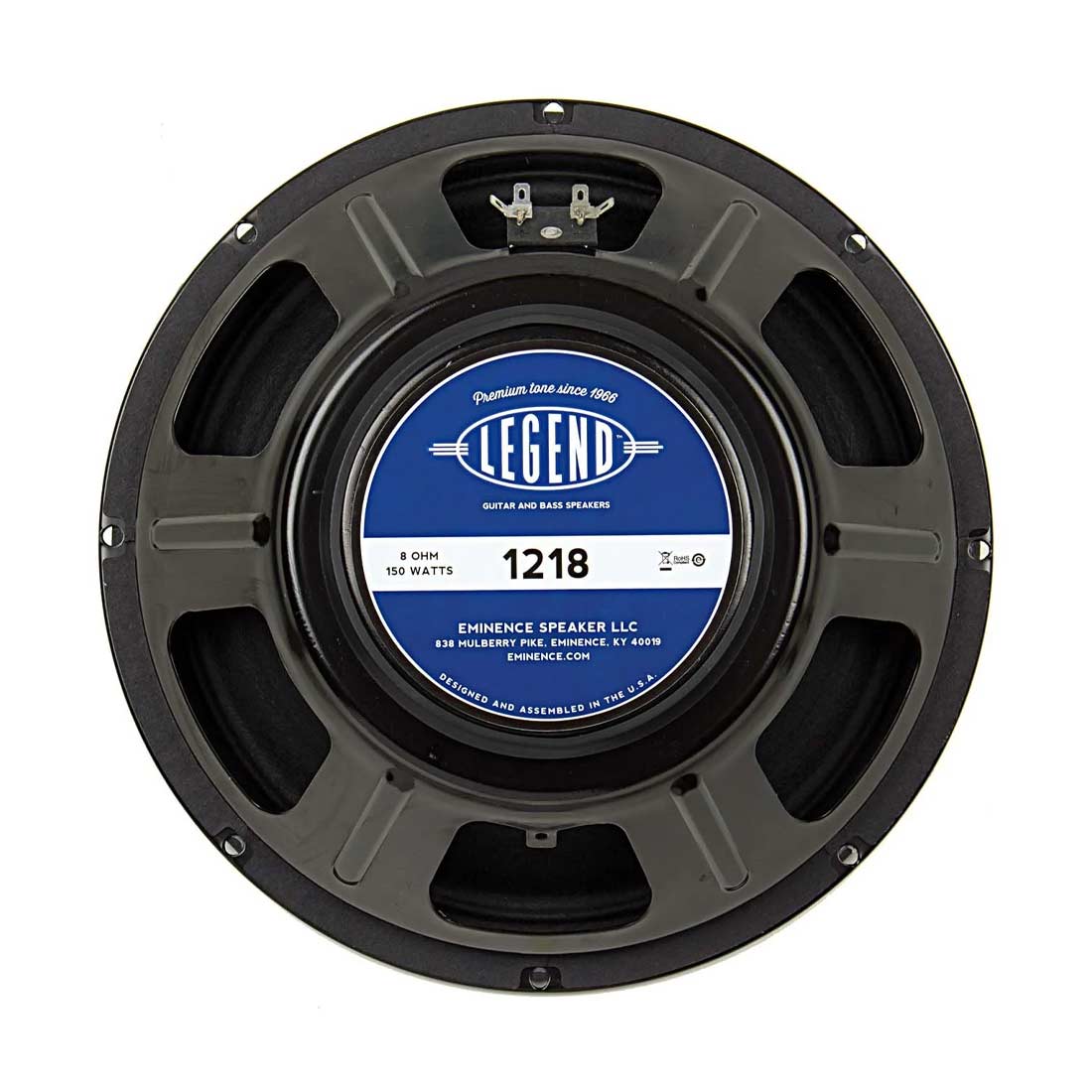

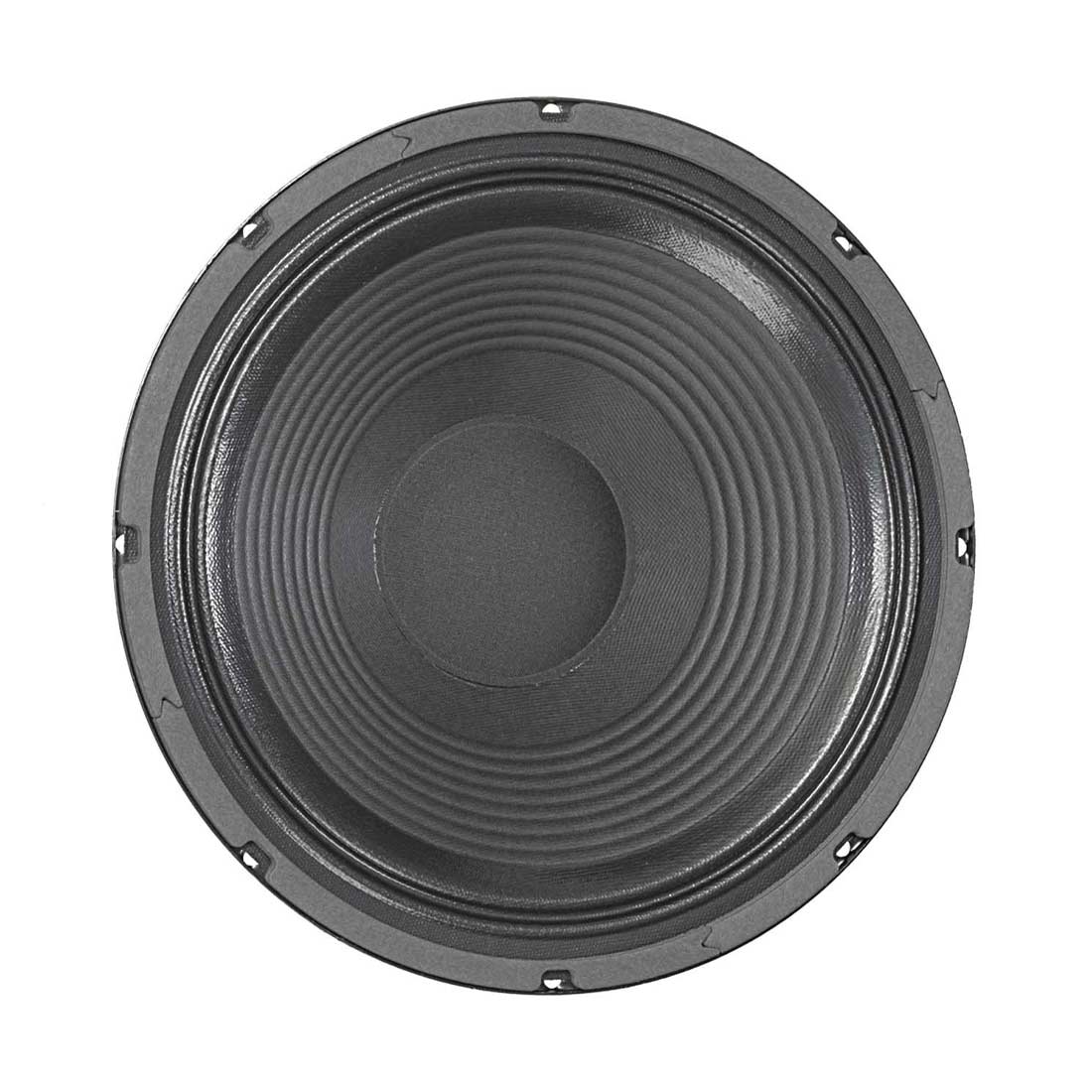

Eminence LEGEND1218 12in 150w Speaker 8 Ohm

The Eminence Legend 1218 guitar speaker brings tone to the masses. Very balanced, fat, round, punchy lows and warm, smooth mids and lows, very clean and articulate. Aces.

Characteristics

Series	Legends
Model	Legend 1218
Application	12" Open or Closed Back
Configuration	1, 2, or 4 X 12"
Low End Response	Aggressive
Low End Shape	Fat/Round
Mid-Range Response	Moderate
Mid-Range Shape	Warm
High-End Response	Moderate
Volume/Power	Louder
Overall Coloration*	Very balanced, fat, round, punchy lows and warm, smooth mids and lows, very clean and articulate.
Break-up Modes	Medium
Power Range	Up to 150 watts
Instrument*	Lead/Rhythm Guitar
Genre of Music*	Rock, Blues, Country

Specifications

SPECIFICATION
Nominal Basket Diameter	12", 305 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	150 W
Resonance	100 Hz

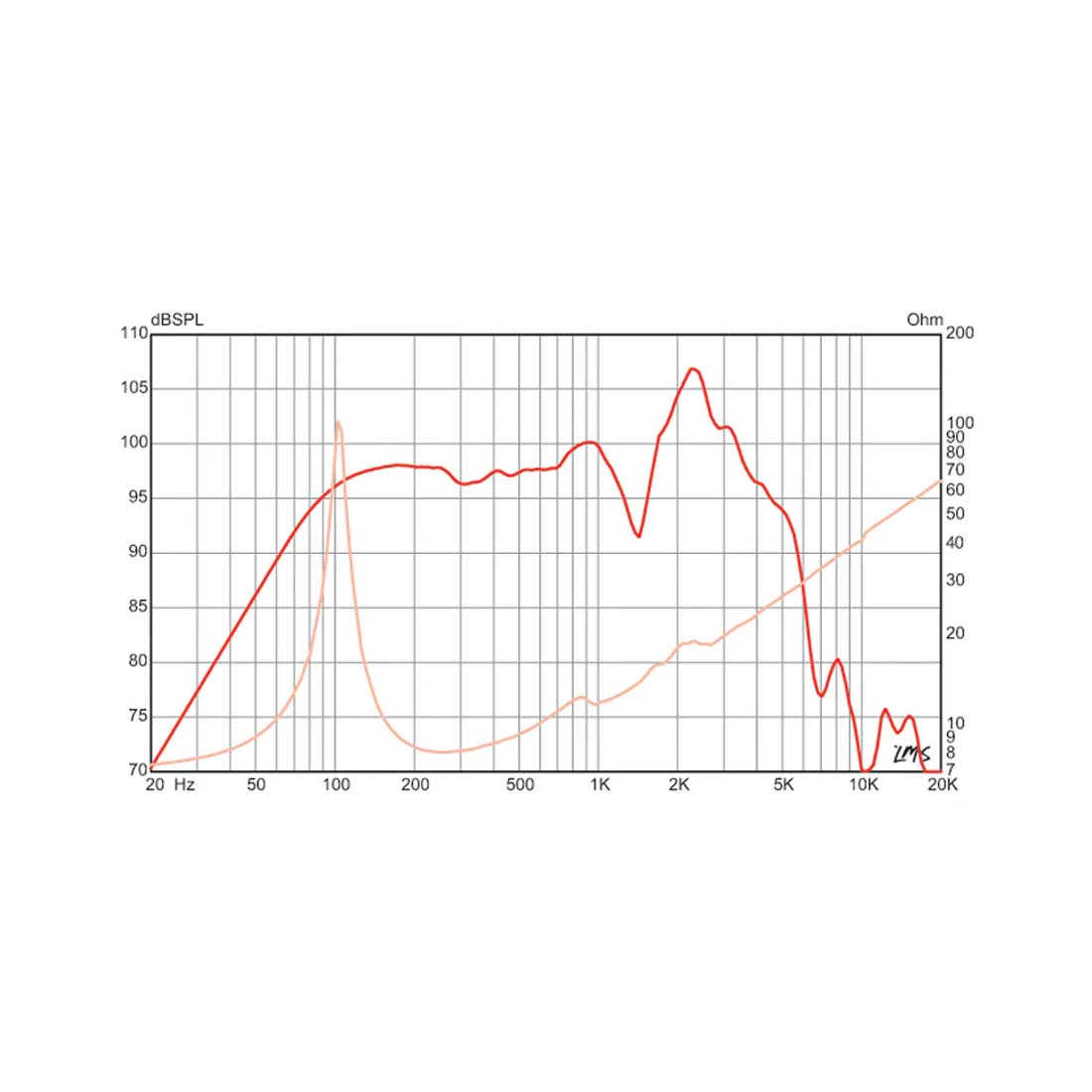

Usable Frequency Range	80 Hz - 4.2 kHz
Sensitivity*	98.7 dB
Magnet Weight	38 oz.
Gap Height	0.312", 7.9 mm
Voice Coil Diameter	2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	100 Hz
DC Resistance (Re)	6.95 Ω
Coil Inductance (Le)	0.69m H
Mechanical Q (Qms)	15.51
Electromagnetic Q (Qes)	0.95
Total Q (Qts)	0.89
Compliance Equivalent Volume (Vas)	31.2 liters / 1.1 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	40.5 cc
Mechanical Compliance of Suspension (Cms)	0.09 mm/N
BL Product (BL)	11.6 T-M
Diaphragm Mass Inc. Airload (MMs)	29 grams
Efficiency Bandwidth Product (EBP)	105
Maximum Linear Excursion (Xmax)	0.8 mm
Surface Area of Cone (Sd)	506.7 cm2
Maximum Mechanical Limit (Xlim)	N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	N/a
Vented	Acceptable
Driver Volume Displaced	0.071 cu.ft. / 2 liters
Overall Diameter	12.03", 305.6 mm
Baffle Hole Diameter	11.07", 281.2 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.25", 6.4mm
Mounting Holes B.C.D.	11.59", 294.4mm
Depth	5.1", 129.5 mm
Net Weight	8.4 lbs, 3.81 kg
Shipping Weight	10.6 lbs, 4.81 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Polyimide former
Magnet Composition	Ferrite magnet
Core Details	Non-vented core
Basket Materials	Pressed steel basket
Cone Composition	Paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Zurette dust cap
