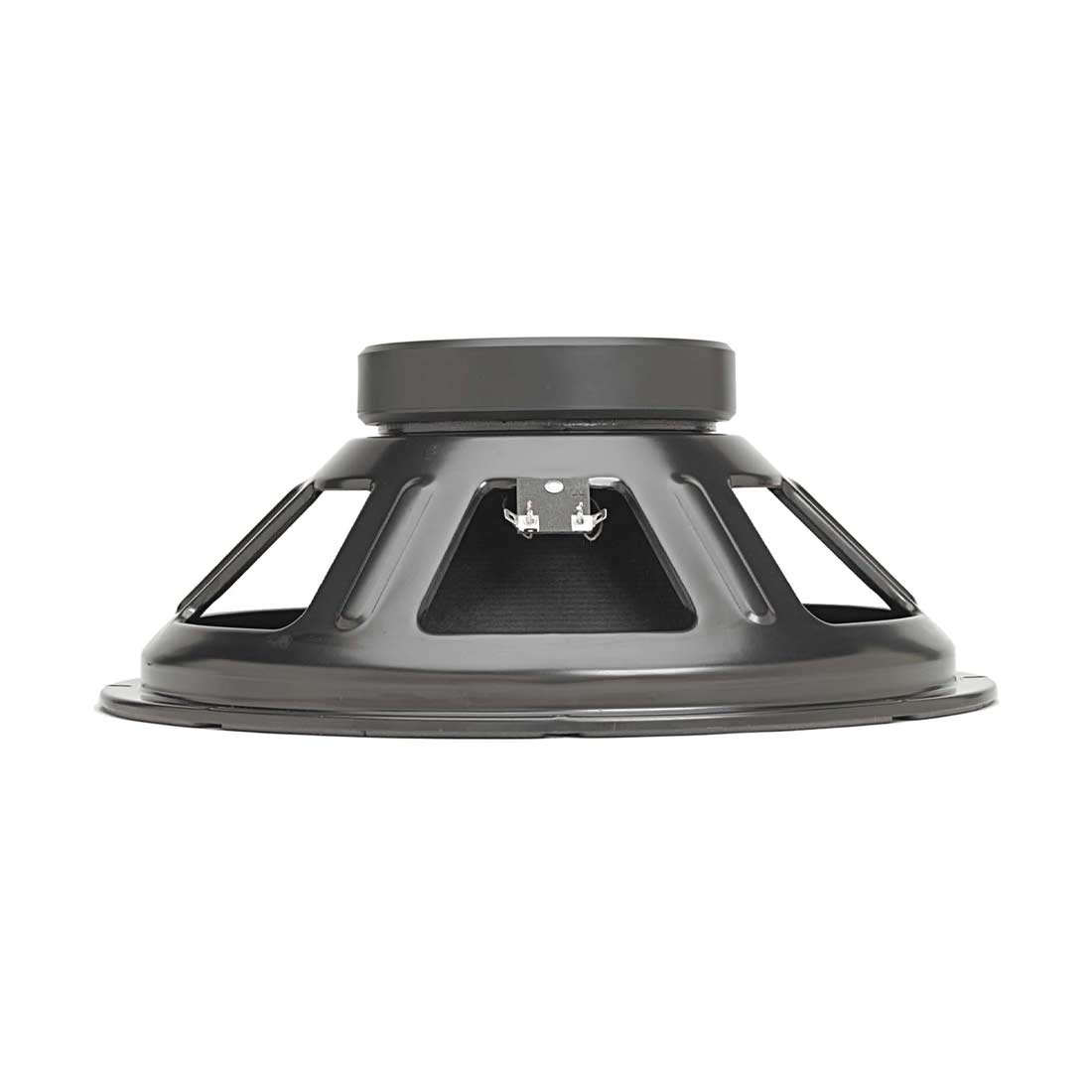

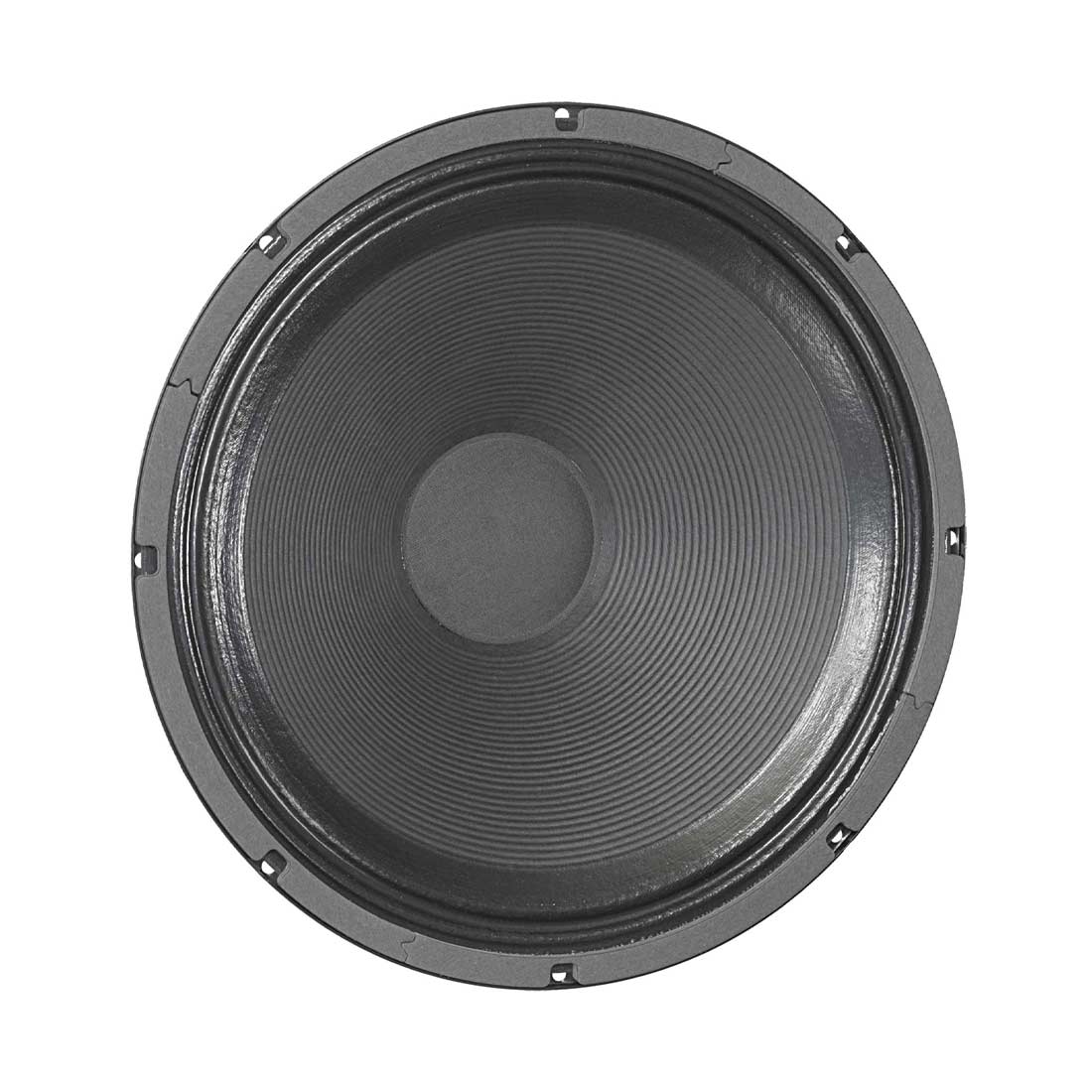

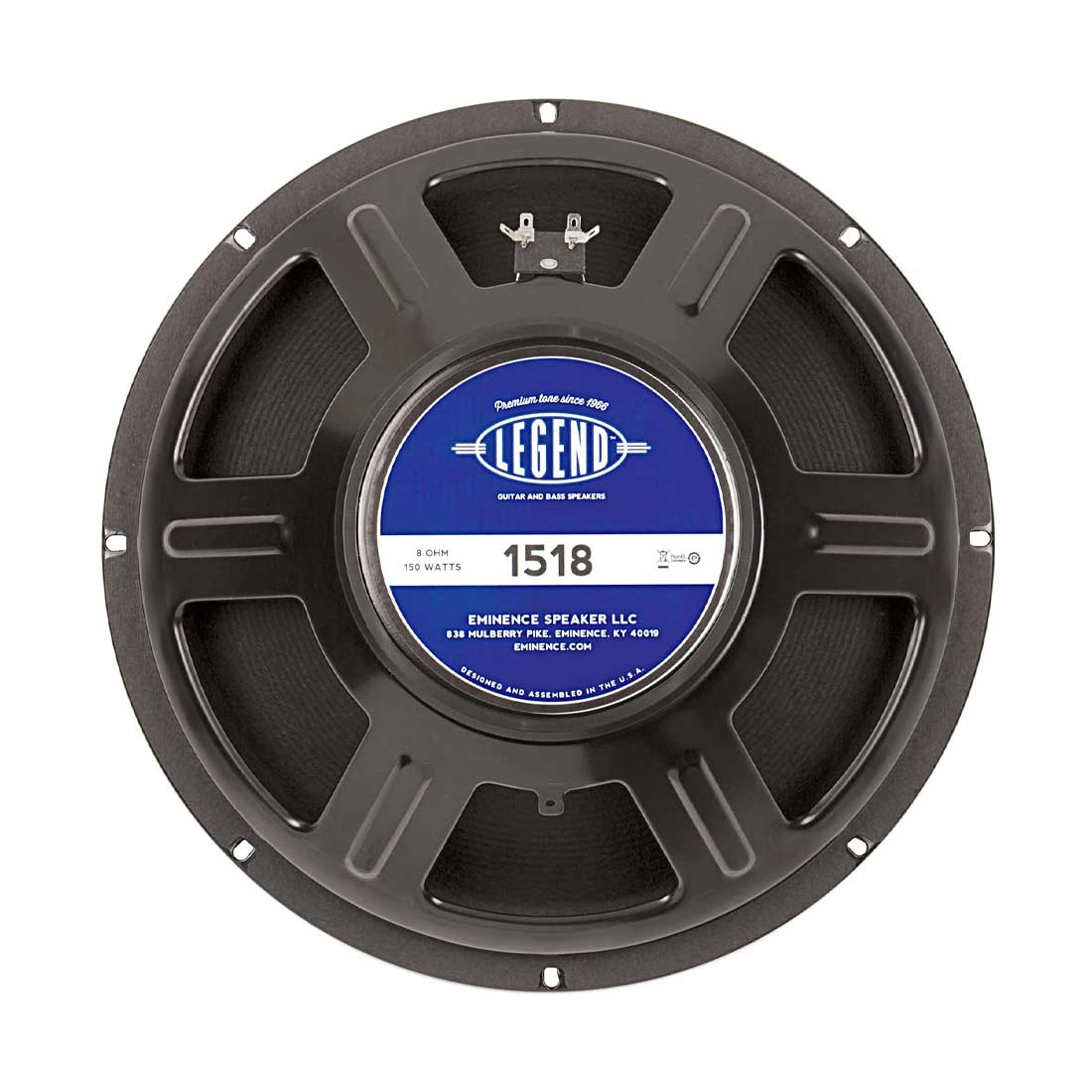

Name: Eminence LEGEND1518 15in Speaker 150w 15in 8 Ohm
Brand: Music Connection
SKU: LEGEND1518
Price: 389.99 AUD
Availability: InStock

Free Shipping to metro areas for orders over $100 *

Series	Legends
Model	Legend 1518
Application	15" Open Back
Configuration	1, or 2 X 15"
Low End Response	Aggressive
Low End Shape	Tight
Mid-Range Response	Moderate
Mid-Range Shape	Warm
High-End Response	Moderate
Volume/Power	Louder
Overall Coloration*	Well balanced 15" with tight/punchy lows and warm, smooth mids and highs.
Break-up Modes	Medium
Power Range	Up to 150 watts
Instrument*	Lead/Rhythm Guitar
Genre of Music*	Rock, Blues, Country

SPECIFICATION
Nominal Basket Diameter	15", 381 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	150 W
Resonance	82 Hz
Usable Frequency Range	60 Hz - 4 kHz
Sensitivity*	103.4 dB
Magnet Weight	59 oz.
Gap Height	0.312", 7.9 mm
Voice Coil Diameter	2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	82 Hz
DC Resistance (Re)	7.16 Ω
Coil Inductance (Le)	0.86m H
Mechanical Q (Qms)	10.12
Electromagnetic Q (Qes)	1.02
Total Q (Qts)	0.93
Compliance Equivalent Volume (Vas)	65.4 liters / 2.31 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	65.9 cc
Mechanical Compliance of Suspension (Cms)	0.07 mm/N
BL Product (BL)	14.1 T-M
Diaphragm Mass Inc. Airload (MMs)	55 grams
Efficiency Bandwidth Product (EBP)	80
Maximum Linear Excursion (Xmax)	0.8 mm
Surface Area of Cone (Sd)	823.7 cm2
Maximum Mechanical Limit (Xlim)	N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	N/a
Vented	Acceptable
Driver Volume Displaced	0.128 cu.ft. / 3.62 liters
Overall Diameter	15.15", 384.8 mm
Baffle Hole Diameter	13.87", 352.3 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	N/A
Mounting Holes Diameter	0.25", 6.4mm
Mounting Holes B.C.D.	14.56", 369.8mm
Depth	6.1", 154.9 mm
Net Weight	12.1 lbs, 5.49 kg
Shipping Weight	14.1 lbs, 6.4 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Polyimide former
Magnet Composition	Ferrite magnet
Core Details	Non-vented core

Basket Materials	Pressed steel basket
Cone Composition	Paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Zurette dust cap

—
