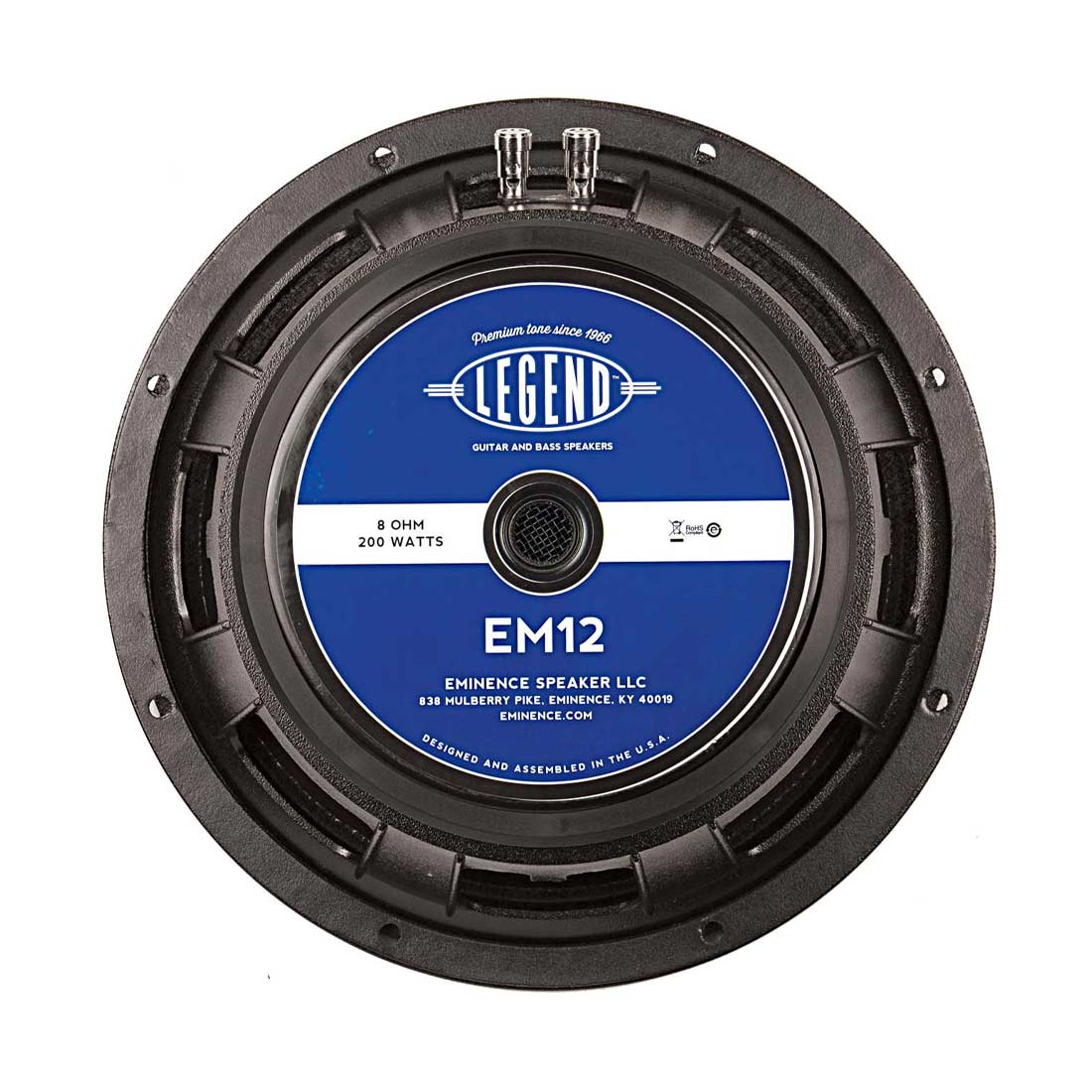

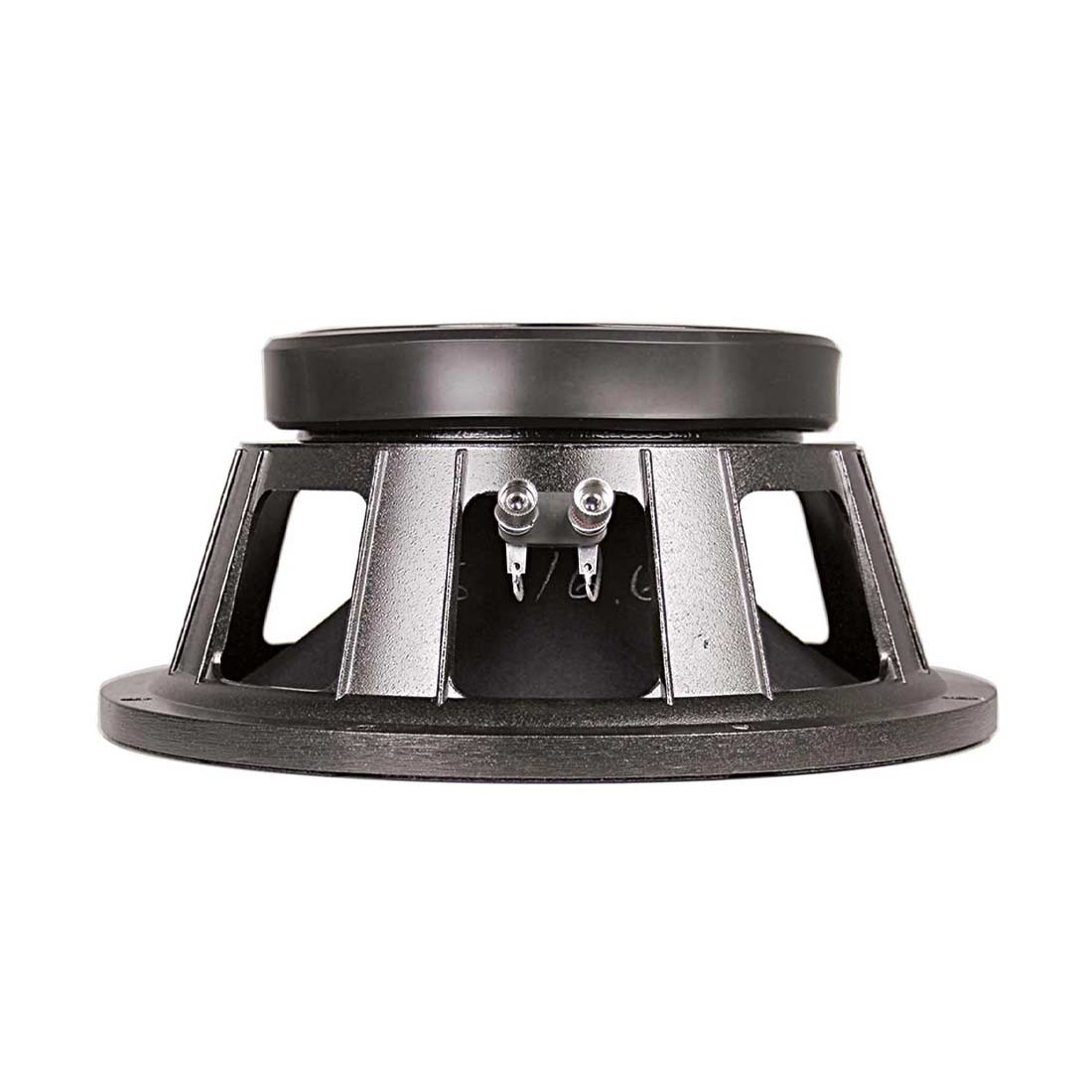

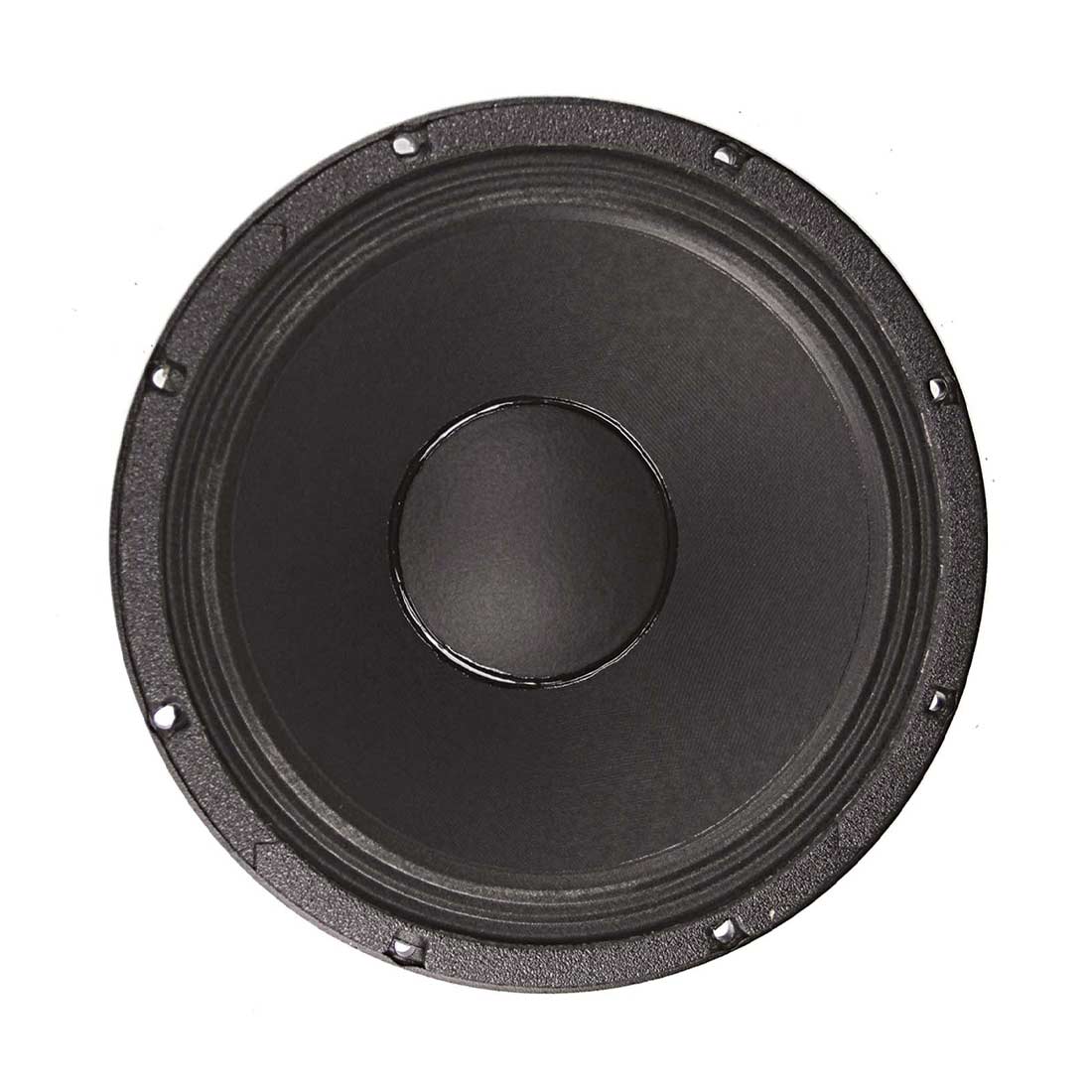

    Eminence LEGENDEM12 12in Speaker 200 w 8 Ohms

    Regular price $439.99
    In Stock

    SKU: LEGENDEM12

    A high power 12 inch guitar speaker featuring ultra-clean tone with big, round, punchy lows and warm, smooth mids and highs. A more neutral tone so you can hear more of your amp and guitar.

    Series Legends
    Model Legend EM12
    Application 12" Open or Closed Back
    Configuration 1, 2, or 4 X 12"
    Low End Response Aggressive
    Low End Shape Fat/Round
    Mid-Range Response Moderate
    Mid-Range Shape Warm
    High-End Response Moderate
    Volume/Power Louder
    Overall Coloration* Ultra clean with big, round, punchy lows and warm, smooth mids and highs.  A more neutral tone so you can hear more of the amp and guitar.
    Break-up Modes Slow
    Power Range Up to 200 watts
    Instrument* Lead/Rhythm Guitar
    Genre of Music* Blues, Rock, Country, Jazz, Metal

    SPECIFICATION
    Nominal Basket Diameter 12", 305 mm
    Nominal Impedance* 8 Ω
    Power Rating*
    Program Power N/A
    Watts 200 W
    Resonance 49 Hz
    Usable Frequency Range 60 Hz - 4.9 kHz
    Sensitivity* 101.1 dB
    Magnet Weight 80 oz.
    Gap Height 0.375", 9.5 mm
    Voice Coil Diameter 2.5", 64 mm
    THIELE & SMALL PARAMETERS
    Resonant Frequency (fs) 49 Hz
    DC Resistance (Re) 6.6 Ω
    Coil Inductance (Le) 0.49m H
    Mechanical Q (Qms) 7.39
    Electromagnetic Q (Qes) 0.29
    Total Q (Qts) 0.28
    Compliance Equivalent Volume (Vas) 102.31 liters / 3.61 cu.ft.
    Peak Diaphragm Displacement Volume (Vd) 68 cc
    Mechanical Compliance of Suspension (Cms) 0.26 mm/N
    BL Product (BL) 16.9 T-M
    Diaphragm Mass Inc. Airload (MMs) 40 grams
    Efficiency Bandwidth Product (EBP) 170
    Maximum Linear Excursion (Xmax) 1.27 mm
    Surface Area of Cone (Sd) 532.4 cm2
    Maximum Mechanical Limit (Xlim) N/A
    MOUNTING INFORMATION
    Recommended Enclosure Volume
    Sealed Acceptable
    Vented Acceptable
    Driver Volume Displaced 0.09 cu.ft. / 2.55 liters
    Overall Diameter 12.38", 314.5 mm
    Baffle Hole Diameter 11.07", 281.2 mm
    Front Sealing Gasket Yes
    Rear Sealing Gasket Yes
    Mounting Holes Diameter 0.26", 6.6mm
    Mounting Holes B.C.D. 11.57", 293.9mm
    Depth 5.38", 136.5 mm
    Net Weight 16.3 lbs, 7.39 kg
    Shipping Weight 18 lbs, 8.16 kgs
    MATERIALS OF CONSTRUCTION
    Coil Construction Edge wound aluminum voice coil
    Coil Former Polyimide former
    Magnet Composition Ferrite magnet
    Core Details Vented core

    Basket Materials Die cast aluminum basket
    Cone Composition Paper cone
    Cone Edge Composition Cloth edge
    Dust Cap Composition Paper dust cap
