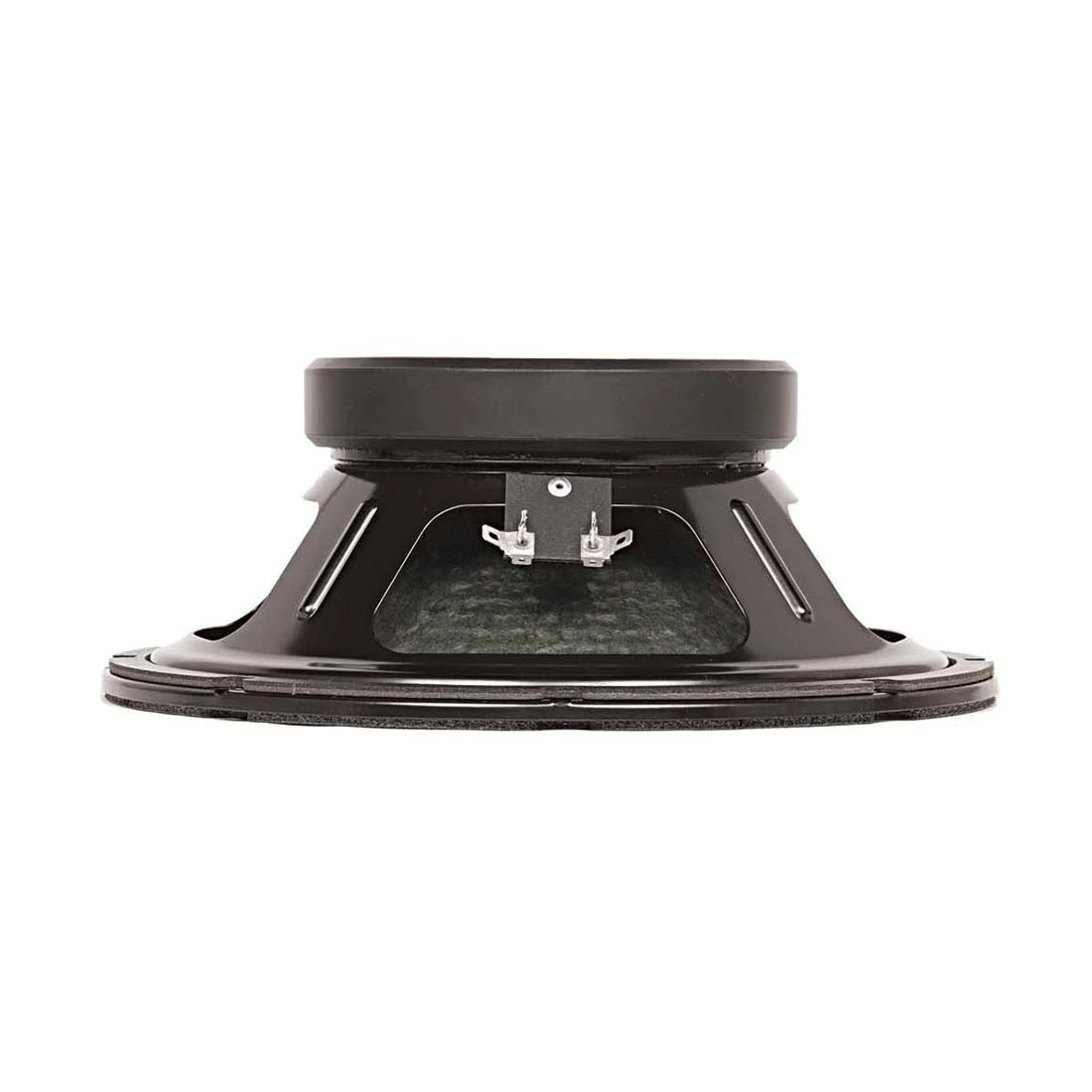

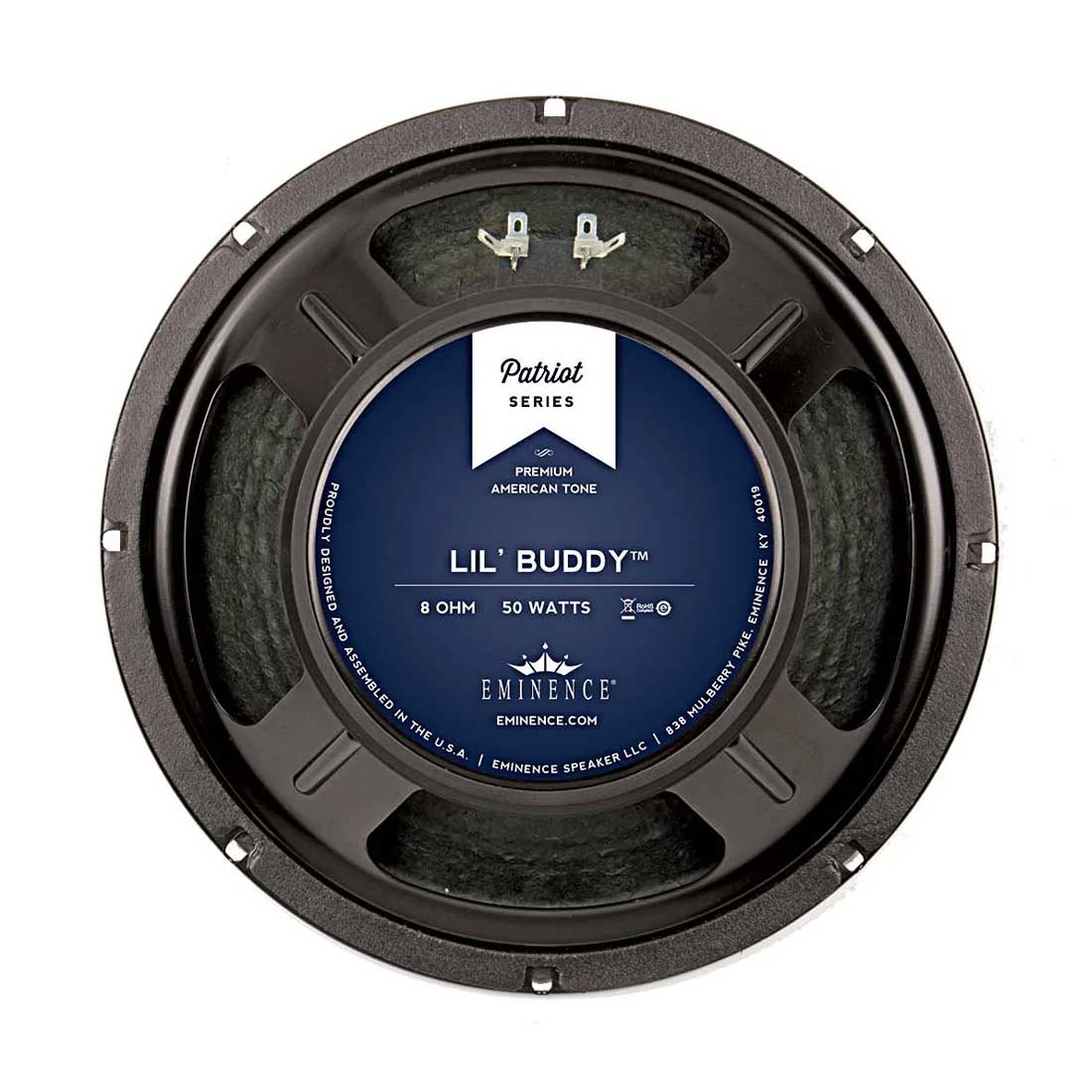

Eminence LILBUDDY 10in Guitar Speaker 50w 8 Ohm

The Eminence Lil' Buddy guitar speaker lets you push the limits. Clean and full, and slow to break-up. Crunchy when driven. A much smoother and less brittle tone than many 10 inch guitar Speaker.

Characteristics

Series	Patriots
Model	Lil' Buddy
Application	10" Open or Closed Back
Configuration	1, 2, or 4 X 10"
Low End Response	Aggressive
Low End Shape	Fat/Round
Mid-Range Response	Moderate
Mid-Range Shape	Warm
High-End Response	Subdued
Volume/Power	Louder
Overall Coloration*	A clean and full tone, slow to break-up, but crunchy when driven.  Smoother and less defined than many 10 guitar Speaker.
Break-up Modes	Slow
Power Range	Up to 50 watts
Instrument*	Lead/Rhythm  Guitar, Harmonica
Genre of Music*	Jazz, Rock, and Blues

Specifications

SPECIFICATION
Nominal Basket Diameter	10", 254 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	50 W
Resonance	149 Hz

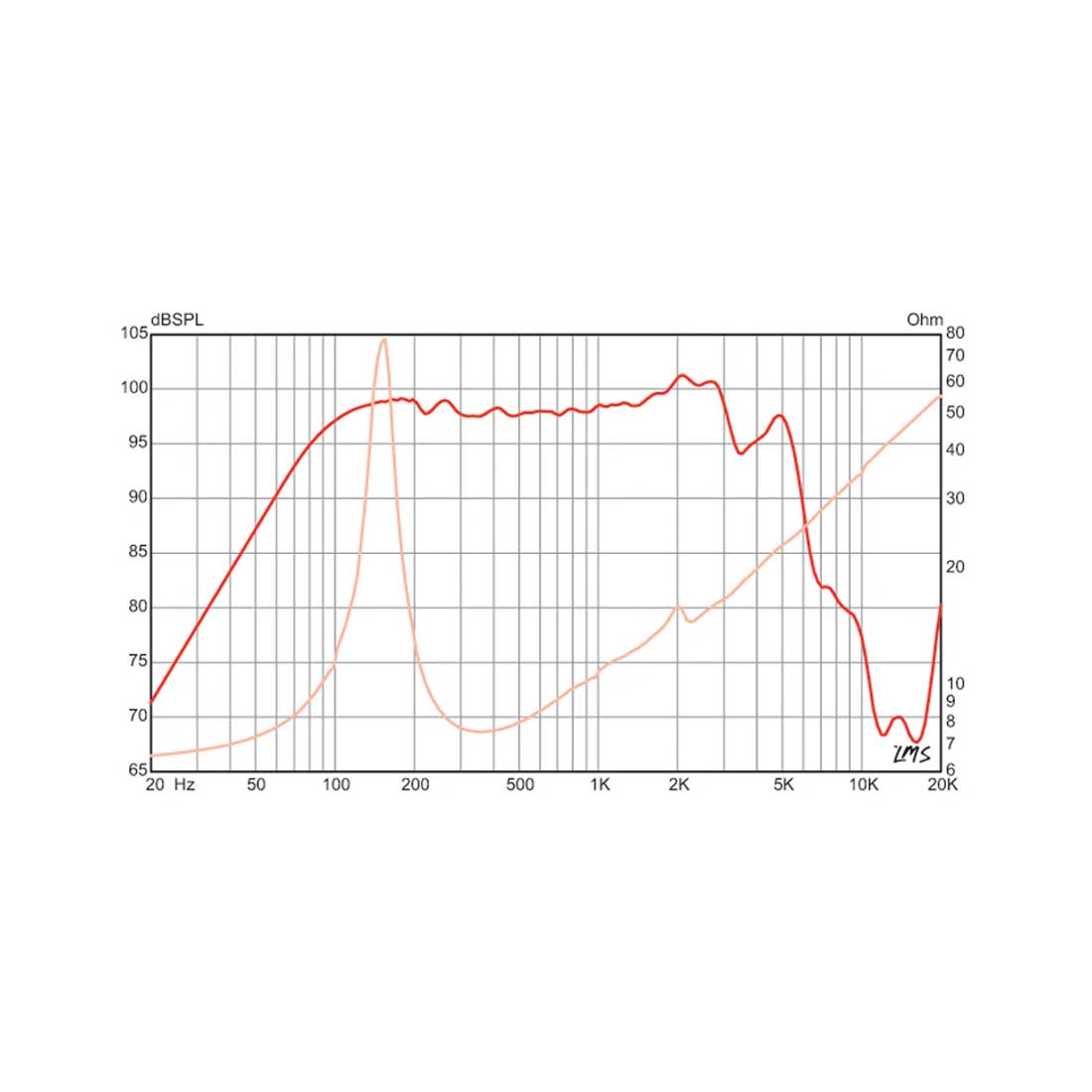

Usable Frequency Range	80 Hz - 5 kHz
Sensitivity*	98.8 dB
Magnet Weight	30 oz.
Gap Height	0.312", 7.9 mm
Voice Coil Diameter	1.75", 44 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	149 Hz
DC Resistance (Re)	6.31 Ω
Coil Inductance (Le)	0.46m H
Mechanical Q (Qms)	9.06
Electromagnetic Q (Qes)	0.93
Total Q (Qts)	0.84
Compliance Equivalent Volume (Vas)	10 liters / 0.35 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	29.3 cc
Mechanical Compliance of Suspension (Cms)	0.05 mm/N
BL Product (BL)	11.7 T-M
Diaphragm Mass Inc. Airload (MMs)	22 grams
Efficiency Bandwidth Product (EBP)	160
Maximum Linear Excursion (Xmax)	0.8 mm
Surface Area of Cone (Sd)	366.1 cm2
Maximum Mechanical Limit (Xlim)	N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	Acceptable
Vented	Acceptable
Driver Volume Displaced	0.039 cu.ft. / 1.1 liters
Overall Diameter	10.11", 256.8 mm
Baffle Hole Diameter	9.13", 231.9 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.23", 5.8mm
Mounting Holes B.C.D.	9.6", 243.8mm
Depth	4.3", 109.2 mm
Net Weight	6.3 lbs, 2.86 kg
Shipping Weight	7.4 lbs, 3.36 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Paper former
Magnet Composition	Ferrite magnet
Core Details	Non-vented core
Basket Materials	Pressed steel basket

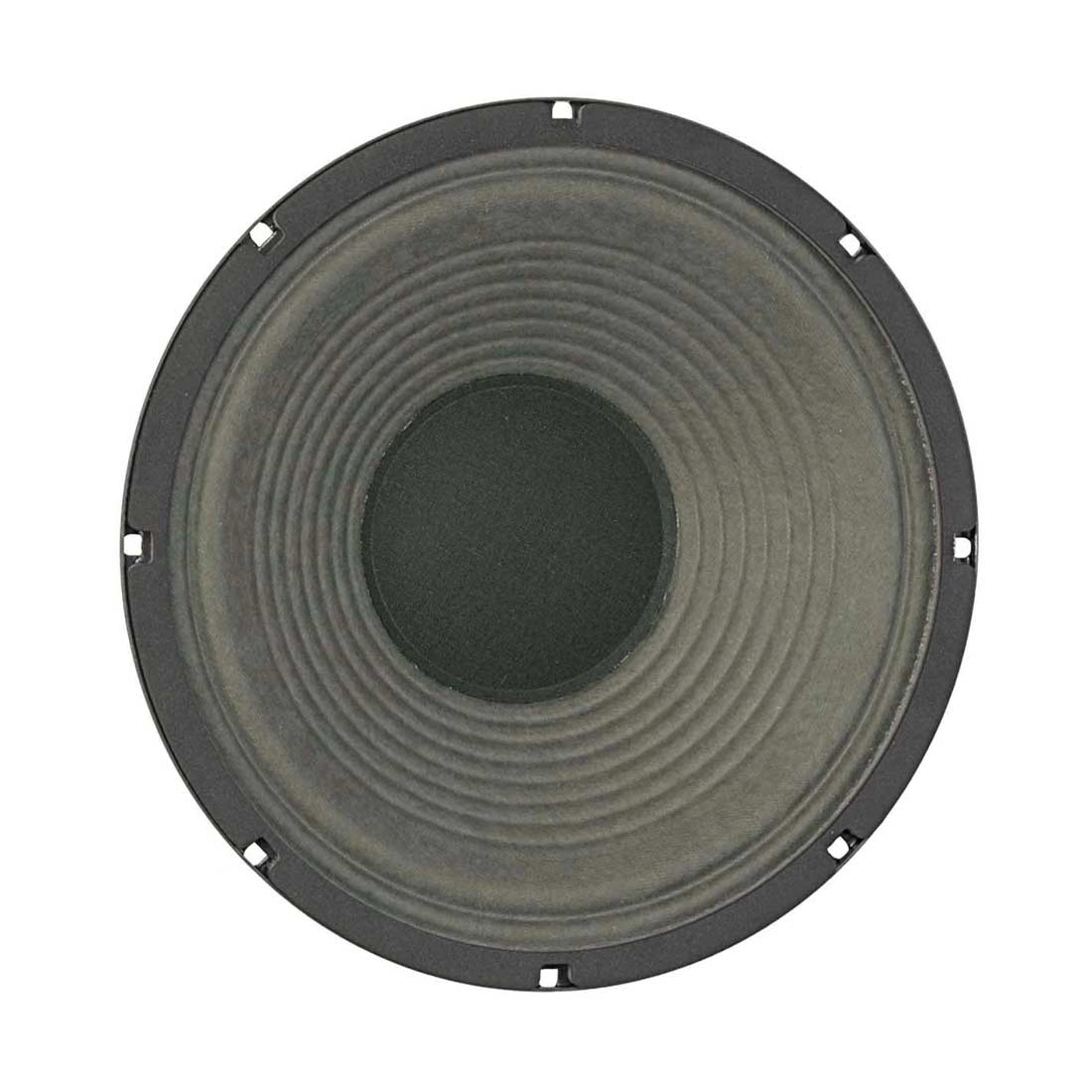

Cone Composition	Hemp paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Zurette dust cap
