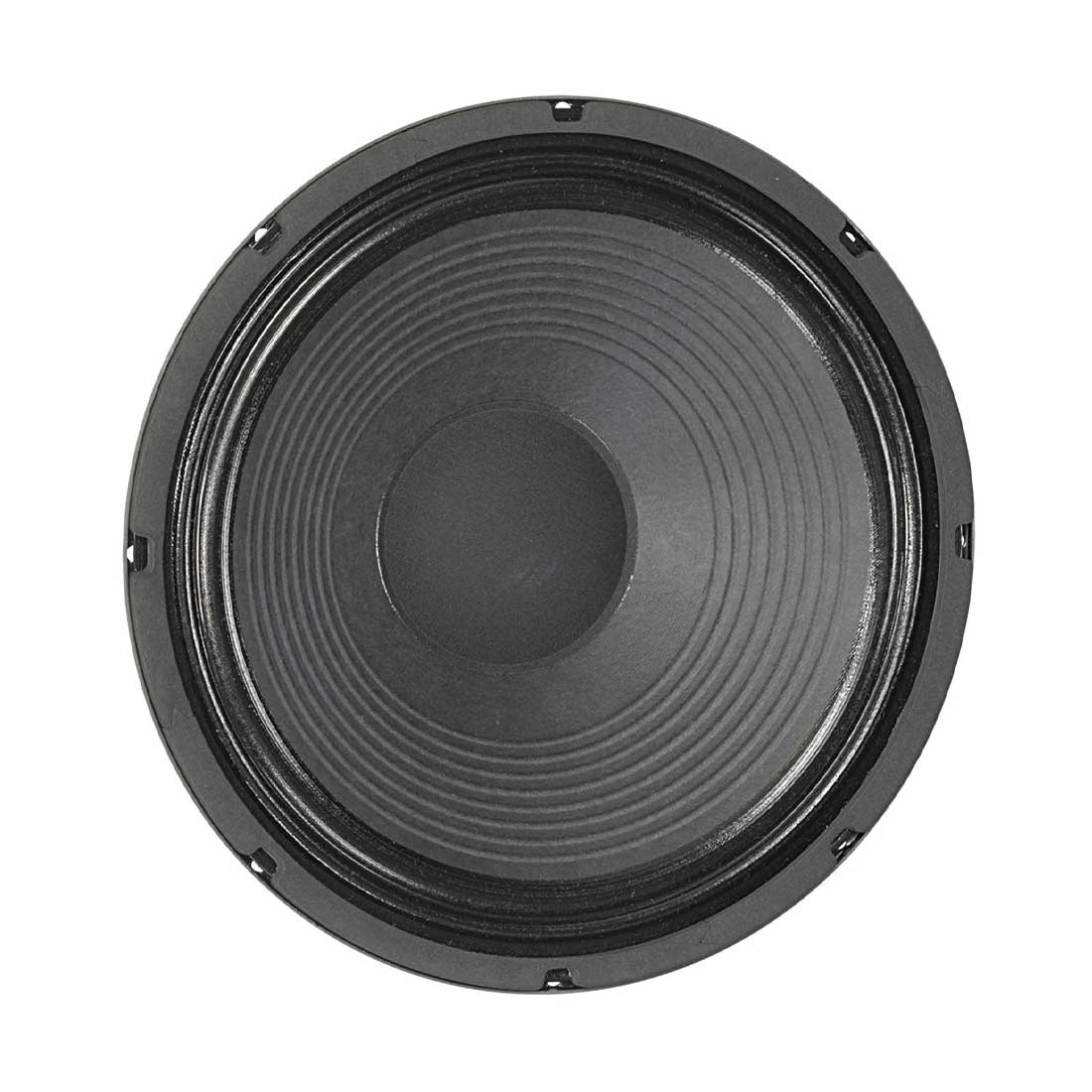

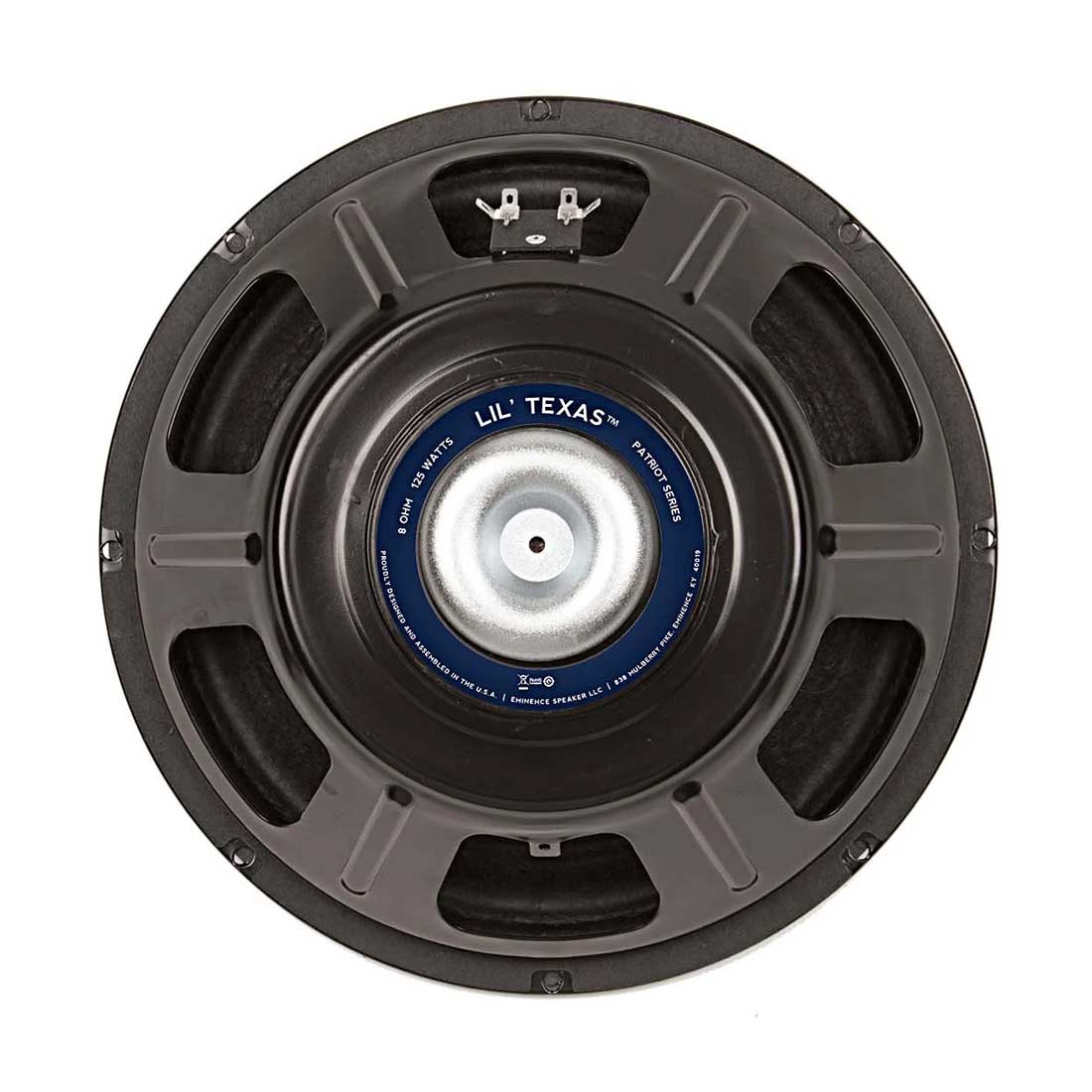

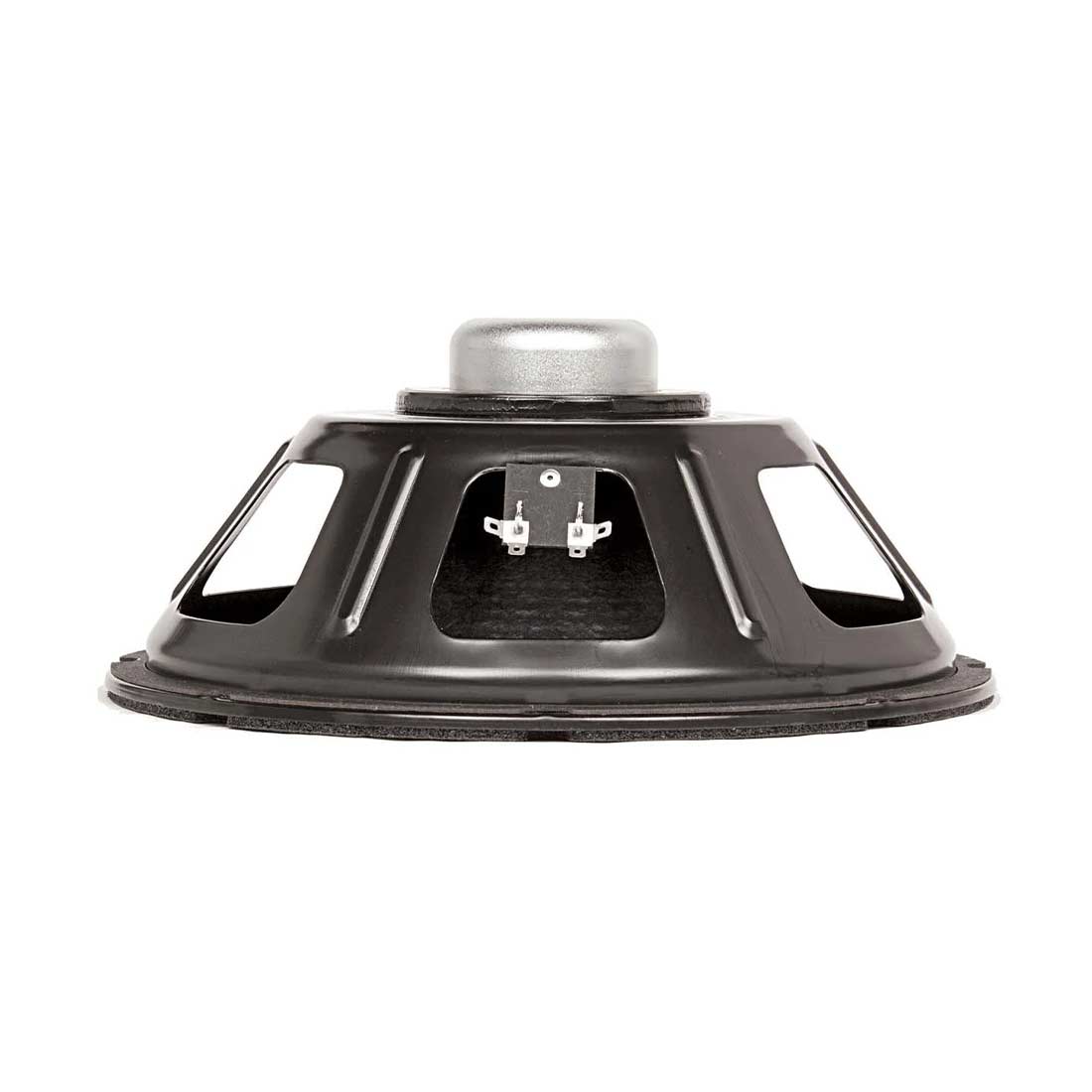

Eminence LILTEXAS 12in Speaker 125w 8 Ohm

The lightweight Eminence Lil' Texas guitar speaker gives an All-American sound with balance. Crisp mids, top end bite with tight bottom end. Use it if you play Classic Rock, Blues, or Country

Characteristics

Series	Patriots
Model	Lil' Texas
Application	12" Open or Closed Back
Configuration	1, 2, or 4 X 12"
Low End Response	Aggressive
Low End Shape	Tight
Mid-Range Response	Aggressive
Mid-Range Shape	Crisp
High-End Response	Aggressive
Volume/Power	Louder
Overall Coloration*	Very balanced with crisp mids and top end bite.  Tight bottom end, very American tonality.
Break-up Modes	Medium
Power Range	Up to 125 watts
Instrument*	Lead/Rhythm Guitar
Genre of Music*	Classic Rock, Blues, Country

Specifications

SPECIFICATION
Nominal Basket Diameter	12", 305 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	125 W
Resonance	90 Hz

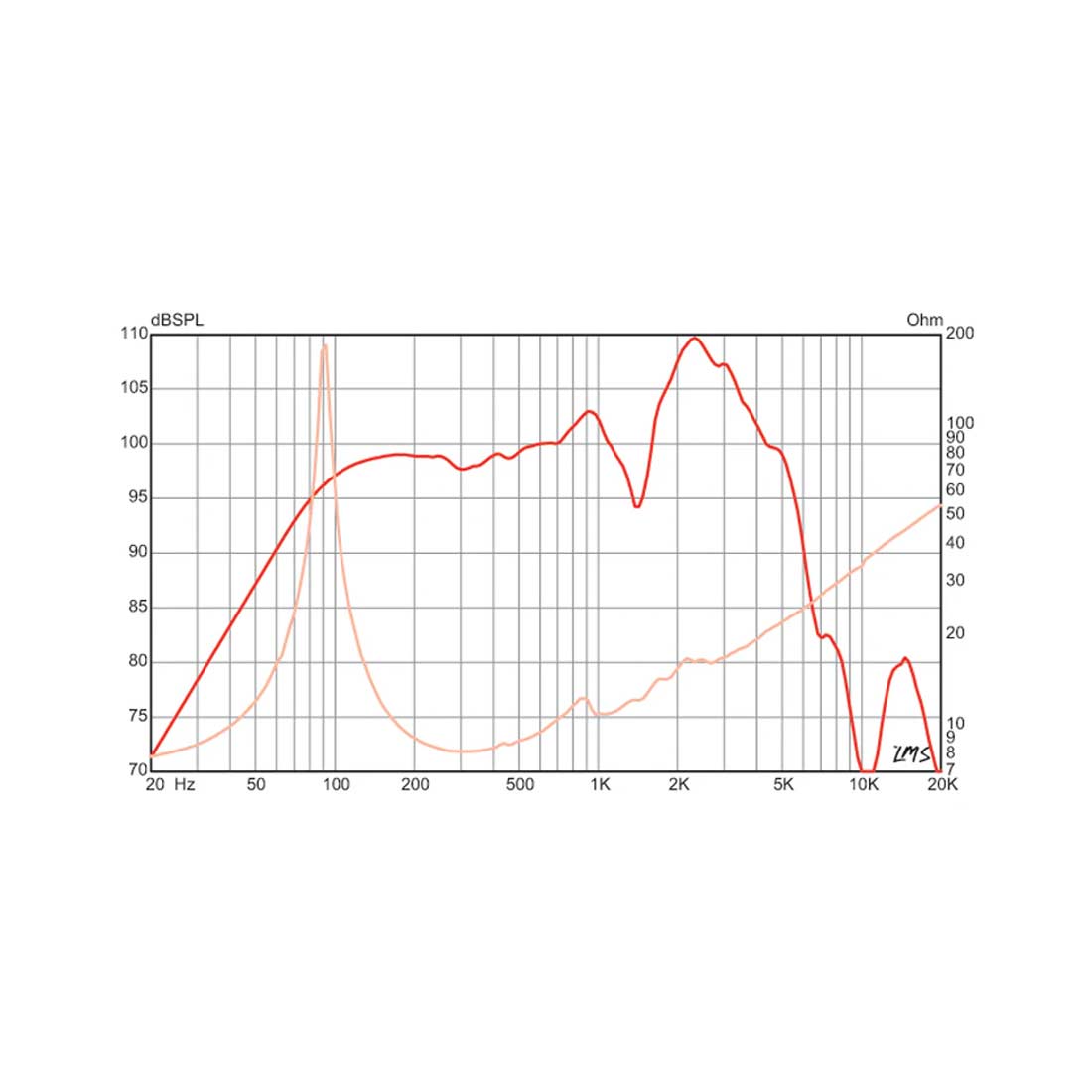

Usable Frequency Range	80 Hz - 5 kHz
Sensitivity*	101.2 dB
Magnet Weight	4 oz.
Gap Height	0.28", 7.1 mm
Voice Coil Diameter	2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	90 Hz
DC Resistance (Re)	7.2 Ω
Coil Inductance (Le)	0.42m H
Mechanical Q (Qms)	11.29
Electromagnetic Q (Qes)	0.69
Total Q (Qts)	0.65
Compliance Equivalent Volume (Vas)	43.3 liters / 1.53 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	66 cc
Mechanical Compliance of Suspension (Cms)	0.11 mm/N
BL Product (BL)	12.8 T-M
Diaphragm Mass Inc. Airload (MMs)	28 grams
Efficiency Bandwidth Product (EBP)	130
Maximum Linear Excursion (Xmax)	1.27 mm
Surface Area of Cone (Sd)	519.5 cm2
Maximum Mechanical Limit (Xlim)	N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	Acceptable
Vented	Acceptable
Driver Volume Displaced	0.059 cu.ft. / 1.67 liters
Overall Diameter	12.03", 305.6 mm
Baffle Hole Diameter	11.07", 281.2 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.25", 6.4mm
Mounting Holes B.C.D.	11.59", 294.4mm
Depth	5.07", 128.8 mm
Net Weight	4.1 lbs, 1.86 kg
Shipping Weight	5.8 lbs, 2.63 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Polyimide former
Magnet Composition	Neodymium magnet
Core Details	Non-vented core
Basket Materials	Pressed steel basket
Cone Composition	Paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Zurette dust cap
