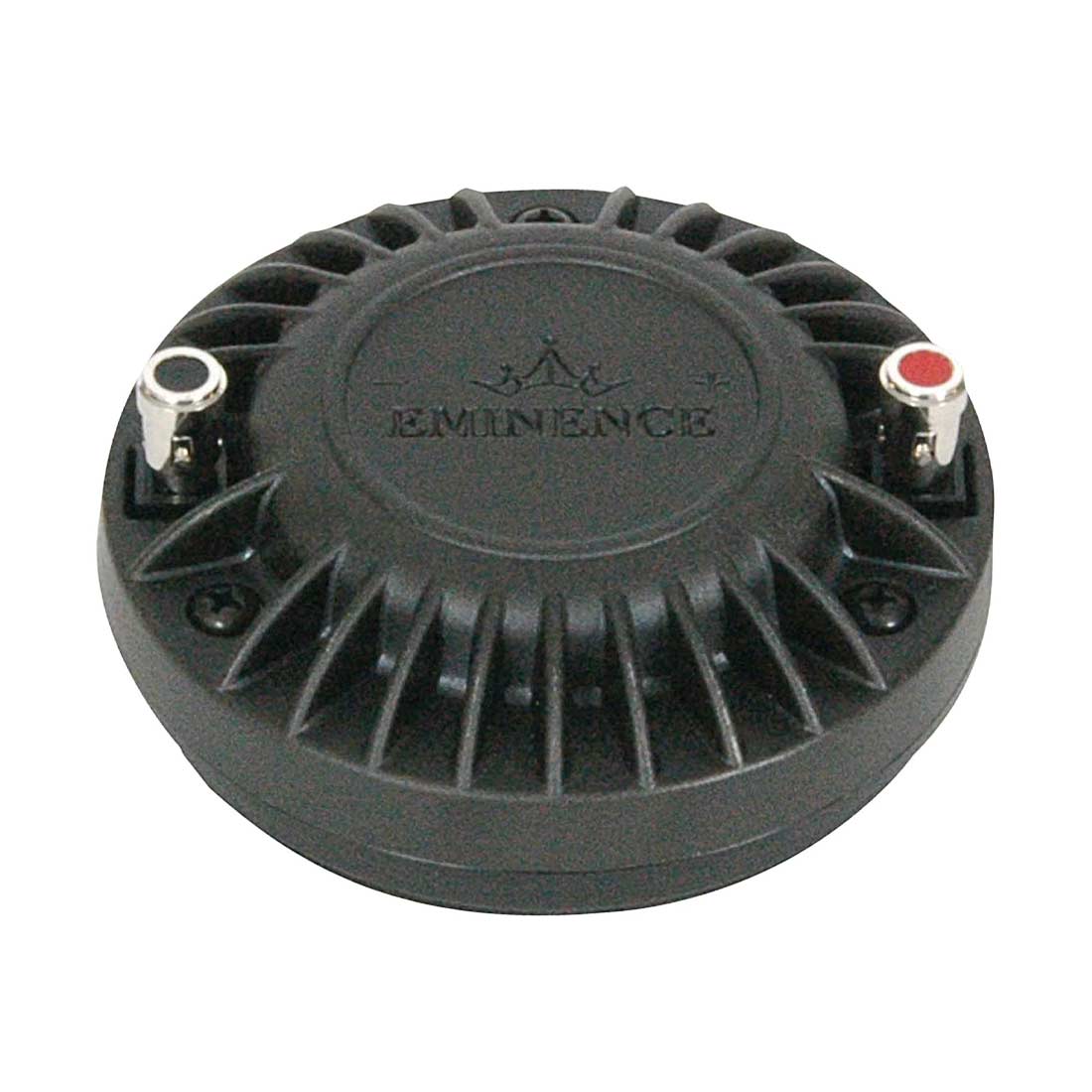

Eminence NSD2005-16 Driver 1in 50w 16 Ohm Neodymium Bolt

1" Throat Size HF Device - Neodymium

Specifications

SPECIFICATION
Throat Size	1", 25.4mm
Nominal Impedance*	16Ω
Minimum Impedance
Power Rating**	50 W (AES)
Resonance	0.578kHz
Usable Frequency Range	1500Hz-20kHz
Recommended Crossover	12dB/oct @1.5kHz
Sensitivity***	109 db
Magnet Material	Neodymium
Magnet Weight	4.16 oz.
Voice Coil Diameter	2" 50.8mm
Voice Coil Former	Polyimide
Diaphragm Material	Titanium
DC Resistance (Re)
MOUNTING INFORMATION
Overall Diameter	3.87”, 98.3mm
Driver Volume Displaced	13.63 cu. in.
Depth	2", 50.8mm
Weight	1.7 lbs, 0.8 kg
Mounting Thread	N/A
Mounting Holes Diameter	2X 1/4-20
Mounting Holes B.C.D.	3 in. 76.2 mm
