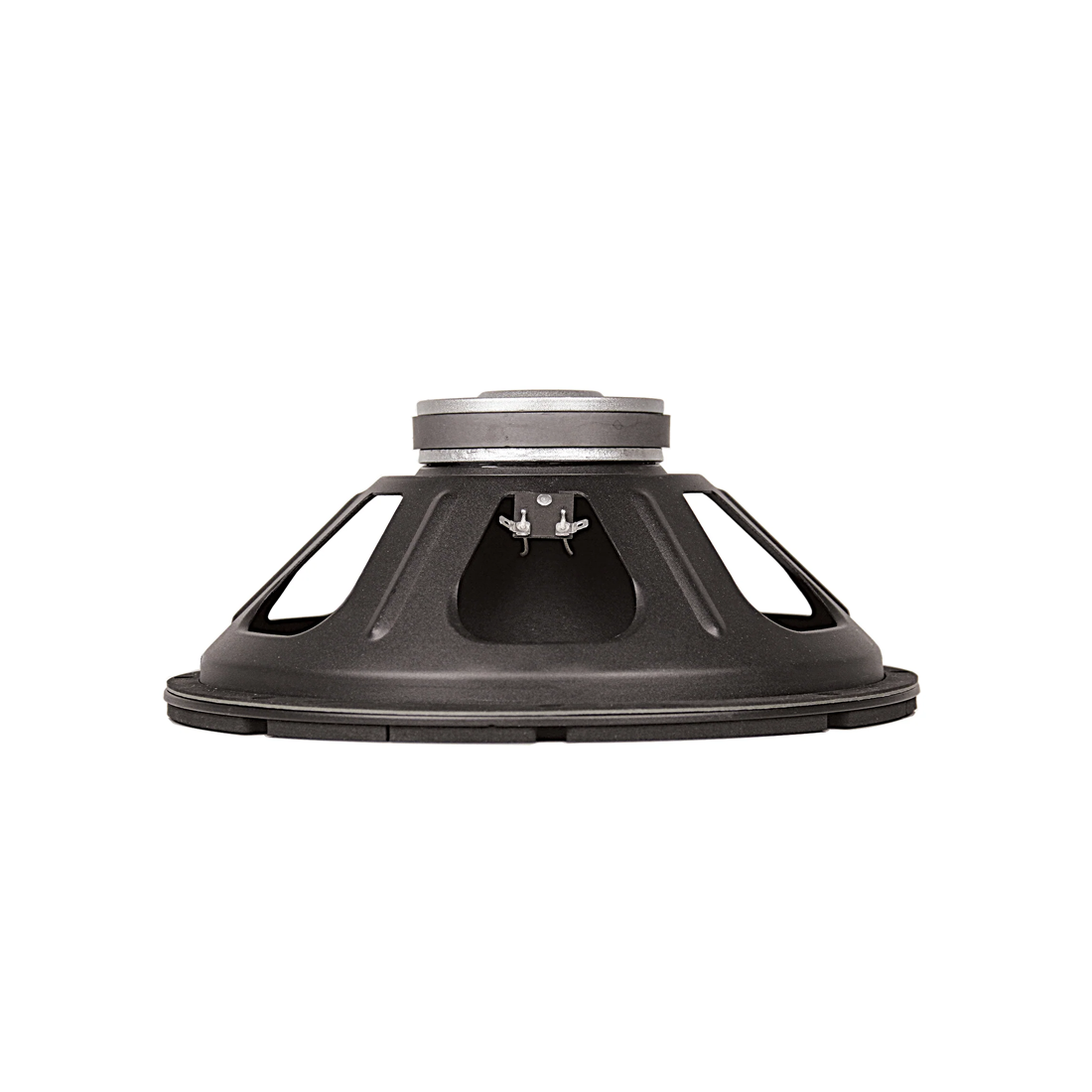

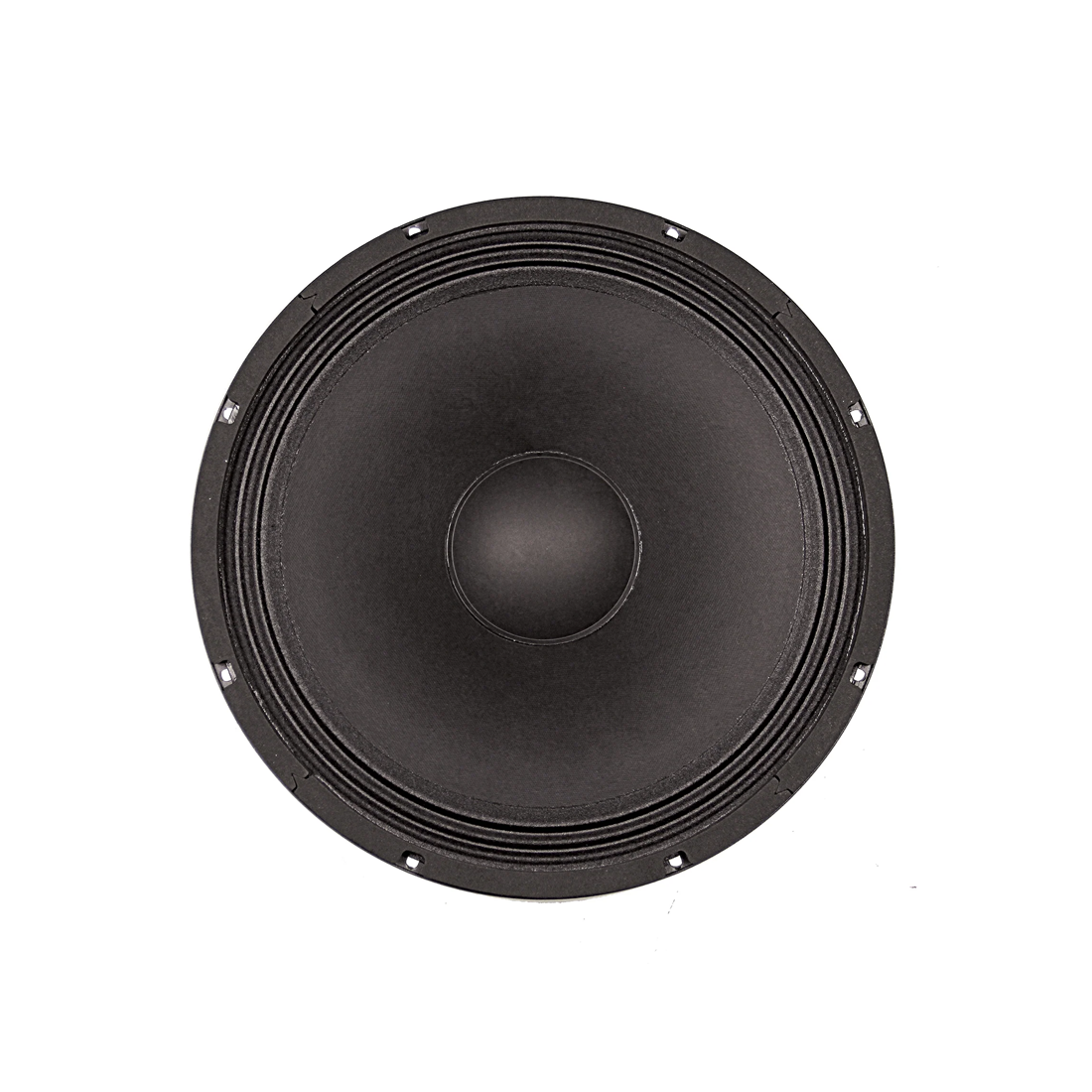

Eminence Retrobass S2015 15in Bass Guitar Speaker 200W 8 Ohm

Overview

The Eminence Retrobass S2015 is a 15in, 200W RMS, 8 ohm bass guitar speaker from the American Standard series. A bass guitar driver producing smooth and tight bass in sealed cabinets, or thick, rich, low bass in vented cabinets.

Features

• 15in speaker, 200W RMS (400W program), 8 ohm
• 97dB sensitivity, 43Hz-4kHz usable range
• 2in copper voice coil on a polyimide former, 38oz ferrite magnet
• Treated paper cone, sealed cloth edge, treated paper dust cap, pressed steel basket
• Recommended enclosure volume: sealed 40-142 L (1.4-5 cu ft); vented 96-195 L (3.4-6.9 cu ft)

Specifications

• Series: American Standard
• Diameter: 15", 381 mm
• Power: 200 W RMS; program power 400 W
• Impedance: 8 ohm
• Sensitivity: 97 dB
• Frequency range: 43 Hz - 4 kHz
• Resonance: 35 Hz
• Magnet: ferrite, 38 oz.
• Voice coil: 2", 51 mm, copper, polyimide former, gap 0.31", 7.9 mm
• Cone / edge / dust cap: treated paper / sealed cloth / treated paper
• Basket: pressed steel; vented and extended core, bumped backplate
• Thiele-Small: Fs 35 Hz, Re 6 ohm, Le 0.89 mH, Qms 6.38, Qes 0.63, Qts 0.57, Vd 342.4 cc, Cms 0.32 mm/N, Bl 11.6 T-M, Mms 64 g, EBP 56, Xmax 4 mm, Sd 864.6 cm2, Xlim 10 mm
• Mounting: overall diameter 15.15", 384.8 mm; baffle cutout 13.84", 351.5 mm; bolt circle 14.56", 369.8 mm; mounting holes 0.25", 6.4 mm; depth 6", 152.4 mm; front and rear sealing gaskets; volume displaced 0.118 cu ft / 3.33 L
• Net weight: 9.02 lb, 4.09 kg
• Warranty: 1 year

Warranty

This speaker carries a 1 year Cecere's Music warranty. Covered: defects in materials and workmanship under normal use, and failure within the published ratings. Not covered: exceeding the rated power or impedance, incorrect installation or wiring, amplifier overload, physical damage or environmental exposure, normal ageing or cosmetic wear, tampering or modification. To make a claim, contact us by phone or email.
