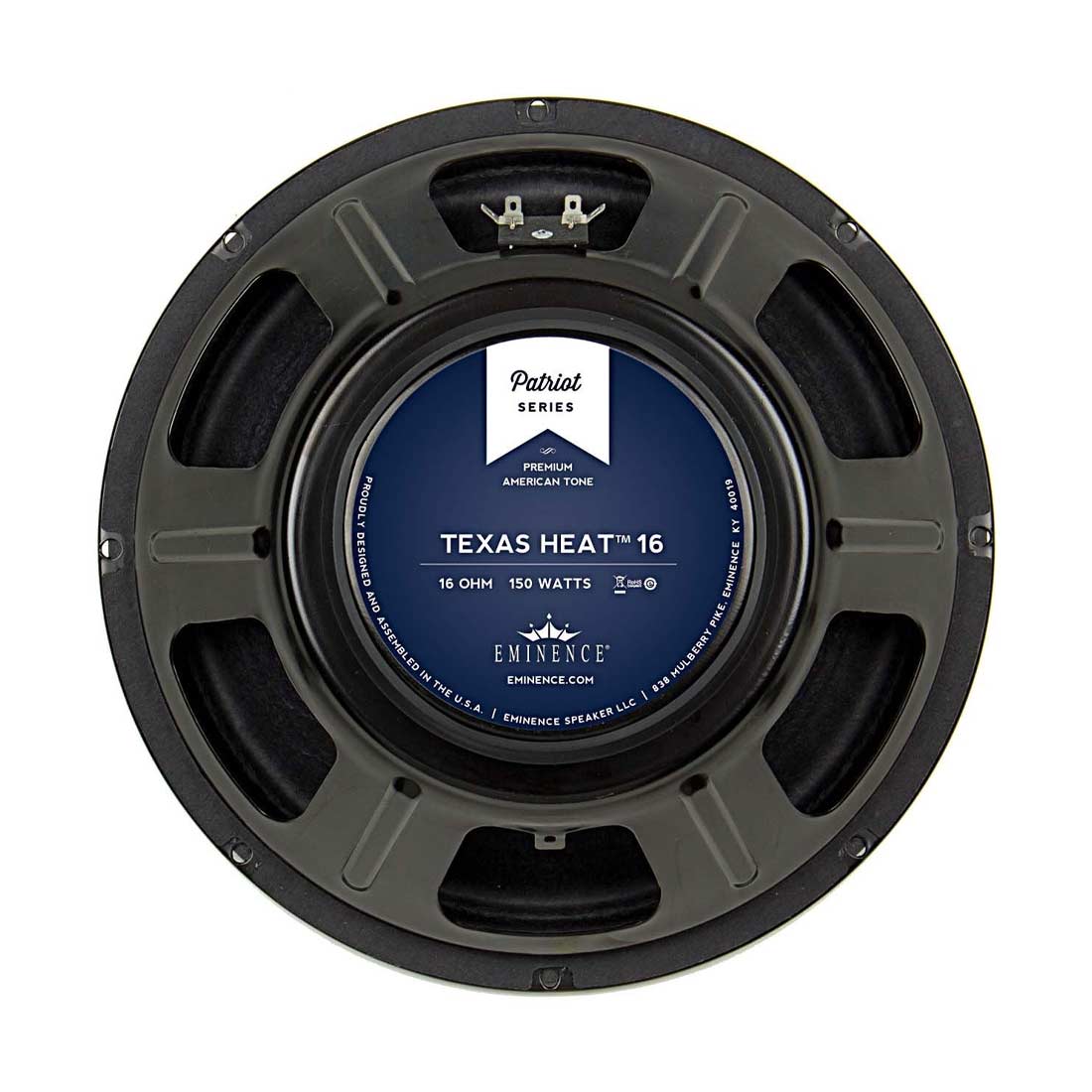

    Eminence TEXASHEAT-16 12in Guitar Speaker 150w 16 Ohm

    Regular price $315.00
    In Stock

    SKU: TEXASHEAT-16

    The Eminence Texas Heat is the All-American guitar speaker that’s packin’ heat, Texas style. It delivers a nice warm, fat tone with top end bite and clarity to cut through a mix while maintaining a rich, bluesy tone. Very touch-sensitive with a hint of British voicing.

    Series Patriots
    Model Texas Heat
    Application 12" Open or Closed Back
    Configuration 1, 2, or 4 X 12"
    Low End Response Aggressive
    Low End Shape Fat/Chunky
    Mid-Range Response Aggressive
    Mid-Range Shape Crisp
    High-End Response Moderate
    Volume/Power Louder
    Overall Coloration* Nice warm, fat tone with a little top end bite and clarity.  Very touch sensitive with a hint of British flavor.
    Break-up Modes Medium
    Power Range Up to 150 watts
    Instrument* Lead/Rhythm  Guitar
    Genre of Music* American Rock, Blues, and Southern Rock

    SPECIFICATION
    Nominal Basket Diameter 12", 305 mm
    Nominal Impedance* 16 Ω
    Power Rating*
    Program Power N/A
    Watts 150 W
    Resonance 91 Hz
    Usable Frequency Range 70 Hz - 4.6 kHz
    Sensitivity* 100.2 dB
    Magnet Weight 38 oz.
    Gap Height 0.312", 7.9 mm
    Voice Coil Diameter 2", 51 mm
    THIELE & SMALL PARAMETERS
    Resonant Frequency (fs) 91 Hz
    DC Resistance (Re) 14.7 Ω
    Coil Inductance (Le) 0.9m H
    Mechanical Q (Qms) 12.48
    Electromagnetic Q (Qes) 0.87
    Total Q (Qts) 0.81
    Compliance Equivalent Volume (Vas) 44.5 liters / 1.57 cu.ft.
    Peak Diaphragm Displacement Volume (Vd) 41.6 cc
    Mechanical Compliance of Suspension (Cms) 0.12 mm/N
    BL Product (BL) 16 T-M
    Diaphragm Mass Inc. Airload (MMs) 26 grams
    Efficiency Bandwidth Product (EBP) 104
    Maximum Linear Excursion (Xmax) 0.8 mm
    Surface Area of Cone (Sd) 519.5 cm2
    Maximum Mechanical Limit (Xlim) N/A
    MOUNTING INFORMATION
    Recommended Enclosure Volume
    Sealed Acceptable
    Vented Acceptable
    Driver Volume Displaced 0.071 cu.ft. / 2 liters
    Overall Diameter 12", 304.8 mm
    Baffle Hole Diameter 11.07", 281.2 mm
    Front Sealing Gasket Yes
    Rear Sealing Gasket Yes
    Mounting Holes Diameter 0.25", 6.4mm
    Mounting Holes B.C.D. 11.59", 294.4mm
    Depth 5.1", 129.5 mm
    Net Weight 8.3 lbs, 3.76 kg
    Shipping Weight 10 lbs, 4.54 kgs
    MATERIALS OF CONSTRUCTION
    Coil Construction Copper voice coil
    Coil Former Polyimide former
    Magnet Composition Ferrite magnet
    Core Details Non-vented core

    Basket Materials Pressed steel basket
    Cone Composition Paper cone
    Cone Edge Composition Paper cone edge
    Dust Cap Composition Zurette dust cap
    Free Shipping to metro areas for orders over $100
