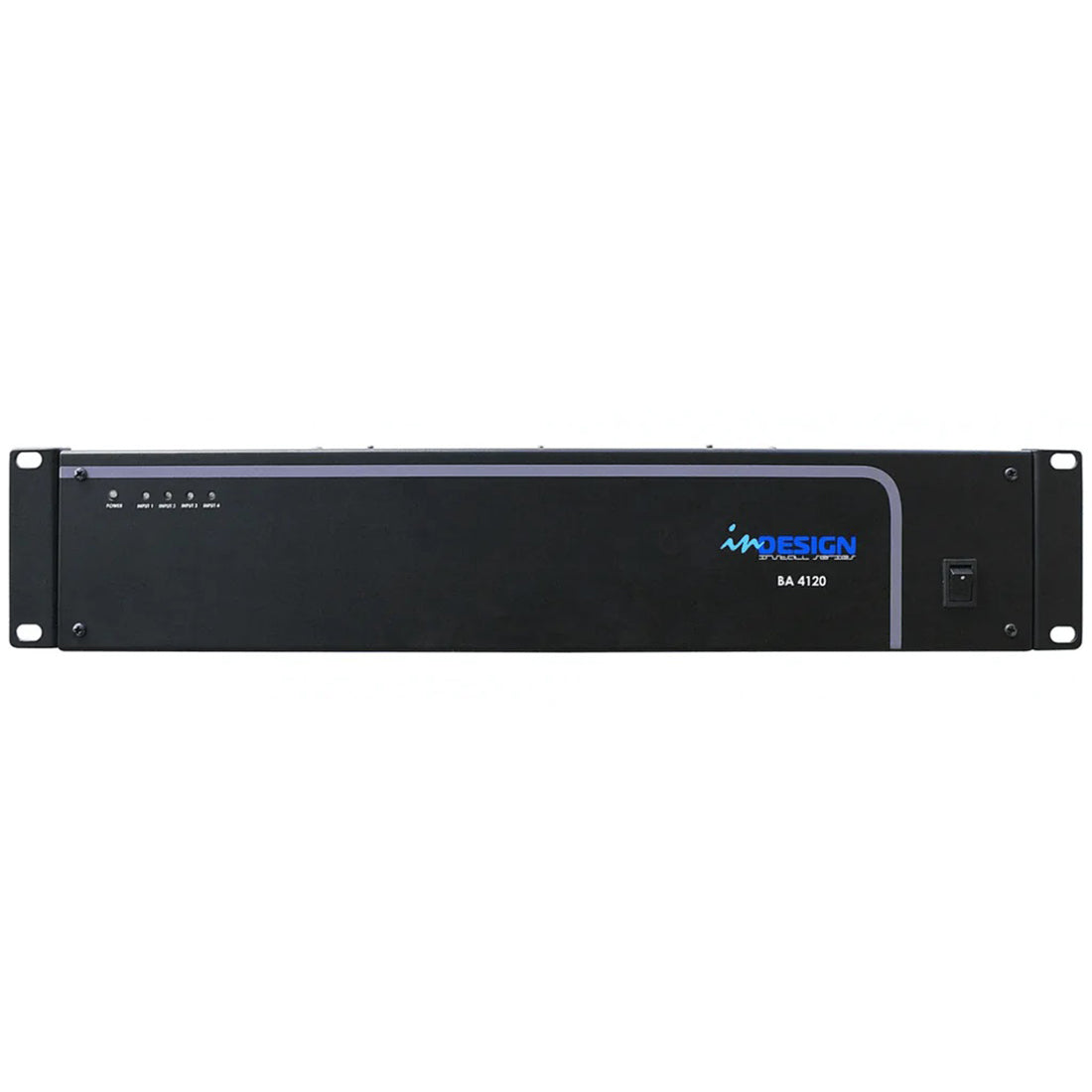

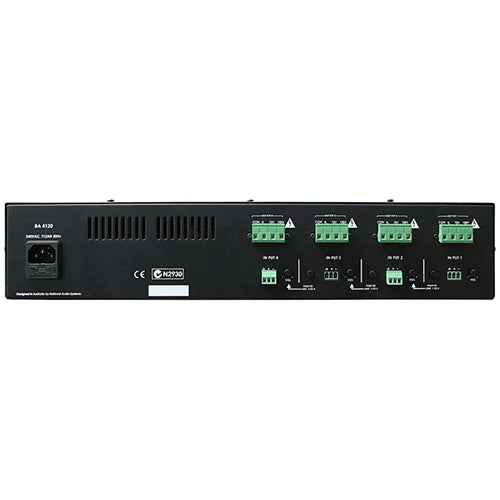

    inDESIGN BA4120-1 4 Channel @ 120watt 100v Line Power Amplifier

    Regular price $1,075.00
    Contact us for availability

    SKU: BA4120-1

    Features and Specifications:
    • Output power: 60W
    • AC power supply: 230VAC -240VAC
    • Output low impedance: 4 ohm-8 ohm
    • Hi impedance output: 70V / 80 ohm
                                        100V / 160 ohm
    • Input sensitivity: Microphone balanced XLR, 1mV
                                 Line RCA 500mV
    • Frequency response: 50Hz-18Khz, + / - 2dB. At -3dB rated power
    • Noise floor: 10mv at 100V output
    • THD (at -3dB rate power): 0.22%
    • Tone control: Bass 100Hz + - 10dB, Treble 10kHz + - 10dB
    • Control: Input level, tone control, master level, VOX
    • VOX: CH 1 has priority over CH2, 3, 4. (AFL)
    • Phantom power: 48V at CH 1 MIC XLR
    • Cooling: Convection Cooling
    • Protection: Thermal protected at 95 degrees, muted input, short circuit, overload
    • Level meter: LED meter, range -24dB / 0dB
    • Size (mm): 485 x 88 x 275
    • Weight KG (Net): 7.6
