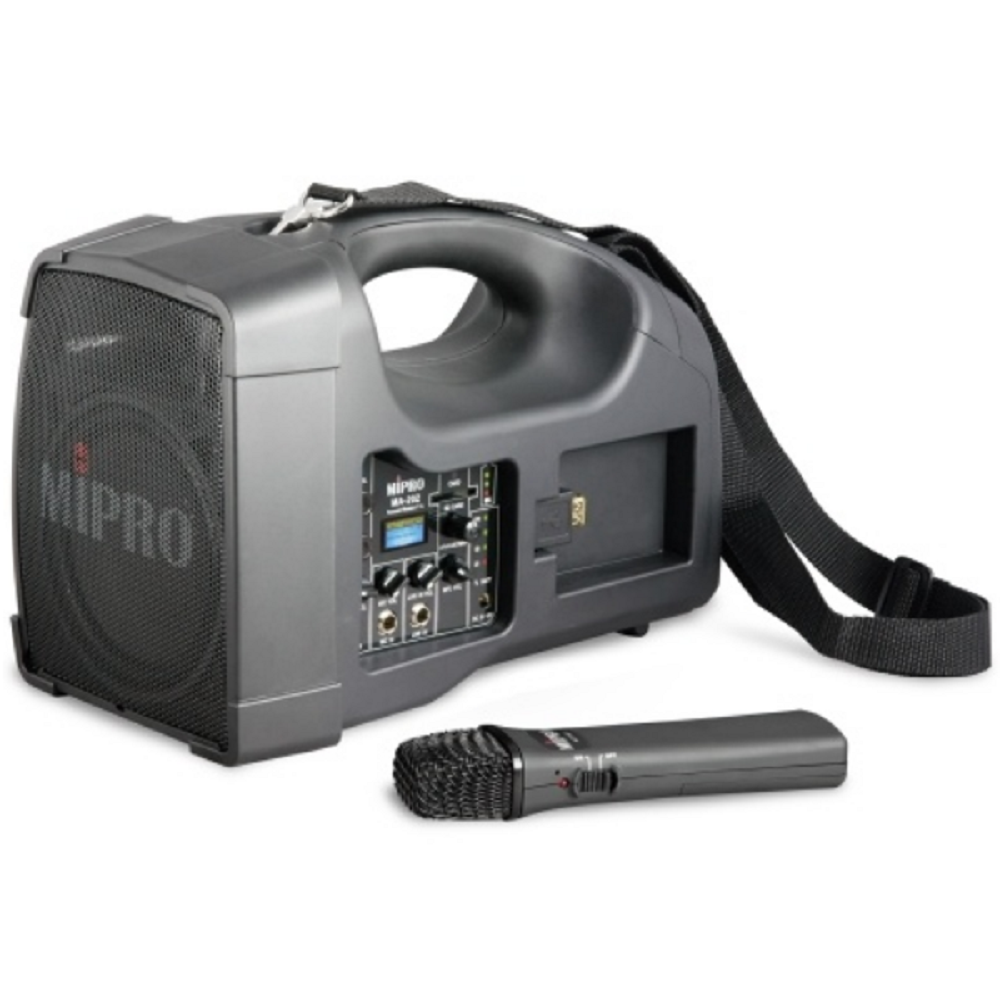

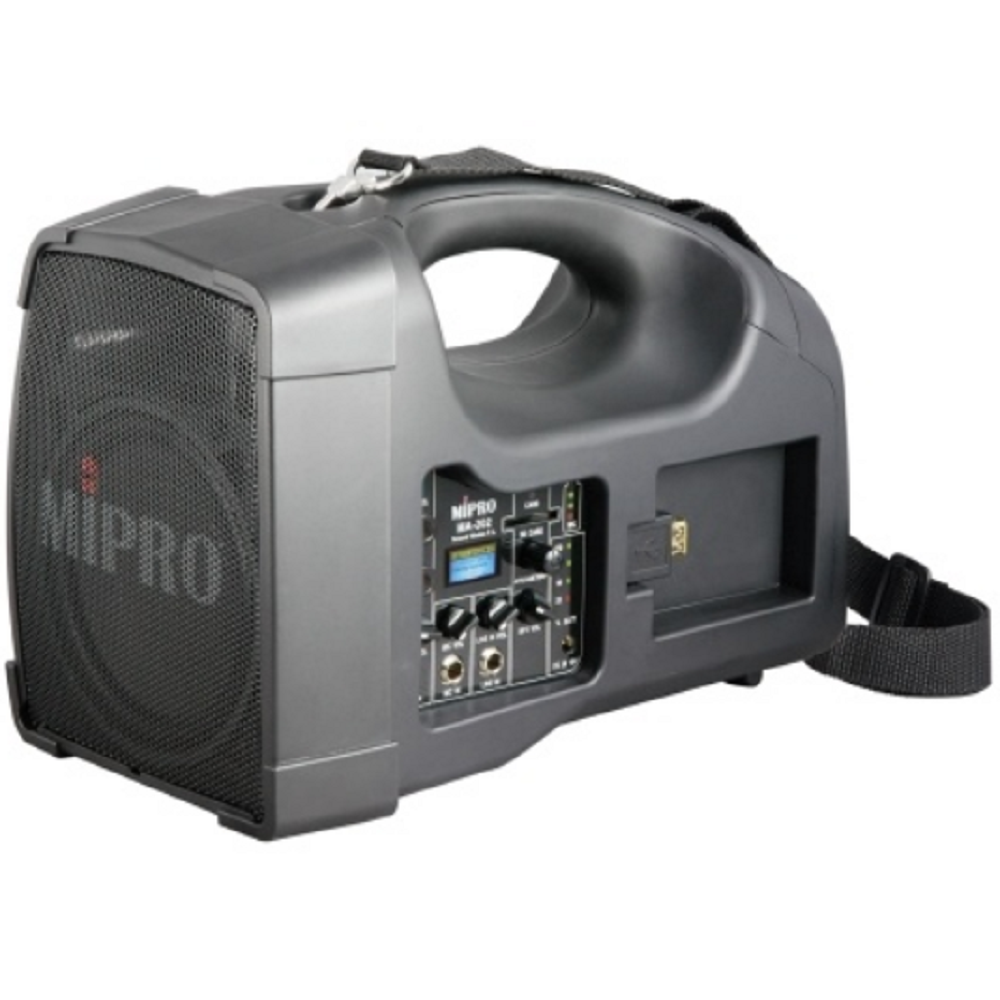

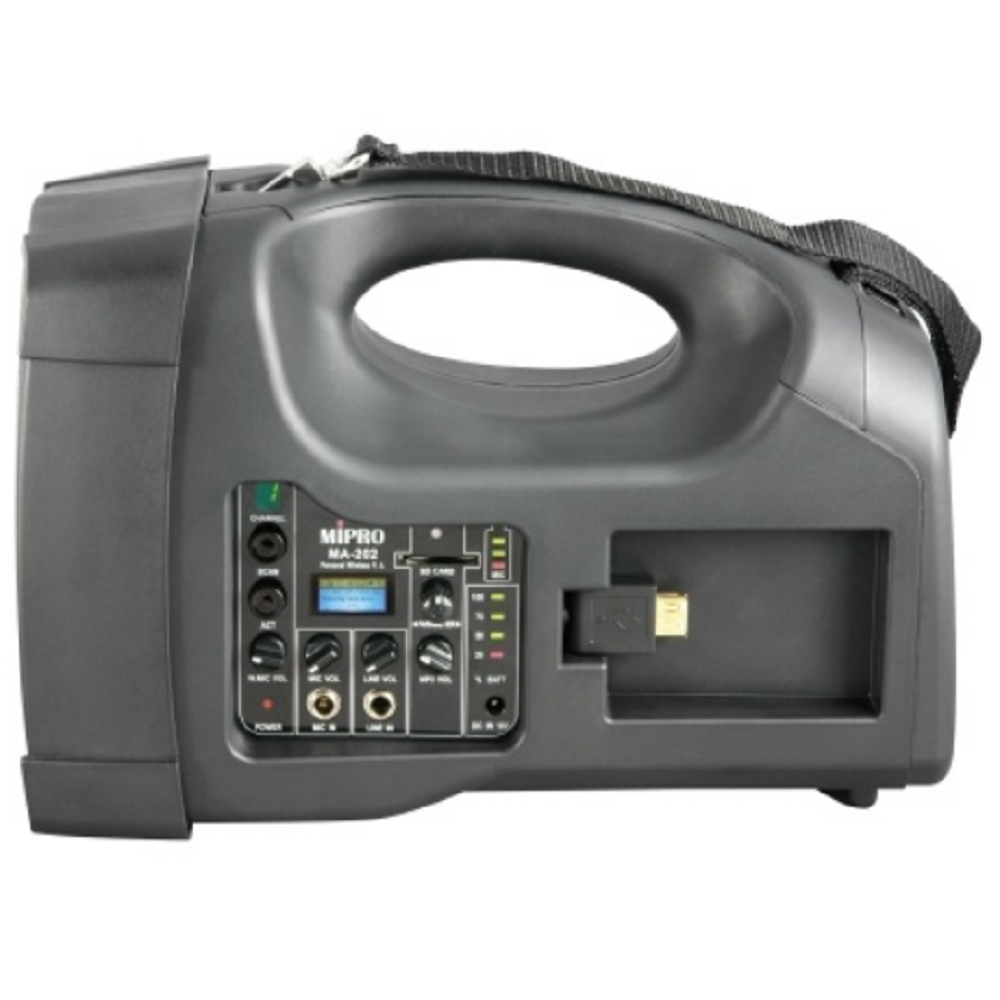

Mipro MA202 Portable PA

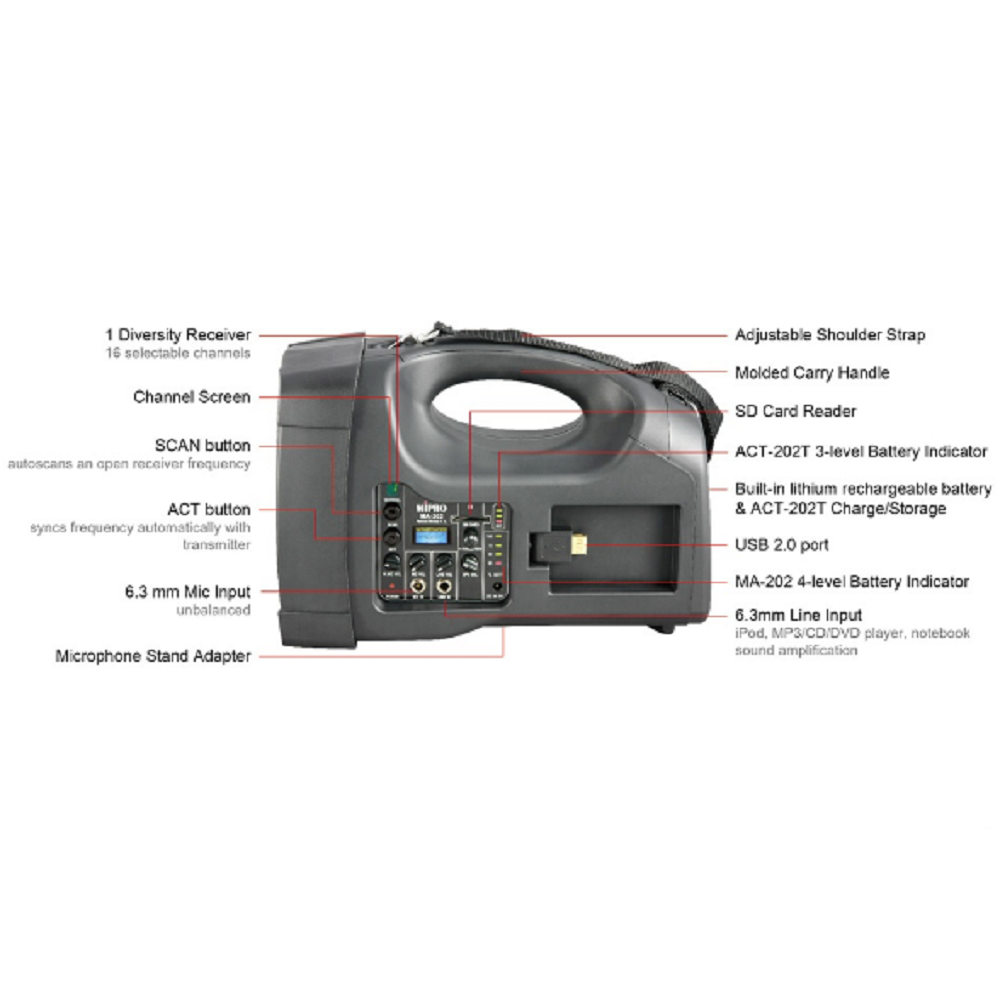

Features

• Powerful 56-watt audio output with D-class amplifier and 2-way speakers.
• Fast and easy channel set-up with "AutoScan" & "ACT" technology.
• USB port and SD card reader play MP3 songs.
• LCD displays MP3 tracks and status.
• MP3 tracks can be quickly found via fast search control.
• Optional high-capacity lithium battery module.
• 8 hours continuous operation per charge.
• A smart 4-segment (25/50/75/100%) rechargeable battery meter.
• Built-in ACT-202T handheld transmitter charger and battery status meter.
• Built-in level control in ACT-202T allows volume adjustment wirelessly.
• Built-in ACT-202T battery charger inside the storage compartment.
• Up to 2 mics can be used simultaneously (1 wireless & 1 wired).
• Separate volume controls for wireless, wired microphones and line-input.
• Line-input for an external digital audio player.
• A single wireless mic can broadcast to multiple MA-202 (same channel).
• Hand carry or stand mount, shoulder-carrying strap included.
• Handles crowds up to 500.

Specifications

AF Power Output	40W(rms)/4 ohm, 56W(MAX)/4 ohm
T.H.D.	< 0.1%
Frequency Response	50Hz~18KHz
Speaker	1" treble and 5" woofer
Operation Mode	Direct operation on PA system
Audio Inputs	Microphone & Line input. 6.3F (1/4") phone-jack connector. Separate volume controls.
USB & SD Card Player	LCD displays up to 9,999 tracks, play and pause tracks
Wireless Receiver	UHF 16 switchable channels. AutoScan and ACT technology.
Wireless Transmitters	ACT-202T
Frequency Range	620~934MHz
Bandwidth	24MHz
Preset Channels	16 non-interfering channels
Antennas	Integrated
Power Supply	Built-in 12V / 2.9AH rechargeable battery or optional 14.8V / 3AH lithium & 18V DC / 100~240V AC switching power supply.
Charging & Operating Time	4 hours (automatic charging system) for up to 8 hours usage
Dimensions	163(W)×206(H)×306(D)mm / 6.4(W)x8.1(H)x12(D)"
Weight	With MB-25: Approx. 3.1Kg / 6.8lbs. With MB-30: Approx. 4.1Kg / 9lbs.
Exterior Color	Black
Approvals & Patent	New designs. Complies with worldwide telecommunication and safety regulations.
Note	Available frequencies and RF power output depend upon applicable country regulations.
