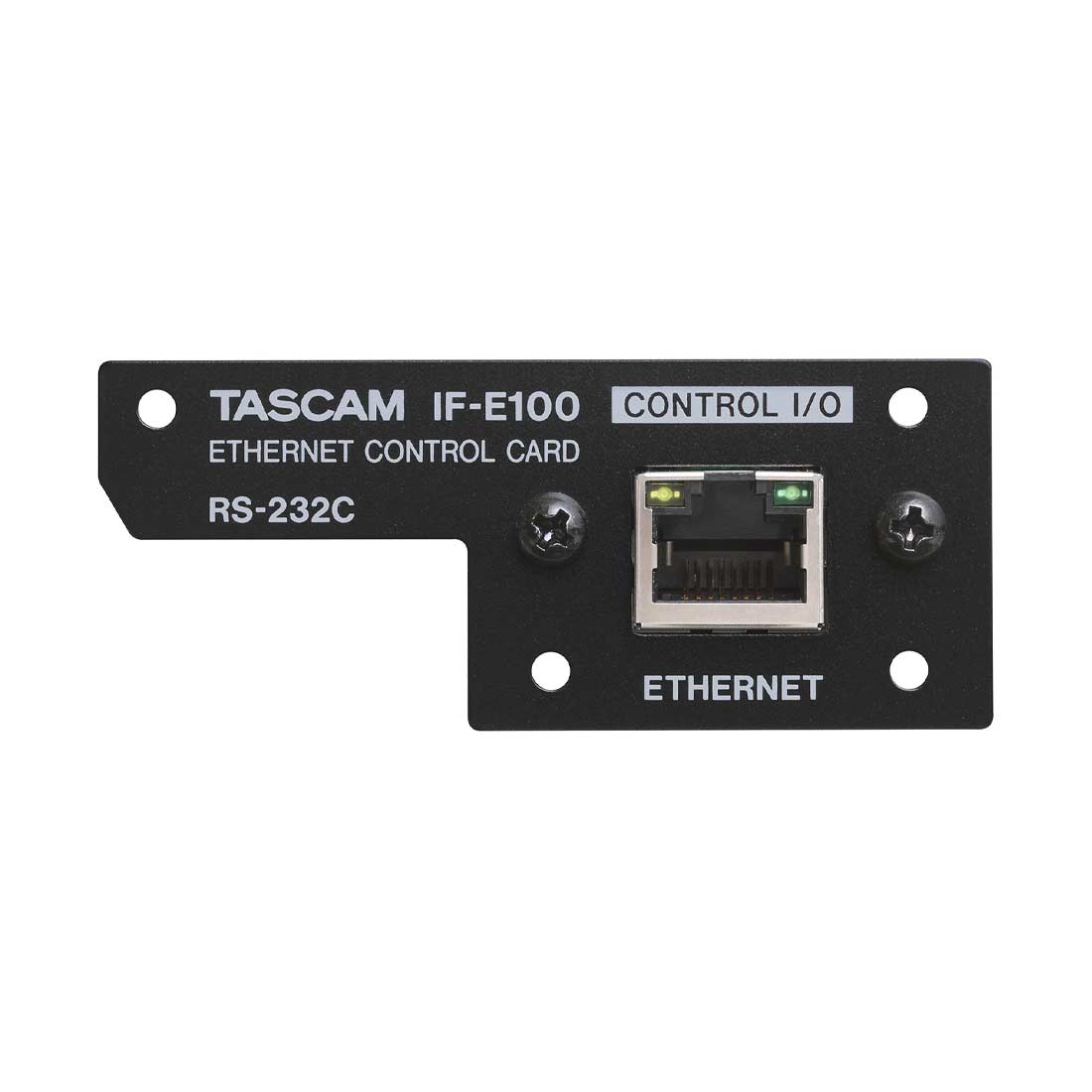

TASCAM IF-E100 ETHERNET CARD FOR CD-400U

Name: TASCAM IF-E100 ETHERNET CARD FOR CD-400U
Brand: Cecere's Music
SKU: IF-E100
Price: 99.0 AUD
Availability: InStock

Regular price $99.00

Low stock

Quantity:

Variant

Added to your cart!

View cart or continue shopping.

SKU: IF-E100

The IF-E100 is an Ethernet control card for the TASCAM CD-400U CD/SD/USB/Bluetooth®/AM/FM player.

Installation of the IF-E100 into a CD-400U enables external Ethernet control via Ethernet in netowrked systems.

Enables external control of TASCAM CD-400U using Telnet through an Ethernet connection
Supports 100BASE-TX
Network settings can be made and checked using the CD-400U unit menu or the CD-400U Network Settings web browser application, which is compatible with Windows and Mac
RJ-45 connector

Ethernet connectors
Connector	RJ-45
Transmission protocol	Telnet
Port number	23
Password	numbers only 10-digit maximum (default : 400)
Ethernet standard	100BASE-TX
Cables	category 5e or faster
Dimensions	2 2/32"(W) × 1 7/32"(H) × 2 5/32"(D) (width xheight xdepth, including protrusions)
Weight	33g
Accessory	Attachment screw set, Owners Manual including warranty

CD-400U Network Settings: Operating Environment

Windows
CPU	Intel® Core™ i
Memory	2 GB or more (at least 4 GB recommended)
Open disc space	At least 150 MB
Screen resolution/number of colors	1280 × 1024 (SXGA) or higher True Color (32-bit) recommended
Mac
CPU	Intel® Core™ i, Intel® Core™ m
Memory	2 GB or more (at least 4 GB recommended)
Open disc space	At least 150 MB
Screen resolution/number of colors	1280 × 1024 (SXGA) or higher

CD-400U Network Settings

The CD-400U Network Settings application enables adjustment of network settings for a IF-E100 equipped CD-400U via a Windows/Mac web browser.
* Network settings can also be made and checked using the "Network Set." menu on the CD-400U.
* The CD-400U Network Settings appication is available as a free downloaded on the download page.

IF-E100 × 1
Owner's Manual with Warranty × 1

Description

The IF-E100 is an Ethernet control card for the TASCAM CD-400U CD/SD/USB/Bluetooth®/AM/FM player.

Installation of the IF-E100 into a CD-400U enables external Ethernet control via Ethernet in netowrked systems.

Features

Enables external control of TASCAM CD-400U using Telnet through an Ethernet connection
Supports 100BASE-TX
Network settings can be made and checked using the CD-400U unit menu or the CD-400U Network Settings web browser application, which is compatible with Windows and Mac
RJ-45 connector

Specifications

Ethernet connectors
Connector	RJ-45
Transmission protocol	Telnet
Port number	23
Password	numbers only 10-digit maximum (default : 400)
Ethernet standard	100BASE-TX
Cables	category 5e or faster
Dimensions	2 2/32"(W) × 1 7/32"(H) × 2 5/32"(D) (width xheight xdepth, including protrusions)
Weight	33g
Accessory	Attachment screw set, Owners Manual including warranty

CD-400U Network Settings: Operating Environment

Windows
CPU	Intel® Core™ i
Memory	2 GB or more (at least 4 GB recommended)
Open disc space	At least 150 MB
Screen resolution/number of colors	1280 × 1024 (SXGA) or higher True Color (32-bit) recommended
Mac
CPU	Intel® Core™ i, Intel® Core™ m
Memory	2 GB or more (at least 4 GB recommended)
Open disc space	At least 150 MB
Screen resolution/number of colors	1280 × 1024 (SXGA) or higher

Overview

CD-400U Network Settings

What's in the Box

IF-E100 × 1
Owner's Manual with Warranty × 1

—
