TASCAM MIXCAST 4 PODCAST MIXER W/REC & USB INTF

Name: TASCAM MIXCAST 4 PODCAST MIXER W/REC & USB INTF
Brand: Cecere's Music
SKU: MIXCAST4
Price: 1144.79 AUD
Availability: InStock

Regular price $1,144.79 Sale price ~~$1,449.00~~

Save $304.21 (21% off)

Ready to ship

Quantity:

Variant

Added to your cart!

View cart or continue shopping.

SKU: MIXCAST4

Mixcast 4 makes professional content creation easy. For Podcast creation, live streaming, event production, or voice over, Mixcast 4 will mix and record mic inputs, internal sounds and music via the trigger pads, and external audio input from your phone or PC. Together with the TASCAM Podcast Editor software, a complete solution - including both waveform editing and sound pad control - is provided from pre-production to completion.

Podcast production of up to 7 people
4 mic inputs with auto-mix , 4 headphone outputs
USB input, Bluetooth input, LINE IN (3.5mm TRRS) input
Invite guests and friends: Mix-Minus to connect call-ins with echo-free audio via Bluetooth, USB input or 4-pole TRRS audio cable
Sound pads for instant sound triggering and effects
Easy and intuitive control using the 5-inch touch panel
Fully compatible with the dedicated TASCAM Podcast Editor software to cover the entire production workflow
Direct internal multi-track recording to SD card (up to 14 tracks)
14in/2out USB audio interface
Nine language options including English, French, German, Italian, Spanish, Russian, Chinese, Japanese and Korean

Accessories

Carrying bag for Mixcast 4 CS-PCAS20 (sold separately)
Dynamic microphone for broadcast streaming TM-70 (sold separately)

Recorder specifications
Recording media	SD cards (64 MB to 2 GB), SDHC cards (4 GB to 32 GB), SDXC cards (48 GB to 512 GB)
Recording/playback formats
WAV(BWF)	48 kHz, 24 bit, 2 ch Stereo/14 ch Poly
Max. recordable tracks	14 tracks (12 track + 2 mix)
Analog audio input ratings

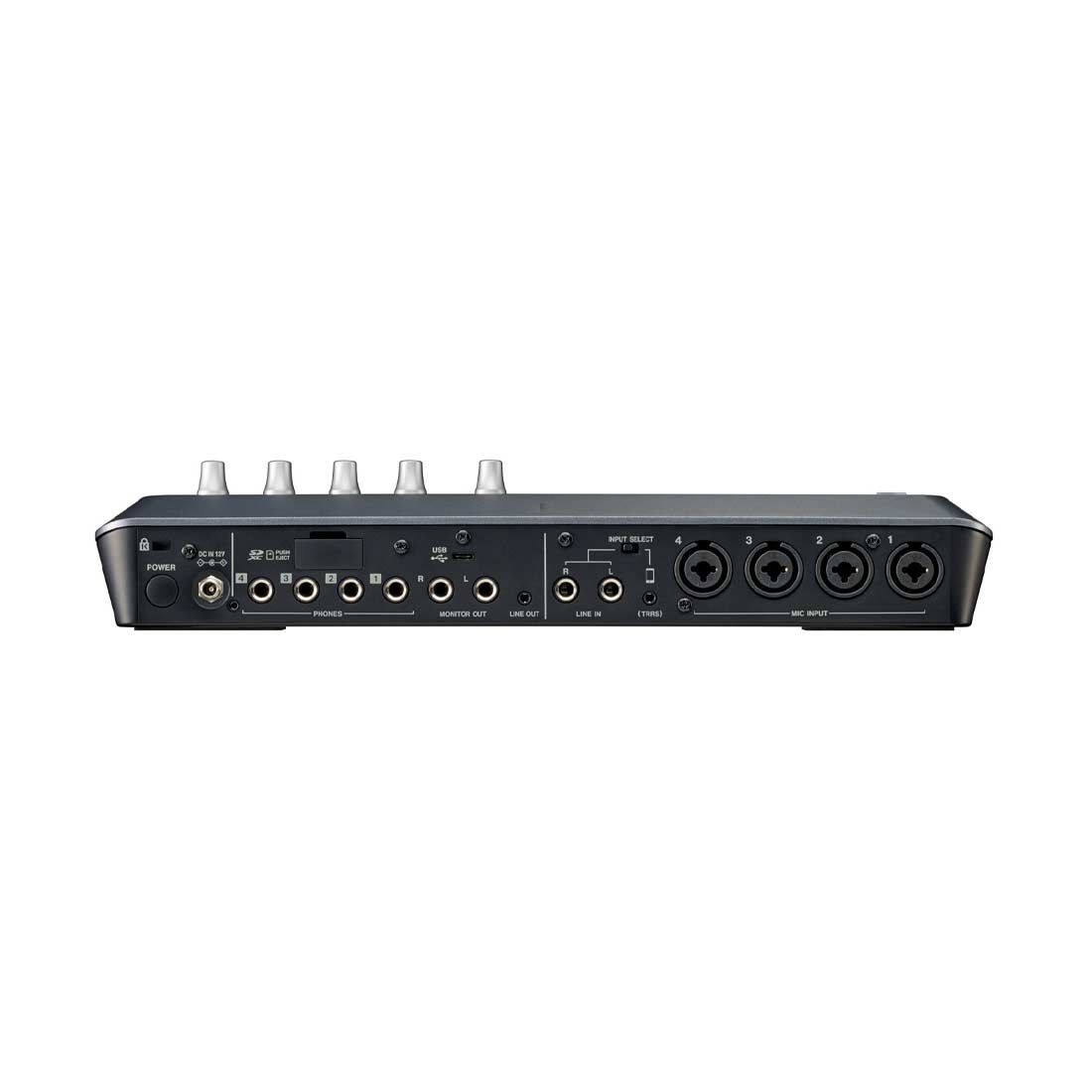

MIC INPUT jacks (1-4)
Connectors	XLR/TRS combo jacks
XLR	XLR-3-31 (1: GND, 2: HOT, 3: COLD)
TRS	6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level	+10 dBu (when LEVEL at min.)
Nominal input level	-10 dBu (when LEVEL at min.)
Minimum input level	-76.5 dBu (when LEVEL at max.)
Gain range	66.5 dB
Input impedance	2.1 kΩ
PHONES (TRRS) 1 jack (CTIA standard)
Connector	3.5 mm (1/8") 4-pole mini jack
Maximum input level	+4 dBV (when LEVEL at min.)
Nominal input level	-16 dBV (when LEVEL at min.)
Minimum input level	-82.5 dBV (when LEVEL at max.)
Gain range	66.5 dB
Input impedance	2 kΩ
LINE IN (TRRS) jack (CTIA standard)
Connector	3.5 mm (1/8") 4-pole mini jack
Maximum input level	+8 dBV
Nominal input level	-12 dBV
Input impedance	12 kΩ
LINE IN L/R (balanced) jacks
Connectors	6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level	+24 dBu
Nominal input level	+4 dBu
Input impedance	11 kΩ
Analog audio output ratings
PHONES jacks (1-4)
Connectors	6.3mm (1/4") standard stereo jacks
Maximum output	45 mW + 45 mW (0.1% THD+N or less, into 32Ω load)
Working Impedance	16 to 600Ω
PHONES (TRRS) 1 jack (CTIA standard)
Connector	3.5 mm (1/8") 4-pole mini jack PHONES (TRRS) 1 output splits from PHONES 1 output
LINE OUT (TRRS) jack (CTIA standard)
Connector	3.5 mm (1/8") 4-pole mini jack
Maximum output level	-25 dBu
Nominal output level	-45 dBu
Output impedance	100 Ω
MONITOR OUT L/R (balanced) jacks
Connectors	6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level	+20 dBu
Nominal output level	+0 dBu
Output impedance	200 Ω
LINE OUT jack
Connector	3.5mm (1/8") stereo mini jack
Maximum output level	+6 dBv
Nominal output level	-14 dBv
Output impedance	200 Ω
USB
Connector	USB Type-C
Transfer Format	USB2.0 HIGH SPEED
Device Class	Mass-storage class USB Audio Class 2.0(USB class-compliant)
USB Audio
Sampling Rate	48 kHz
Bit Depth	24 bit
Number of inputs	14 channels *Output from this unit
Number of outputs	2 channels *Input to this unit
Bluetooth®
Output class	2 (about 10m* unobstructed transmission distance)
Supported profile	A2DP
Supported A2DP codecs	SBC, AAC
Supported A2DP content protection	SCMS-T
Recording times (in hours: minutes)	Recording format: 24-bit / 48kHz WAV 14 ch: 0:35 (4 GB) / 1:10 (8 GB) 2 ch: 4:07 (4 GB) / 8:15 (8 GB) The recording times shown above are not continuous recording times. They are total recordable times for SD/SDHC/SDXC cards.
Power	Dedicated AC adapter (PS-P1220E NUT), DC 12 V
Power consumption	12.5 W (maximum)
Weight	2.55 kg
Operating temperature range	0 - 40°C
Dimensions	374.8(W) × 56.5(H) × 263.6(D) mm (excluding protrusions) 374.8(W) × 71.2(H) × 266.7(D) mm (including protrusions)
Include items	AC adapter (PS-P1220E NUT), USB Type-C to Type-C cable, Owner's manual (inc. warranty), TASCAM ID registration guide

* The transmission distance is an estimate. The transmission distance may vary depending on the surrounding environment and radio wave conditions.

Audio Performance

Mic amp EIN (equivalent input noise)	-125 dBu or less (150Ω termination, LEVEL at max.)
Frequency response	Mic input jacks (1-4) 20 Hz - 20 kHz: +0.3 dB / -0.3 dB (JEITA)
S/N ratio	101 dB( Mic input jacks (1-4), channel faders at 0, 20kHz SPCL LPF +A-Weight)
Distortion	0.003% ( Mic input jacks (1-4), 1kHz sine wave, channel faders at 0, 20kHz SPCL LPF)
Crosstalk	95 dB or more Note: Measurement conditions conform to JEITA CP-2905B.

Computer system requirements

Windows

Compatible computers	Windows computer with a USB 2.0 (or higher)

* Operation is not guaranteed using the TASCAM driver with ARM64 CPUs.

Mac

Compatible computers	Mac with a USB 2.0 (or higher)

* Verified with Intel and Apple Silicon (M1 and M2) hardware

Stress-Free Touch Panel Control

Equipped with 4 mic inputs and 4 individual headphone outputs, the Mixcast 4 is always ready for production thanks to the installed auto-mixing function that will automatically adjust optimal levels and set mic priority with no troublesome configuration for a perfect mix. The Mixcast 4 also showcases a 5-inch color touch screen that provides quick and intuitive access to desired menu control settings.

One-Stop Workstation With a Variety of Functions

From audio recording to the mixing of recorded audio, the Mixcast 4 offers a one-stop solution with multiple convenient functions such as 14-track multi-track recording direct to the unit's SD card.Not only with four mic inputs, but also with Bluetooth®, a LINE IN (3.5mm TRRS) connection, and PC connectivity allows the unit to easily mix and record phone conversations/sound sources and let 7 people in maximum join the program. In addition, it supports Talkback function for internal conversation that will not be on the main recording.

The Talkback output has been expanded to USB/ Bluetooth/ LINE IN (3.5mm TRRS) connection in addition to the headphone outputs. (supported from V1.30)

Enhance Content With Real-Time Sound Effects

The Mixcast 4 comes with fully customizable sound pads. In addition to preset sound effects, users can flexibly assign new sounds or even pre-recorded mic sounds that have been recorded on the unit. The Mixcast 4 sound pads also allow for easy and real time voice effects such as voice transformation, reverb, and more to make live-streams and recordings even more interesting and fun.

For the real time effects, common settings can be applied for up to 4 mic inputs simultaneously. (supported from V1.20)
The playback level of each sound pad can be adjusted, and pad banks can be switched while recording.(supported from V1.30)\

Mixcast 4
Power adapter PS-P1220E NUT
Owner's manual (warranty included)
TASCAM ID registration guide
