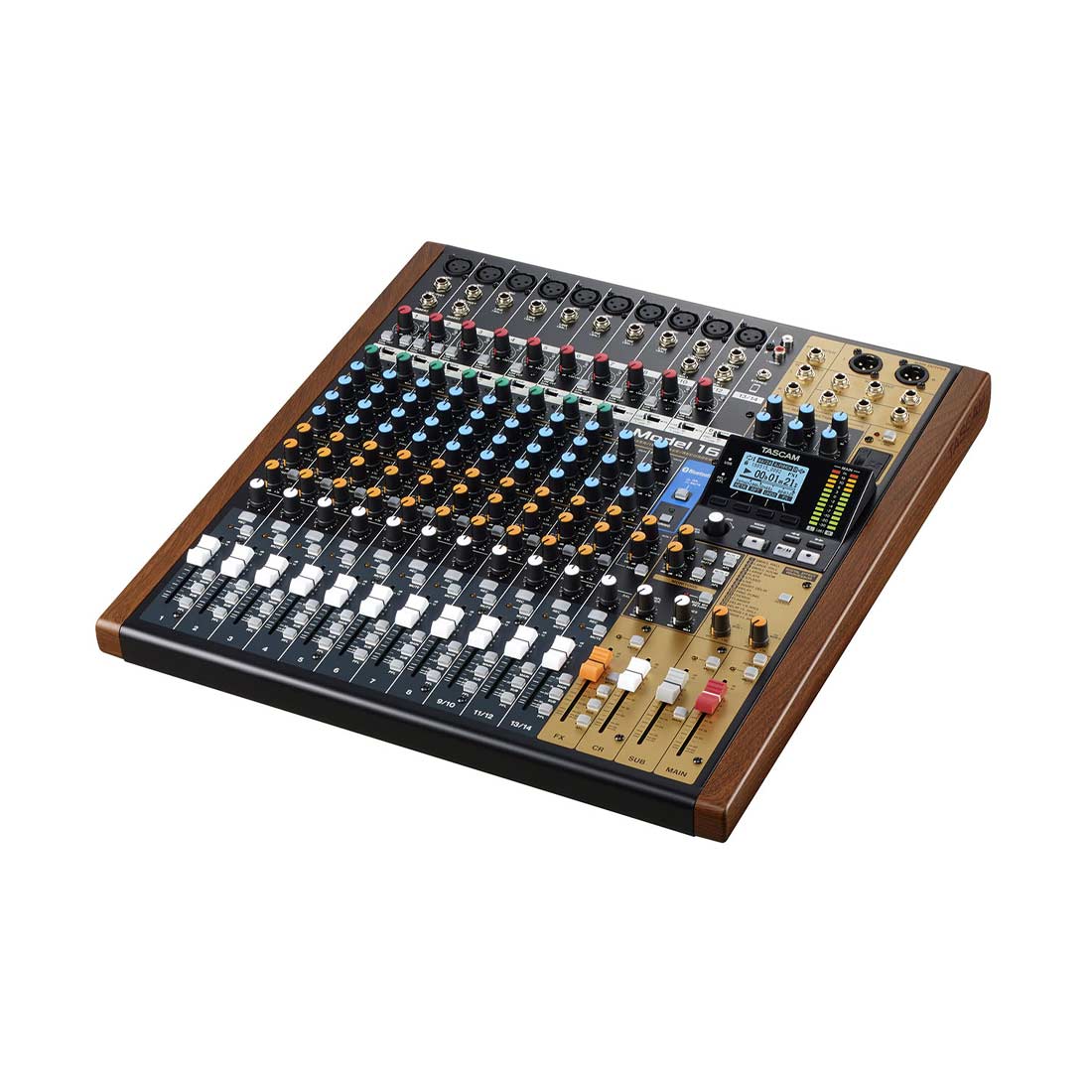

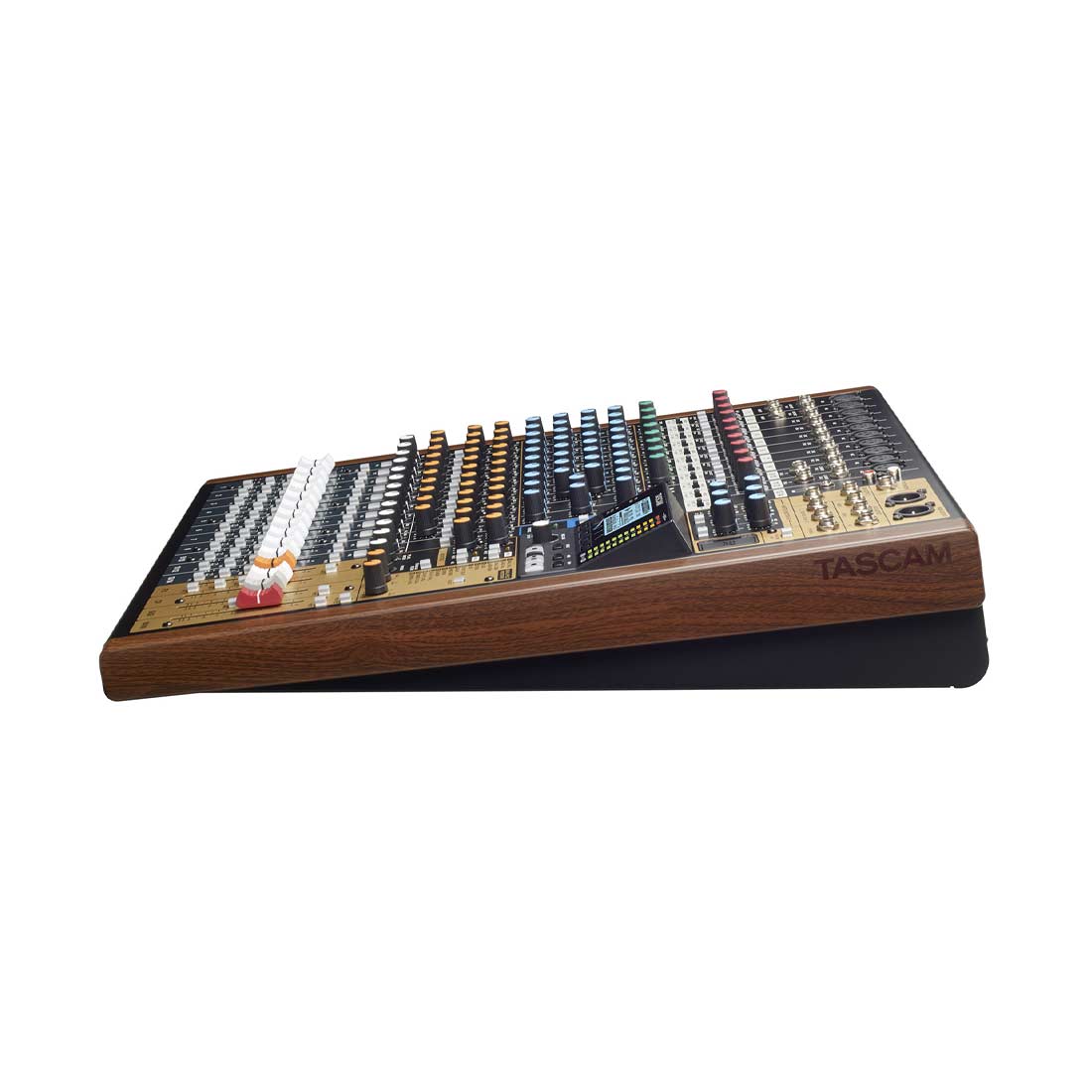

TASCAM MODEL 16 HYBRID MIXER & MULTITRACK RECORDER

• 16-track multi-track recorder (WAV, up to 48kHz/24-bit) to SD, SDHC and SDXC cards (Class 10 or higher required)

•  Punch in/out capability (up to 8 tracks simultaneously)

•  Built-in USB Audio Interface to send/receive (16-in/14-out) audio data to/from DAW

• 14 inputs (10 Monaural XLR/TRS balanced and 2 Stereo-paired TRS balanced)

• 10 mic Pre-amps utilizing TASCAM Ultra HDDA Mic Pre-amp technology (CH 1 thru 8)

• Pre-amp Gain Controller with Signal/Over-load Indicator (CH 1 thru 12)

• Input Mode switch (LIVE/USB/MTR) per input channel

• 1-knob compressor (CH 1 thru 8)

• 3-band EQ with a sweep-able mid-range frequency (CH 1 thru 8)

• 100Hz Low-cut Filter (CH 1 thru 12)

• Bluetooth® 5.0 input supporting both AAC and SBC codecs

• Hi/Lo shelf, wide and narrow-Q semi-parametric EQs (for Main and SUB outputs)

• 16 TASCAM Effects like reverb, delay, chorus and flange

• MAIN Output via XLR balanced and SUB Output via TRS balanced connectors

• 1 Stereo Output for Control Room

• REMOTE connector for a Foot Switch (TASCAM RC-1F)

NOTE: 0dBV = 1Vrms, 0dBu = 0.775Vrms

Audio Performance

NOTE: 0dBu = 0.775Vrms

Supported PC

Windows

Compatible Computers	Windows-compatible computer with a USB2.0 port
CPU	Dual core / 2GHz or faster
Memory	2GB or more
Driver	USB Audio Class 2.0,  ASIO2.0, WDM (MME)
Screen Resolution	1280 × 800 Dots or more

Mac

14 Inputs for Complete Flexibility

14 easy-to-access top-panel inputs provide flexible options for microphones or instrument connections, including 10 Mic/14 Line/2 Inst to allow easy access for connecting microphones, instruments or other audio sources for live recording or mixing. A Bluetooth 5.0 enabled Stereo Input Source Channel also provides stereo RCA and 1/8" Stereo (selectable) jacks for streaming audio device level control.

Pristine Audio Quality

Mic Inputs 1 through 8 deliver pristine audio quality, featuring TASCAM's Ultra HDDA (High Definition Discrete Architecture) technology for pure, transparent natural tone with ultra-low noise.

Professional Channel Strip Control Features

A tactile Gain knob tops each channel for precise tweaking of input levels. A push-button Lo-Cut filter and three-position Input Selector (Live/PC/MTR) facilitate quick and precise control of input source signals. A 1-knob inline Compressor is available on inputs 1-8 as is a mid-range sweepable 3-band EQ.

Maximum Audio Routing Possibilities and Monitoring

3 Aux bus (MON1, MON2[pre/post], FX) and PFL Listen round out the Model 16's pro-level signal path routing options. A Sub bus provides an additional stereo lineout source to the master SEND section.

3 AUX Outs let you route the audio signal for stage monitoring, or to external gear such as outboard effects, signal processors or headphone mixes. And the Footswitch control jack provides additional monitoring and control features.
