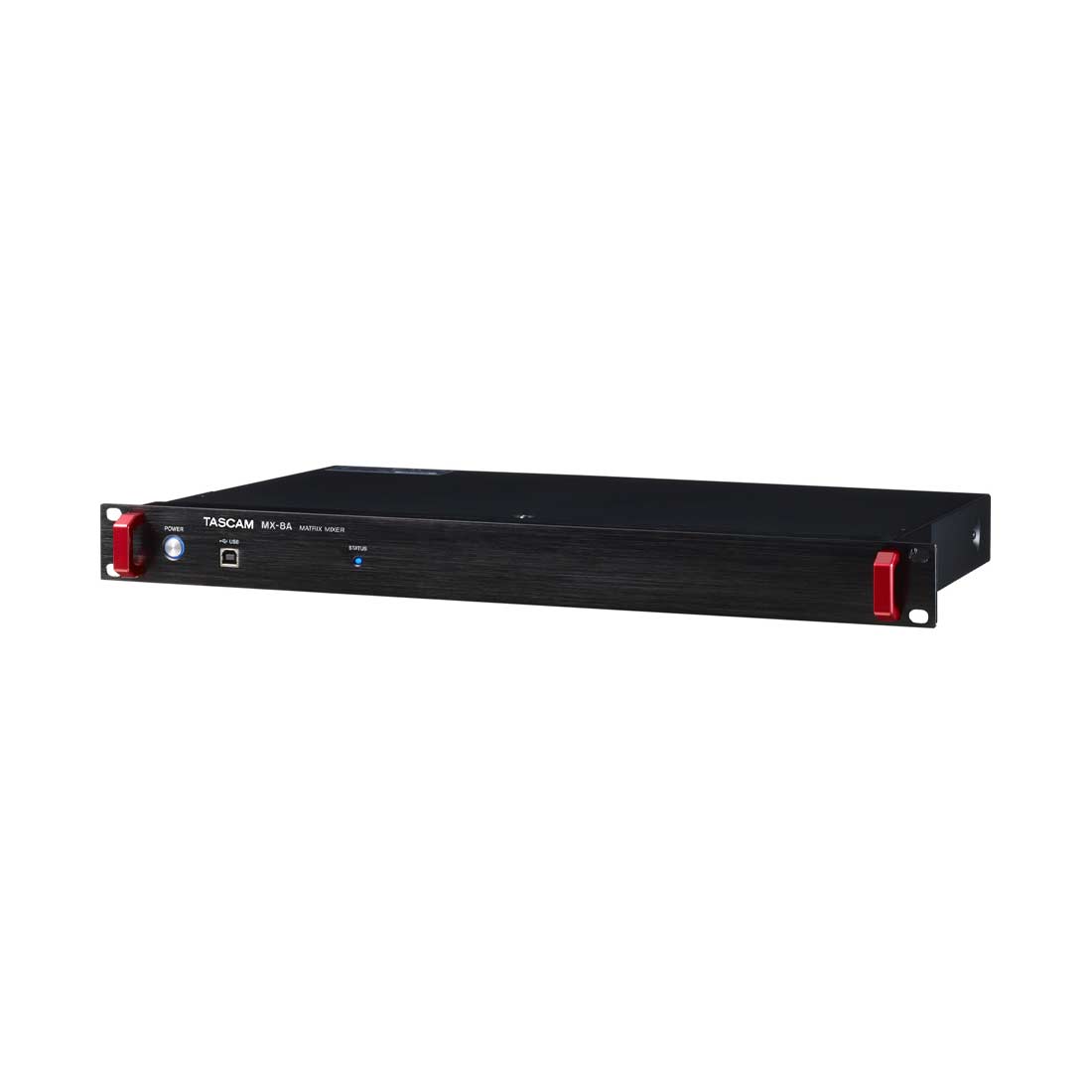

TASCAM MX-8A 8 I/O MATRIX MIXER W/DSP

• 8-channel mic / line input with phantom power (+48v) support

• Supports remote mic gain control

• 8 line output

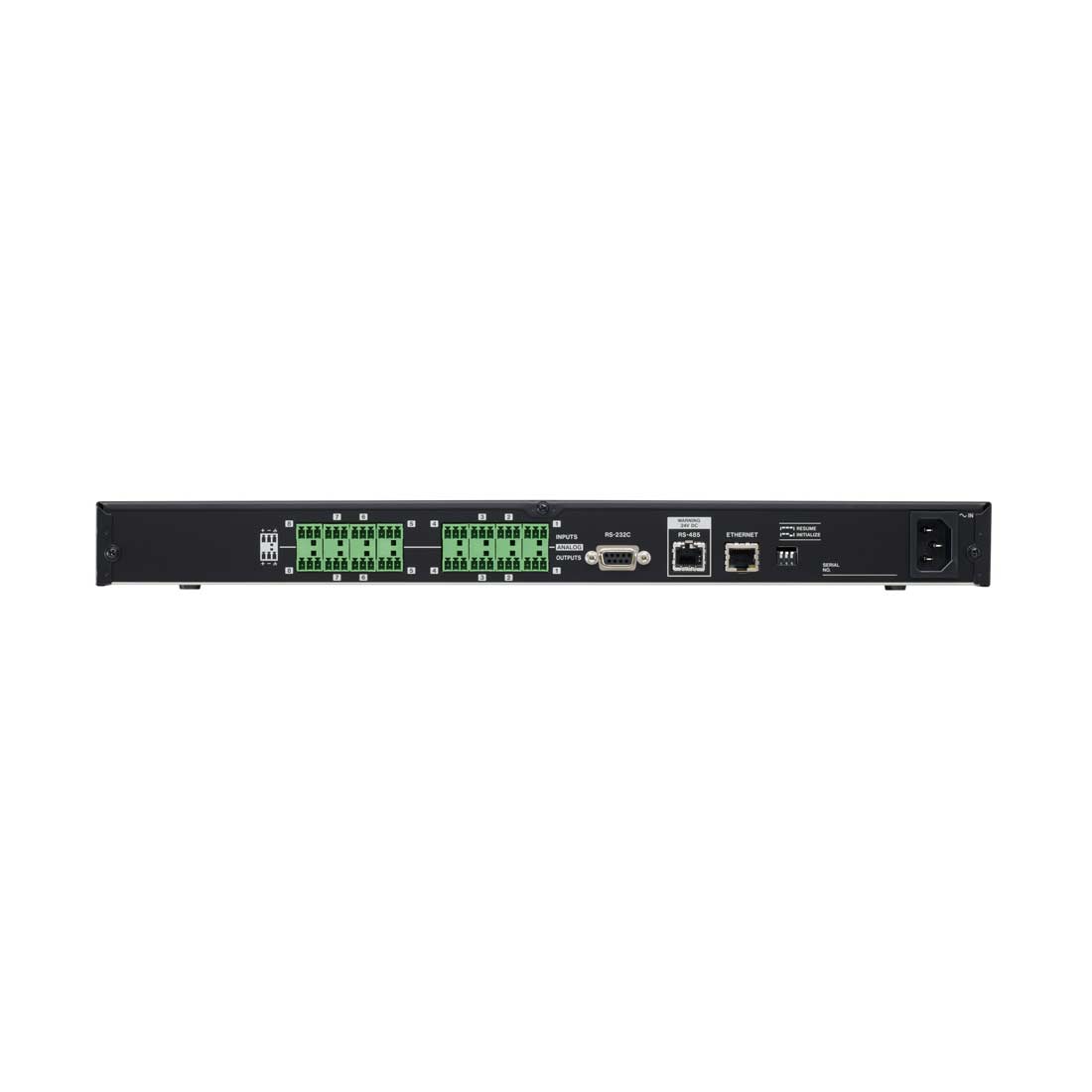

• Equipped with Euroblock connectors for signal input / output

• Compatible with external software (Windows / macOS / Android / iOS) for audio playback / recording via USB audio interface function

• Includes a variety of DSP functions for optimal use in different scenes / environments

• Flexible scene preset function allows recall of a variety of configurations (Up to 50 presets)

• 2 types of user control software available for Windows / Mac / iOS / Android devices:

  TASCAM MX CONNECT (For integrators); Input / output routing selection, DSP / design / scene settings of the complete system, etc.
  TASCAM EZ CONNECT (For end-users); Simple app design with only the necessary functions such as area volume settings, etc.

• Equipped with a RS-232C connector to support serial remote control systems

• Equipped with an RS-485 connector for dedicated wall-mount programmable controller RC-W100-R120 / RC-W100-R86 (optional accessories, sold separately) enabling source selection and volume adjustment.

• Supports remote control via Ethernet

• 1U rack-mountable size

• Installed indicators display operating status and control software connection status

Audio performance

Note: JEITA indicates compliance with JEITA CP-2150

Supported audio drivers

The TASCAM MX-8A is a Matrix Mixer equipped with 8 mic / line inputs and 8 line outputs as well as integrated DSP for audio optimization in various environments and configurations Custom control apps are also available to allow easy setup and adjustment by both system integrators and end users.

Structuring Small to Mid-Scale Systems

The TASCAM MX-8A is possible to mix mic and playback equipment audio signals into 8 different zones. This function can be used in installation systems for small to medium scale stores, restaurants or banquet rooms, etc.

Powerful Integrated DSP

The onboard DSP provides a full set of audio processing for mic and line inputs including Compressor, 4 parametric EQ, auto level, ducking and more. On line level outputs, the DSP delivers 10 band EQ, high pass filters, low pass filters, delay and limiter effects.

Remote Control Software

Control of the TASCAM MX-8A via either of the two available control software applications

TASCAM MX CONNECT, designed for integrators and providing control over the configuration and settings of an entire system.

Remote Control Software

Control of the TASCAM MX-8A via either of the two available control software applications

TASCAM EZ CONNECT, designed for end-users and providing easy control over a variety of settings.

Auto Audio Configuration Functions for a Clearer Sound

With the ducking function and/or the ambient noise compensator function, users will be able to have a much clearer sound when making announcements or when playing some background music. These can be configured different on each output zone of the matrix mixer.

Ducking
This function detects the level of a mic input and simultaneously turns down the level of the selected output zone. This can be used to increase intelligibility of announcements when background music is present.

Ambient Noise Compensator
The Ambient Noise Compensator (ANC) function also detects input source level and automatically configures the level of the selected output zone. Whenever there is fluctuation on the noise level of a field environment, this function will automatically compensate the volume for clearer background music or announcements.

Compatible With Audio Playback/Recording Software

The built-in 2 in / 2 out USB audio interface also enables the TASCAM MX-8A to function as powerful and flexible audio recording interface, compatible with a variety of operating systems including: Windows / macOS / Android / iOS.

Scene Preset and Timer Event Functions

Effect parameters, mix levels, input / output routings and more can be saved in one of 50 different preset locations. By using the scene preset function together with the SNTP client included timer event function*, it is possible to automatically switch different scenes at a specified time.

*Timer event function planned to be compatible on a future version update.

Up to 8 wall-mount controllers can be daisy-chain connected to the TASCAM MX-8A using Cat5e or higher cables with a maximum length of 200m (656 ft.). The controller power is supplied from the MX-8A which helps simplify installation procedures and reduce installation costs.

* The following updates are required to use "RC-W100". to :

• "MX-8A" firmware update to V1.10 or higher
• "TASCAM MX CONNECT" software update to V1.2.0 or higher
