Tascam Portacapture X6 Handheld Multitrack Recorder
SKU: PORTACAPTURE X6
Capture audio anywhere with the Portacapture X6. The intuitive app-like operations on its color touch screen make it easy to record. State-of-the-art 96 kHz/32-bit float recording technology means that you can capture audio softer or louder than ideal, assuring that you will never miss that moment.
-

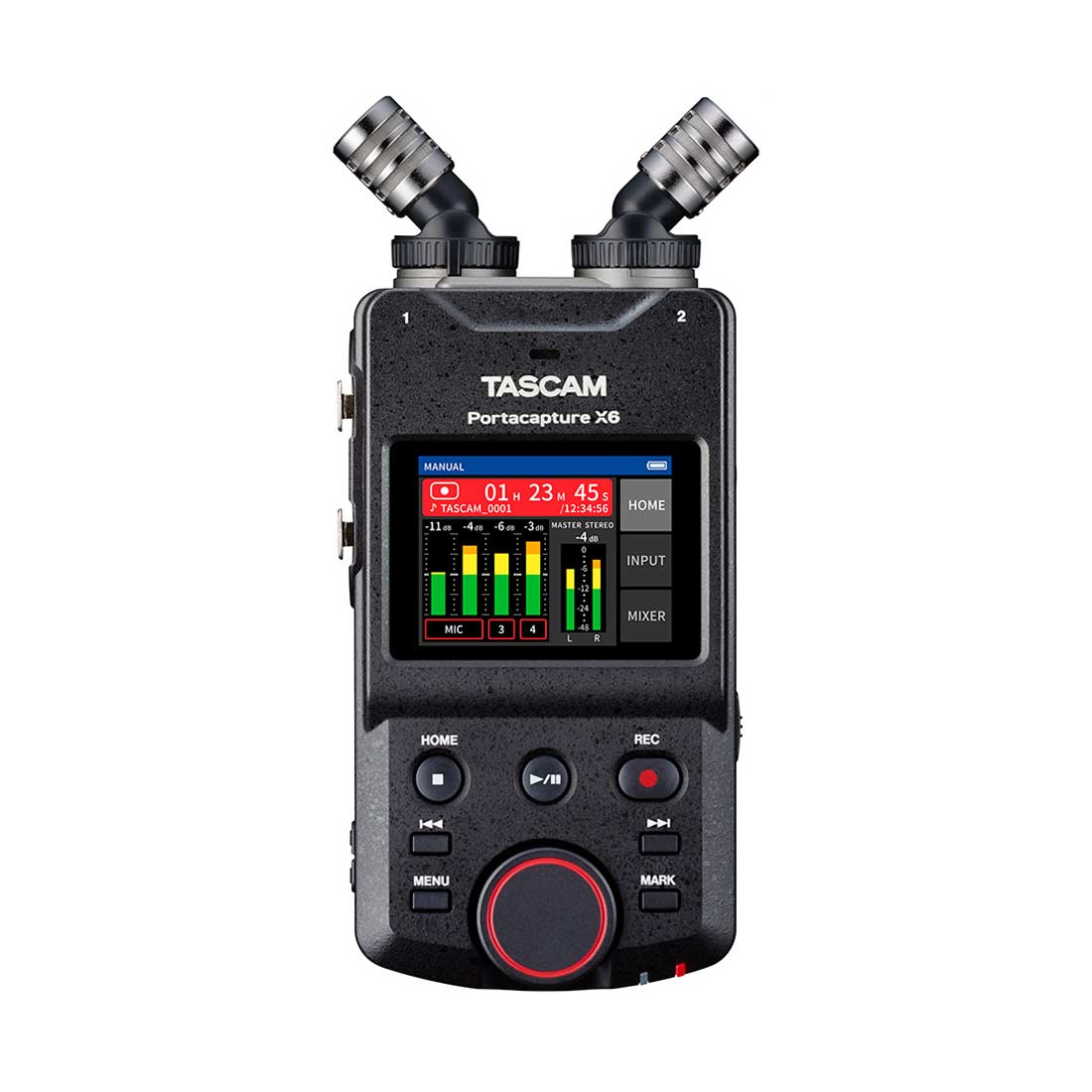

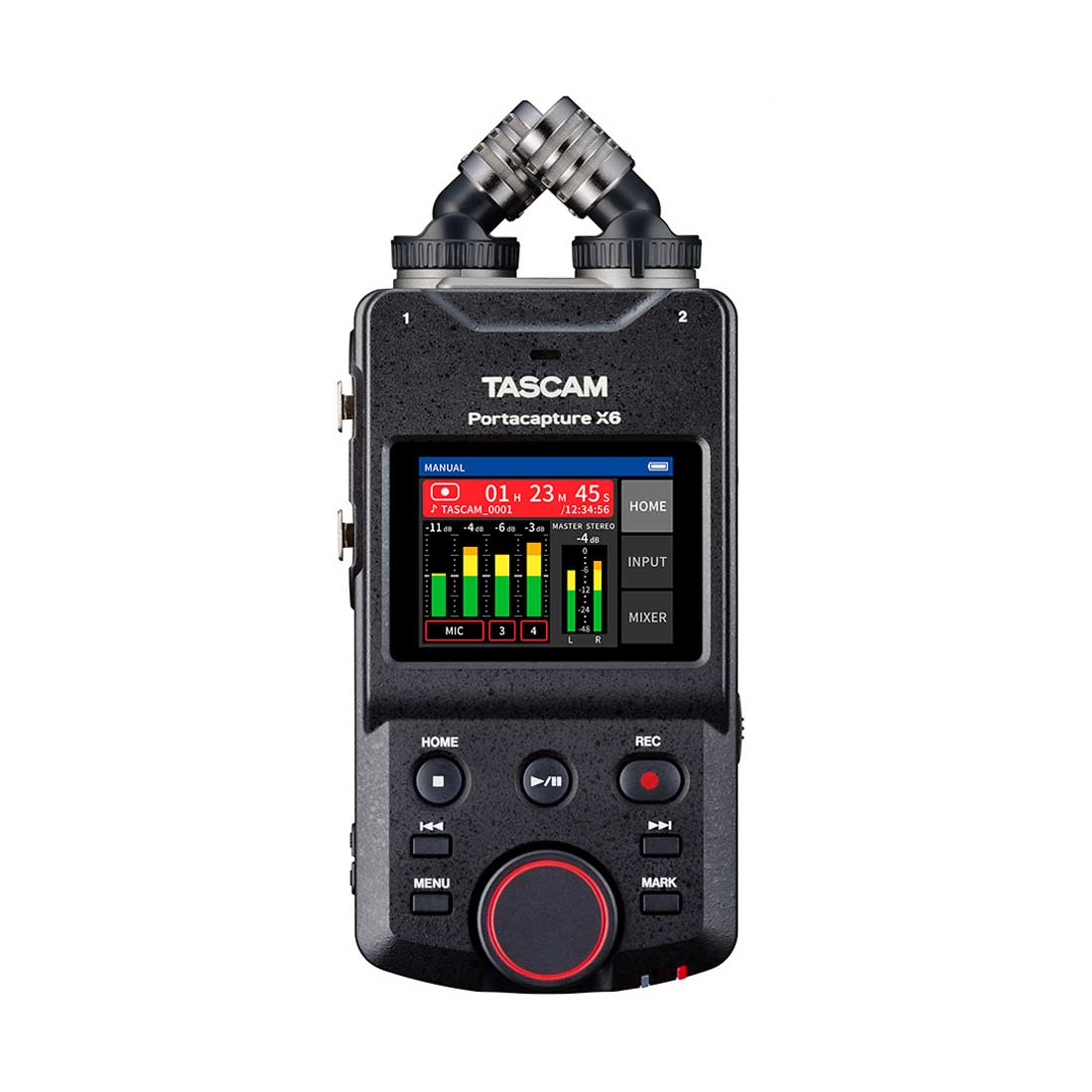

Enjoy intuitive app-like controls on the X6, all using the large 2.4-inch touchscreen. Easy-to-use recording, pre-production and postproduction capabilities are just a touch away.
-
Capture using up to 96 kHz, 32-bit float recording
-
Record 6 tracks (4 track + 2 mix) simultaneously
-
Easy-to-use recording pre-sets: Select from music, podcast, interviews, field recording and 6-track multi-track for the ideal recording setup for your needs.
-

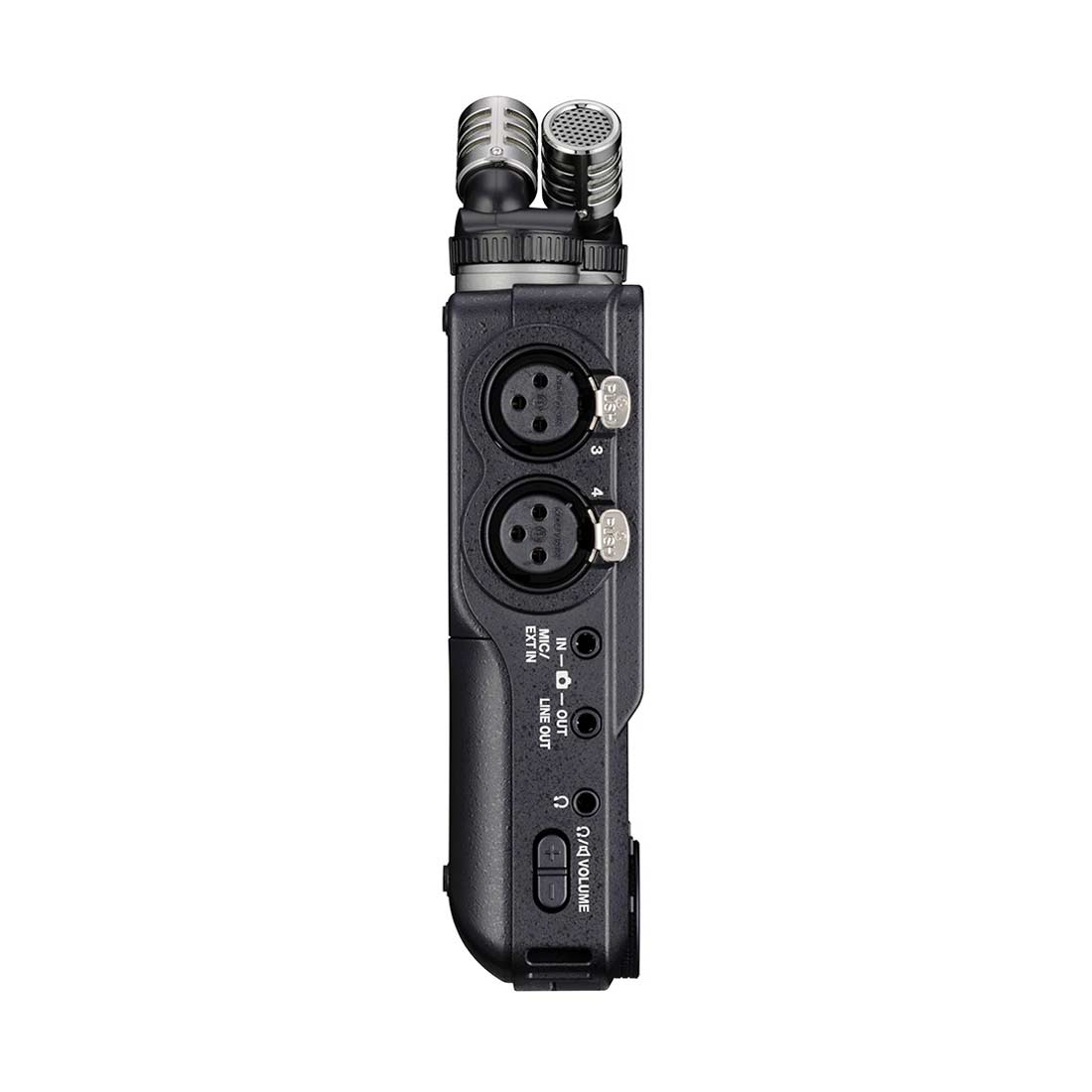

2 XLR inputs and dual built-in mics with switchable AB/true-XY patterns
-
The 2 XLR input terminals are compatible with phantom power (24V/48V) to support recordings with multiple mic/line inputs
-
Undistorted recording processing enables safe recording without lowering the S/N ratio with 32-bit float processing
-
Equipped with a 6-in/2-out USB audio interface function
-
Wireless remote control from smartphones/tablets is possible with the optional AK-BT1 Bluetooth® adapter (sold separately). Timecode sync is also possible via Bluetooth® (*Timecode sync supported from V1.10 firmware update)
| Recorder specifications | |
| Recording media | microSD cards (64MB - 2GB), microSDHC cards (4GB - 32GB), microSDXC cards (48GB - 512GB) *Class 10 or higher required |
| Recording / playback formats | |
| WAV (BWF) | 44.1k/48k/96kHz, 16/24-bit, 32-bit float |
| MP3 | 44.1k/48kHz, 128k/192k/256k/320kbps |
| Number of channels | |
| Input channels | 4 channels maximum |
| Recording tracks | 6 tracks maximum (4 tracks, stereo mix) |
| Analog audio input ratings | |
| Mic inputs (balanced) | |
| Input jacks 3-4(when INPUT SELECT set to MIC) | |
| Connectors | XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) Note: supports phantom power only when MIC input selected |
| Input impedance | 2.2kΩ or higher |
| Maximum input level | +2dBu |
| Minimum input level | -75dBu |
| Input jacks 3-4 (when INPUT SELECT set to LINE) | |
| Connectors |
XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) |
| Inputimpedance | 9kΩ or higher |
| Nominal input level | +4dBu(GAIN setting at minimum) |
| Maximum input level | +24dBu |
| Minimum input level | -53dBu |
| Line input (unbalanced) | MIC/EXT IN jack (can provide plugin power) |
| Connectors |
3.5mm (1/8") stereo mini jack |
| Inputimpedance | 10 kΩ or higher (when plug-in power is off ) 1.8 kΩ or higher (when plug-in power is on) |
| Nominal input level | -20 dBV(GAIN setting at minimum) |
| Maximum input level | 0 dBV |
| Minimum input level | -67 dBV |
| Analog audio output ratings | |
| Line output (unbalanced) | LINE OUT jack |
| Connectors | 3.5mm (1/8") stereo mini jack |
| Output impedance | 210Ω |
| Nominal output level | -14dBV |
| Maximum output level | +6 dBV |
| Headphone output | headphone jack |
| Connectors | 3.5mm (1/8") stereo mini jack |
| Maximum output | 45mW + 45mW (THD+N 0.1% or less, into 32 Ω load) |
| Working impedance | 16ohms to 400ohms |
| Built-in speaker | 0.4 W (mono) |
| USB | |
| Port | USB Type-C |
| Transfer mode | USB 2.0 Hi-Speed |
| Device classes | mass storage,USB audio 2.0 (USB class compliant) |
| USB audio | |
| Sampling frequencies | 44.1, 48, 96 kHz |
| Quantization bit depth | 24-bit |
| Number of input channels | 6 (output from unit) |
| Number of output channels | 2 (input to unit) |
| Bluetooth device connector | For Bluetooth adapter (AK-BT1) only |
| Portacapture Control | |
| iOS/iPadOS devices | iOS 16/iPadOS 16,iOS 15/iPadOS 15,iOS 14/iPadOS 14 |
| Android devices | Android 11,Android 10 Note: Compatibility has been confirmed, but this does not guarantee operation with all devices. |
| Power | 4 AA batteries (Alkaline, Ni-MH or Lithium-ion) USB bus power from a computer TASCAM PS-P520U AC adapter (sold separately) |
| Power consumption | 7.5W (maximum) |
| Dimensions | 75 × 174.3 × 37.2 mm (W× H× D, excluding protrusions) |
| Weight | 365/265g (with/without batteries) |
| Operating temperature range | 0 - 40°C |
| Included | Portacapture X6 × 1 AA alkaline batteries × 4 Owner's Manual (including warranty) × 1 TASCAM ID registration guide × 1 |
Battery operation time (continuous operation)
| batteries | Use conditions | Operation time |
| Using alkaline batteries (EVOLTA) | Input through inputs 1-2 Phantom power not used 44.1kHz stereo WAV (BWF) 24-bit recording POWER SAVEW MODE on |
About 13.5 hours |
| Input through inputs 1-2 and input jacks 3-4 (using phantom power: +48V, 3mA×2 load) 44.1kHz stereo WAV (BWF) 24-bit recording POWER SAVEW MODE off |
About 5.5 hours | |
| Using Ni-MH battery (eneloop) | Input through inputs 1-2 Phantom power not used 44.1kHz stereo WAV (BWF) 24-bit recording POWER SAVEW MODE on |
About 11 hours |
| Input through inputs 1-2 and input jacks 3-4 (using phantom power: +48V, 3mA×2 load) 44.1kHz stereo WAV (BWF) 24-bit recording POWER SAVEW MODE off |
About 5.5 hours | |
| Using lithium-ion batteries (Energizer Ultimate Lithium) | Input through inputs 1-2 Phantom power not used 44.1kHz stereo WAV (BWF) 24-bit recording POWER SAVEW MODE on |
About 22 hours |
| Input through inputs 1-2 and input jacks 3-4 (using phantom power: +48V, 3mA×2 load) 44.1kHz stereo WAV (BWF) 24-bit recording POWER SAVEW MODE off |
About 11.5 hours |
Audio performance
| Mic amp EIN (equivalent input noise) | |
| Input jack 3-4 (MIC IN) | -125 dBu or less |
| Frequency response | |
| Input jacks 3-4 to PCM data | 20Hz – 20kHz at 48kHz: +0/-0.3dB (JEITA) 20Hz – 40kHz at 96kHz: +0/-0.7dB (JEITA) |
| Dynamic range | |
| Input jacks 3-4 to PCM data (20kHz SPCL LPF, A-weighting) | 112dB or higher (at 48kHz) 112dB or higher (at 96kHz) |
| Total harmonic distortion ratio (THD+N) | |
| Input jacks 3-4 (LINE IN) to PCM data, 1kHz sine wave,−5 dBFS input, GAIN at minimum, 20kHz SPCL LPF | 0.008% or less |
| Input jacks 3-4 (MIC IN) to PCM data, 1kHz sine wave,−5 dBFS input, GAIN at minimum, 20kHz SPCL LPF | 0.006% or less |
Note: JEITA indicates conformance to JEITA CP-2150
Recording times (in hours: minutes)
| File format (recording setting) | Card capacity | ||
| 32GB(microSDHC) | 128GB(microSDXC) | ||
| 320kbps MP3 | 44.1kHz | 222:13 | 888:53 |
| 16-bit WAV (stereo) | 50:23 | 201:33 | |
| 24-bit WAV (stereo) | 96kHz | 15:25 | 61:43 |
| 32-bit float WAV (stereo) | 96kHz | 11:34 | 46:16 |
* The recording times shown above are estimates. They might differ depending on the microSD card in use.
* The recording times shown above are not continuous recording times, but rather they are the total possible recording times for the microSD card.
* If recorded in mono, maximum recording times will be about double those above.
* If using dual recording, maximum recording times will be shorter than those above.
Computer system requirements
Windows
| Compatible computers | Windows computer with a USB 2.0 (or higher) |
Mac
| Compatible computers | Mac with a USB 2.0 (or higher) |
App-like Operation

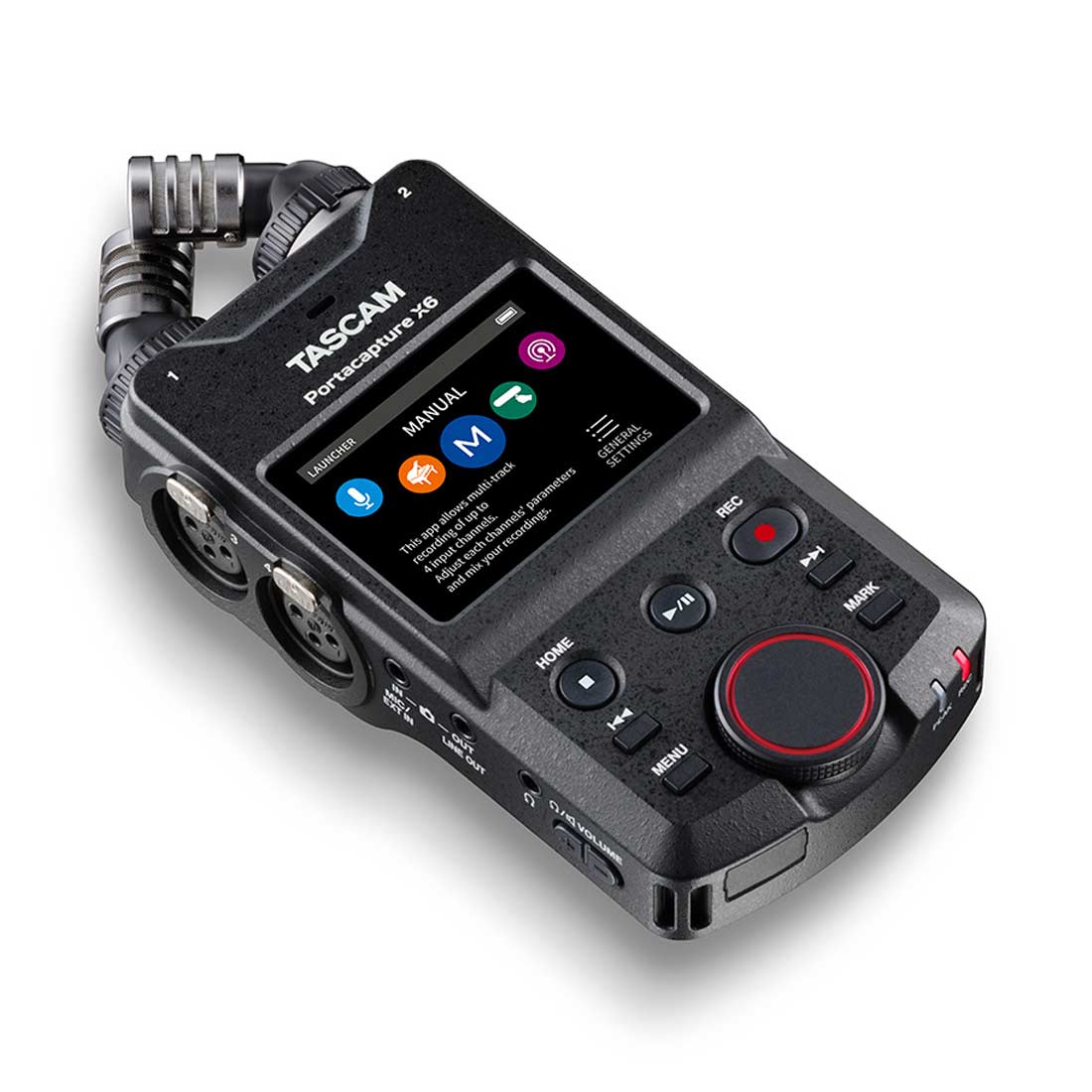

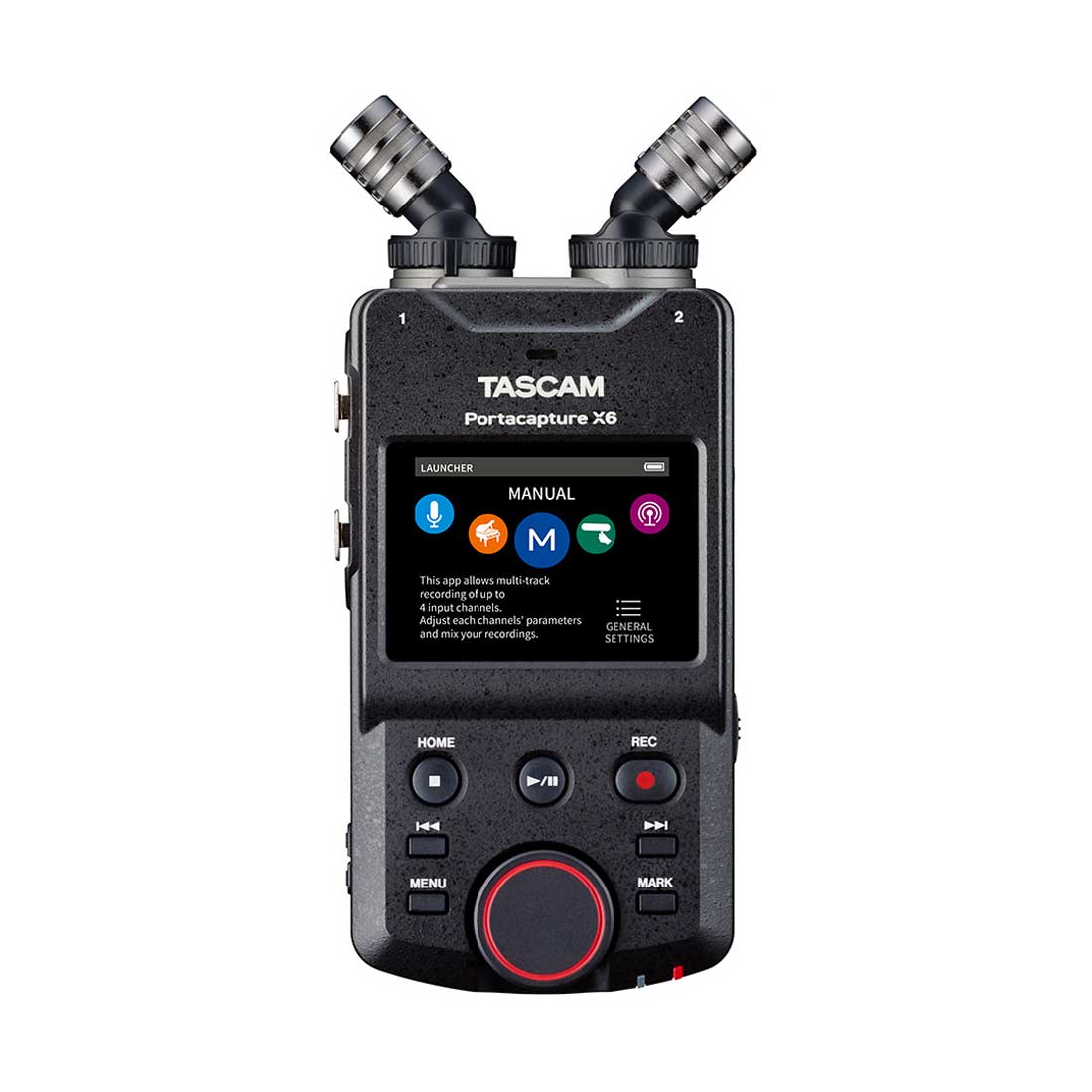

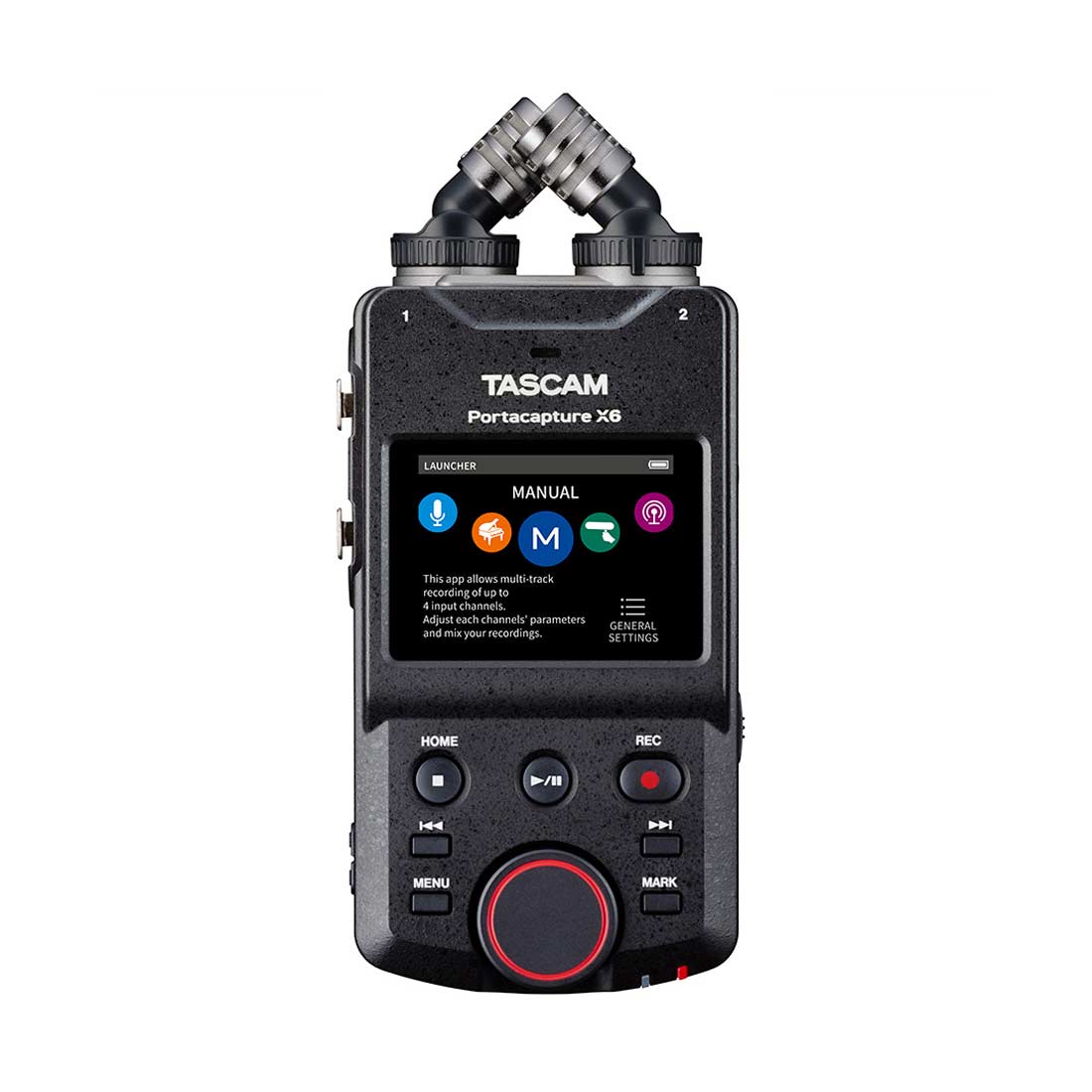

Quickly access your settings and adjustments on the Portacapture X6's large (2.4-inch) color touchscreen. With the easy-to-navigate interface and helpful tools, you are just a few taps from the perfect setting for your needs. Use the Launcher to select from podcast, music, interviews, field recording and 6-track multi-track recording. Start fast, start right and get exactly what you need.

Audio For Video Production
When shooting a video, you want to be able to focus on your video production and not worry about your audio. The Portacapture X6 was built with video production in mind. The workflow, presets and user-saved settings save you countless steps. The X6 has your back with its 96 kHz/32-bit float recording technology. Not only does this mean you will have the highest quality audio, but you will have a dynamic range that allows you to overcome those less-than-ideal realities that can often occur on a shoot. The X6 even gives you a time-code sync option* via Bluetooth® (with optional AK-BT1) allowing you to align your audio with your video, even when you have no audio on your camera. Upgrade your audio and reduce your worries with your own Portacapture X6.

Capture Your Way

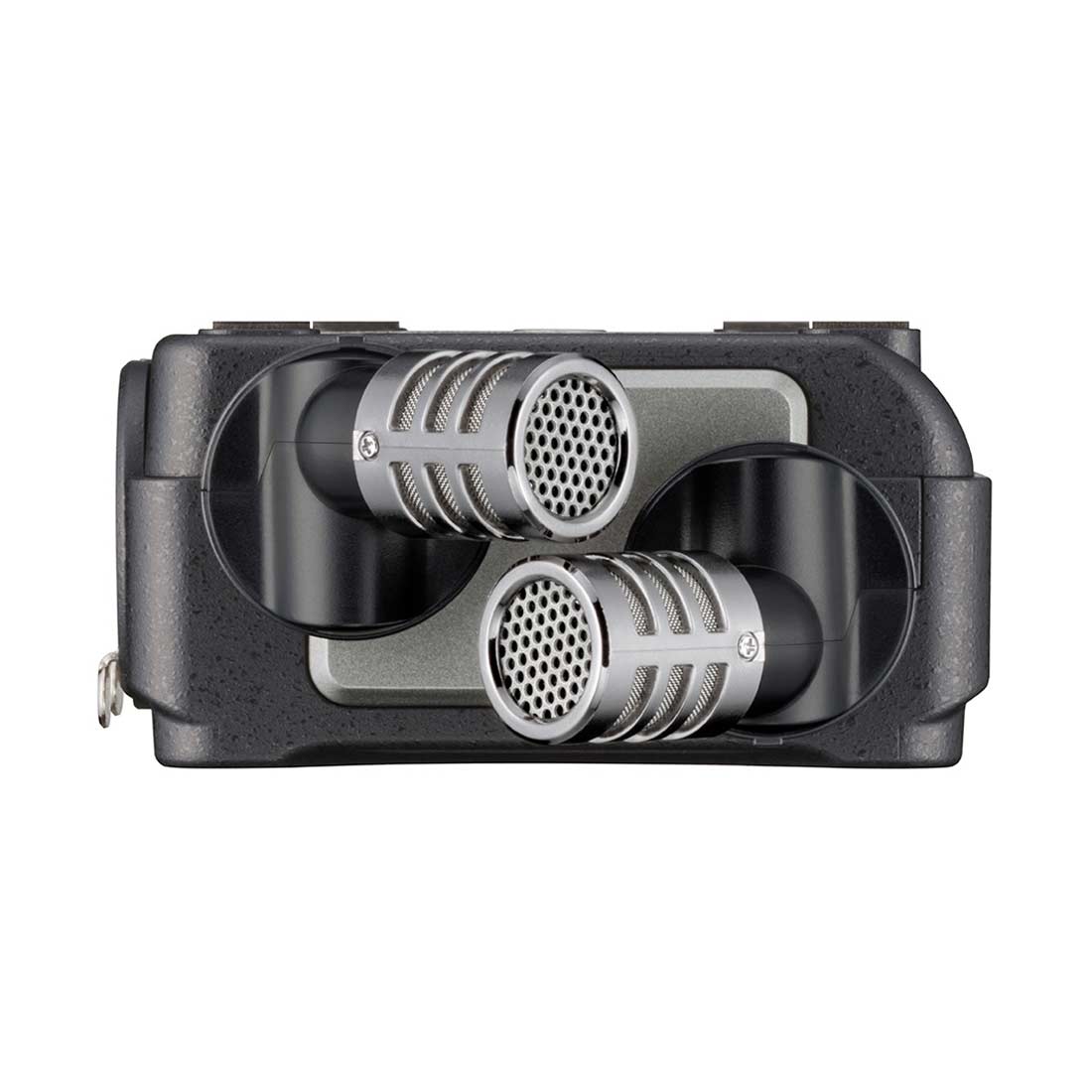

The Portacapture X6 is ready to record with a few quick taps. The internal high-quality stereo microphones can instantly rotate from A-B to a true X-Y mic pattern to allow for dialog or spatial music recording.
Have your own mics? Use those thanks to the two included XLR inputs or line level inputs. The mic preamplifiers are TASCAM HDDA (High Definition Discrete Architecture) – providing ultra-low noise and clean transparent audio based on over 50 years of TASCAM know-how.
Record 6 tracks (4 track + 2 mix) simultaneously and even use the X6 as your 6-in/2-out USB audio interface to connect to your computer.

-
Portacapture X6 x 1
-
AA alkaline batteries x 4
-
Owner's Manual (including warranty)
-
TASCAM ID registration guide
