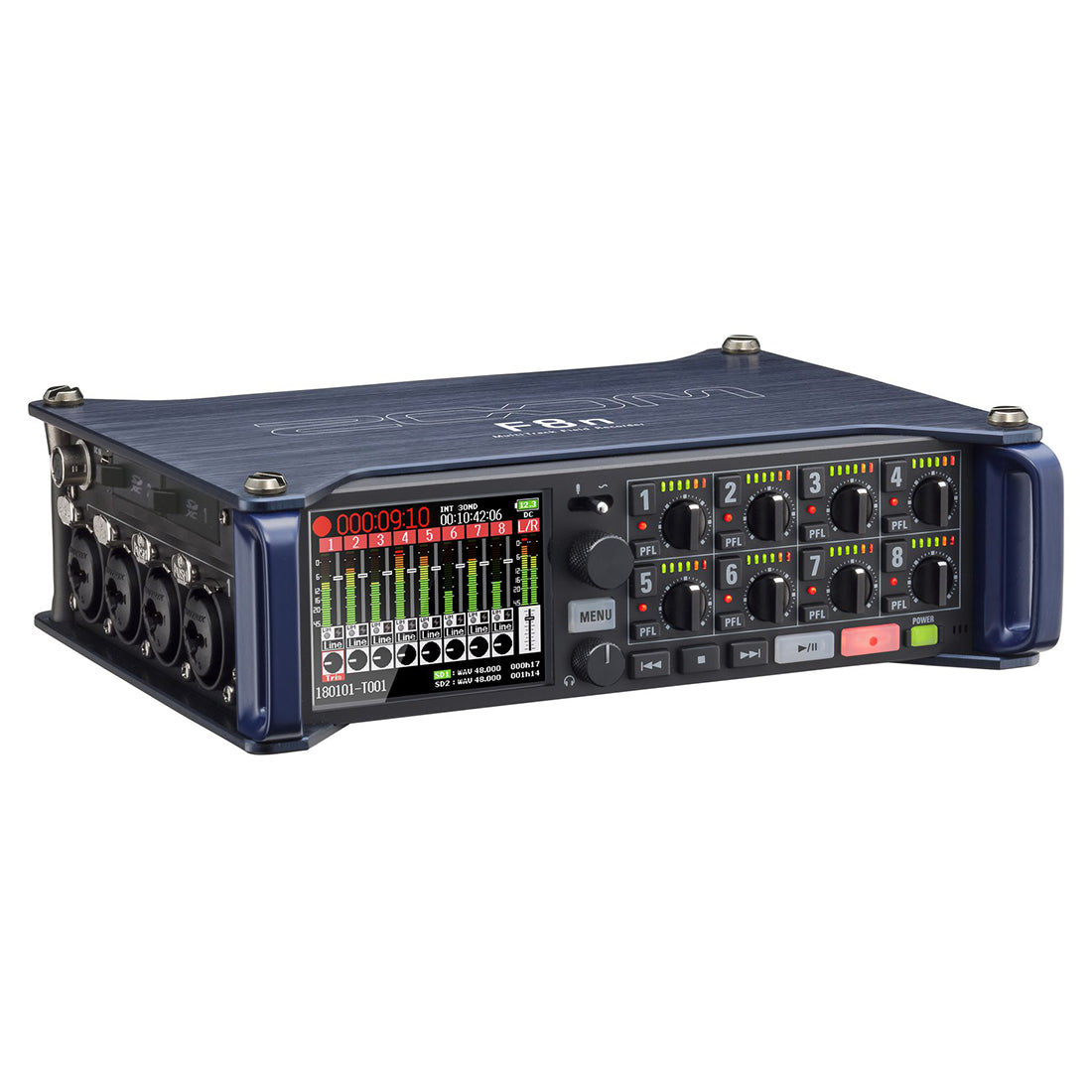

ZOOM F8N PRO MULTI-TRACK FIELD RECORDER

Filmmakers and sound professionals know the importance of sharp, clean audio in storytelling. From the click of a seatbelt to the roar of an engine, the F8n Pro’s 8 inputs capture full dynamic range using 32-bit float technology. With 8 inputs and 10 tracks, the F8n Pro can capture the most complex audio, expanding your options so that you can create sonic magic in post.

FORMATTING OPTIONS

The F8n Pro records in BWF-compatible WAV formats up to 32-bit resolution and at sample rates up to 192 kHz.

BUILT-IN PROCESSING

The F8n Pro features flexible signal routing from all inputs to all outputs, phase inversion and mid-side decoding. It also provides high-pass filtering to reduce the sound of wind and other noise. Input and output delays are also available.

STATE-OF-THE-ART TIMECODE

Keep your tracks perfectly synced even when you power down. On or off, the F8n Pro’s Temperature Compensated Crystal Oscillator (TCXO) generates time code at 0.2 ppm accuracy.

ZOOM AUTOMIX

Zoom AutoMix lets you keep your eyes on the action by automatically adjusting the levels of your mix to reduce ambient sound.

FULL METADATA ENTRY

The track name, scene names, notes, and more can be entered directly from the unit or via the Zoom F8 Control App for iOS / Android.

32-bit float recording technology
8-channel/10-track field audio recorder/mixer
Records in BWF-compliant WAV format up to 192kHz/32-bit float
8 discrete inputs with locking Neutrik XLR/TRS combo connectors
High quality mic preamps with up to 75 dB gain and less than -127 dBu EIN
Switchable +4dB inputs with mic/line options for both XLR and TRS
Accurate Time Code (0.2 ppm when on and up to 0.2 ppm when powered off) I/O on standard BNC connectors; dropframe/non-drop formats with Jam Sync
Zoom AutoMix™ software
Three different power supply options: 8x AA batteries, external DC battery pack with Hirose connector, or 12V AC adapter (AA’s and DC battery pack not included)
High pass filter, phase invert, and mid-side decoder
Dual mini-XLR (TA3) balanced Main Outs plus ⅛" stereo mini-jack Sub Out
Dedicated headphone output (100 mW) with front panel volume control
2.4" full-color backlit LCD with monochromatic mode
Dual SD/SDHC/SDXC card slots, up to 1 TB each
Use as an 8-in/4-out USB audio interface
Free Zoom F8 Control App for iOS and Android allows wireless remote control, file renaming, and metadata entry

INPUTS

INPUT 1 - 8	Connectors:	XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)
Input source set to Mic	Input gain:	+10 – +75 dB
	Input impedance:	3 kΩ or more
	Maximum input level:	+4 dBu (at 0 dBFS)
	Phantom power:	+24/+48 V, 10 mA maximum per channel
Equivalent input noise		−127 dBu or less (A-weighted, +75 dB input gain, 150 Ω input)
Frequency response		20 Hz – 60 kHz, +0.5 dB/−1 dB (192 kHz sample rate)
A/D dynamic range		113 dB typ. (−60 dBFS input, A-weighted)
Crosstalk		−90 dB or less (between adjacent channels, 1 kHz)
MIC IN		ZOOM mic capsule input (use disables Inputs 1/2)
SLATE MIC		Built-in mic for voice memos can be assigned to tracks freely

OUTPUTS

MAIN OUT 1/2	Connectors:	TA3 connectors (balanced output, 2: hot)
	Output impedance:	150 Ω or less
	Reference output level:	−10 dBV (normal output level)
		+4 dBu (line output level)
		1 kHz, 600 Ω load
	Maximum output level:	+10 dBV (normal output level)
		+24 dBu (line output level)
		1 kHz, 600 Ω load
SUB OUT 1/2	Connectors:	3.5 mm stereo mini (unbalanced output)
	Output impedance:	100 Ω or less
	Reference output level:	−10 dBV (normal output level)
		−40 dBu (mic output level)
		1 kHz, 10 kΩ load
	Maximum output level:	+10 dBV (normal output level)
HEADPHONE	Connector:	1/4 inch stereo (unbalanced output)
	Output impedance:	18 Ω or less
	Maximum output level:	100 mW + 100 mW (32 Ω load)
D/A dynamic range		105 dB typ. (−60dBFS input, A-weighted)

RECORDING MEDIA

	Dual SD card slots:	SDHC cards: 4 GB – 32 GB
		SDXC cards: 64 GB – 1 TB

RECORDING FORMATS

When WAV selected	Supported formats:	44.1, 47.952, 48, 48.048, 88.2, 96 and 192 kHz
		16-bit linear, 24-bit linear and 32-bit float
		Mono/stereo/2-10 ch poly
		BWF and iXML
	Maximum simultaneous recording tracks:	10 (8 inputs + stereo mix)
		8 (at 192 kHz sampling rate)
When MP3 selected	Supported formats:	128, 192 and 320 kbps
		44.1 and 48 kHz
		ID3v1 tags
	Maximum simultaneous recording tracks:	2

RECORDING TIME

	Using a 32GB card:	23:08:00 (48 kHz/32-bit float stereo WAV)
		5:47:00 (192 kHz/32-bit float stereo WAV)

TIMECODE

	Connector:	BNC
	Modes:	Off, Int Free Run, Int Record Run, Int RTC Run, Ext and Ext Auto Rec (audio clock can be synchronized to timecode)
	Frame rates:	23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND and 30D
	Precision:	±0.2 ppm
	Supported input levels:	0.2 - 5.0 Vpp
	Input impedance:	4.6 kΩ
	Output level:	3.3 Vpp
	Output impedance:	50 Ω or less

POWER SUPPLIES

	AA batteries:	8 (alkaline, nickel-metal hydride or lithium)
	AC adapter:	ZOOM AD-19, DC 12 V/2 A, center plus
	External DC power supply:	HIROSE HR10A-7R-4S 4-pin connector (1 pin: -, 4 pin: +), 9–18 V

ESTIMATED CONTINUOUS RECORDING TIMES:

• These values are only estimates.	2 channels to SD 1 48kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT OFF, TIMECODE OFF, LED/LCD brightness 5, 32Ω headphones, PHANTOM OFF	Alkaline batteries: about 7 hours
• These values are based on in-house testing methods.		NiMH batteries (2500 mAh): about 8 hours
• They will vary greatly according to use conditions.		Lithium batteries: about 13.5 hours
	8 channels to SD 1 48kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT OFF, TIMECODE OFF, LED/LCD brightness 5, 32Ω headphones, PHANTOM OFF	Alkaline batteries: about 4.5 hours
		NiMH batteries (2500 mAh): about 6 hours
		Lithium batteries: about 9.5 hours
	8 channels to SD 1/2 192kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT ON, TIMECODE Int Free Run, LED/LCD brightness 60, 32Ω headphones, PHANTOM 48 V	Alkaline batteries: about 0.5 hours
		NiMH batteries (2500 mAh): about 1 hour
		Lithium batteries: about 2 hours

DISPLAY

2.4 inch full-color LCD (320 × 240)

USB

	Connector:	Mini-B
		• Use a USB cable that supports data transfer.
		• USB bus power operation is not supported.
Mass Storage Operation	Class:	USB 2.0 High Speed
Multi Track audio interface mode operation (driver required for Windows, not required for Mac)	Class:	USB 2.0 High Speed
	Specifications:	Sampling rate: 44.1/48/88.2/96 kHz
		Bit depth: 24-bit linear/32-bit float
		8-in/4-out
Stereo Mix audio interface mode operation (no driver required) • Supports audio interface operation with iOS/iPadOS devices	Class:	USB 2.0 Full Speed
	Specifications:	Sampling rate: 44.1/48 kHz
		Bit depth: 16-bit linear
		2-in/2-out
Audio interface operation with recording (driver required for Windows, not required for Mac)	Class:	USB 2.0 High Speed
	Specifications:	Sampling rate: 44.1/48 kHz
		Bit depth: 24-bit linear/32-bit float
		10-in/4-out

Power consumption:		15 W
External dimensions:		7.0 in. (W) × 5.5 in. (D) × 2.1 in. (H)
Weight: (including batteries)		1200 g
Note: 0 dBu = 0.775 Vrms

F8n Pro Field Recorder
Zoom AD-19 12V AC adapter
Operation manual
