Zoom H5 Handy Recorder

The H5. Versatile Productivity.

Four tracks of simultaneous recording and interchangeable mic capsules make the H5 flexible and powerful enough to meet the evolving needs of today’s creators.

Louder.

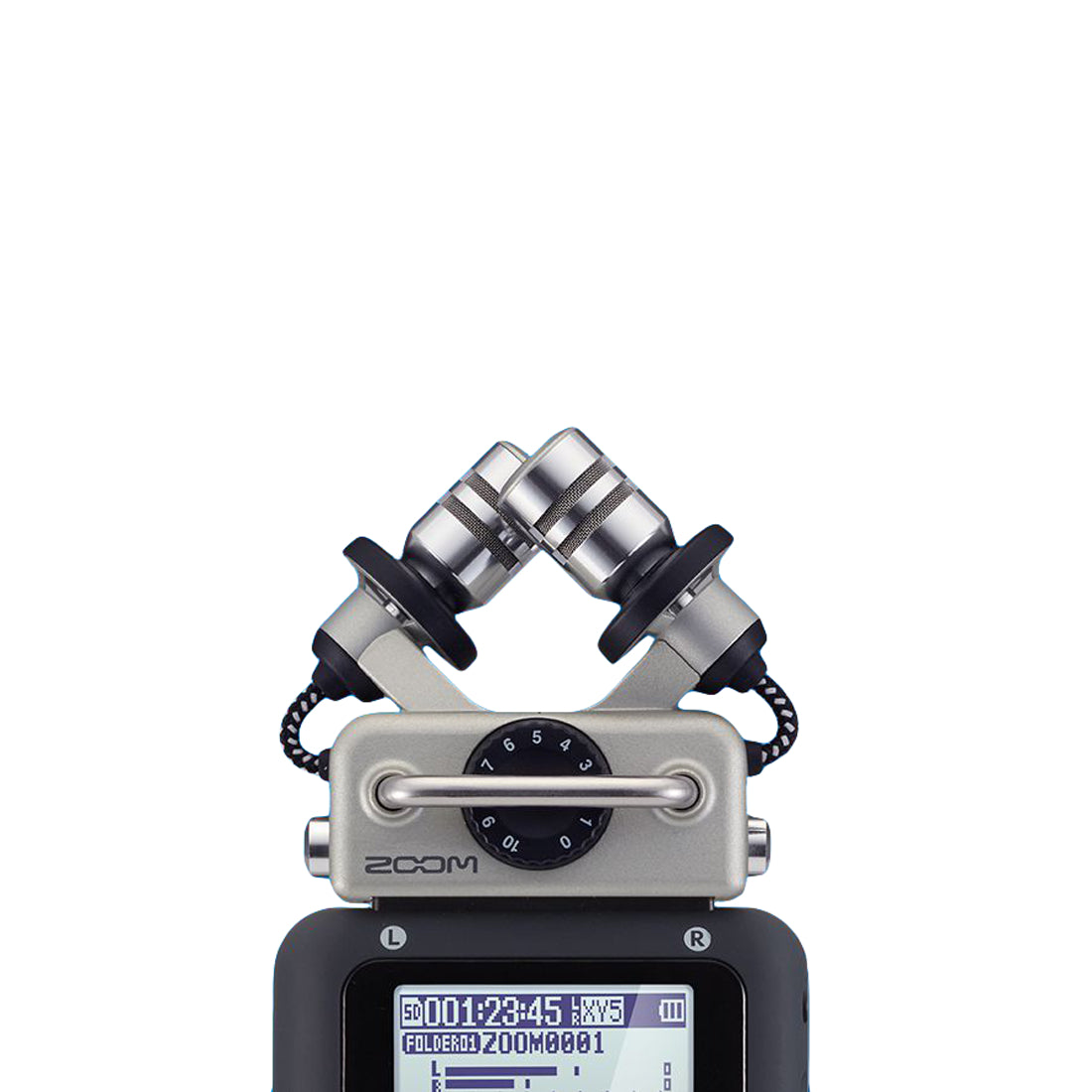

The design of the XYH-5 mic capsule allows the H5 to handle up to 140 dB SPL — equivalent to the sound of a jet aircraft from less than 200 feet away! And to keep your levels under control, the H5 offers compression and limiting.

Cleaner.

The H5’s rubberized housing and shock-mounted microphones minimize vibration and handling noise, while a low-cut filter helps eliminate wind noise and other kinds of low frequency rumble.

Clearer.

The H5 utilizes the same high-quality, low-noise preamps as our flagship H6, ensuring great-sounding recordings in all sonic environments.

Inputs & Outputs

Ins

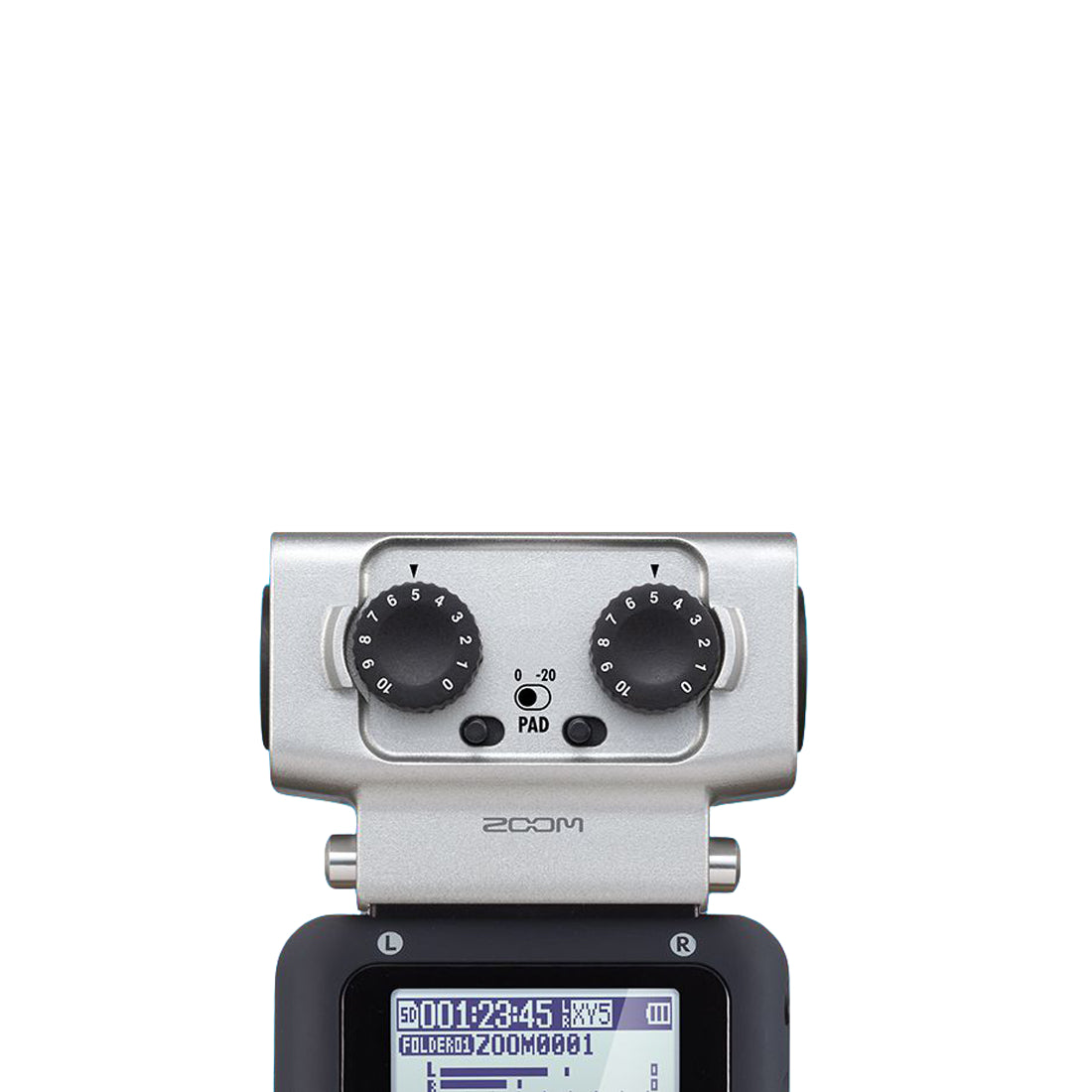

The H5’s XLR/TRS combo inputs can handle both mic- and line-level signals for microphones, wireless receivers, mixers, keyboards and more. Each input has a dedicated gain control knob. The supplied XYH-5 capsule also provides an additional mic/line input via a ⅛" mini phone jack.

Outs

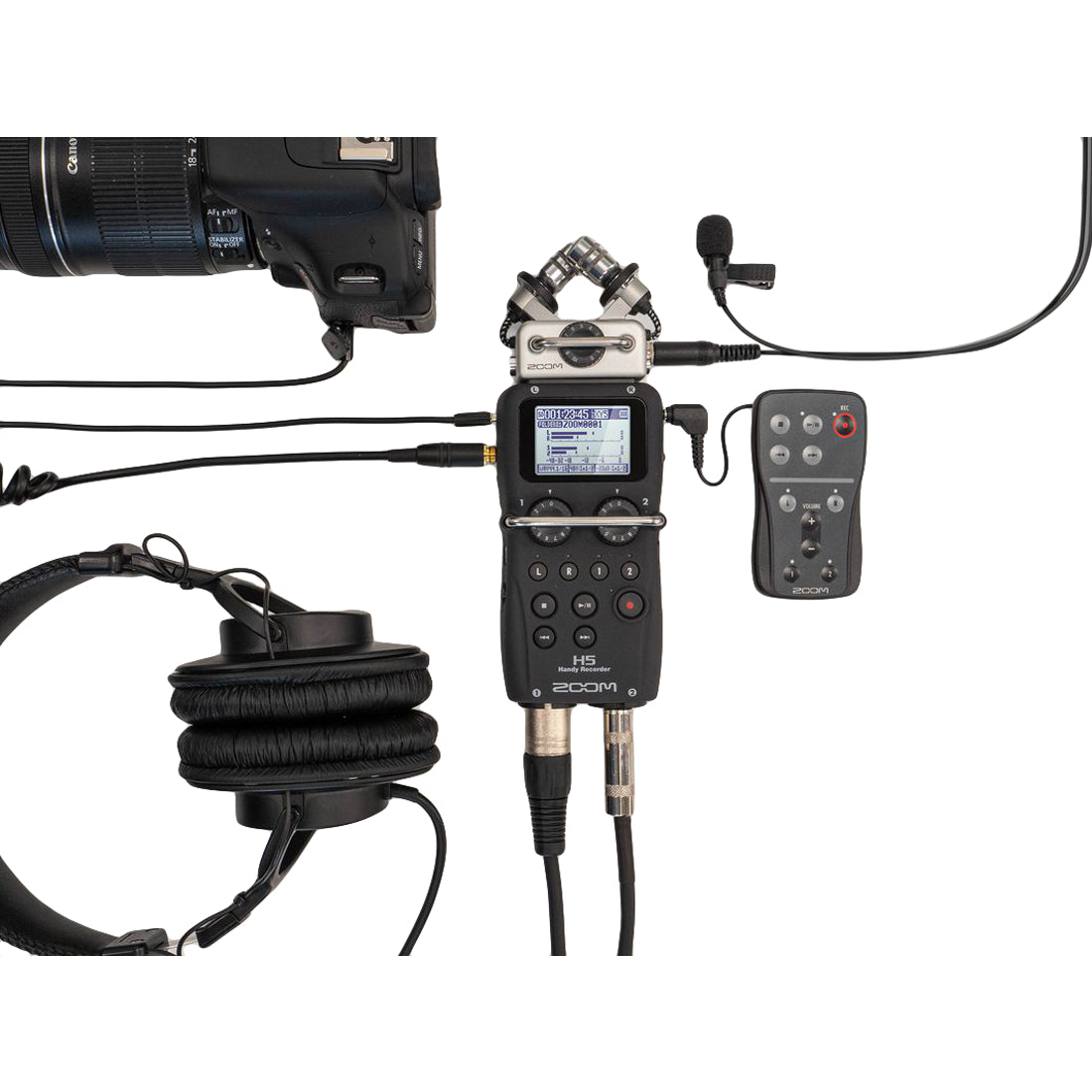

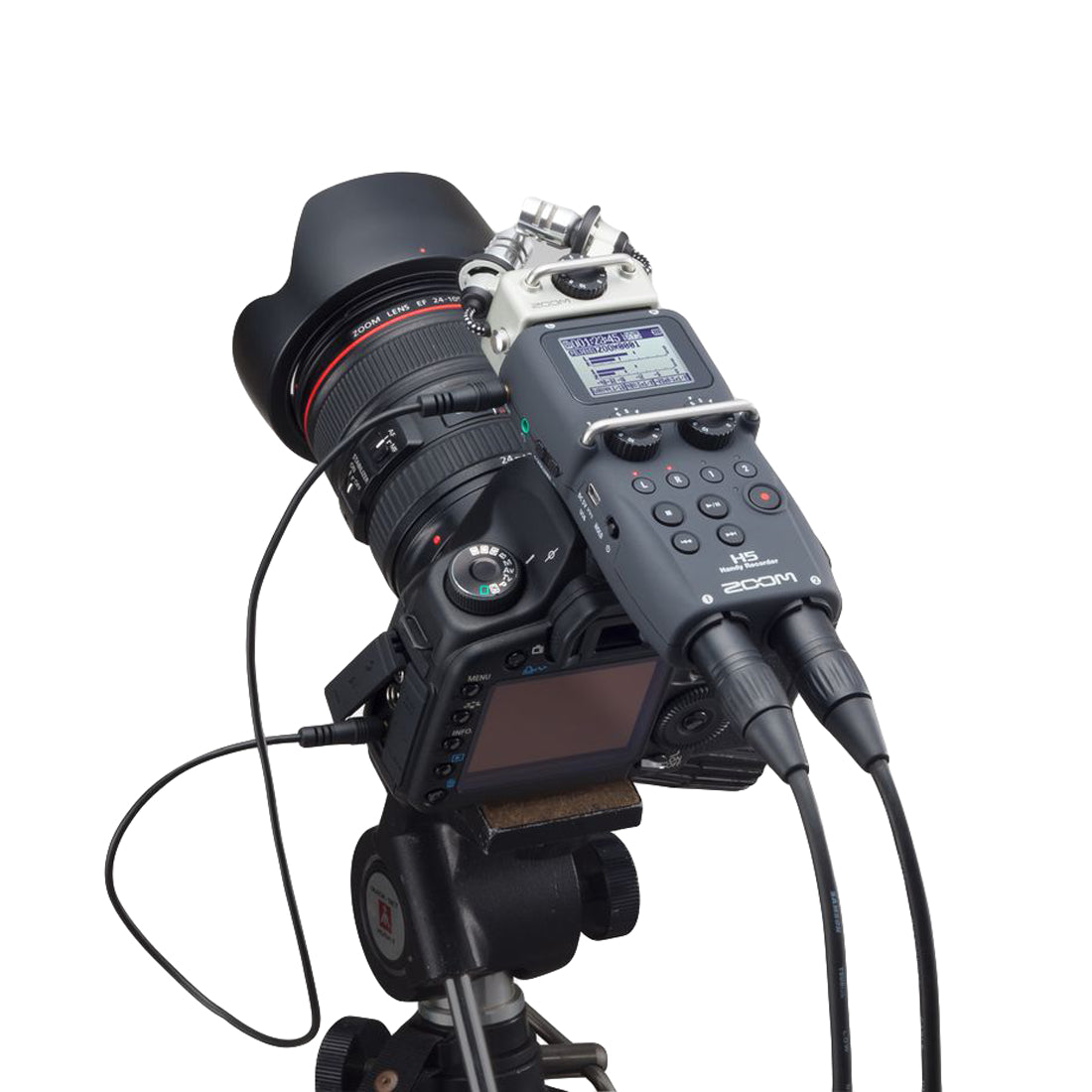

A Line Out with adjustable volume allows you to send audio from the H5 to the input of a camera or other device without the need for an attenuator cable. In addition, there's a separate headphone output with a dedicated volume control. You can use both outputs simultaneously to route audio to your DSLR while monitoring with headphones.

Recording Times & File Formats

Record continuously for about 10 hours with just 2 AA batteries or extend your recording time indefinitely with the optional AD-17 AC adapter.

The H5 can record up to six monophonic WAV files (or up to three stereo files) in any of the following formats:
