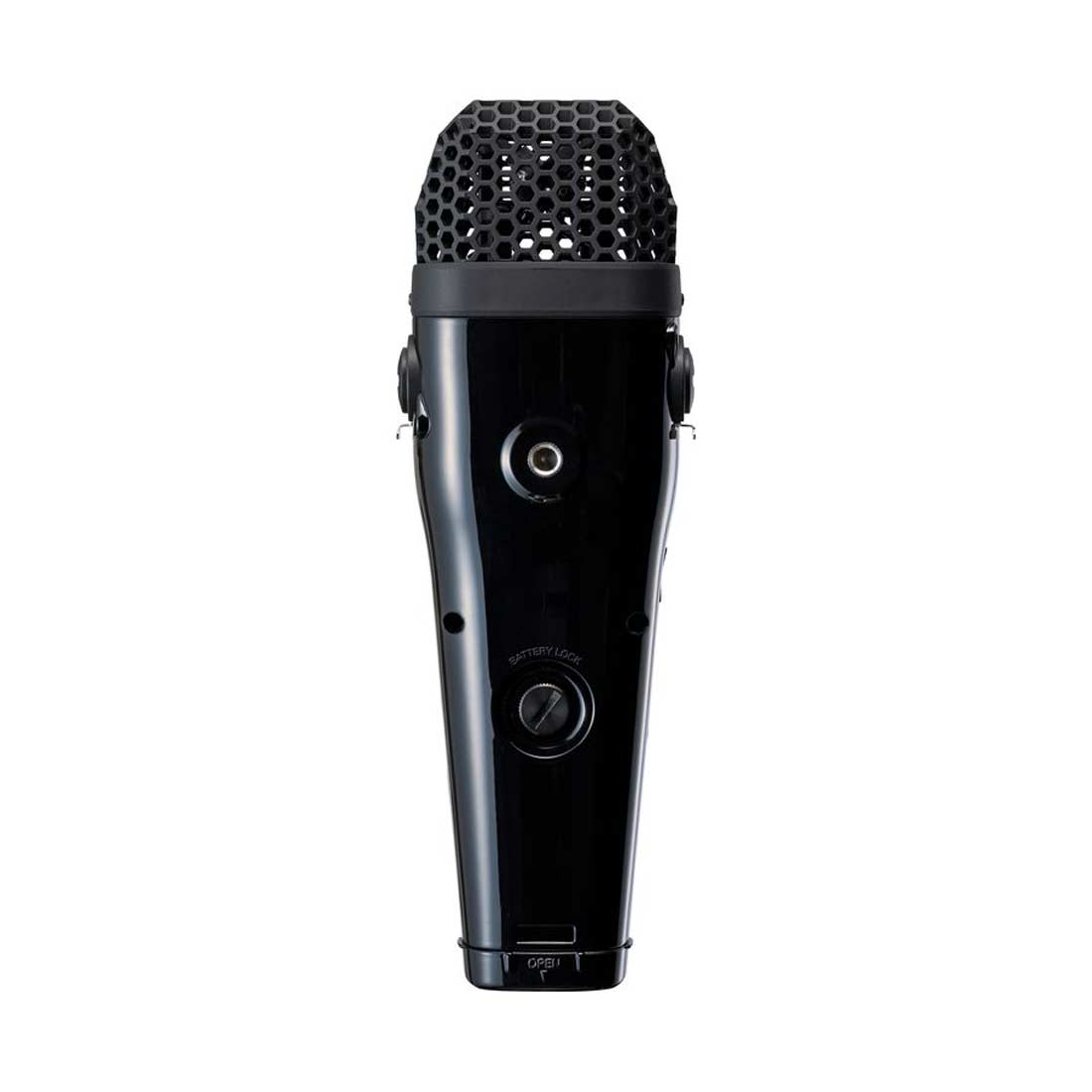

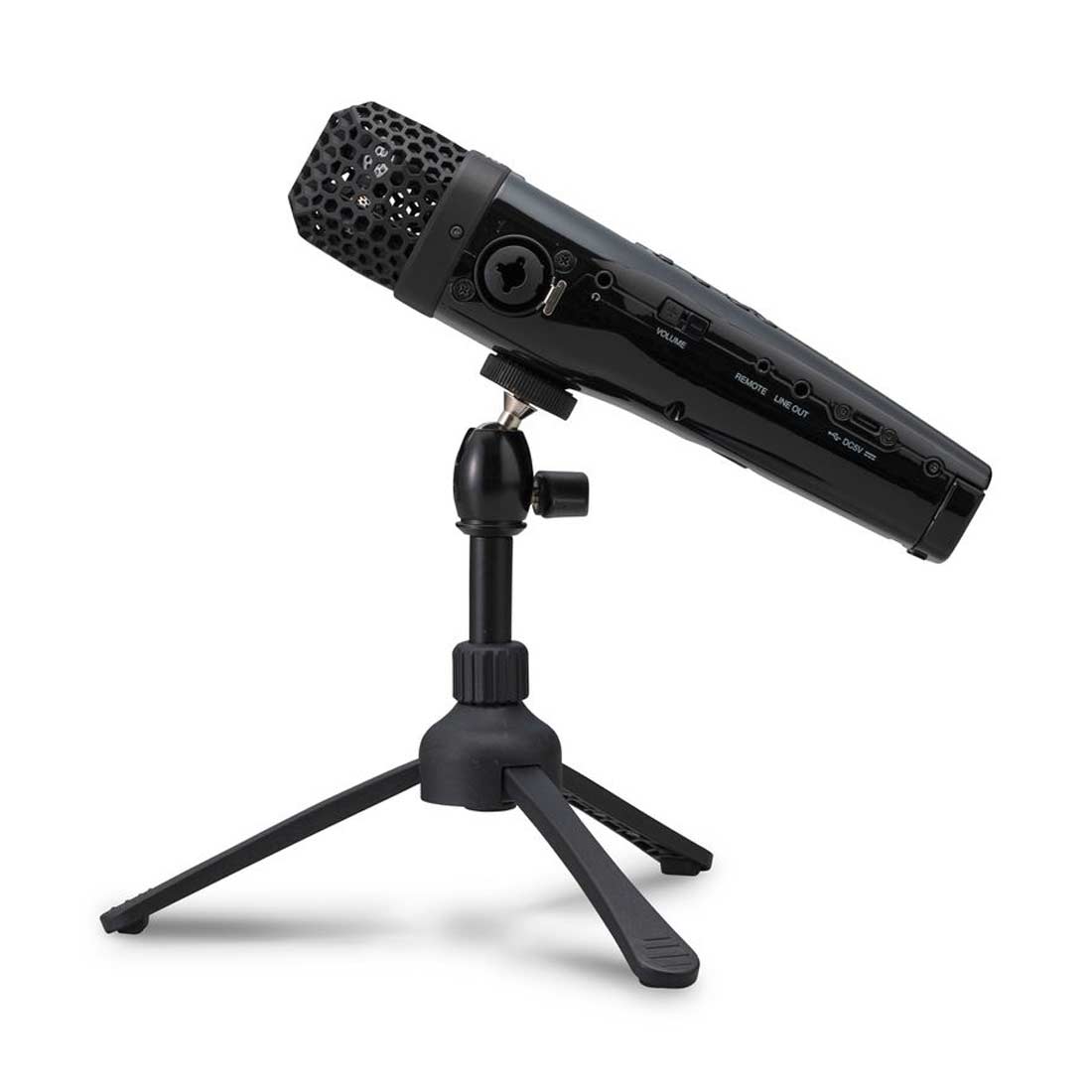

    Zoom M4 MicTrak 4-Channel 32-Bit Recorder with Timecode Generator

    Regular price $699.00
    Low stock

    SKU: FXRM04

    Perfect Tracks.
    In One Take.

    The M4 MicTrak is the first portable recorder equipped with 32-bit float recording and built-in timecode generator, giving filmmakers and musicians everything they need to capture outstanding audio.

    Clip-Free Audio

    When you’re on-set you can’t afford to come away with clipped or faint audio. The M4 records in 32-bit float, allowing you to capture perfect audio in any situation without the need to set gain.

    Rolling... And... Action!

    Filmmakers can use the two XLR inputs for dialogue, while using the X/Y mics to record ambience. In post, your recordings can easily be synced to video, thanks to the M4’s onboard timecode generator.

    Make Great Sounding Music Videos

    Combine audio captured by the on-board X/Y mics with two additional external microphones to give your videos studio-quality sound in any environment.

    WAV Watching

    Keep an eye on all four tracks of your recording using the M4’s color LCD with a real-time waveform display.

    Super-Low Handling Noise

    The M4 was engineered to be the quietest handheld recorder ever. Its unique X/Y mics and glossy finish significantly reduces handling noise, ensuring clean, clear audio, everytime.

    Timecode Onboard

    Serious videographers use timecode to keep their audio and video perfectly in sync. The M4’s built-in timecode generator has professional grade .2 ppm accuracy.

    High-Performance Inputs

    The M4 has two XLR/TRS inputs that feature the same professional grade, low-noise preamps found in our flagship F-Series recorders.

    Perfect Outputs

    Connect the line output to your camera to record a backup or sync track to your video. Monitor your recording using the built-in headphone output.

    One-Step Normalization

    Save time in post production by using the on board NORMALIZE function to automatically raise or lower the volume of your recording to the optimal level without compressing the audio.

    Monitoring Capability

    Use the headphone output to monitor your recording or use the built in speaker for quick reference playback.

    Six Seconds Of Safety

    The PRERECORD function captures and saves six seconds of audio before you hit RECORD - perfect for unexpected starts.

    Record All Day

    With 19 hours of battery life, the M4 is ready to record whenever you need it.

    RC4 Remote Control

    Control your M4 from up to 5 meters away with the Zoom RC4 (sold separately).

    32-Bit Float Audio Interface

    The M4 can be used as a 32-bit float, 4-in/2-out audio interface.

    • 4-Track 32-bit float recorder
    • Newly designed stereo X/Y microphones provide unmatched frequency response and clarity
    • Body construction, and specialized finish to reduce handling noise
    • 2 XLR/TRS inputs with F-Series preamps
    • Color LCD Screen with waveform display
    • Timecode Generator with 3.5mm in/out
    • Onboard Normalization function
    • 3.5mm headphone output plus 3.5mm stereo line output for camera connection
    • USB Interface compatible with PC, Mac, iOS, and Android (48 kHz at 24 or 32-bit Float**)
    • Use as an audio interface and record to SD card simultaneously
    • Runs on 4 AA batteries* (18 hour battery life)

    Inputs

    CHANNELS 2 (BUILT IN XY MIC) + 2(XLR/TRS INPUTS)
    MIC INPUT MIC TYPE: Unidirectional
    SENSITIVITY: -42 dB, 1 kHz at 1 Pa
    INPUT GAIN: Adjustment unnecessary (dual AD converter circuits used)
    MAX SOUND PRESSURE INPUT: 135 dB SPL
    EXT MIC INPUT CONNECTORS: 1/8" stereo mini jack
    INPUT GAIN: Adjustment unnecessary (dual AD converter circuits used)
    INPUT IMPEDANCE: 2 kΩ or more
    XLR/TRS INPUTS CONNECTORS: XLR (2:HOT)/TRS combo jacks
    INPUT GAIN: Adjustment unnecessary (dual AD converter circuits used)
    INPUT IMPEDANCE: MIC: 3 kΩ or more LINE: 3 kΩ or more
    MAXIMUM INPUT LEVEL: MIC: +4 dBu LINE: +24 dBu
    PHANTOM POWER: +24/+48V 10mA maximum for each channel
    EQUIVALEN INPUT NOISE: −127 dBu or less (IHF-A)

    Outputs

    LINE OUT CONNECTOR: 1/8" stereo mini jack
    MAXIMUM OUTPUT LEVEL: +1 dBu
    HEADPHONE CONNECTOR: 1/8" stereo mini jack
    MAXIMUM OUTPUT LEVEL: 20 mW +20 mW(32 Ω load)
    BUILT-IN SPEAKER 500mW/8Ω mono speaker

    Recording

    RECORDING MEDIA 4GB–32GB microSDHC cards 64GB–1TB microSDXC cards
    WAV SUPPORTED FORMATS: -44.1/47.952/48/48.048/96/192kHz -32-bit float -mono/stereo -BWF and iXML
    MAXIMUM SIMULTANEOUS RECORDING TRACKS: 4 (2 BUILT IN XY MIC + 2 XLR/TRS INPUTS)

    Timecode

    CONNECTOR 1/8" stereo mini jack (Tip: IN, Ring: OUT)
    MODES Off Int Free Run, Int Record Run, Int RTC Run Ext
    FRAME RATES 23.976ND 24ND 25ND 29.97ND 29.97D 30ND 30D
    PRECISION ±0.2 ppm
    SUPPORTED INPUT LEVELS 0.2 – 5.0 Vpp
    INPUT IMPEDANCE 4.6 kΩ
    OUTPUT LEVEL 3.3 Vpp
    OUTPUT IMPEDANCE 50 Ω or less

    Power Supplies

    BATTERIES 4 AA
    AC ADAPTER ZOOM AD-17 (DC 5 V/1 A) • USB bus power is supported.

    DISPLAY

    LCD 1.54" full color (240 × 240)

    Remote

    INPUT RC2/RC4/RCH-5/RCH-6

    USB

    CONNECTOR USB Type-C
    MASS STORAGE CLASS: USB 2.0 High Speed
    AUDIO INTERFACE WITH REC CLASS: USB 2.0 High Speed
    SAMPLING RATE: 48kHz
    BIT RATE: 24-bit/32-bit float
    CHANNELS: 4 in/2 out

    Estimated Continuous Operation Time Using Batteries

    48 kHz/32-bit float, 2ch recording to microSDHC card Alkaline batteries: about 18 hours

    Included

    Quick Guide
    Windscreen

    M4 MicTrak Recorder
    Windscreen
    Quick Tour
